Product Overview and Engineering Introduction

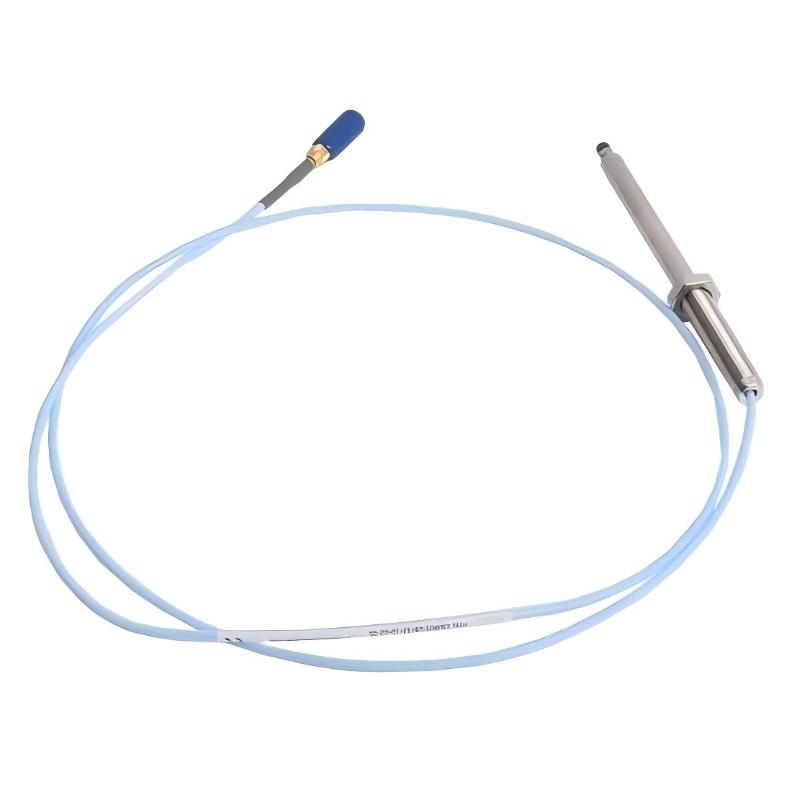

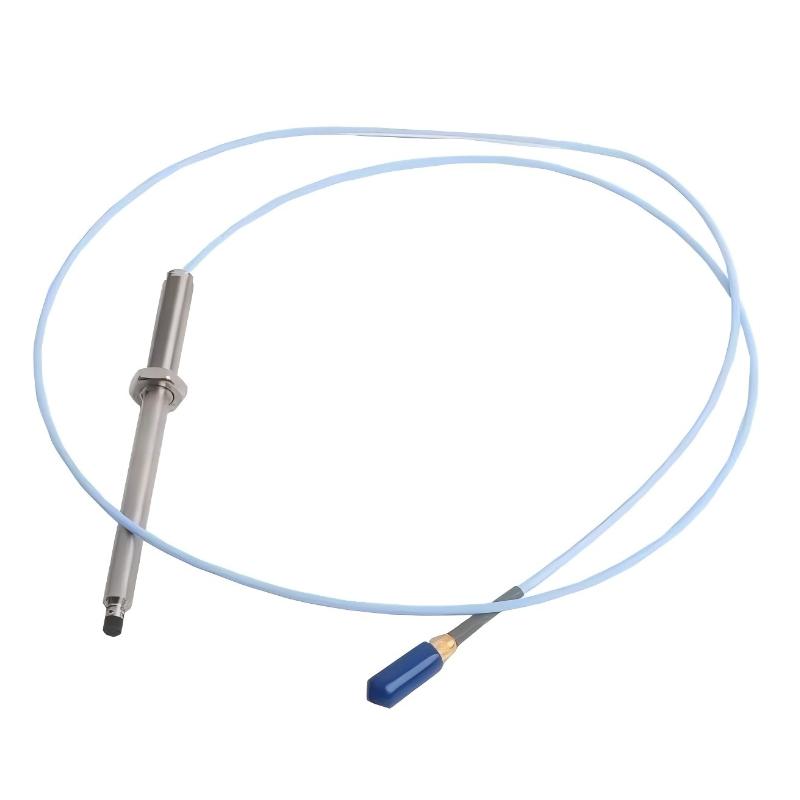

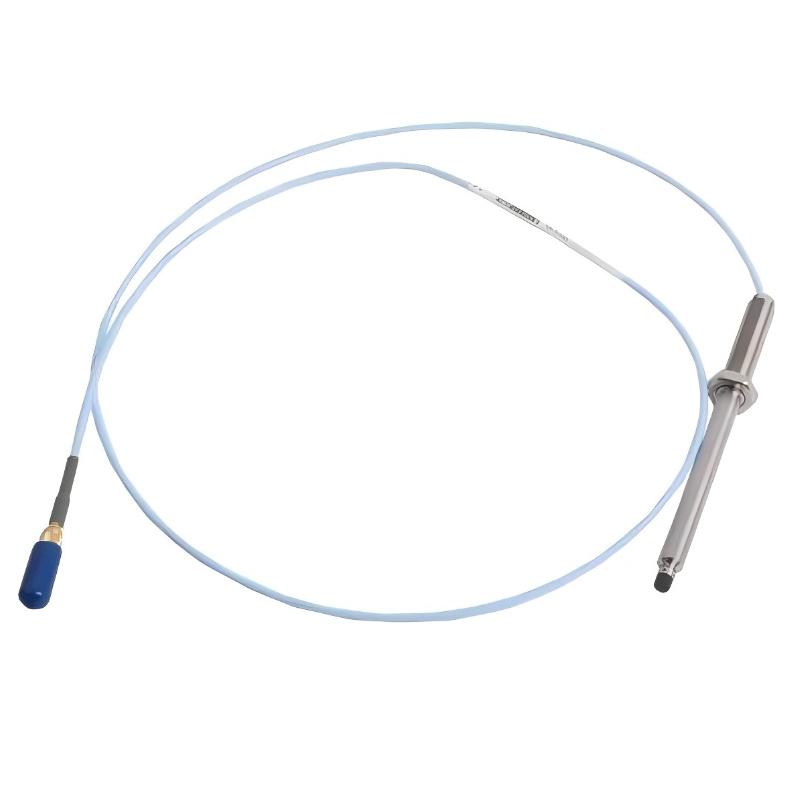

The Bently Nevada 330905-00-09-05-05-02-05 3300 NSv Proximity Probe is a precision-engineered monitoring component developed for reliable rotating machinery condition analysis. Combining compact mechanical construction with advanced eddy current sensing technology, it provides accurate shaft vibration and displacement measurement in demanding industrial environments.

The 3300 NSv series is designed for applications requiring dependable performance, installation flexibility, and continuous equipment monitoring. Its 0.5-meter total length configuration allows easy integration into compact machinery layouts while maintaining consistent measurement capability.

Built to support modern predictive maintenance requirements, the 330905-00-09-05-05-02-05 helps improve diagnostic accuracy, reduce unexpected equipment failures, and maintain efficient operation of critical rotating assets.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330905-00-09-05-05-02-05
Product Series	3300 NSv
Module Type	Metric Proximity Probe
Sensor Technology	Eddy Current Proximity Sensing
Probe Type	NSv Compact Proximity Probe
Total Length	0.5 meters
Measurement Function	Shaft Vibration and Position Monitoring
Application	Rotating Machinery Condition Monitoring
Compatible System	Bently Nevada 3300 NSv Monitoring System
Installation Method	Non-Contact Probe Mounting
Cable Configuration	Integrated 0.5-Meter Cable
Dimensions	Approx. 8 mm probe diameter × 500 mm total length
Weight	0.15 kg (0.33 lb)

Recommended Related Models

Model	Description
Bently Nevada 330905-00-09-05-02-05	3300 NSv Metric Proximity Probe for compact applications
Bently Nevada 330905-00-08-05-02-CN	3300 NSv Metric Proximity Probe with short-length configuration
Bently Nevada 330904-05-14-05-02-05	3300 NSv Metric Proximity Probe for industrial monitoring
Bently Nevada 330180-50-00	Extension Cable for Bently Nevada proximity probe systems

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for machinery monitoring rack systems
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications in High-Precision Rotating Machinery Monitoring

The Bently Nevada 330905-00-09-05-05-02-05 3300 NSv Proximity Probe is designed for precise shaft vibration and displacement measurement in industrial rotating machinery where accurate monitoring, compact installation, and reliable long-term performance are required. As part of the 3300 NSv proximity probe family, this metric sensor provides dependable non-contact measurement for machinery protection, condition monitoring, and predictive maintenance systems.

This proximity probe is suitable for critical rotating equipment such as turbines, compressors, pumps, motors, and industrial drive systems requiring continuous shaft position monitoring. The 0.5-meter total length configuration provides an efficient installation solution for applications with limited mounting space while maintaining stable signal quality and measurement accuracy.

With advanced eddy current sensing technology, the Bently Nevada 330905-00-09-05-05-02-05 delivers consistent shaft vibration and displacement feedback, helping operators improve machine diagnostics, identify early mechanical changes, and enhance the operational reliability of essential industrial assets.

Product Features and Performance Advantages

Feature	Description
3300 NSv Proximity Probe Technology	Provides accurate shaft vibration and displacement monitoring
Metric Sensor Configuration	Designed for industrial applications requiring metric installation compatibility
Compact 0.5-Meter Length	Suitable for short-distance and space-limited machinery installations
Non-Contact Measurement System	Enables continuous monitoring without direct shaft contact
Eddy Current Sensing Technology	Provides stable and repeatable displacement measurement
Predictive Maintenance Support	Helps improve equipment reliability and maintenance efficiency

Technical FAQs

1. What is the primary function of the Bently Nevada 330905-00-09-05-05-02-05?
It is used for shaft vibration and displacement measurement in industrial rotating machinery monitoring systems.

2. How does this 3300 NSv proximity probe measure shaft position?
It uses eddy current sensing technology to detect changes in the distance between the probe tip and the rotating shaft.

3. Why is the 0.5-meter total length configuration useful?
It provides a compact solution for installations where the sensor is positioned close to the monitoring equipment.

4. What types of equipment can this proximity probe monitor?
It is commonly applied to turbines, compressors, pumps, motors, and other critical rotating machinery.

5. Does the sensor require physical contact with the rotating shaft?
No. It operates using non-contact electromagnetic sensing technology.

6. What type of data does this probe provide?
It provides shaft vibration and relative position signals for compatible monitoring systems.

7. How does this probe support machinery protection?
It enables continuous monitoring of shaft behavior to help detect abnormal operating conditions.

8. What factors influence proximity probe accuracy?
Installation position, probe gap adjustment, calibration, shaft surface condition, and system configuration affect measurement accuracy.

9. Is this probe suitable for permanent industrial installation?
Yes. It is designed for continuous operation in machinery monitoring applications.

10. What benefits does eddy current technology provide?
It offers accurate, repeatable, and fast-response measurement without mechanical contact or wear.
