Product Introduction and Engineering Overview

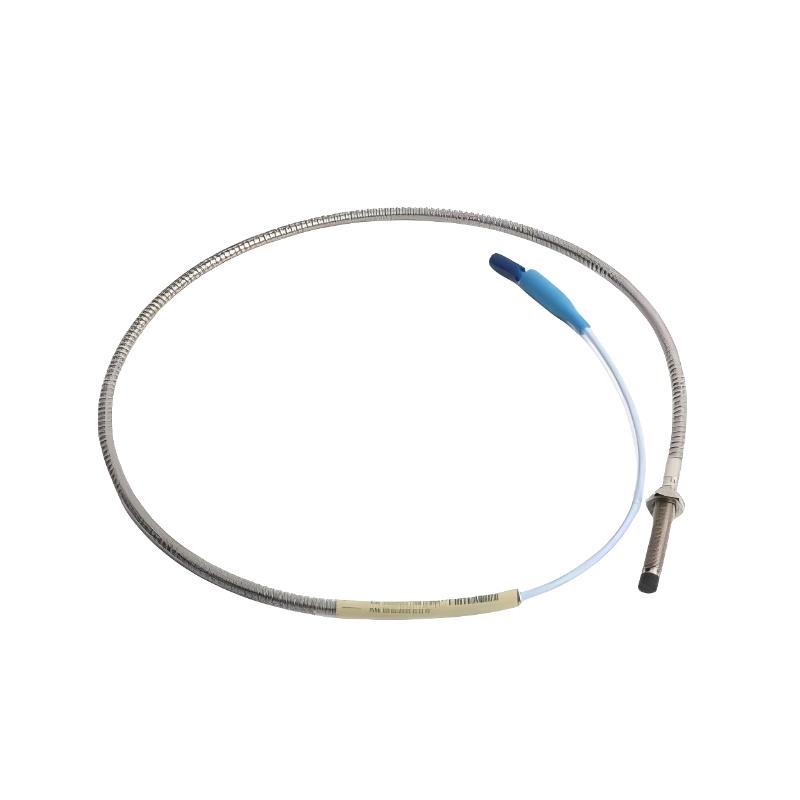

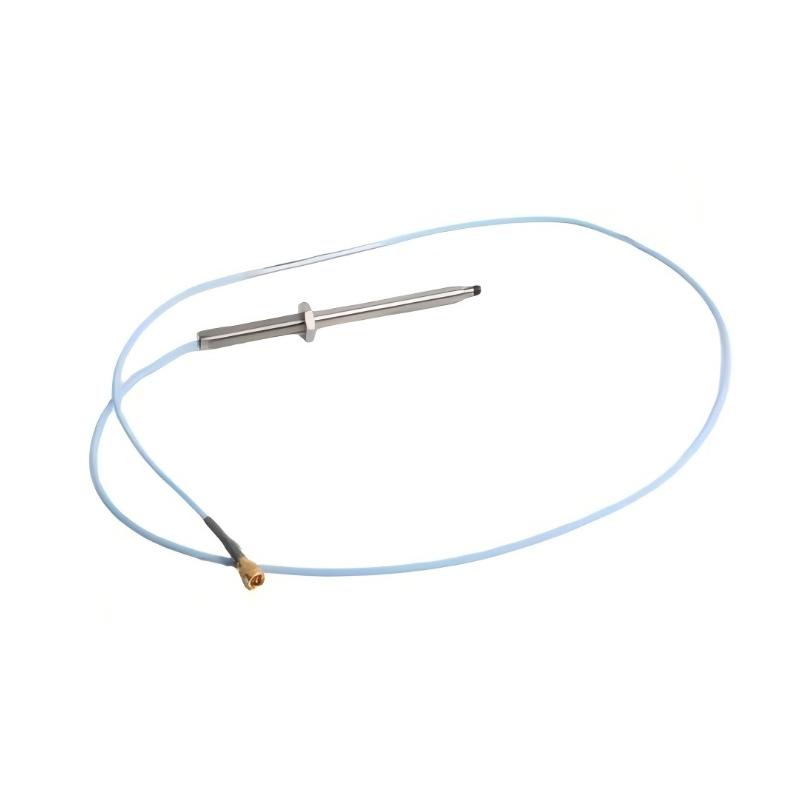

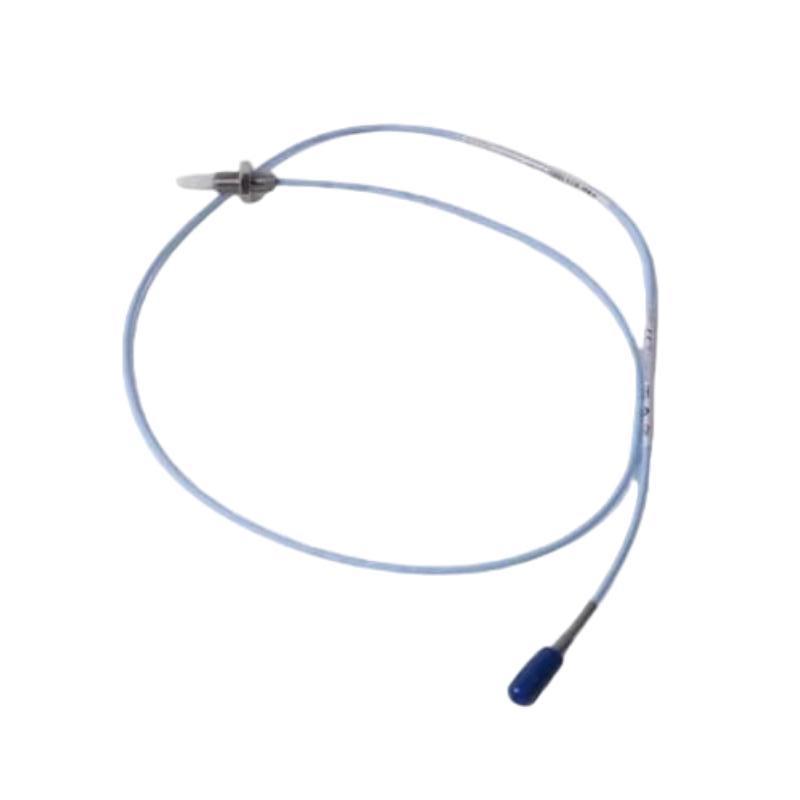

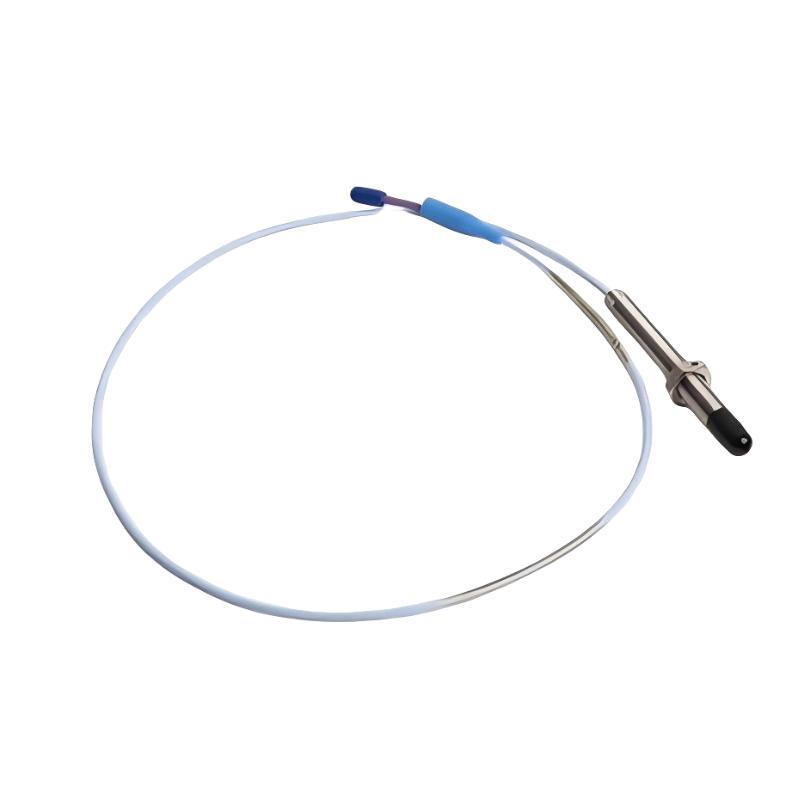

The Bently Nevada 330905-00-10-05-02-05 3300 NSv Proximity Probe is a precision-engineered sensor developed for dependable rotating machinery monitoring. It combines compact mechanical construction with advanced eddy current technology to provide accurate shaft vibration and displacement measurement.

The 3300 NSv series is designed for industrial applications where measurement stability, installation flexibility, and long-term reliability are essential. The 0.5-meter total length configuration makes it an ideal choice for compact machinery layouts while maintaining consistent monitoring performance.

Built for demanding operating environments, the 330905-00-10-05-02-05 supports improved equipment diagnostics, efficient maintenance planning, and reliable operation of critical rotating assets.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330905-00-10-05-02-05
Product Series	3300 NSv
Module Type	Metric Proximity Probe
Sensor Technology	Eddy Current Proximity Sensing
Probe Type	NSv Compact Proximity Probe
Total Length	0.5 meters
Measurement Function	Shaft Vibration and Position Monitoring
Application	Rotating Machinery Condition Monitoring
Compatible System	Bently Nevada 3300 NSv Monitoring System
Installation Method	Non-Contact Probe Mounting
Cable Configuration	Integrated 0.5-Meter Cable
Dimensions	Approx. 8 mm probe diameter × 500 mm total length
Weight	0.15 kg (0.33 lb)

Recommended Related Models

Model	Description
Bently Nevada 330905-00-10-05-02-00	3300 NSv Metric Proximity Probe for standard compact applications
Bently Nevada 330905-00-08-05-02-05	3300 NSv Metric Proximity Probe for precision monitoring
Bently Nevada 330904-05-14-05-02-05	3300 NSv Metric Proximity Probe for rotating machinery systems
Bently Nevada 330180-50-00	Extension Cable for Bently Nevada proximity probe installations

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for machinery monitoring rack systems
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications in Compact Rotating Equipment Monitoring

The Bently Nevada 330905-00-10-05-02-05 3300 NSv Proximity Probe is engineered for precise shaft vibration and displacement measurement in industrial rotating machinery where reliable sensing, compact installation, and continuous monitoring are required. As part of the 3300 NSv proximity probe family, this metric sensor provides accurate non-contact measurement for machinery protection, condition monitoring, and predictive maintenance applications.

This proximity probe is suitable for critical rotating equipment including turbines, compressors, pumps, motors, and auxiliary machinery requiring dependable shaft position feedback. The 0.5-meter total length configuration provides an effective solution for applications with limited installation distance while maintaining stable measurement accuracy and consistent signal performance.

Utilizing advanced eddy current sensing technology, the Bently Nevada 330905-00-10-05-02-05 delivers reliable vibration and displacement data, helping maintenance teams improve machine diagnostics, identify abnormal operating conditions, and enhance the availability of important industrial assets.

Technical Features and Operational Advantages

Feature	Description
3300 NSv Proximity Probe Series	Provides accurate shaft vibration and displacement monitoring
Metric Sensor Configuration	Designed for industrial applications requiring metric installation standards
Compact 0.5-Meter Total Length	Supports short-distance and space-limited machinery installations
Non-Contact Measurement Technology	Enables continuous operation without physical shaft contact
Eddy Current Sensing Principle	Delivers stable and repeatable displacement measurement
Predictive Maintenance Support	Helps improve equipment diagnostics and operational reliability

Technical FAQs

1. What is the main function of the Bently Nevada 330905-00-10-05-02-05?
It is designed to measure shaft vibration and displacement in rotating machinery monitoring systems.

2. How does this 3300 NSv proximity probe detect shaft movement?
It uses eddy current sensing technology to measure changes in the distance between the probe tip and the rotating shaft.

3. Why is the 0.5-meter length configuration useful?
It provides a compact installation solution for machinery where the sensor is positioned close to the monitoring system.

4. What types of equipment can use this proximity probe?
It is commonly installed on turbines, compressors, pumps, motors, and other industrial rotating machinery.

5. Does the probe require physical contact with the shaft?
No. It operates using non-contact electromagnetic measurement technology.

6. What information does the probe provide to monitoring systems?
It provides shaft vibration and relative position measurement signals for compatible monitoring equipment.

7. How does this sensor support predictive maintenance?
It enables continuous monitoring of shaft behavior to help identify developing mechanical problems.

8. What factors influence proximity probe measurement accuracy?
Installation alignment, probe gap setting, calibration, shaft surface condition, and system configuration affect accuracy.

9. Is this probe suitable for continuous industrial applications?
Yes. It is designed for permanent installation in machinery condition monitoring systems.

10. What advantages does eddy current sensing provide?
It delivers accurate, fast-response, and repeatable measurement without mechanical contact or wear.
