Product Introduction and Engineering Overview

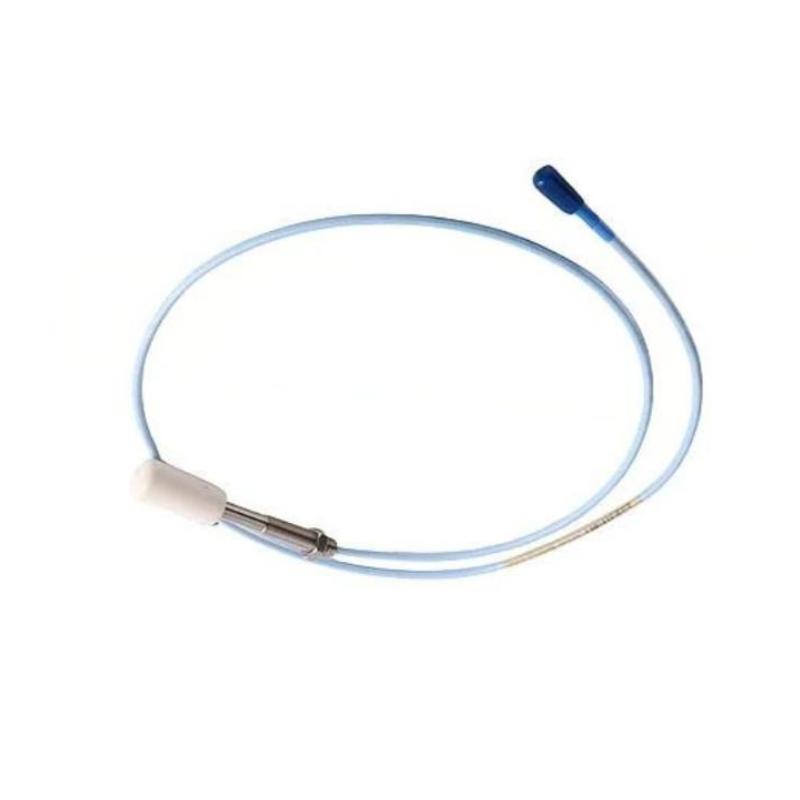

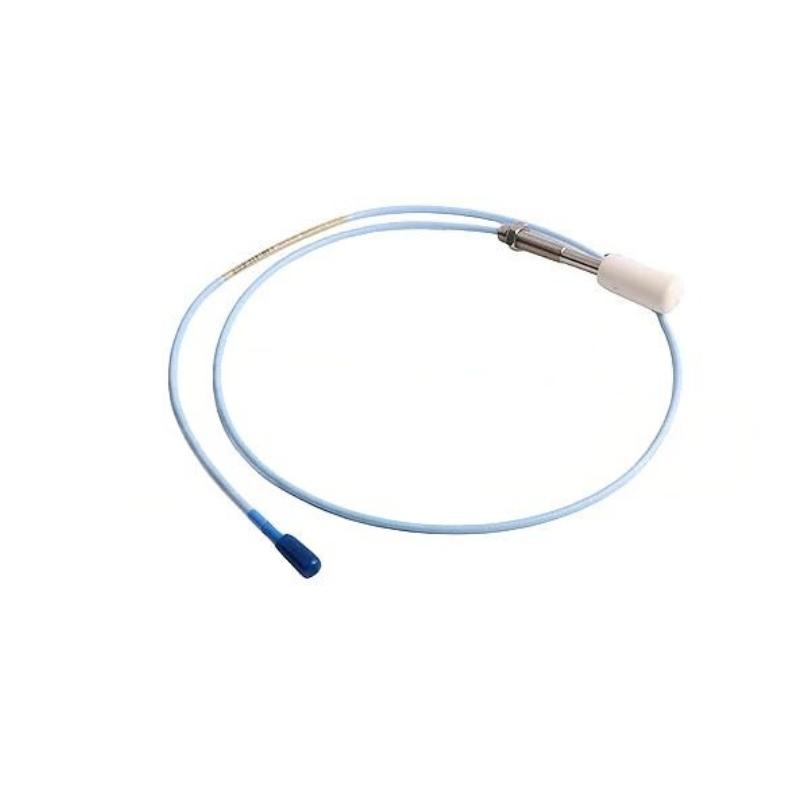

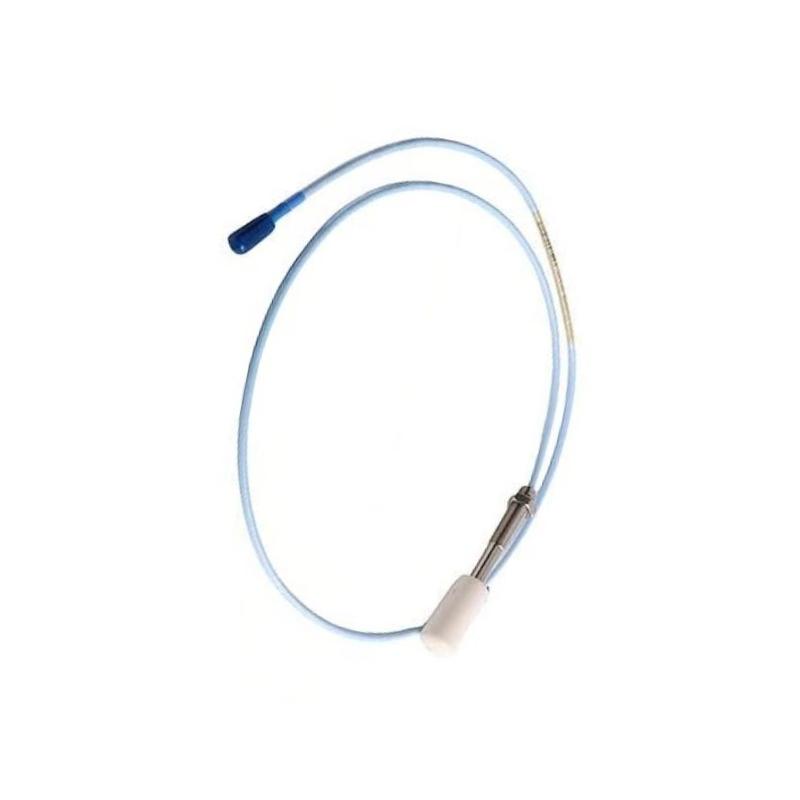

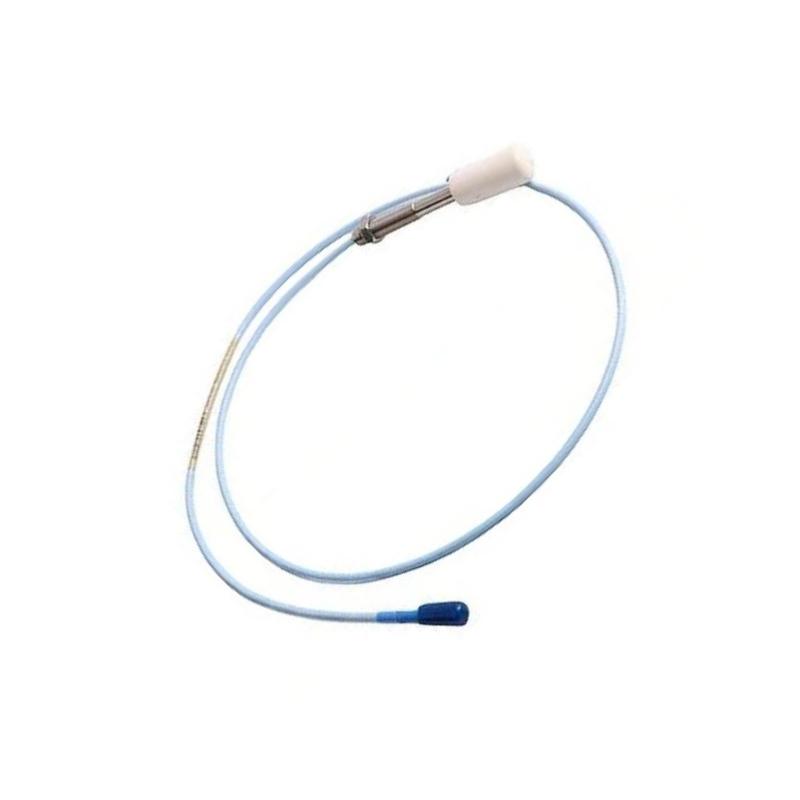

The Bently Nevada 330905-00-10-10-02-CN 3300 NSv Proximity Probe is a precision-engineered sensing solution developed for reliable rotating machinery monitoring. It combines compact sensor design with advanced eddy current technology to provide accurate shaft vibration and displacement measurement in demanding industrial environments.

The 3300 NSv series is built for applications where measurement stability, installation flexibility, and long-term performance are critical. Its 1-meter total length configuration supports efficient integration into various machinery arrangements while maintaining dependable monitoring capability.

Designed for modern condition monitoring requirements, the 330905-00-10-10-02-CN helps improve machine health analysis, optimize maintenance planning, and support the reliable operation of critical rotating equipment.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330905-00-10-10-02-CN
Product Series	3300 NSv
Module Type	Metric Proximity Probe
Sensor Technology	Eddy Current Proximity Sensing
Probe Type	NSv Compact Proximity Probe
Total Length	1 meter
Measurement Function	Shaft Vibration and Position Monitoring
Application	Rotating Machinery Condition Monitoring
Compatible System	Bently Nevada 3300 NSv Monitoring System
Installation Method	Non-Contact Probe Mounting
Cable Configuration	Integrated 1-Meter Cable
Dimensions	Approx. 8 mm probe diameter × 1000 mm total length
Weight	0.15 kg (0.33 lb)

Recommended Related Models

Model	Description
Bently Nevada 330905-00-10-10-02-05	3300 NSv Metric Proximity Probe for standard monitoring applications
Bently Nevada 330905-00-10-10-02-00	3300 NSv Metric Proximity Probe for industrial machinery monitoring
Bently Nevada 330905-00-08-10-02-CN	3300 NSv Metric Proximity Probe with alternative sensing configuration
Bently Nevada 330180-50-00	Extension Cable for Bently Nevada proximity probe systems

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for machinery monitoring rack systems
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications in Industrial Rotating Equipment Protection

The Bently Nevada 330905-00-10-10-02-CN 3300 NSv Proximity Probe is designed for precise shaft vibration and displacement monitoring in industrial rotating machinery where measurement reliability, installation flexibility, and continuous operational performance are essential. As part of the 3300 NSv proximity probe series, this metric sensor provides accurate non-contact measurement for machinery protection, condition monitoring, and predictive maintenance applications.

This proximity probe is widely applied in turbines, compressors, pumps, motors, and other critical rotating equipment requiring dependable shaft position measurement. The 1-meter total length configuration provides excellent installation adaptability for machinery systems where additional sensor reach is required while maintaining stable signal quality.

Featuring advanced eddy current sensing technology, the Bently Nevada 330905-00-10-10-02-CN delivers consistent vibration and displacement measurement data, helping operators improve equipment diagnostics, reduce unexpected downtime, and enhance the reliability of valuable industrial assets.

Technical Highlights and Product Advantages

Feature	Description
3300 NSv Proximity Probe Series	Provides reliable shaft vibration and displacement monitoring
Metric Sensor Construction	Designed for industrial applications requiring metric installation compatibility
1-Meter Total Length	Provides flexible installation options for different machinery layouts
Non-Contact Detection Technology	Allows continuous measurement without physical shaft contact
Eddy Current Sensing Principle	Ensures stable and repeatable measurement performance
Machinery Condition Monitoring	Supports predictive maintenance and equipment protection strategies

Technical FAQs

1. What is the primary purpose of the Bently Nevada 330905-00-10-10-02-CN?
It is designed to measure shaft vibration and displacement in rotating machinery condition monitoring systems.

2. How does the 3300 NSv proximity probe measure shaft movement?
It uses eddy current sensing technology to detect changes in the distance between the probe tip and the rotating shaft surface.

3. Why is the 1-meter total length configuration important?
It provides additional installation flexibility for equipment where the sensor needs extended placement.

4. What types of machinery are compatible with this proximity probe?
It is commonly used with turbines, compressors, pumps, motors, and other industrial rotating equipment.

5. Does the probe contact the rotating shaft during operation?
No. It uses non-contact electromagnetic measurement technology.

6. What signals does this proximity probe provide?
It provides shaft vibration and relative position signals for compatible monitoring systems.

7. How does this probe support predictive maintenance?
It enables continuous monitoring of shaft behavior to help detect equipment condition changes early.

8. What factors affect proximity probe measurement accuracy?
Installation alignment, probe gap adjustment, calibration, shaft surface condition, and system configuration influence accuracy.

9. Is this probe suitable for permanent machinery monitoring?
Yes. It is designed for continuous operation in industrial condition monitoring systems.

10. What are the advantages of eddy current sensing technology?
It provides accurate, stable, and repeatable measurement without physical contact or mechanical wear.
