Product Overview and Engineering Introduction

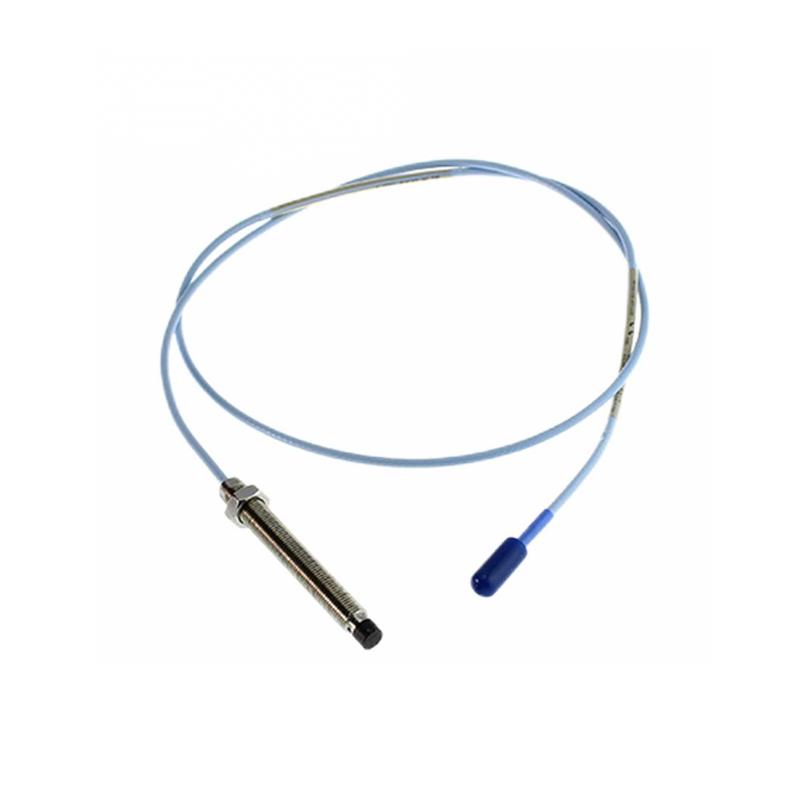

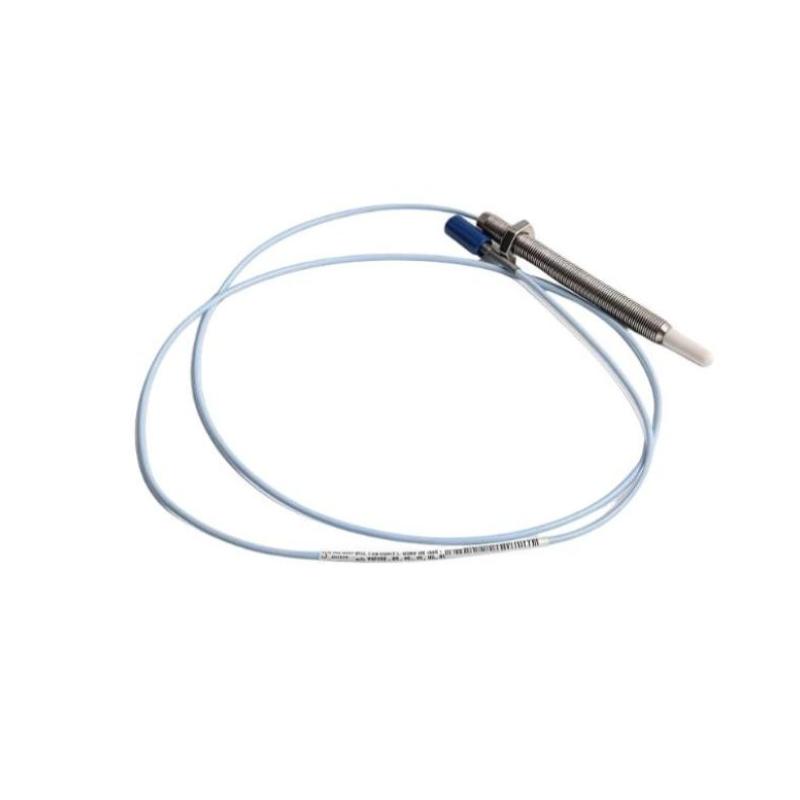

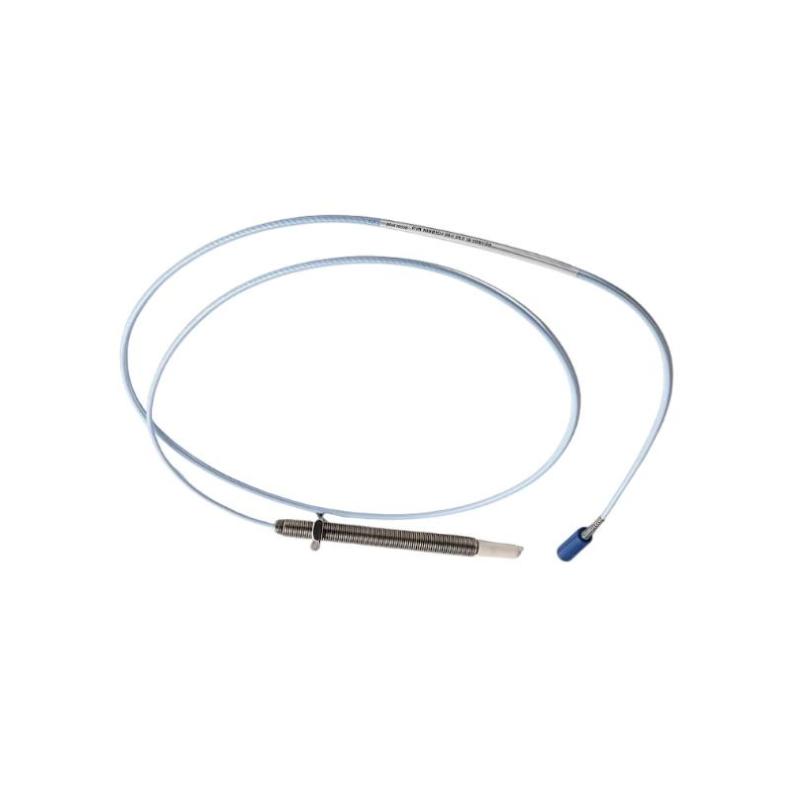

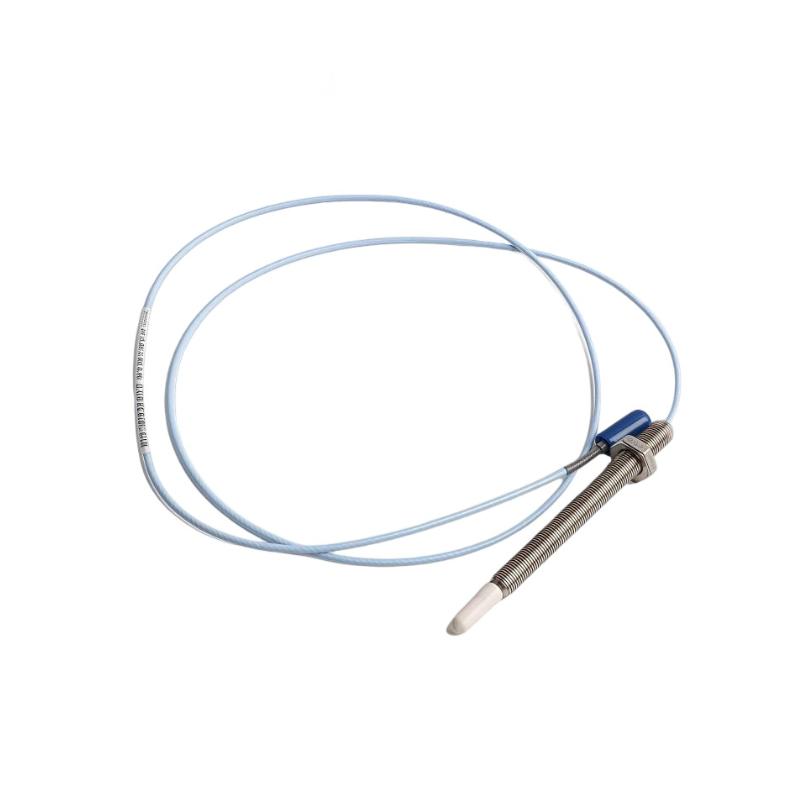

The Bently Nevada 330905-00-11-05-02-00 3300 NSv Proximity Probe is a precision monitoring component developed for industrial rotating machinery applications. It combines compact sensor construction with proven eddy current technology to deliver accurate shaft vibration and displacement measurement.

The 3300 NSv series provides a practical monitoring solution for applications requiring dependable performance, flexible installation, and long-term operational stability. The 0.5-meter total length configuration allows efficient integration into compact machinery systems while maintaining consistent measurement quality.

Designed for demanding industrial environments, the 330905-00-11-05-02-00 supports improved machine diagnostics, optimized maintenance planning, and enhanced protection of critical rotating equipment.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330905-00-11-05-02-00
Product Series	3300 NSv
Module Type	Metric Proximity Probe
Sensor Technology	Eddy Current Proximity Sensing
Probe Type	NSv Compact Proximity Probe
Total Length	0.5 meters
Measurement Function	Shaft Vibration and Position Monitoring
Application	Rotating Machinery Condition Monitoring
Compatible System	Bently Nevada 3300 NSv Monitoring System
Installation Method	Non-Contact Probe Mounting
Cable Configuration	Integrated 0.5-Meter Cable
Dimensions	Approx. 8 mm probe diameter × 500 mm total length
Weight	0.15 kg (0.33 lb)

Recommended Related Models

Model	Description
Bently Nevada 330905-00-11-05-02-05	3300 NSv Metric Proximity Probe for compact monitoring applications
Bently Nevada 330905-00-10-05-02-00	3300 NSv Metric Proximity Probe with short-length configuration
Bently Nevada 330905-00-09-05-02-05	3300 NSv Metric Proximity Probe for precision shaft monitoring
Bently Nevada 330180-50-00	Extension Cable for Bently Nevada proximity probe systems

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for machinery monitoring rack systems
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications in Compact Machinery Condition Monitoring

The Bently Nevada 330905-00-11-05-02-00 3300 NSv Proximity Probe is designed for accurate shaft vibration and displacement measurement in industrial rotating equipment where reliable sensing, compact installation, and continuous monitoring capability are required. As part of the 3300 NSv proximity probe series, this metric sensor provides dependable non-contact measurement for machinery protection, equipment diagnostics, and predictive maintenance applications.

This proximity probe is suitable for various rotating assets, including turbines, compressors, pumps, motors, and industrial drive systems requiring precise shaft position monitoring. The 0.5-meter total length configuration provides an efficient installation option for compact equipment layouts while maintaining stable signal performance and measurement accuracy.

Utilizing advanced eddy current sensing technology, the Bently Nevada 330905-00-11-05-02-00 delivers consistent shaft vibration and displacement feedback, helping operators improve machine analysis, identify potential mechanical issues, and enhance the reliability of critical rotating machinery.

Technical Features and Application Benefits

Feature	Description
3300 NSv Proximity Probe Series	Provides accurate shaft vibration and displacement monitoring
Metric Sensor Design	Supports industrial equipment requiring metric installation configurations
Compact 0.5-Meter Length	Suitable for short-distance and limited-space installations
Non-Contact Measurement Technology	Enables continuous operation without physical shaft contact
Eddy Current Sensing System	Provides stable and repeatable measurement performance
Machinery Protection Support	Helps improve predictive maintenance and asset reliability

Technical FAQs

1. What is the main function of the Bently Nevada 330905-00-11-05-02-00?
It is designed to monitor shaft vibration and displacement in industrial rotating machinery systems.

2. How does the 3300 NSv proximity probe detect shaft movement?
It uses eddy current sensing technology to measure changes in the distance between the probe tip and the rotating shaft.

3. Why is the 0.5-meter total length configuration suitable for certain applications?
It provides a compact sensing solution for machinery where shorter installation distances are required.

4. What equipment commonly uses this proximity probe?
It is commonly installed on turbines, compressors, pumps, motors, and other rotating industrial equipment.

5. Does the probe make physical contact with the shaft?
No. It performs measurement using non-contact electromagnetic sensing technology.

6. What type of signals does the probe provide?
It provides shaft vibration and relative position signals for compatible machinery monitoring systems.

7. How does this probe help improve maintenance efficiency?
It enables continuous monitoring of shaft conditions to support early detection of equipment changes.

8. What factors affect the accuracy of proximity probe measurements?
Installation alignment, probe gap adjustment, calibration, shaft material, and system configuration influence measurement accuracy.

9. Is this proximity probe suitable for continuous industrial operation?
Yes. It is designed for permanent installation in machinery condition monitoring systems.

10. What advantages does eddy current sensing provide?
It offers reliable, accurate, and repeatable measurement without mechanical contact or wear.
