Product Overview and Engineering Introduction

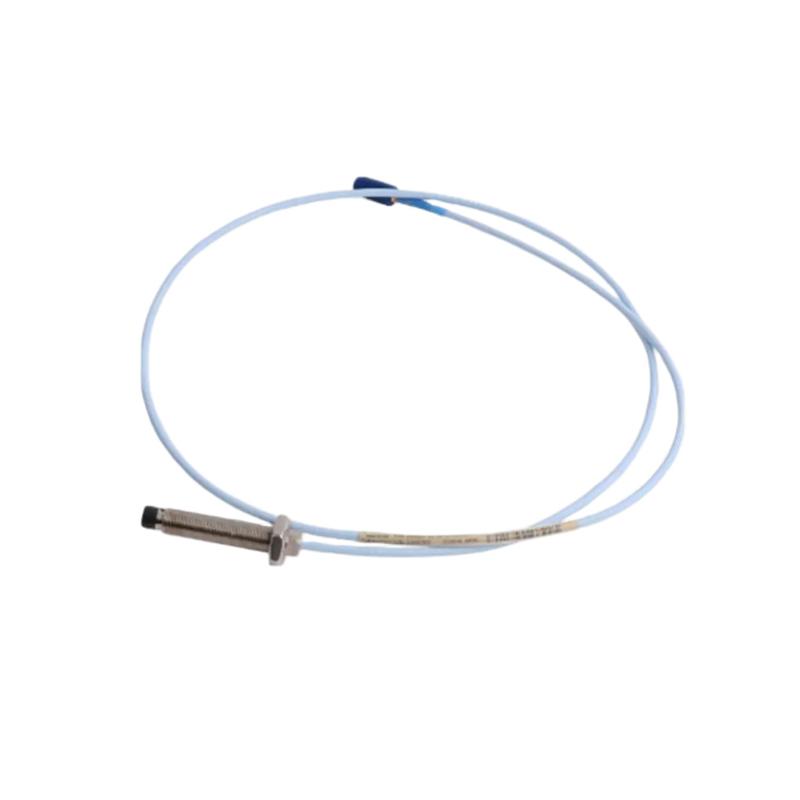

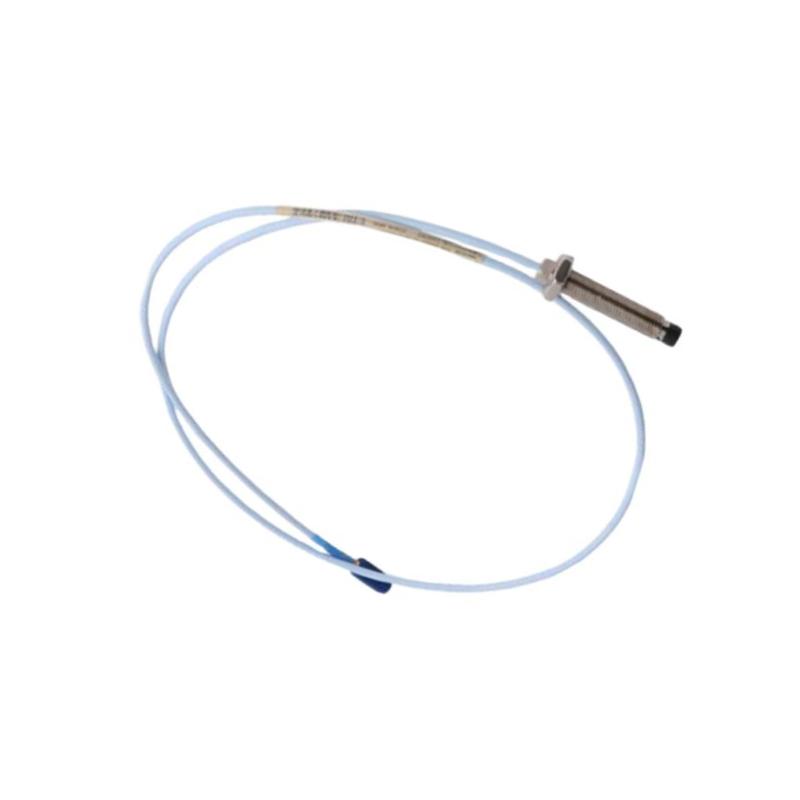

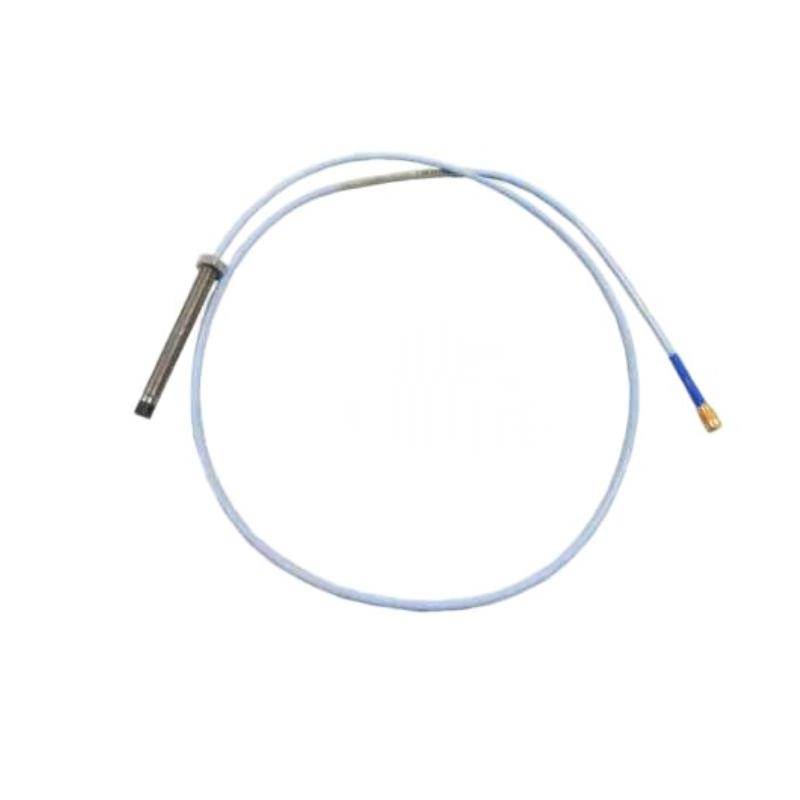

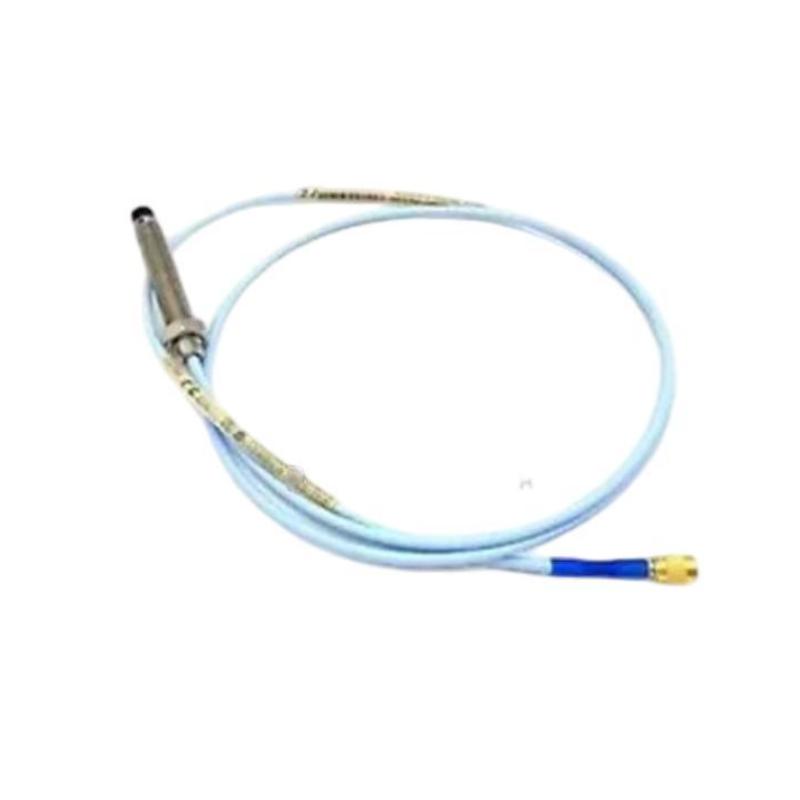

The Bently Nevada 330909-00-60-10-02-05 3300 NSv Proximity Probe is a precision-engineered sensing component designed for reliable rotating machinery condition monitoring. It combines compact construction with advanced eddy current technology to provide accurate shaft vibration and displacement measurement.

The 3300 NSv series is developed for industrial applications where measurement consistency, installation flexibility, and long-term operating reliability are critical. The 1-meter total length configuration provides a practical solution for machinery requiring additional installation reach.

Built for demanding industrial environments, the 330909-00-60-10-02-05 supports improved machine diagnostics, optimized maintenance strategies, and enhanced protection of critical rotating assets.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330909-00-60-10-02-05
Product Series	3300 NSv
Module Type	Proximity Probe
Sensor Technology	Eddy Current Proximity Sensing
Probe Type	NSv Proximity Probe
Total Length	1 meter
Measurement Function	Shaft Vibration and Position Monitoring
Application	Rotating Machinery Condition Monitoring
Compatible System	Bently Nevada 3300 NSv Monitoring System
Installation Method	Non-Contact Probe Mounting
Cable Configuration	Integrated 1-Meter Cable
Dimensions	Approx. 8 mm probe diameter × 1000 mm total length
Weight	0.15 kg (0.33 lb)

Recommended Related Models

Model	Description
Bently Nevada 330905-00-10-10-02-05	3300 NSv Metric Proximity Probe for extended installation applications
Bently Nevada 330905-00-08-10-02-05	3300 NSv Metric Proximity Probe for precision machinery monitoring
Bently Nevada 330903-00-21-10-02-05	3300 NSv Proximity Probe with 1-meter configuration
Bently Nevada 330180-50-00	Extension Cable for Bently Nevada proximity probe systems

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for machinery monitoring rack systems
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications in Industrial Machinery Monitoring and Protection

The Bently Nevada 330909-00-60-10-02-05 3300 NSv Proximity Probe is engineered for precise shaft vibration and displacement measurement in rotating machinery applications where reliable sensing, stable performance, and continuous monitoring are essential. As part of the 3300 NSv proximity probe product family, this sensor provides accurate non-contact measurement for machinery protection, condition monitoring, and predictive maintenance systems.

This proximity probe is designed for use with critical industrial equipment including turbines, compressors, pumps, motors, and other high-value rotating assets requiring dependable shaft position monitoring. The 1-meter total length configuration offers installation flexibility for equipment layouts that require extended sensor positioning while maintaining accurate signal response.

Featuring advanced eddy current sensing technology, the Bently Nevada 330909-00-60-10-02-05 provides consistent shaft vibration and displacement measurement data, helping maintenance teams improve equipment diagnostics, identify early signs of mechanical changes, and optimize machine reliability.

Technical Features and Performance Advantages

Feature	Description
3300 NSv Proximity Probe Series	Provides accurate shaft vibration and displacement monitoring
Industrial Sensor Configuration	Designed for demanding rotating machinery applications
1-Meter Total Length	Supports flexible installation across various equipment layouts
Non-Contact Measurement Technology	Allows continuous monitoring without physical shaft contact
Eddy Current Sensing Principle	Delivers reliable and repeatable displacement measurement
Condition Monitoring Capability	Helps improve maintenance efficiency and machinery protection

Technical FAQs

1. What is the primary function of the Bently Nevada 330909-00-60-10-02-05?
It is used to measure shaft vibration and displacement in rotating machinery monitoring applications.

2. How does the 3300 NSv proximity probe detect shaft movement?
It uses eddy current sensing technology to measure changes in the distance between the probe tip and the rotating shaft.

3. Why is a 1-meter total length configuration beneficial?
It provides additional flexibility for installations where the sensing location requires extended probe placement.

4. What types of machinery can use this proximity probe?
It is commonly applied to turbines, compressors, pumps, motors, and industrial rotating equipment.

5. Does the probe contact the rotating shaft during operation?
No. It performs measurement using non-contact electromagnetic sensing technology.

6. What signals does this proximity probe provide?
It provides shaft vibration and relative position signals for compatible monitoring systems.

7. How does this sensor support predictive maintenance?
It provides continuous operating information that helps identify abnormal shaft behavior and changing equipment conditions.

8. What factors influence proximity probe measurement accuracy?
Installation alignment, probe gap adjustment, calibration, shaft material, and monitoring system configuration affect accuracy.

9. Is this probe designed for continuous industrial operation?
Yes. It is suitable for permanent installation in machinery condition monitoring systems.

10. What advantages does eddy current sensing technology provide?
It offers accurate, stable, and repeatable measurement without mechanical wear caused by physical contact.
