Product Overview and Engineering Introduction

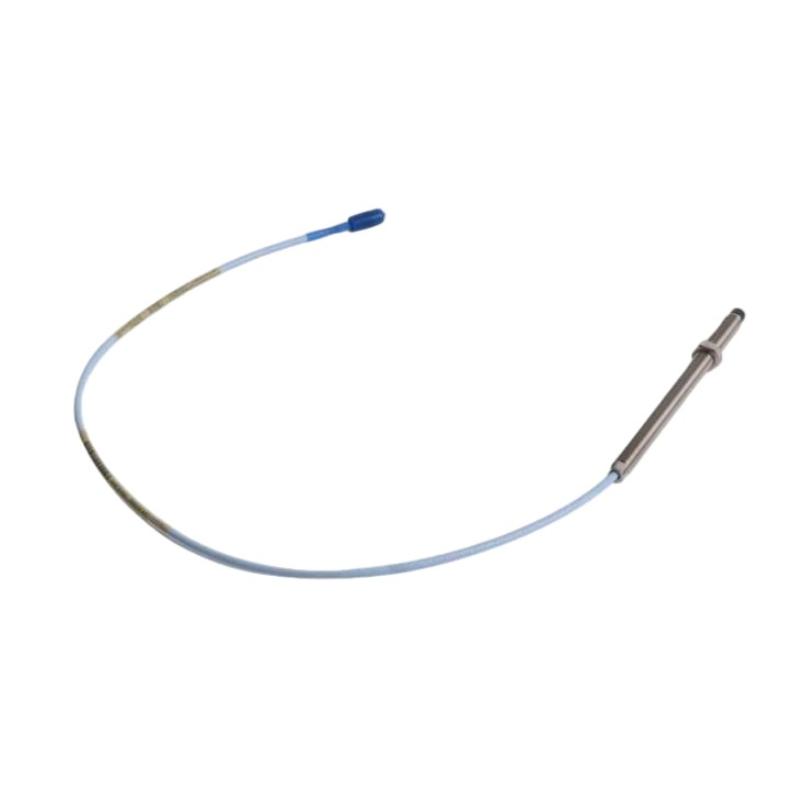

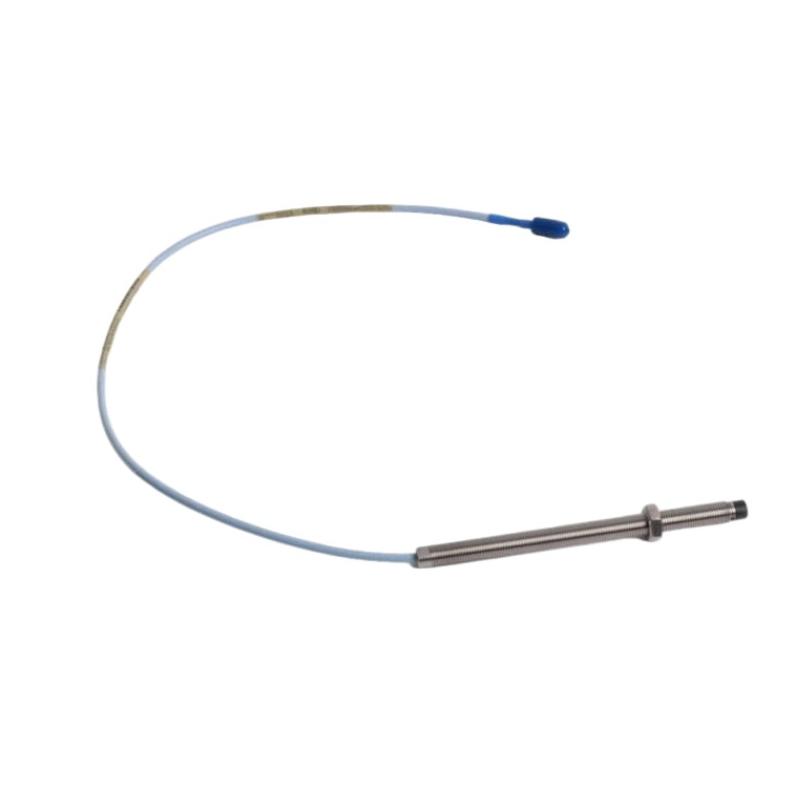

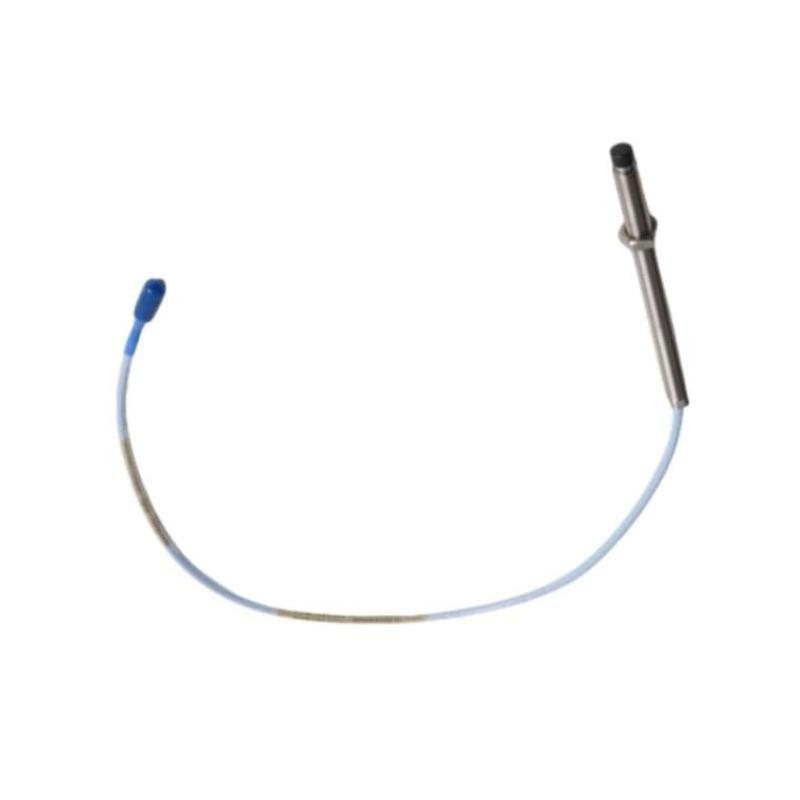

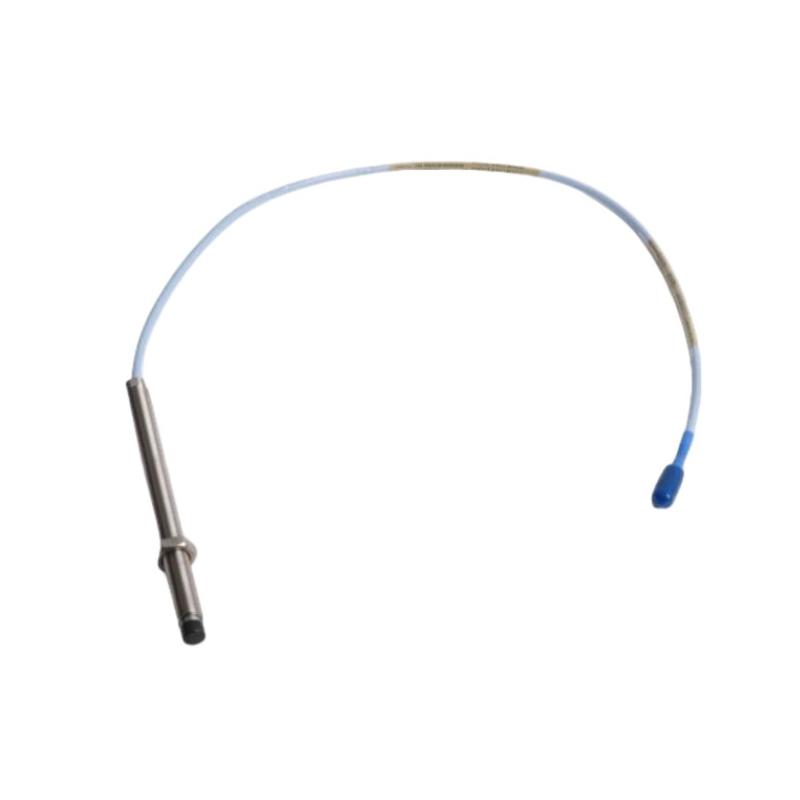

The Bently Nevada 330909-00-99-10-02-00 3300 NSv Proximity Probe is a precision monitoring sensor developed for reliable shaft measurement in industrial rotating machinery. Combining compact construction with proven eddy current sensing technology, it delivers accurate vibration and displacement monitoring for demanding operating environments.

The 3300 NSv series is designed for applications where measurement stability, installation adaptability, and continuous monitoring performance are critical. The 1-meter total length configuration allows convenient integration into a variety of machinery setups.

Built to support modern equipment health management strategies, the 330909-00-99-10-02-00 helps improve diagnostic capability, reduce maintenance uncertainty, and enhance the operational reliability of critical rotating assets.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330909-00-99-10-02-00
Product Series	3300 NSv
Module Type	Proximity Probe
Sensor Technology	Eddy Current Proximity Sensing
Probe Type	NSv Proximity Probe
Total Length	1 meter
Measurement Function	Shaft Vibration and Position Monitoring
Application	Rotating Machinery Condition Monitoring
Compatible System	Bently Nevada 3300 NSv Monitoring System
Installation Method	Non-Contact Probe Mounting
Cable Configuration	Integrated 1-Meter Cable
Dimensions	Approx. 8 mm probe diameter × 1000 mm total length
Weight	0.15 kg (0.33 lb)

Recommended Related Models

Model	Description
Bently Nevada 330909-00-60-10-02-05	3300 NSv Proximity Probe for industrial monitoring applications
Bently Nevada 330905-00-10-10-02-05	3300 NSv Proximity Probe with 1-meter configuration
Bently Nevada 330903-00-21-10-02-05	3300 NSv Proximity Probe for rotating machinery monitoring
Bently Nevada 330180-50-00	Extension Cable for Bently Nevada proximity probe systems

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for machinery monitoring rack systems
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications in Industrial Rotating Equipment Monitoring

The Bently Nevada 330909-00-99-10-02-00 3300 NSv Proximity Probe is designed for accurate shaft vibration and displacement measurement in industrial rotating machinery where dependable monitoring, stable sensing performance, and long-term reliability are essential. As part of the 3300 NSv proximity probe series, this sensor provides precise non-contact measurement for machinery protection, condition monitoring, and predictive maintenance applications.

This proximity probe is suitable for critical rotating equipment including turbines, compressors, pumps, motors, and industrial machinery systems requiring continuous shaft position feedback. The 1-meter total length configuration provides flexible installation options for equipment layouts that require extended sensor placement while maintaining reliable signal quality.

Utilizing advanced eddy current sensing technology, the Bently Nevada 330909-00-99-10-02-00 delivers consistent shaft vibration and displacement measurements, helping maintenance teams improve machine diagnostics, identify early operating changes, and enhance the availability of essential industrial assets.

Technical Features and Operational Advantages

Feature	Description
3300 NSv Proximity Probe Series	Provides reliable shaft vibration and displacement monitoring
Industrial Proximity Sensor Design	Supports demanding rotating machinery applications
1-Meter Total Length	Allows flexible installation for different equipment configurations
Non-Contact Measurement Technology	Enables continuous monitoring without physical shaft contact
Eddy Current Sensing Principle	Provides accurate and repeatable displacement measurement
Machinery Protection Support	Helps improve predictive maintenance and equipment reliability

Technical FAQs

1. What is the main function of the Bently Nevada 330909-00-99-10-02-00?
It is used to measure shaft vibration and displacement in rotating machinery condition monitoring systems.

2. How does the 3300 NSv proximity probe measure shaft movement?
It uses eddy current sensing technology to detect changes in the distance between the probe tip and the rotating shaft.

3. Why is the 1-meter total length configuration useful?
It provides additional installation flexibility for machinery where the sensor requires extended positioning.

4. What types of equipment can this proximity probe monitor?
It is commonly used with turbines, compressors, pumps, motors, and other industrial rotating equipment.

5. Does the proximity probe physically contact the shaft?
No. It performs measurement through non-contact electromagnetic sensing technology.

6. What measurement signals are provided by this probe?
It provides shaft vibration and relative position signals for compatible machinery monitoring systems.

7. How does this sensor support predictive maintenance?
It enables continuous monitoring of shaft conditions to help detect abnormal machine behavior.

8. What factors affect proximity probe measurement accuracy?
Installation alignment, probe gap adjustment, calibration, shaft material, and monitoring system settings influence accuracy.

9. Is this proximity probe suitable for continuous operation?
Yes. It is designed for permanent installation in industrial machinery monitoring systems.

10. What are the advantages of eddy current sensing technology?
It provides stable, accurate, and repeatable measurement without mechanical contact or wear.
