Product Introduction and Engineering Overview

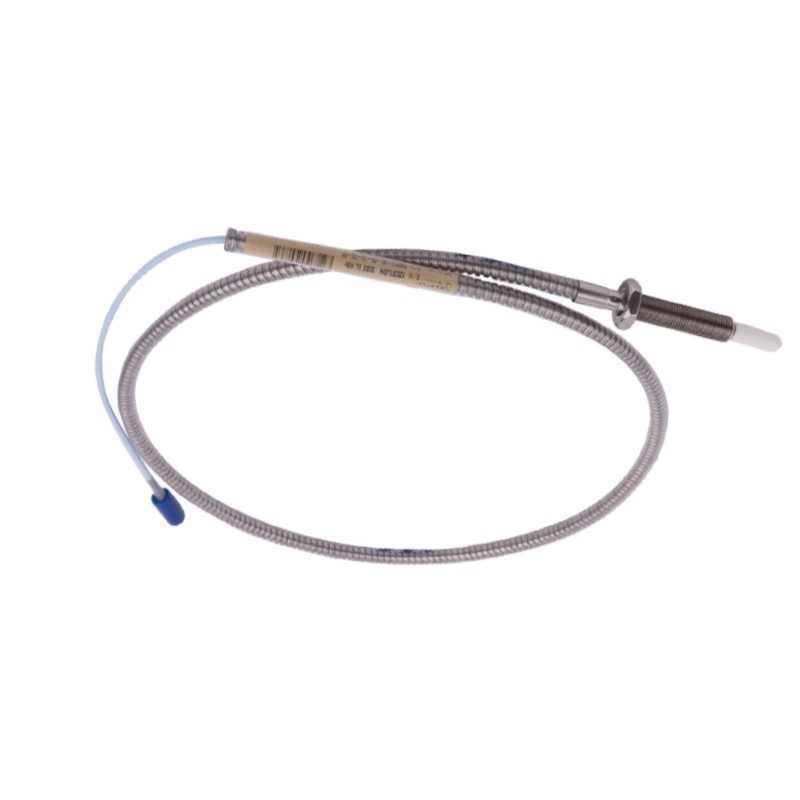

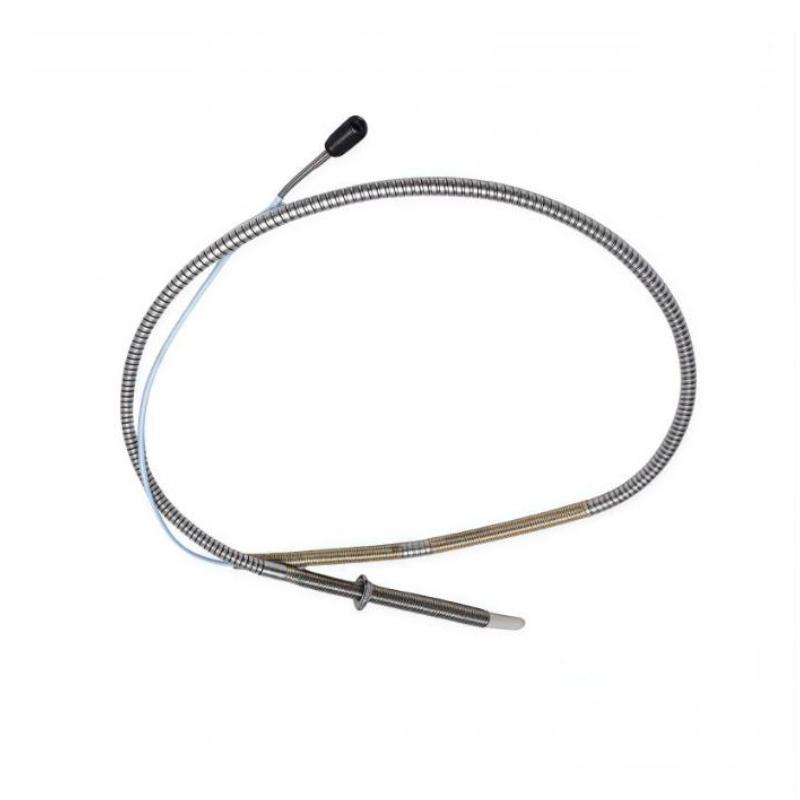

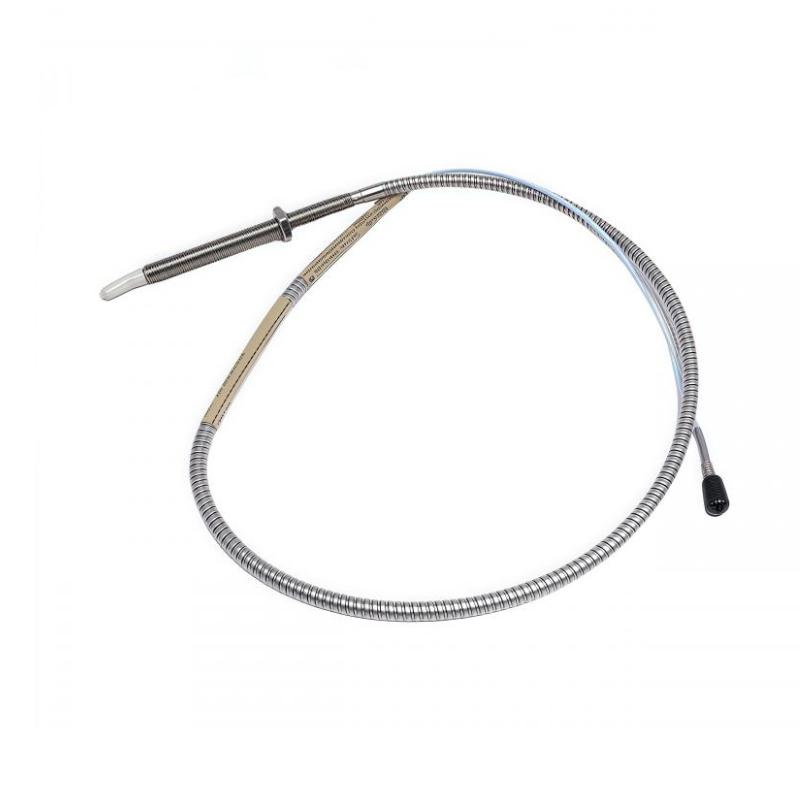

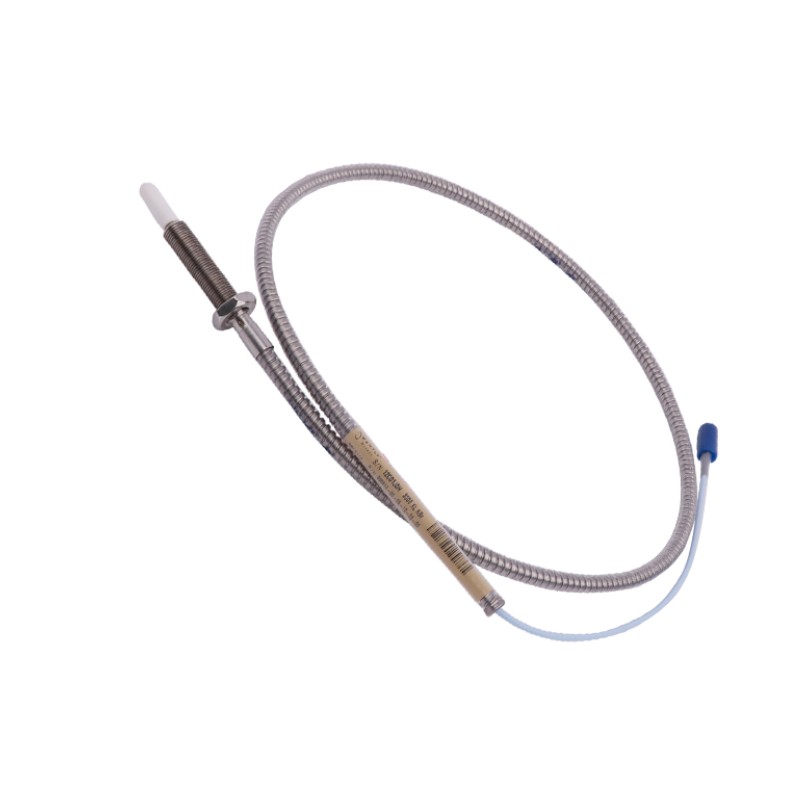

The Bently Nevada 330910-02-10-70-01-00 3300 NSv Proximity Probe is a precision monitoring sensor engineered for industrial applications requiring dependable shaft measurement over extended installation distances. It combines advanced eddy current technology with a flexible cable configuration to provide reliable vibration and displacement monitoring.

The 3300 NSv series is designed for demanding machinery environments where accurate measurement, installation adaptability, and long-term stability are essential. The 7-meter total length design makes it suitable for larger equipment arrangements where standard-length probes may not provide sufficient installation reach.

Built for modern machinery protection systems, the 330910-02-10-70-01-00 helps improve operational visibility, strengthen predictive maintenance programs, and support the reliable performance of critical rotating equipment.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330910-02-10-70-01-00
Product Series	3300 NSv
Module Type	Metric Proximity Probe
Sensor Technology	Eddy Current Proximity Sensing
Probe Type	NSv Proximity Probe
Total Length	7 meters
Measurement Function	Shaft Vibration and Position Monitoring
Application	Rotating Machinery Condition Monitoring
Compatible System	Bently Nevada 3300 NSv Monitoring System
Installation Method	Non-Contact Probe Mounting
Cable Configuration	Integrated 7-Meter Cable
Dimensions	Approx. 8 mm probe diameter × 7000 mm total length
Weight	0.15 kg (0.33 lb)

Recommended Related Models

Model	Description
Bently Nevada 330903-07-13-70-11-05	3300 NSv Metric Proximity Probe with 7-meter configuration
Bently Nevada 330904-02-10-70-01-00	3300 NSv Metric Proximity Probe for extended monitoring applications
Bently Nevada 330905-00-05-50-02-00	3300 NSv Metric Proximity Probe with extended cable length
Bently Nevada 330180-70-00	Extension Cable for extended Bently Nevada proximity probe installations

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for machinery monitoring rack systems
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications in Extended-Distance Rotating Machinery Monitoring

The Bently Nevada 330910-02-10-70-01-00 3300 NSv Proximity Probe is designed for precise shaft vibration and displacement measurement in industrial rotating equipment requiring extended cable reach, stable signal transmission, and reliable condition monitoring performance. As part of the 3300 NSv proximity probe family, this metric sensor provides accurate non-contact measurement for machinery protection, predictive maintenance, and equipment health analysis.

This proximity probe is suitable for large-scale rotating machinery such as turbines, compressors, pumps, generators, and industrial drive systems where monitoring points may be positioned at extended distances from the signal processing equipment. The 7-meter total length configuration provides installation flexibility for complex machinery layouts while maintaining dependable measurement capability.

Featuring advanced eddy current sensing technology, the Bently Nevada 330910-02-10-70-01-00 delivers consistent shaft vibration and displacement feedback, helping engineers improve fault detection, optimize maintenance strategies, and enhance the operational reliability of critical industrial assets.

Technical Features and Performance Advantages

Feature	Description
3300 NSv Proximity Probe Series	Provides accurate shaft vibration and displacement monitoring
Metric Industrial Configuration	Designed for rotating equipment requiring metric installation compatibility
7-Meter Total Length	Supports extended installation distances in large machinery systems
Non-Contact Sensing Technology	Enables continuous monitoring without physical shaft contact
Eddy Current Measurement Principle	Provides stable and repeatable displacement sensing
Predictive Maintenance Capability	Supports early fault detection and machinery reliability improvement

Technical FAQs

1. What is the main purpose of the Bently Nevada 330910-02-10-70-01-00?
It is designed to measure shaft vibration and displacement in rotating machinery monitoring applications.

2. How does the 3300 NSv proximity probe detect shaft movement?
It uses eddy current sensing technology to measure changes in the gap between the probe tip and the rotating shaft.

3. Why is the 7-meter total length configuration useful?
It allows installation on machinery where the sensing location is located farther from the monitoring system.

4. What types of equipment can use this proximity probe?
It is commonly used on turbines, compressors, generators, pumps, and other large rotating machinery.

5. Does the probe require direct contact with the shaft?
No. It uses non-contact electromagnetic measurement technology.

6. What type of signals does the probe provide?
It provides shaft vibration and relative position signals for compatible monitoring systems.

7. How does this sensor support equipment protection?
It provides continuous shaft condition information to help identify abnormal operating conditions.

8. What factors influence proximity probe measurement quality?
Probe installation, gap adjustment, calibration, shaft material, and monitoring system configuration affect performance.

9. Is this probe suitable for permanent industrial installation?
Yes. It is designed for continuous operation in machinery monitoring and protection systems.

10. What benefits does eddy current sensing technology provide?
It delivers accurate, repeatable, and stable measurements without mechanical contact or component wear.
