Product Introduction and Engineering Overview

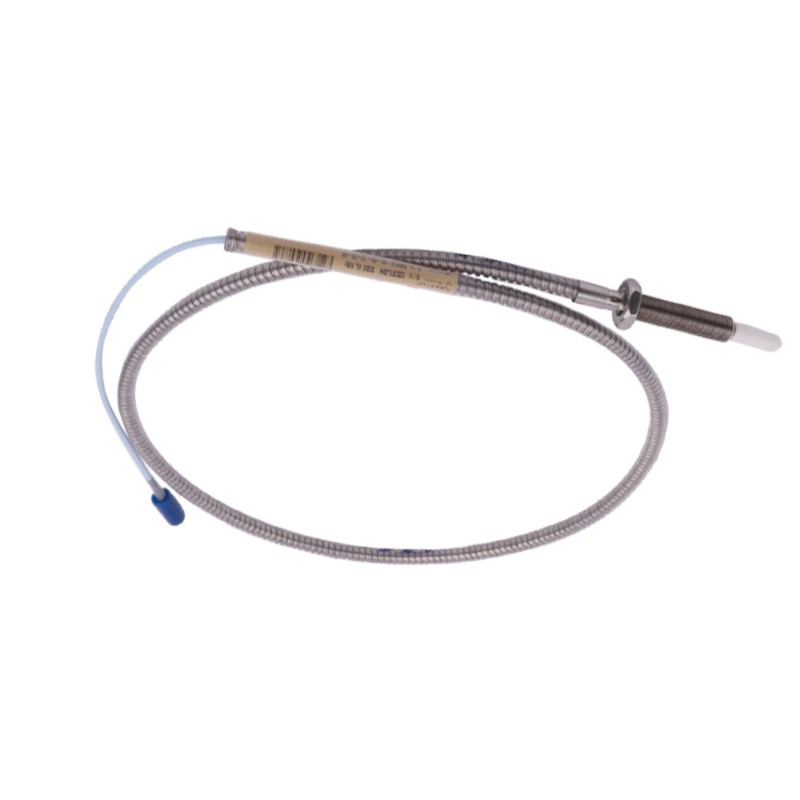

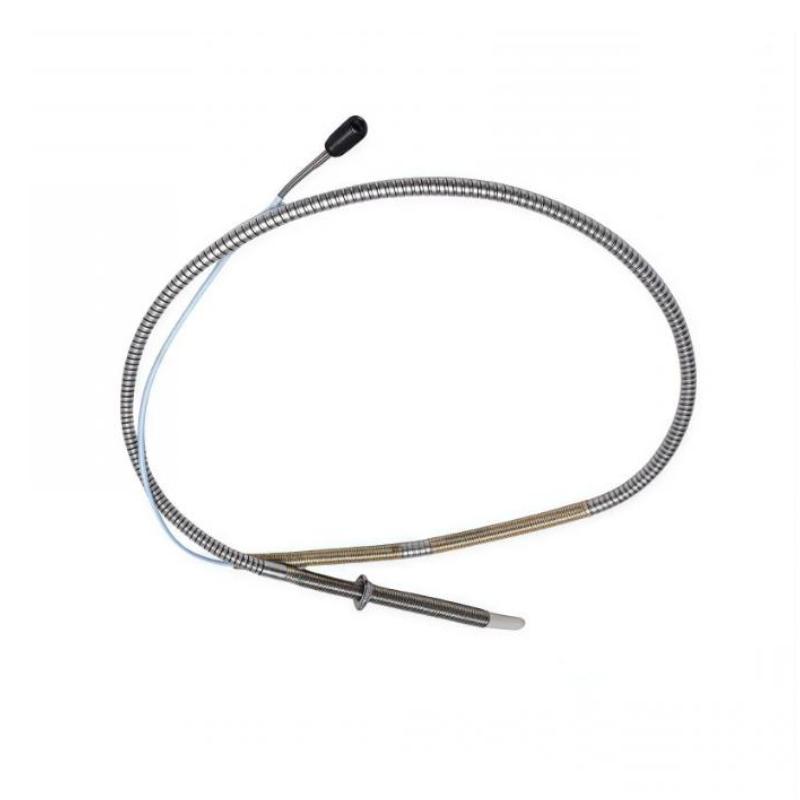

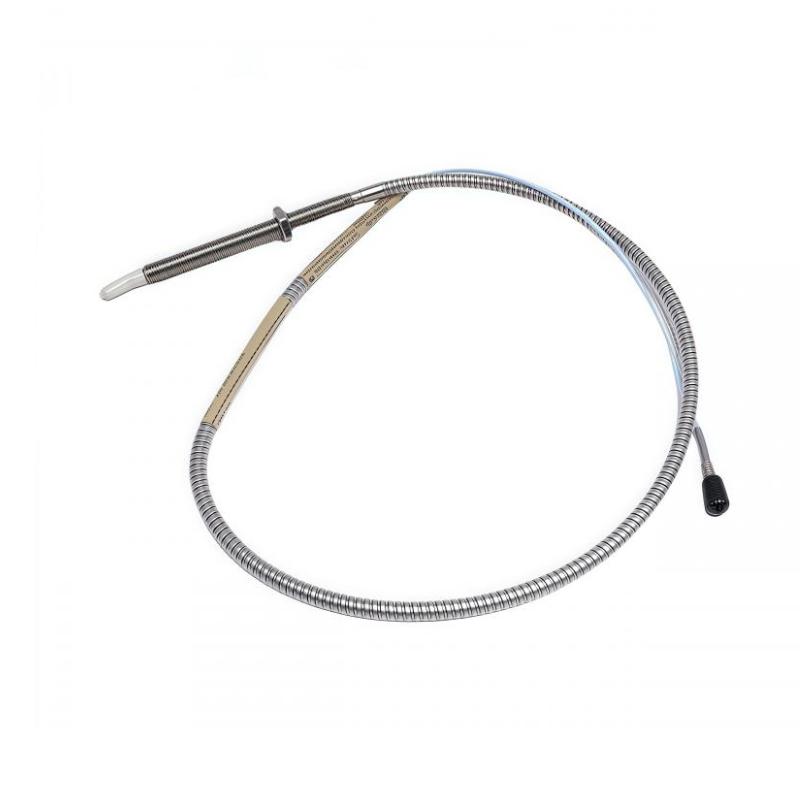

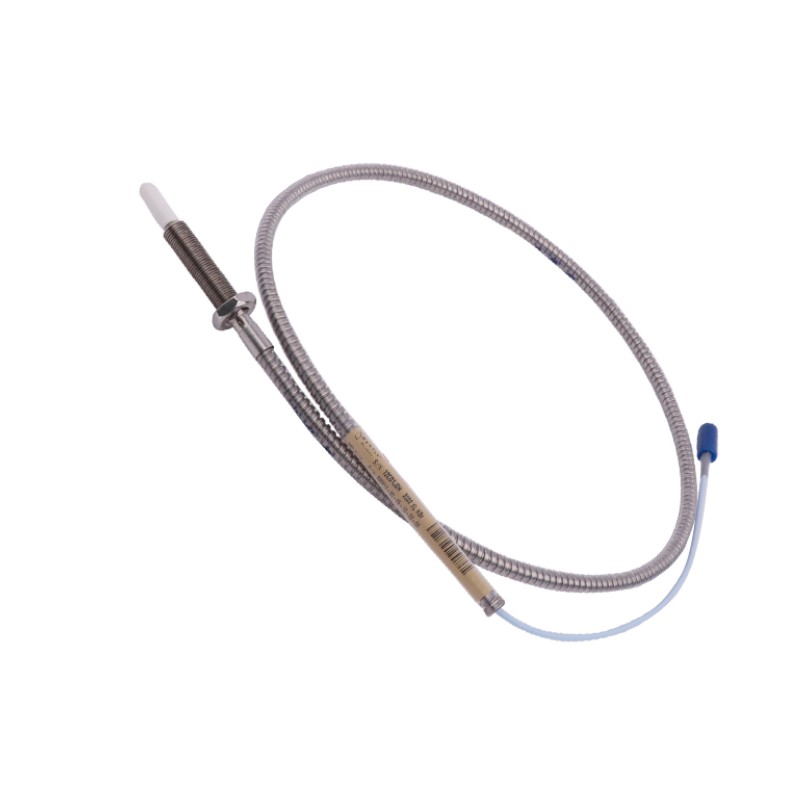

The Bently Nevada 330910-05-09-10-01-CN 3300 NSv Proximity Probe is a precision monitoring solution developed for industrial rotating machinery applications. Combining compact construction with advanced eddy current technology, it provides reliable shaft vibration and displacement measurement in demanding operating environments.

The 3300 NSv series is designed for applications requiring stable signal performance, flexible installation options, and dependable long-term operation. The 1-meter total length configuration makes it suitable for a wide range of machinery installations while maintaining consistent monitoring capability.

Built to support modern machinery protection strategies, the 330910-05-09-10-01-CN helps improve equipment diagnostics, enhance operational visibility, and support efficient maintenance decisions for critical industrial systems.

Technical Specifications

Specification	Details
Product Brand	Bently Nevada
Model Number	330910-05-09-10-01-CN
Product Series	3300 NSv
Module Type	Metric Proximity Probe
Sensor Technology	Eddy Current Proximity Sensing
Probe Type	NSv Proximity Probe
Total Length	1 meter
Measurement Function	Shaft Vibration and Position Monitoring
Application	Rotating Machinery Condition Monitoring
Compatible System	Bently Nevada 3300 NSv Monitoring System
Installation Method	Non-Contact Probe Mounting
Cable Configuration	Integrated 1-Meter Cable
Dimensions	Approx. 8 mm probe diameter × 1000 mm total length
Weight	0.15 kg (0.33 lb)

Recommended Related Models

Model	Description
Bently Nevada 330910-00-15-10-02-00	3300 NSv Metric Proximity Probe for industrial monitoring applications
Bently Nevada 330905-00-10-10-02-05	3300 NSv Metric Proximity Probe for shaft vibration monitoring
Bently Nevada 330904-00-07-10-01-05	3300 NSv Metric Proximity Probe with 1-meter configuration
Bently Nevada 330180-50-00	Extension Cable for Bently Nevada proximity probe systems

Popular Related Models

Model	Description
Bently Nevada 3300/03-01-00	3300 Power Supply Module for machinery monitoring rack systems
Bently Nevada 3300/16-12-01-00	Dual Vibration Monitor Module
Bently Nevada 3300/20-12-01-01	Dual Thrust Position Monitor Module
Bently Nevada 3500/42M	Proximity Monitor Module for advanced machinery protection

Applications in Reliable Rotating Machinery Condition Monitoring

The Bently Nevada 330910-05-09-10-01-CN 3300 NSv Proximity Probe is engineered for accurate shaft vibration and displacement measurement in industrial rotating equipment where dependable monitoring, installation flexibility, and long-term operational stability are required. As part of the 3300 NSv proximity probe series, this metric sensor provides precise non-contact measurement for machinery protection, condition analysis, and predictive maintenance applications.

Designed for critical machinery including turbines, compressors, pumps, motors, and industrial drive systems, this proximity probe delivers consistent shaft position monitoring for applications where early detection of mechanical changes is essential. The 1-meter total length configuration provides practical installation flexibility, allowing integration into various equipment layouts while maintaining reliable measurement performance.

Using advanced eddy current sensing technology, the Bently Nevada 330910-05-09-10-01-CN provides stable vibration and displacement feedback, helping maintenance teams improve diagnostic accuracy, reduce unexpected equipment interruptions, and maximize the service life of important rotating assets.

Technical Features and Product Advantages

Feature	Description
3300 NSv Proximity Probe Series	Provides precise shaft vibration and displacement monitoring
Metric Sensor Configuration	Designed for industrial applications requiring metric installation compatibility
1-Meter Total Length	Supports flexible sensor placement in different machinery arrangements
Non-Contact Measurement Technology	Enables continuous monitoring without direct shaft contact
Eddy Current Sensing Principle	Delivers accurate and repeatable measurement performance
Machinery Health Monitoring Support	Helps optimize maintenance planning and equipment reliability

Technical FAQs

1. What is the primary application of the Bently Nevada 330910-05-09-10-01-CN?
It is used for shaft vibration and displacement measurement in industrial rotating machinery monitoring systems.

2. How does the 3300 NSv proximity probe detect shaft displacement?
It uses eddy current sensing technology to measure changes in the distance between the probe tip and the rotating shaft surface.

3. What benefit does the 1-meter total length provide?
It offers additional installation flexibility for equipment requiring extended probe positioning.

4. Which types of machinery can this proximity probe monitor?
It is suitable for turbines, compressors, pumps, motors, and other critical rotating equipment.

5. Does this probe operate with physical contact against the shaft?
No. It uses non-contact electromagnetic sensing technology.

6. What type of data does the proximity probe provide?
It provides shaft vibration and relative position signals for compatible monitoring systems.

7. How does this probe support predictive maintenance programs?
It provides continuous condition data that helps identify early signs of mechanical problems.

8. What factors influence proximity probe measurement accuracy?
Probe installation, gap adjustment, calibration, shaft surface condition, and system configuration affect accuracy.

9. Is this sensor suitable for continuous industrial monitoring?
Yes. It is designed for permanent installation in machinery protection and condition monitoring systems.

10. What advantages does eddy current sensing technology offer?
It provides fast-response, accurate, and repeatable measurement without mechanical contact or wear.
