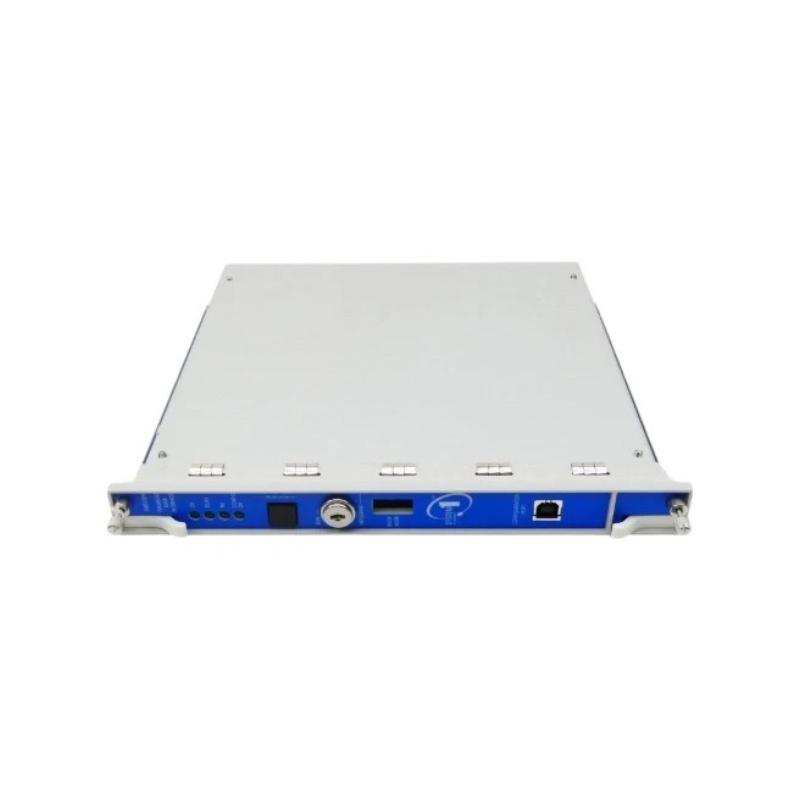

Bently Nevada 3500/22 Transient Data Interface Module
Bently Nevada 3500/22 Transient Data Interface Module
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/22 Product Origin:USA Product Dimensions:241.3 x 24.4 x 241.8 mm Product Weight:0.91 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 3500/22 Transient Data Interface Module is an advanced communication and data acquisition component designed for machinery protection and condition monitoring applications. It expands the capability of the 3500 platform by providing access to transient machinery data for analysis, reporting, and diagnostic purposes.
Engineered for industrial reliability, the module enables efficient communication between the monitoring rack and compatible software environments. Its ability to capture important operating events makes it valuable for applications where understanding machine behavior during changing conditions is critical.
The 3500/22 helps organizations improve machinery availability, reduce unplanned downtime, and develop more effective maintenance strategies through enhanced access to operational data.
Technical Specifications
Specification
Details
Product Brand
Bently Nevada
Model Number
3500/22
Product Series
3500 Machinery Protection System
Module Type
Transient Data Interface Module
Function
Machinery Data Acquisition and Communication
System Compatibility
Bently Nevada 3500 Monitoring System
Application
Rotating Machinery Condition Monitoring
Communication Function
Transient Data Transfer and System Interface
Dimensions
241.3 × 24.4 × 241.8 mm
Weight
0.91 kg (2.01 lb)
Recommended Related Models
Model
Description
Bently Nevada 3500/05
3500 Rack for machinery protection system installation
Bently Nevada 3500/15
3500 Power Supply Module for system power management
Bently Nevada 3500/32
4-Channel Relay Module for machinery alarm and protection applications
Bently Nevada 3500/42M
Proximity Monitor Module for vibration and position monitoring
Popular Related Models
Model
Description
Bently Nevada 3500/25
Enhanced Keyphasor Module for speed and phase reference monitoring
Bently Nevada 3500/40M
Four-Channel Proximity Monitor Module
Bently Nevada 3500/46M
Hydraulic Position Monitor Module
Bently Nevada 3500/53
Overspeed Detection Module
Applications in Machinery Data Acquisition and Protection Systems
The Bently Nevada 3500/22 Transient Data Interface Module is designed to provide high-performance data communication and transient event recording capabilities within the 3500 Machinery Protection System. It serves as a key interface component for collecting dynamic machinery data, supporting system diagnostics, and enabling advanced condition monitoring for critical rotating equipment.
This module is widely applied in industrial environments where accurate event capture and reliable machinery analysis are required, including power generation facilities, oil and gas installations, petrochemical plants, and large industrial processing systems. By supporting communication between the 3500 rack and external software platforms, the module helps engineers gain deeper visibility into machine operating conditions.
With dependable data handling and seamless system integration, the Bently Nevada 3500/22 Transient Data Interface Module helps improve fault analysis, enhance predictive maintenance strategies, and strengthen the overall reliability of machinery protection applications.
Key Capabilities and System Advantages
Feature
Description
Transient Data Interface Function
Captures and transfers dynamic machinery event data
3500 System Compatibility
Designed for integration with Bently Nevada 3500 monitoring platforms
High-Speed Data Communication
Supports efficient transfer of monitoring information
Event Recording Capability
Helps analyze abnormal operating conditions
Machinery Diagnostics Support
Improves troubleshooting and predictive maintenance processes
Industrial-Grade Design
Built for continuous operation in demanding environments
Technical FAQs
1. What is the primary function of the Bently Nevada 3500/22 module?
It provides transient data interface capabilities for collecting and communicating machinery monitoring data within a 3500 system.
2. What type of information does the 3500/22 process?
It handles dynamic machinery data and transient events used for equipment analysis and diagnostics.
3. Which system is the 3500/22 designed to work with?
It is designed for use within the Bently Nevada 3500 Machinery Protection System.
4. How does this module support predictive maintenance?
It provides detailed machine event information that helps identify developing equipment issues.
5. Can the module be used for continuous machinery monitoring applications?
Yes. It is designed for integration into continuous monitoring and protection systems.
6. What role does the Transient Data Interface play in a monitoring rack?
It acts as a communication bridge between the monitoring rack and external data analysis systems.
7. Why is transient data important for machinery diagnostics?
Transient information helps engineers analyze machine behavior during startup, shutdown, load changes, and abnormal events.
8. Does this module replace monitoring modules in the 3500 rack?
No. It works alongside monitoring modules to enhance data access and analysis capability.
9. What industries commonly use this module?
It is commonly used in power generation, oil and gas, petrochemical, and heavy industrial applications.
10. How does the 3500/22 improve equipment reliability?
It provides additional diagnostic information that supports faster troubleshooting and better maintenance decisions.
