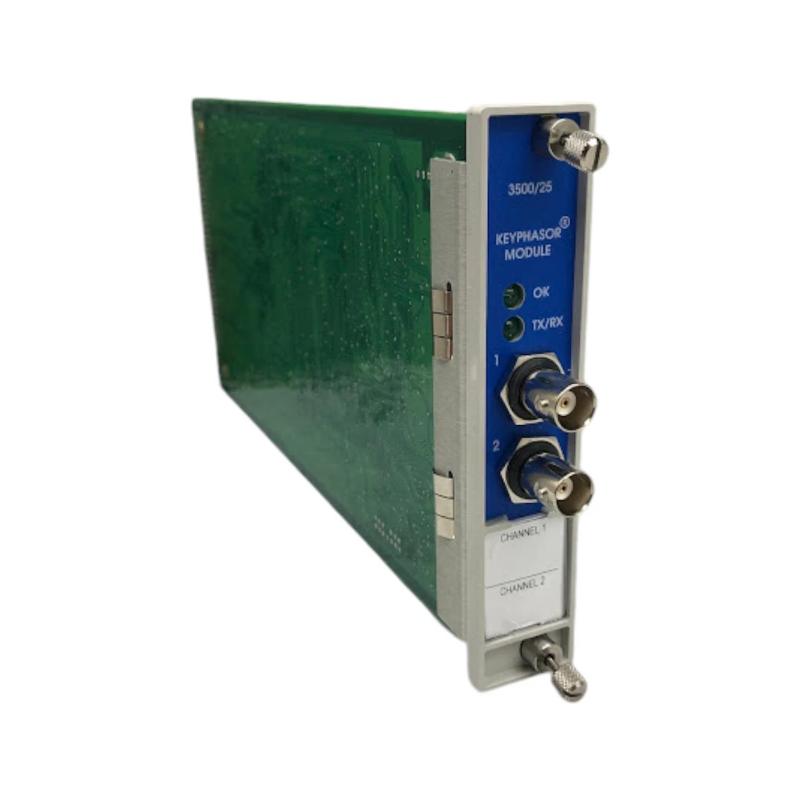

Bently Nevada 3500/25-02-01-00 Enhanced Bond Phase Module
Bently Nevada 3500/25-02-01-00 Enhanced Bond Phase Module
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/25-02-01-00 Product Origin:USA Product Dimensions:119.9 x 24.4 x 256.5 mm Product Weight:0.34 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 3500/25-02-01-00 Enhanced Bond Phase Module is a precision interface component developed for advanced machinery protection and condition monitoring systems. It provides accurate processing of phase reference signals, enabling detailed analysis of rotating equipment performance.
As part of the Bently Nevada 3500 monitoring platform, this module works with other protection and monitoring modules to provide comprehensive machinery health information. Accurate phase reference data is essential for applications such as vibration analysis, shaft position evaluation, balancing, and fault diagnosis.
The 3500/25-02-01-00 combines reliable signal processing with compact rack integration, making it suitable for demanding industrial environments where machinery availability and protection are critical.
Technical Specifications
Specification
Details
Product Brand
Bently Nevada
Model Number
3500/25-02-01-00
Product Series
3500 Machinery Protection System
Module Type
Enhanced Bond Phase Module
Function
Phase Reference and Keyphasor® Signal Processing
Application
Rotating Machinery Monitoring and Diagnostics
Signal Type
Rotational Phase Reference Input
System Compatibility
Bently Nevada 3500 Monitoring Platform
Installation Type
Rack Mount Module
Dimensions
119.9 × 24.4 × 256.5 mm
Weight
0.34 kg (0.75 lb)
Recommended Related Models
Model
Description
Bently Nevada 3500/25-01-00
Enhanced Bond Phase Module for phase reference applications
Bently Nevada 3500/25-01-01-00
Enhanced Bond Phase Module with alternate configuration
Bently Nevada 3500/05
3500 System Rack for module installation
Bently Nevada 3500/15
3500 Power Supply Module for rack power management
Popular Related Models
Model
Description
Bently Nevada 3500/22
Transient Data Interface Module for machinery event recording
Bently Nevada 3500/32
4-Channel Relay Module for alarm and protection control
Bently Nevada 3500/40M
Four-Channel Proximity Monitor Module
Bently Nevada 3500/42M
Proximity Monitor Module for vibration and position monitoring
Applications in Rotating Machinery Phase Reference and Diagnostic Systems
The Bently Nevada 3500/25-02-01-00 Enhanced Bond Phase Module is designed to provide accurate phase reference signal processing and Keyphasor® functionality within the Bently Nevada 3500 Machinery Protection System. This module delivers reliable rotational timing information used for advanced vibration analysis, shaft position measurement, balancing procedures, and machinery condition diagnostics.
The module is suitable for critical rotating equipment applications including steam turbines, gas turbines, compressors, generators, pumps, and other industrial machinery requiring precise phase reference monitoring. By providing accurate phase data, the 3500/25-02-01-00 helps engineers better understand machine operating behavior and detect potential mechanical issues.
With its compact rack-mounted design and compatibility with the 3500 platform, this Enhanced Bond Phase Module supports reliable integration into machinery protection systems, improving equipment monitoring accuracy and maintenance efficiency.
Technical Features and Benefits
Feature
Description
Enhanced Phase Reference Processing
Provides accurate rotational phase signal handling
Keyphasor® Signal Support
Enables shaft timing and phase measurement functions
3500 System Compatible
Designed for integration with Bently Nevada 3500 racks
High Accuracy Signal Processing
Supports vibration analysis and machine diagnostics
Industrial Application Design
Suitable for continuous machinery monitoring environments
Compact Rack Module Format
Allows efficient installation within protection systems
Technical FAQs
1. What is the purpose of the Bently Nevada 3500/25-02-01-00 module?
It processes phase reference signals and provides Keyphasor® functionality for the 3500 Machinery Protection System.
2. What is a Keyphasor® signal used for?
A Keyphasor® signal provides a once-per-revolution shaft reference used for phase measurement, vibration analysis, and machine diagnostics.
3. Why is phase information important in rotating equipment monitoring?
Phase data allows engineers to analyze shaft movement, vibration characteristics, and machine operating conditions more accurately.
4. What equipment can use this module?
It is commonly installed on turbines, compressors, generators, pumps, and other critical rotating machinery.
5. Is the 3500/25-02-01-00 used for vibration monitoring directly?
It provides phase reference information that works with vibration monitoring modules to improve analysis capability.
6. Can this module be installed in a Bently Nevada 3500 rack?
Yes. It is designed specifically for integration into the 3500 Machinery Protection System.
7. How does this module support predictive maintenance?
It provides accurate timing information that helps identify abnormal vibration patterns and mechanical conditions.
8. What affects the accuracy of phase measurements?
Sensor alignment, signal quality, installation conditions, and system configuration influence measurement performance.
9. Is this module suitable for continuous operation?
Yes. It is designed for permanent industrial machinery monitoring applications.
10. What are the main benefits of using an enhanced phase module?
It improves machine diagnostic capability by providing reliable rotational reference information.
