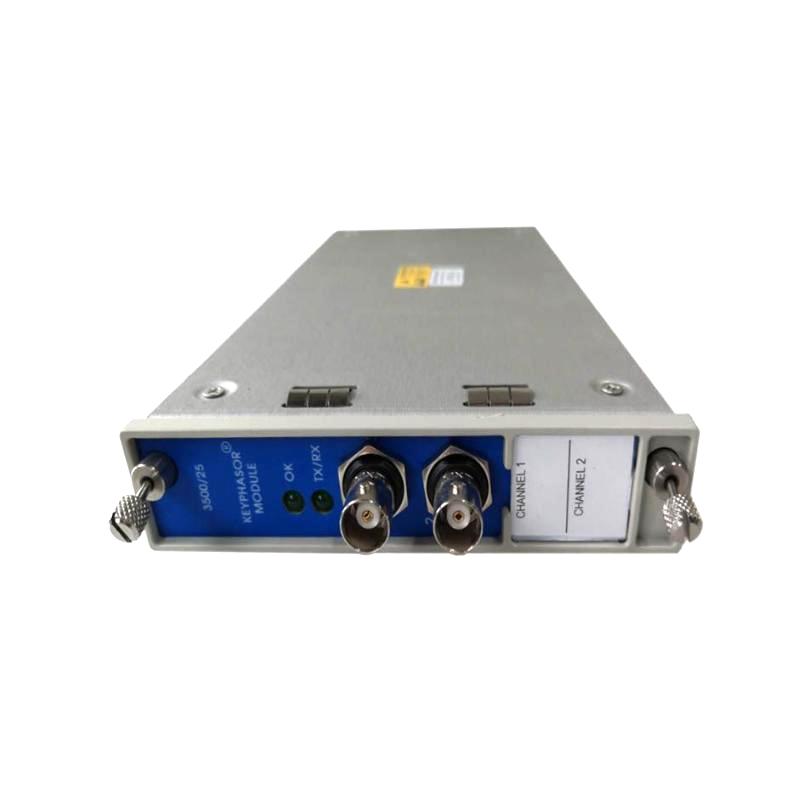

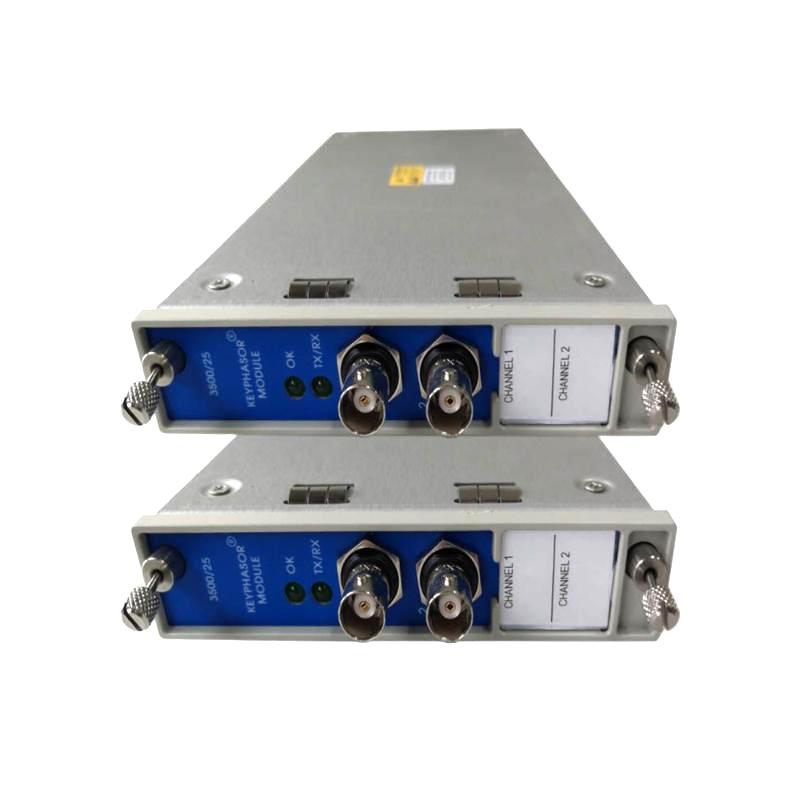

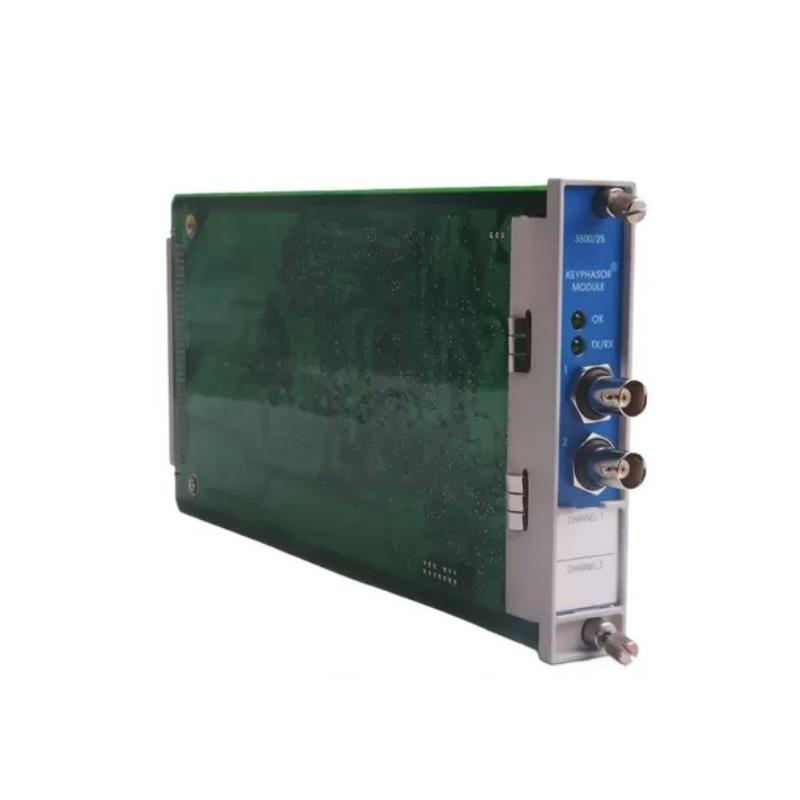

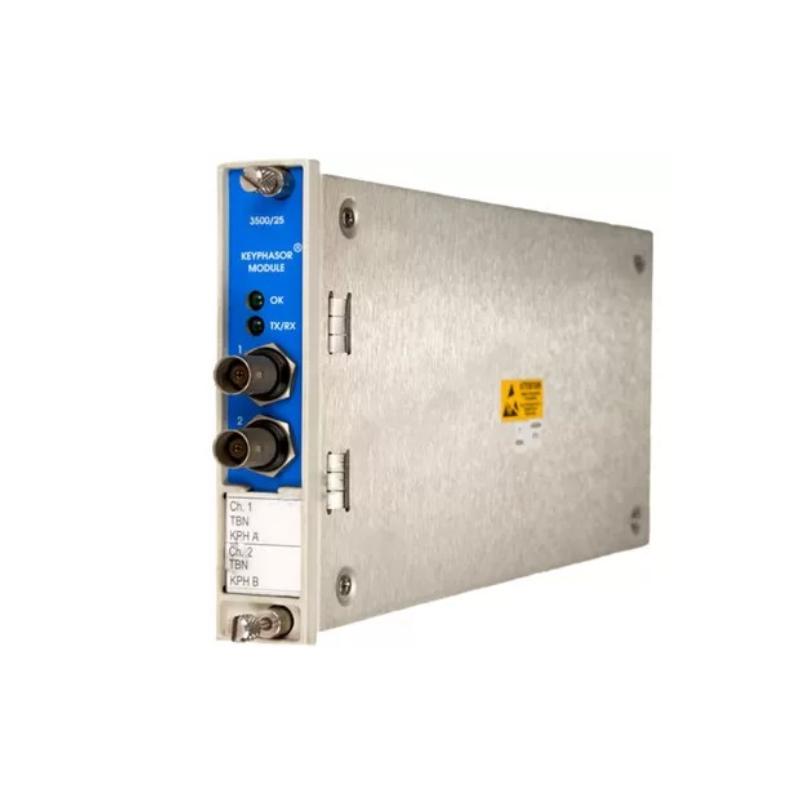

Bently Nevada 3500/25-02-01-02 Enhanced Bond Phase Module
Bently Nevada 3500/25-02-01-02 Enhanced Bond Phase Module
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/25-02-01-02 Product Origin:USA Product Dimensions:119.9 x 24.4 x 256.5 mm Product Weight:0.34 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 3500/25-02-01-02 Enhanced Bond Phase Module is a precision monitoring interface developed to provide reliable phase reference processing for industrial machinery protection systems. It enables accurate rotational timing information, which is essential for vibration analysis, shaft position evaluation, and machine performance assessment.
As part of the Bently Nevada 3500 Machinery Protection System, this module works together with vibration, position, and diagnostic modules to provide a comprehensive understanding of rotating equipment condition. Its enhanced processing capability supports applications where accurate phase measurement and stable signal handling are required.
Designed for demanding industrial environments, the 3500/25-02-01-02 helps improve machinery diagnostics, reduce maintenance uncertainty, and support reliable operation of critical rotating assets.
Technical Specifications
Specification
Details
Product Brand
Bently Nevada
Model Number
3500/25-02-01-02
Product Series
3500 Machinery Protection System
Module Type
Enhanced Bond Phase Module
Function
Phase Reference and Keyphasor® Signal Processing
Application
Rotating Machinery Monitoring and Diagnostics
Signal Type
Rotational Phase Reference Input
System Compatibility
Bently Nevada 3500 Monitoring Platform
Installation Type
Rack Mount Module
Dimensions
119.9 × 24.4 × 256.5 mm
Weight
0.34 kg (0.75 lb)
Recommended Related Models
Model
Description
Bently Nevada 3500/25-01-00
Enhanced Bond Phase Module for phase reference applications
Bently Nevada 3500/25-01-01-00
Enhanced Bond Phase Module with alternate configuration
Bently Nevada 3500/25-02-01-00
Enhanced Bond Phase Module variant
Bently Nevada 3500/05
3500 System Rack for module installation
Popular Related Models
Model
Description
Bently Nevada 3500/22
Transient Data Interface Module for machinery event recording
Bently Nevada 3500/32
4-Channel Relay Module for alarm and protection control
Bently Nevada 3500/40M
Four-Channel Proximity Monitor Module
Bently Nevada 3500/42M
Proximity Monitor Module for vibration and position monitoring
Applications in Rotating Machinery Phase Reference Monitoring
The Bently Nevada 3500/25-02-01-02 Enhanced Bond Phase Module is designed to provide accurate phase reference signal processing and Keyphasor® signal management within the Bently Nevada 3500 Machinery Protection System. This module delivers reliable rotational timing information required for advanced vibration analysis, shaft position monitoring, machine balancing, and detailed rotating equipment diagnostics.
The module is commonly applied in critical machinery systems such as turbines, compressors, generators, pumps, and other high-value rotating assets where precise shaft reference data is essential. By providing accurate phase information, the 3500/25-02-01-02 helps engineers evaluate machine behavior, analyze vibration characteristics, and improve equipment reliability.
Integrated into the Bently Nevada 3500 platform, this Enhanced Bond Phase Module supports dependable machinery protection strategies by improving diagnostic accuracy and enabling more effective predictive maintenance programs.
Technical Features and Advantages
Feature
Description
Enhanced Phase Signal Processing
Provides accurate rotational phase reference measurement
Keyphasor® Interface Capability
Supports shaft timing and phase analysis functions
3500 Platform Compatibility
Designed for installation in Bently Nevada 3500 racks
High-Precision Data Processing
Improves vibration analysis and diagnostic accuracy
Industrial Monitoring Design
Suitable for continuous machinery protection applications
Compact Rack Configuration
Enables efficient system integration
Technical FAQs
1. What is the function of the Bently Nevada 3500/25-02-01-02?
It processes phase reference signals and provides Keyphasor® input functionality for the 3500 Machinery Protection System.
2. What does a Keyphasor® signal provide?
A Keyphasor® signal provides a precise shaft rotation reference used for phase measurement and vibration analysis.
3. Why is phase reference important for rotating machinery?
Phase reference data helps identify vibration sources, shaft position changes, and abnormal machine behavior.
4. What equipment uses this module?
It is suitable for turbines, compressors, generators, pumps, and other critical rotating equipment.
5. Does this module measure vibration directly?
No. It provides phase reference information that supports vibration monitoring and diagnostic analysis.
6. Can it be integrated into an existing 3500 monitoring rack?
Yes. It is designed for use with the Bently Nevada 3500 Machinery Protection System.
7. How does it support predictive maintenance?
It provides accurate rotational reference data that improves machinery fault analysis and condition assessment.
8. What factors influence phase signal quality?
Sensor installation, shaft reference setup, signal condition, and system configuration affect performance.
9. Is it designed for continuous industrial operation?
Yes. It is intended for permanent installation in industrial machinery monitoring systems.
10. What are the benefits of enhanced phase processing?
It improves diagnostic resolution and helps maintenance teams make better equipment decisions.
