Brand:Bently Nevada PLC Item No.:3500/32-01-00 Product Origin:USA Product Dimensions:241 x 24.4 x 242 mm Product Weight:0.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

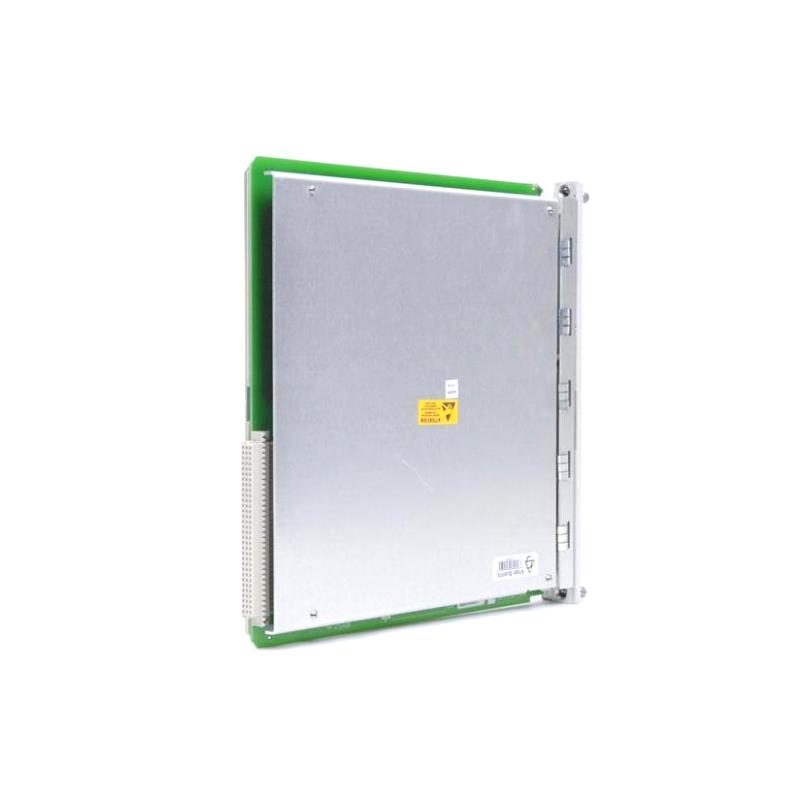

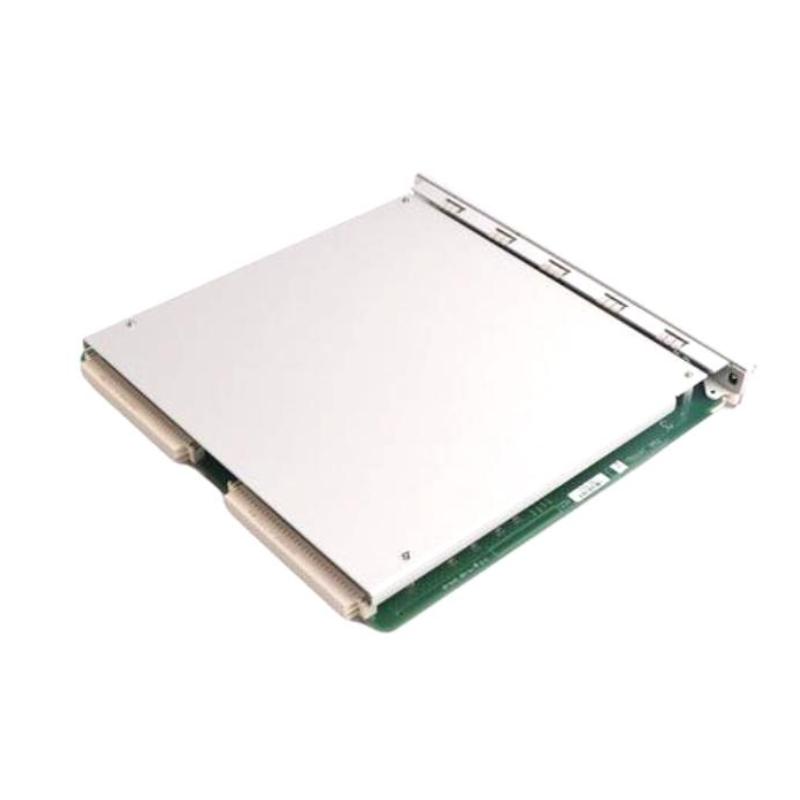

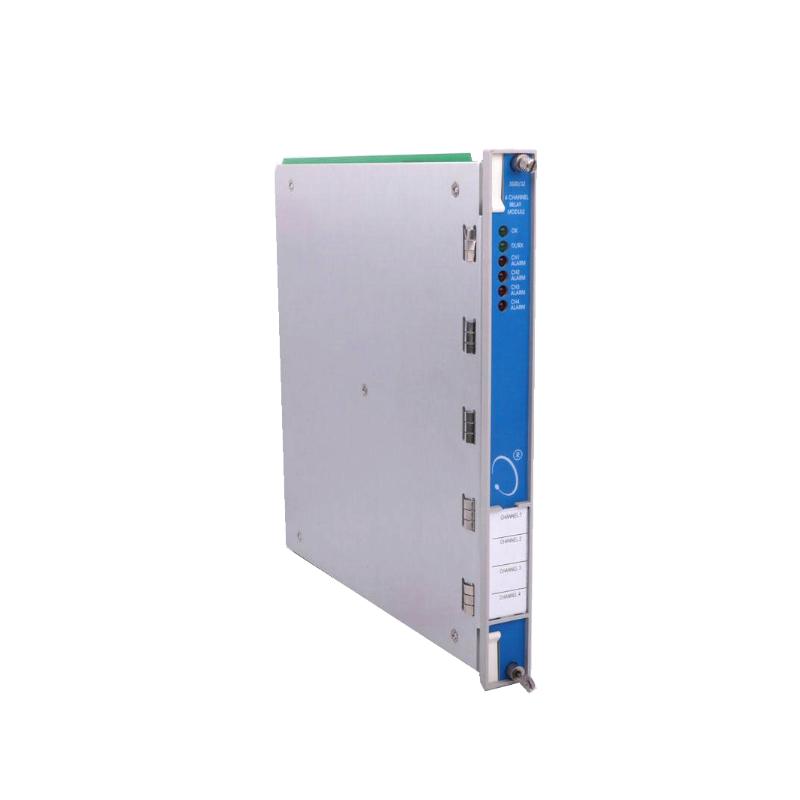

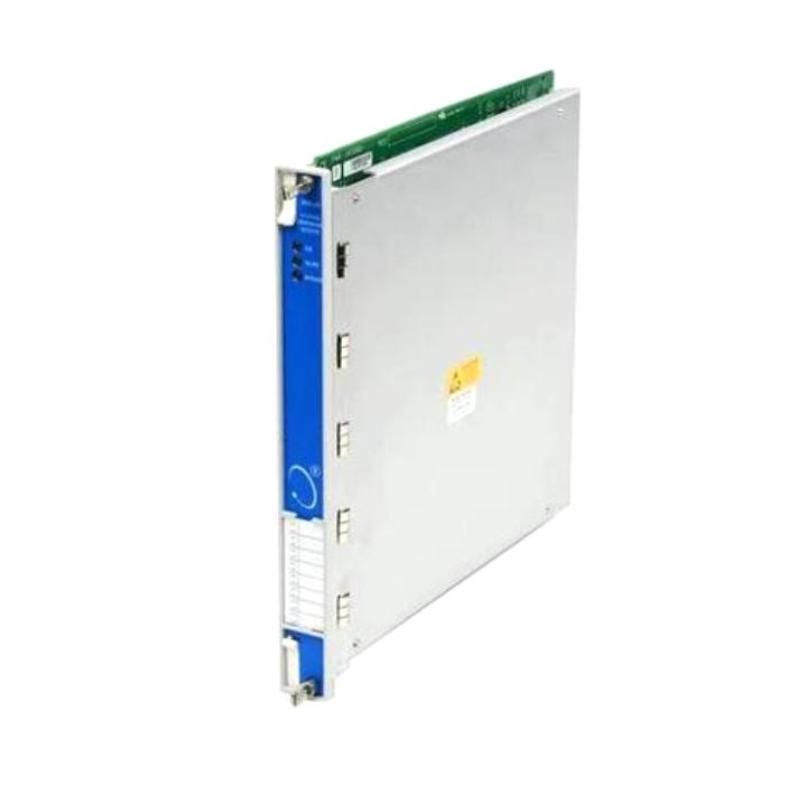

The Bently Nevada 3500/32-01-00 4-Channel Relay Module is an important component of the 3500 Machinery Protection System, providing relay-based output capability for industrial equipment protection applications.
The module receives alarm and protection status information from the 3500 system and converts these conditions into physical relay outputs. This allows connection to external devices such as annunciators, control systems, and emergency shutdown circuits.
Designed for critical rotating machinery environments, the 3500/32-01-00 supports reliable plant operation by enabling rapid response to abnormal equipment conditions. Its four-channel configuration provides flexibility for different alarm and protection requirements while maintaining the proven reliability of the Bently Nevada 3500 platform.
Technical Specifications
Specification
Details
Product Brand
Bently Nevada
Model Number
3500/32-01-00
Product Series
3500 Machinery Protection System
Module Type
4-Channel Relay Module
Function
Relay Output and Alarm Control
Number of Channels
4 Relay Channels
Application
Machinery Protection and Alarm Systems
System Compatibility
Bently Nevada 3500 Monitoring Platform
Installation Type
Rack Mount Module
Dimensions
241 × 24.4 × 242 mm
Weight
0.7 kg (1.54 lb)
Recommended Related Models
Model
Description
Bently Nevada 3500/32-01-00
4-Channel Relay Module for machinery protection systems
Bently Nevada 3500/33-01-00
16-Channel Relay Module for expanded output applications
Bently Nevada 3500/05
3500 System Rack for module installation
Bently Nevada 3500/15
3500 Power Supply Module for system power management
Popular Related Models
Model
Description
Bently Nevada 3500/22
Transient Data Interface Module for machinery event recording
Bently Nevada 3500/25
Enhanced Keyphasor® Phase Module for rotational reference monitoring
Bently Nevada 3500/40M
Four-Channel Proximity Monitor Module
Bently Nevada 3500/42M
Proximity Monitor Module for vibration and position monitoring
Applications in Machinery Protection Alarm and Control Systems
The Bently Nevada 3500/32-01-00 4-Channel Relay Module is designed to provide reliable relay output functionality within the Bently Nevada 3500 Machinery Protection System. This module enables the system to generate alarm, shutdown, and control signals based on monitored machinery conditions, supporting automated protection responses for critical rotating equipment.
The module is widely used in industrial applications including power generation, oil and gas, petrochemical, and heavy manufacturing facilities where rapid response to abnormal machine conditions is required. By providing four independent relay channels, the 3500/32-01-00 allows integration with external control systems, annunciators, and protective shutdown circuits.
With dependable switching performance and seamless compatibility with the 3500 platform, this relay module helps improve machinery safety, reduce equipment damage risk, and enhance operational reliability.
Technical Features and Benefits
Feature
Description
4 Independent Relay Channels
Provides multiple alarm and control outputs
3500 System Integration
Designed for Bently Nevada 3500 monitoring racks
Alarm and Shutdown Support
Enables automated protective responses
Flexible Logic Configuration
Supports different machinery protection requirements
Industrial Relay Design
Suitable for continuous operation in demanding environments
Compact Rack Module
Optimizes installation space within protection systems
Technical FAQs
1. What is the main function of the Bently Nevada 3500/32-01-00?
It provides four relay outputs for alarm, shutdown, and control functions within a Bently Nevada 3500 monitoring system.
2. How many relay channels does this module provide?
The module provides four independent relay channels.
3. What applications use this relay module?
It is commonly used for machinery alarm systems, protective shutdown circuits, and external control interfaces.
4. Which machinery systems can use the 3500/32-01-00?
It is suitable for turbines, compressors, pumps, generators, and other critical rotating equipment.
5. Does the module measure vibration or position directly?
No. It receives protection logic from monitoring modules and provides relay-based output actions.
6. How does this module improve machinery protection?
It allows automatic response actions when monitored parameters exceed configured limits.
7. Can relay outputs be connected to external control systems?
Yes. The relay outputs can interface with external alarms, PLC systems, and shutdown circuits.
8. What determines when a relay activates?
Relay activation is controlled by configured alarm conditions from compatible 3500 monitoring modules.
9. Is the module suitable for continuous industrial operation?
Yes. It is designed for permanent installation in industrial machinery protection systems.
10. What are the benefits of using a dedicated relay module?
It provides reliable hardware-based output control for fast and dependable machinery protection responses.
