Brand:Bently Nevada PLC Item No.:3500/32M-01 Product Origin:USA Product Dimensions:241 x 24.4 x 242 mm Product Weight:0.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

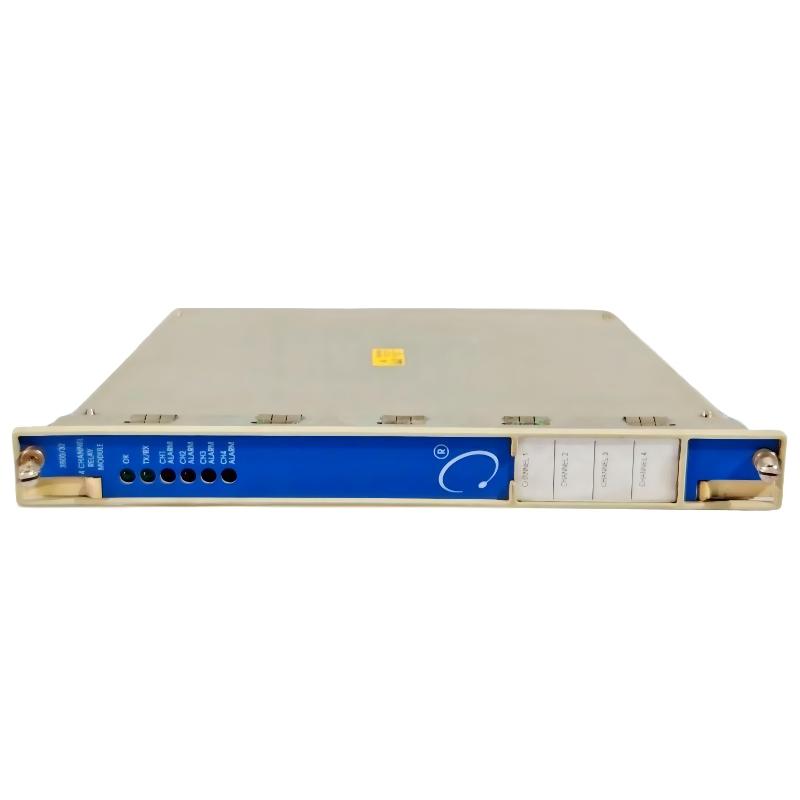

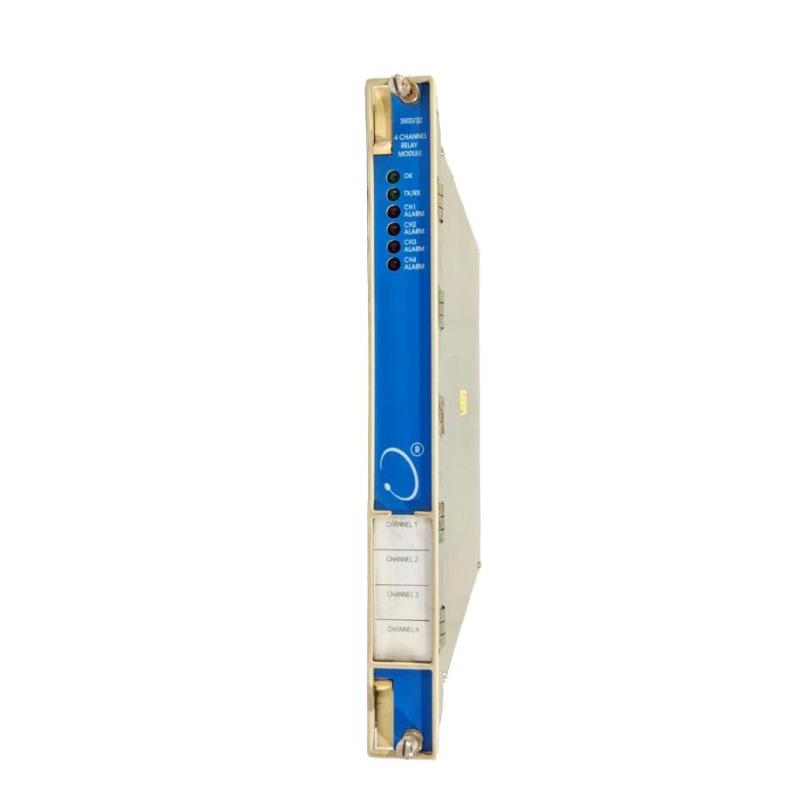

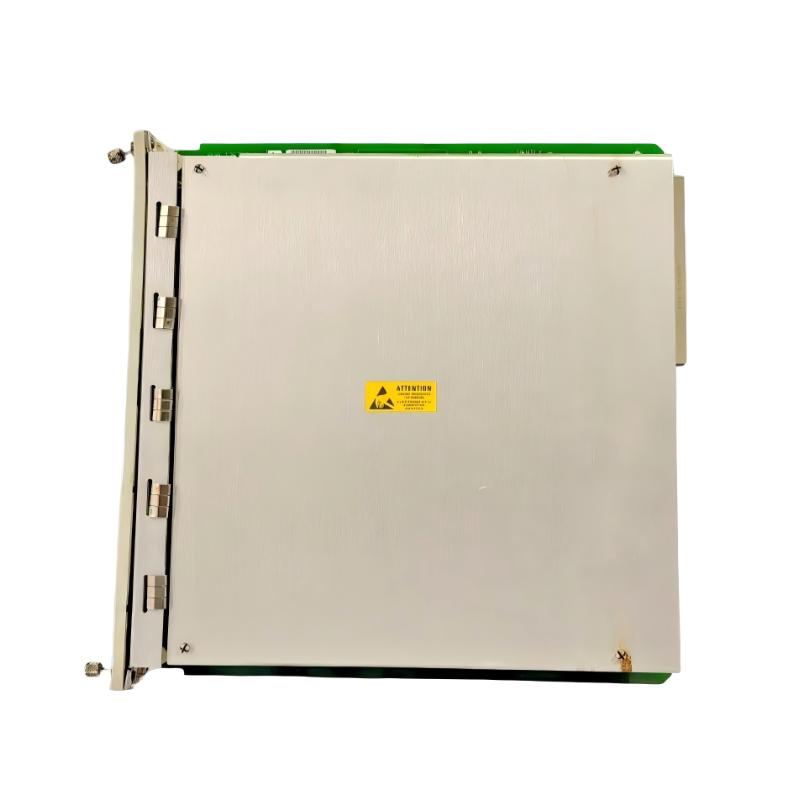

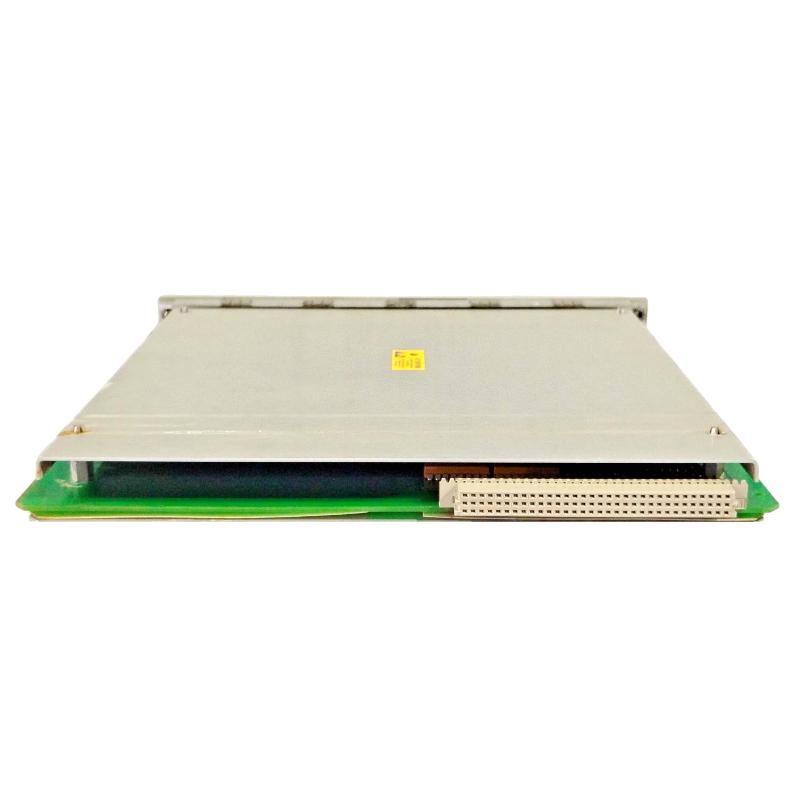

The Bently Nevada 3500/32M-01 4-Channel Relay Module is a full-height rack module designed to enhance the output capability of the Bently Nevada 3500 Machinery Protection System.
The module receives alarm conditions and system status information from compatible monitoring modules and converts these signals into relay outputs for external equipment. This allows machinery protection systems to communicate directly with plant control systems, warning devices, and emergency shutdown circuits.
The 3500/32M-01 supports flexible protection configurations and is suitable for applications where reliable alarm response and equipment protection are essential. Its robust industrial design makes it suitable for continuous monitoring of high-value rotating machinery.
Technical Specifications
Specification
Details
Product Brand
Bently Nevada
Model Number
3500/32M-01
Product Series
3500 Machinery Protection System
Module Type
4-Channel Relay Module
Function
Relay Output and Alarm Control
Number of Relay Channels
4
Relay Type
Programmable Relay Outputs
Application
Machinery Protection, Alarm, and Shutdown Control
System Compatibility
Bently Nevada 3500 Monitoring Platform
Installation Type
Rack Mount Module
Dimensions
241 × 24.4 × 242 mm
Weight
0.7 kg
Recommended Related Models
Model
Description
Bently Nevada 3500/32-01-00
Standard 4-Channel Relay Module
Bently Nevada 3500/32-01-CN
4-Channel Relay Module Configuration Variant
Bently Nevada 3500/33-01-00
16-Channel Relay Module for expanded output requirements
Bently Nevada 3500/05
3500 System Rack Module Carrier
Popular Related Models
Model
Description
Bently Nevada 3500/22
Transient Data Interface Module
Bently Nevada 3500/25
Enhanced Phase Module for rotational reference monitoring
Bently Nevada 3500/40M
Four-Channel Proximity Monitor Module
Bently Nevada 3500/42M
Proximity Monitor Module for vibration and position monitoring
Applications in Machinery Protection Alarm and Control Systems
The Bently Nevada 3500/32M-01 4-Channel Relay Module is designed to provide reliable relay output functionality within the Bently Nevada 3500 Machinery Protection System. This module expands the protection system capability by providing four independent relay outputs for alarm notification, equipment protection, shutdown control, and external automation interfaces.
The module is widely used in critical rotating machinery applications, including steam turbines, gas turbines, compressors, generators, pumps, and other industrial equipment requiring fast and dependable response to abnormal operating conditions.
By converting monitoring system alarm states into physical relay outputs, the 3500/32M-01 enables integration with plant control systems, annunciators, and safety circuits. It helps improve machinery protection reliability, reduce equipment damage risks, and support effective predictive maintenance strategies.
Technical Features and Advantages
Feature
Description
4 Independent Relay Channels
Provides four separate relay outputs for alarm and control functions
Programmable Relay Logic
Supports flexible configuration for different protection requirements
Alarm and Shutdown Interface
Enables connection with external control and safety systems
3500 System Compatibility
Designed for installation in Bently Nevada 3500 monitoring racks
Reliable Switching Performance
Provides dependable relay operation for industrial applications
Compact Rack Design
Allows efficient integration into machinery protection systems
Technical FAQs
1. What is the main function of the Bently Nevada 3500/32M-01?
The module provides four relay outputs for machinery alarm, protection, and control applications within the 3500 Machinery Protection System.
2. How many relay channels does the module provide?
The 3500/32M-01 provides four independent relay channels.
3. Does this module measure vibration directly?
No. The module receives alarm and status information from monitoring modules and provides relay output actions.
4. What type of equipment uses this relay module?
It is commonly used with turbines, compressors, generators, pumps, and other critical rotating machinery.
5. What are relay outputs used for in machinery protection systems?
Relay outputs are used to activate alarms, shutdown circuits, control systems, and protective actions when abnormal conditions occur.
6. Can each relay channel be configured independently?
Yes. Each relay output can be configured according to specific machinery protection requirements.
7. How does this module improve equipment safety?
It allows rapid response to abnormal machine conditions by providing reliable hardware-based output control.
8. Can this module connect to external PLC or control systems?
Yes. Relay outputs can be integrated with plant automation and safety systems.
9. Is the 3500/32M-01 suitable for continuous industrial operation?
Yes. It is designed for permanent installation in industrial machinery monitoring environments.
10. What is the advantage of using a dedicated relay module?
It provides reliable and fast switching capability for critical machinery protection applications.
