Brand:Bently Nevada PLC Item No.:3500/33-01-02 Product Origin:USA Product Dimensions:241 x 24.4 x 99.1 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

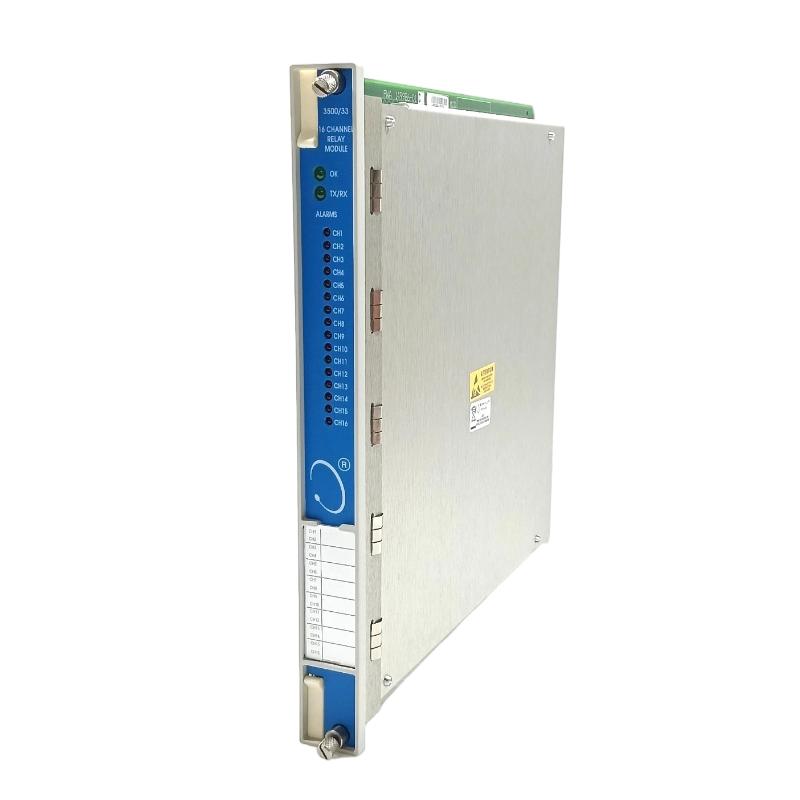

The Bently Nevada 3500/33-01-02 16-Channel Relay Output Module is an essential component for expanding the control and alarm output capabilities of a 3500 machinery monitoring system. Designed for high-reliability industrial applications, it provides sixteen relay channels that allow operators to connect machine monitoring information with external protection equipment.
Its modular architecture supports efficient system expansion while maintaining compatibility with established 3500 rack configurations. The module helps improve operational visibility by ensuring that critical equipment conditions can be transferred into actionable alarm and control responses.
For facilities managing high-value rotating assets, the 3500/33-01-02 offers a reliable method for integrating monitoring data into broader plant protection strategies.
Technical Specifications
Specification
Details
Product Model
Bently Nevada 3500/33-01-02
Product Type
16-Channel Relay Output Module
System Platform
Bently Nevada 3500 Machinery Protection System
Number of Relay Channels
16
Module Function
Relay Signal Output and Control Interface
Installation Type
3500 Rack Mount Configuration
Dimensions (H × W × D)
241 × 24.4 × 99.1 mm
Weight
0.40 kg (0.88 lb)
Application Field
Machinery Monitoring, Alarm Management, Protective Control
Operating Role
Interface Between Monitoring Modules and External Systems
Recommended Related Models
Model
Description
Bently Nevada 3500/32-01-00
4-Channel Relay Output Module
Bently Nevada 3500/33-01-00
16-Channel Relay Output Module
Bently Nevada 3500/92-01-01
Communication Gateway Module
Bently Nevada 3500/15
Power Supply Module
Popular Related Models
Model
Description
Bently Nevada 3500/22M
Transient Data Interface Module
Bently Nevada 3500/25
Enhanced Keyphasor Module
Bently Nevada 3500/42M
Proximity Monitor Module
Bently Nevada 3500/44M
Aeroderivative Gas Turbine Monitor
Bently Nevada 3500/53
Overspeed Detection System Module
The Bently Nevada 3500/33-01-02 16-Channel Relay Output Module provides a reliable and efficient solution for industrial facilities requiring advanced alarm output management and protective control integration. With its multi-channel capability, modular design, and proven role within machinery monitoring systems, it helps operators maintain equipment reliability and improve operational safety.
Industrial Applications and System Integration
The Bently Nevada 3500/33-01-02 16-Channel Relay Output Module is designed to provide reliable relay-based signal outputs within the Bently Nevada 3500 Machinery Protection System. With 16 independent relay channels, it enables monitoring systems to communicate critical alarm and control conditions to external devices such as shutdown systems, annunciators, and plant automation equipment.
This module plays an important role in industrial environments where rapid response and dependable equipment protection are essential. It is commonly integrated into rotating machinery monitoring applications across power plants, oil and gas facilities, petrochemical plants, and other process industries.
Typical applications include:
Application
Function
Turbine Protection Systems
Provides relay outputs for alarm and trip functions
Compressor Monitoring
Transfers machine condition alerts to control systems
Generator Protection
Supports operational safety through reliable alarm signaling
Pump and Motor Monitoring
Enables external protective actions based on machine status
Industrial Automation Systems
Connects monitoring logic with plant control equipment
Key Advantages and Performance Benefits
The 3500/33-01-02 relay output module delivers a practical solution for expanding the output capabilities of machinery protection systems. Its compact modular design and multi-channel relay architecture allow engineers to manage multiple alarm signals efficiently while maintaining system reliability.
Advantage
Description
16-Channel Relay Capacity
Supports multiple independent output signals from a single module
Flexible Configuration
Allows relay functions to be assigned according to application requirements
Reliable Signal Transmission
Provides stable communication between monitoring systems and external equipment
Industrial-Grade Design
Built for continuous operation in demanding environments
Simplified Maintenance
Modular installation supports efficient replacement and servicing
Enhanced Protection Capability
Helps improve response time during abnormal equipment conditions
The module provides a dependable interface between machinery monitoring functions and plant-level protection strategies, making it suitable for critical rotating equipment applications.
Technical FAQs
1. What is the purpose of the Bently Nevada 3500/33-01-02 module?
The module provides relay output channels that transmit alarm and control signals from a Bently Nevada 3500 monitoring rack to external systems.
2. How many relay outputs does the 3500/33-01-02 provide?
The module provides 16 independent relay output channels.
3. Can relay channels be configured separately?
Yes. Each relay channel can be configured according to specific monitoring and control requirements.
4. Which monitoring platform is this module designed for?
The module is designed for use within the Bently Nevada 3500 Machinery Protection System platform.
5. What types of signals can control the relay outputs?
Relay outputs can be activated by configured alarm states, monitoring conditions, and system logic from compatible 3500 modules.
6. How does the module improve machinery protection systems?
It allows critical machine condition information to be transferred quickly to external protection and control devices.
7. Can the module support shutdown applications?
Yes. Relay outputs can be used as part of shutdown and protective control strategies when properly configured.
8. Is software configuration required for operation?
Yes. Relay functions and logic settings are configured through compatible Bently Nevada system configuration tools.
9. Can this module operate together with other 3500 I/O modules?
Yes. It is designed to integrate with other modules installed in the same 3500 rack architecture.
10. What industries commonly use this relay output module?
It is widely used in power generation, oil and gas, petrochemical, and industrial process applications requiring machinery protection.
