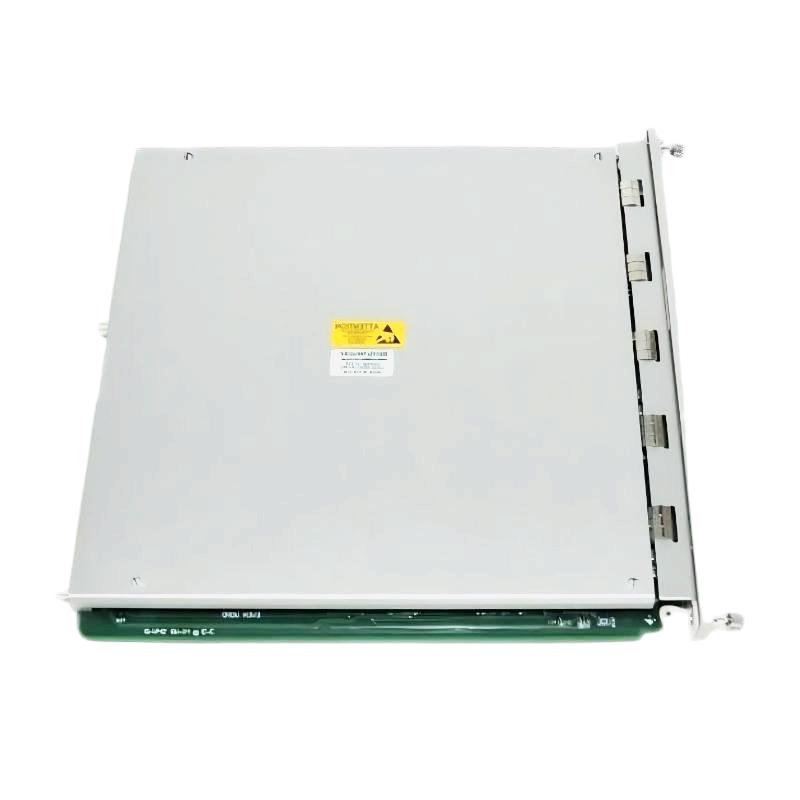

Bently Nevada 3500/40M-01 Proximitor Monitor Module

Where It Excels in Industrial Use

• Precision Shaft Vibration and Position Monitoring:
The Bently Nevada 3500/40M-01 Proximitor Monitor Module is designed to process signals from Bently Nevada proximity transducers, providing accurate vibration, shaft position, and displacement measurements for critical rotating equipment. It continuously evaluates monitored parameters against configurable alarm settings to support reliable machinery protection.

• Turbomachinery Protection Applications:
The module is widely applied in steam turbines, gas turbines, compressors, generators, and other high-value rotating assets where accurate radial vibration, thrust position, eccentricity, and differential expansion monitoring are essential for operational reliability.

• Continuous Condition Monitoring Systems:
Integrated into the Bently Nevada 3500 Machinery Protection System, this module delivers essential machine health information for operation and maintenance teams by converting proximity probe signals into meaningful vibration and position parameters.

• Flexible Industrial Measurement Configurations:
The module supports multiple monitoring functions through software configuration, allowing engineers to adapt channels for different machinery requirements without replacing hardware.

Key Strengths at a Glance

• Four-Channel Proximitor Monitoring Capability:
Provides four independent monitoring channels that accept proximity transducer inputs and condition signals for vibration and position measurements.

• Programmable Measurement Functions:
Each channel can be configured for applications such as radial vibration, thrust position, eccentricity, differential expansion, and REBAM measurement depending on system requirements.

• Advanced Alarm Processing:
The module compares measured values against user-defined alert and danger setpoints, helping operators identify developing machinery issues before equipment damage occurs.

• Internal Termination I/O Configuration:
The -01 option uses a Proximitor I/O Module with internal termination, providing a compact wiring solution for standard 3500 rack installations.

• Reliable 3500 Platform Integration:
Designed for seamless operation within the 3500 Machinery Protection System, the module maintains compatibility with Bently Nevada monitoring architecture and configuration software.

Technical FAQs

1. What is the main function of the Bently Nevada 3500/40M-01 Proximitor Monitor Module?
It receives proximity transducer signals, processes the signals, and provides vibration and position measurements for machinery monitoring and protection applications.

2. How many monitoring channels does the 3500/40M-01 provide?
The module provides four independent monitoring channels.

3. Which sensors are compatible with this module?
The module is designed to accept inputs from compatible Bently Nevada proximity transducers.

4. Can the 3500/40M-01 measure radial vibration?
Yes. The module can be configured to monitor radial vibration using compatible proximity probe systems.

5. Can this module monitor shaft position parameters?
Yes. It supports position-related measurements such as thrust position, eccentricity, and differential expansion applications.

6. What does the "-01" suffix indicate in the model number?
The -01 option identifies the Proximitor I/O Module configuration with internal termination.

7. Is the 3500/40M-01 responsible for machinery shutdown decisions?
The module provides alarm outputs and monitoring information, while overall protection logic depends on the complete 3500 system configuration.

8. Can channel functions be changed through software configuration?
Yes. Channel functions can be programmed using compatible 3500 Rack Configuration Software.

9. What is the difference between 3500/40M-01 and 3500/40M-02?
The primary difference is the I/O configuration. The -01 version uses internal termination, while the -02 version uses external termination connections.

10. What should be checked before replacing this module?
Engineers should verify rack compatibility, sensor type, I/O configuration, firmware requirements, and existing channel configuration settings.
