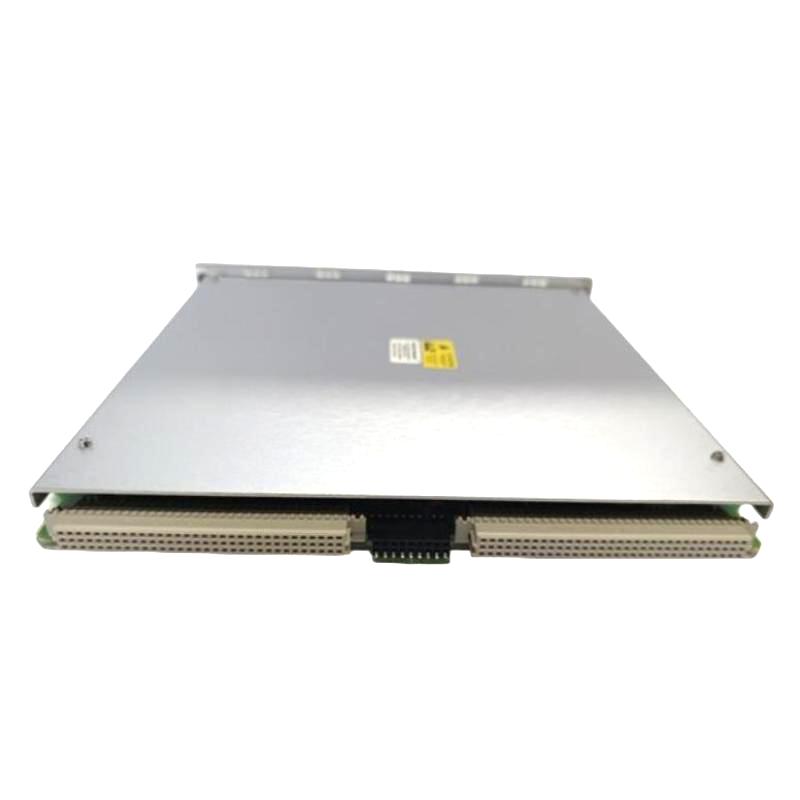

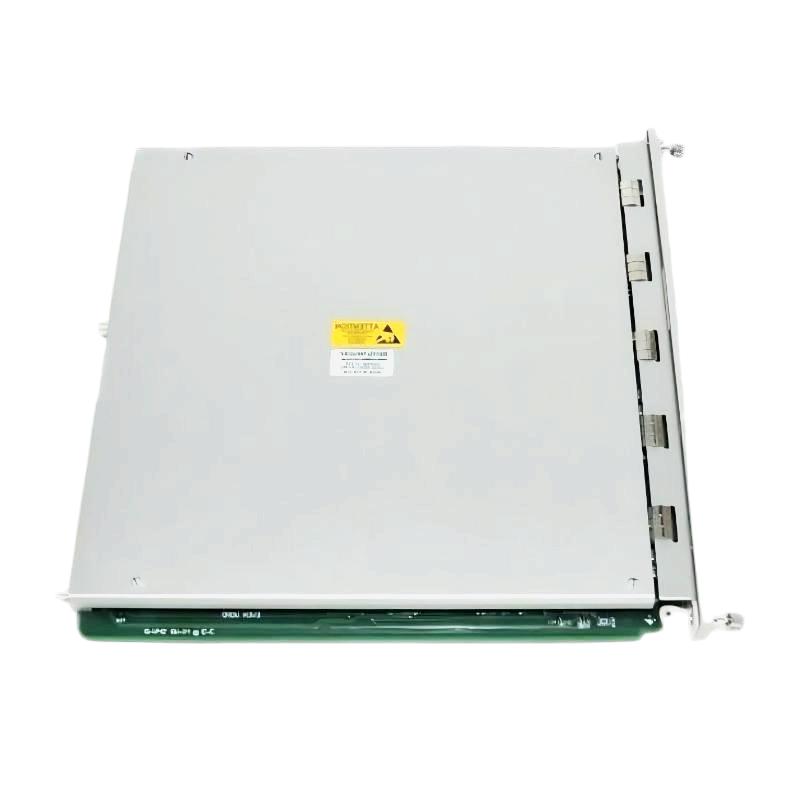

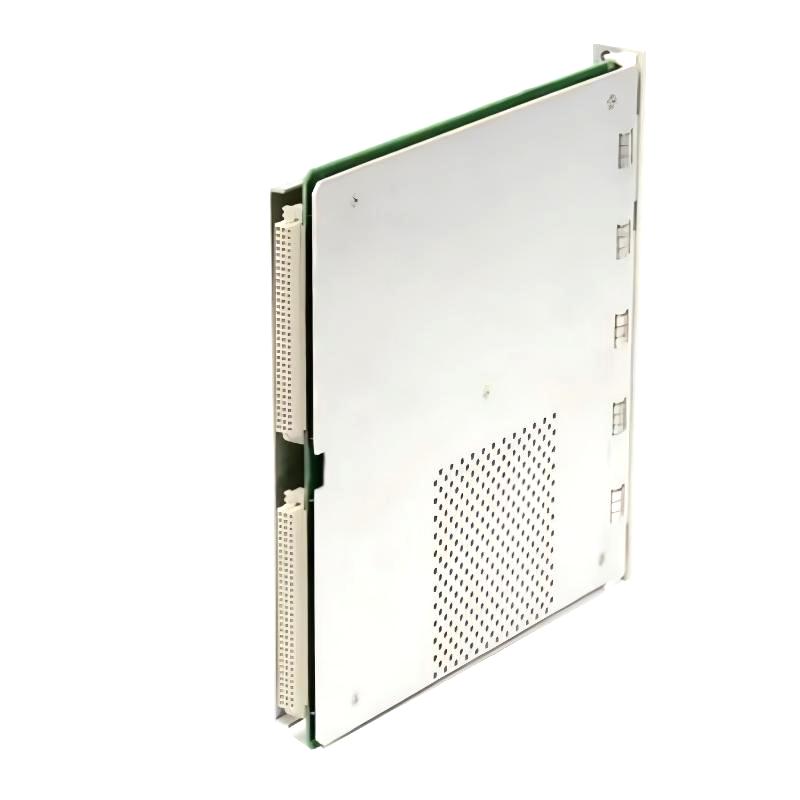

Bently Nevada 3500/40M-01-00 176449-01 Proximitor Monitor Module

Where It Excels in Industrial Use

• Critical Rotating Equipment Vibration Protection:
The Bently Nevada 3500/40M-01-00 176449-01 Proximitor Monitor Module is engineered for continuous monitoring of rotating machinery by processing proximity transducer signals and converting them into accurate vibration and position measurements. It provides essential machine condition information for protection and predictive maintenance applications.

• Turbine and Compressor Condition Monitoring:
This module is widely applied in steam turbines, gas turbines, compressors, generators, and other high-value rotating assets where shaft vibration, displacement, and position monitoring are critical for operational reliability.

• Industrial Machinery Protection Systems:
Integrated within the Bently Nevada 3500 Machinery Protection System, the module continuously compares measured parameters with user-defined alarm limits, helping operators identify abnormal machine conditions before serious failures occur.

• Flexible Multi-Parameter Monitoring Applications:
The module supports configurable monitoring functions including radial vibration, thrust position, eccentricity, differential expansion, and REBAM measurements, allowing adaptation to different rotating equipment requirements.

Key Strengths at a Glance

• Four-Channel Proximitor Monitoring Capability:
Provides four independent monitoring channels for accepting Bently Nevada proximity transducer inputs and processing vibration and position signals.

• Accurate Signal Conditioning Technology:
Processes proximity probe signals with stable signal conditioning, improving measurement accuracy and reliability in demanding industrial environments.

• Programmable Monitoring Functions:
Each channel can be configured through 3500 Rack Configuration Software to perform different monitoring tasks according to machinery requirements.

• Internal Termination I/O Configuration:
The -01-00 configuration uses the Proximitor I/O Module with internal termination and does not include additional hazardous area approval options.

• Reliable 3500 Platform Compatibility:
Designed for seamless integration into existing 3500 racks, the module provides long-term stability for machinery protection, diagnostics, and asset reliability programs.

Technical FAQs

1. What is the main function of the Bently Nevada 3500/40M-01-00 176449-01 module?
It monitors proximity transducer signals and provides vibration and position measurements for machinery protection and condition monitoring.

2. How many channels does the 3500/40M-01-00 provide?
The module provides four independent monitoring channels.

3. What type of sensors are compatible with this module?
It is designed for use with compatible Bently Nevada proximity transducers.

4. Can this module monitor radial shaft vibration?
Yes. It can be configured for radial vibration monitoring applications.

5. Can the module measure shaft position parameters?
Yes. It supports measurements such as thrust position, eccentricity, and differential expansion depending on configuration.

6. What does the model number 176449-01 represent?
The 176449-01 identifies the specific 3500/40M Proximitor Monitor module configuration.

7. Does this module directly control machinery shutdown?
No. It provides monitoring data and alarm processing functions, while shutdown actions depend on the complete 3500 system architecture.

8. What software is used to configure this module?
The module is configured using compatible Bently Nevada 3500 Rack Configuration Software.

9. What is the difference between 3500/40M-01-00 and other 3500/40M versions?
The differences are mainly related to I/O module type and hazardous area approval options.

10. What should be checked before replacing this module?
Engineers should verify rack compatibility, sensor type, channel configuration, firmware requirements, and existing I/O wiring arrangement.
