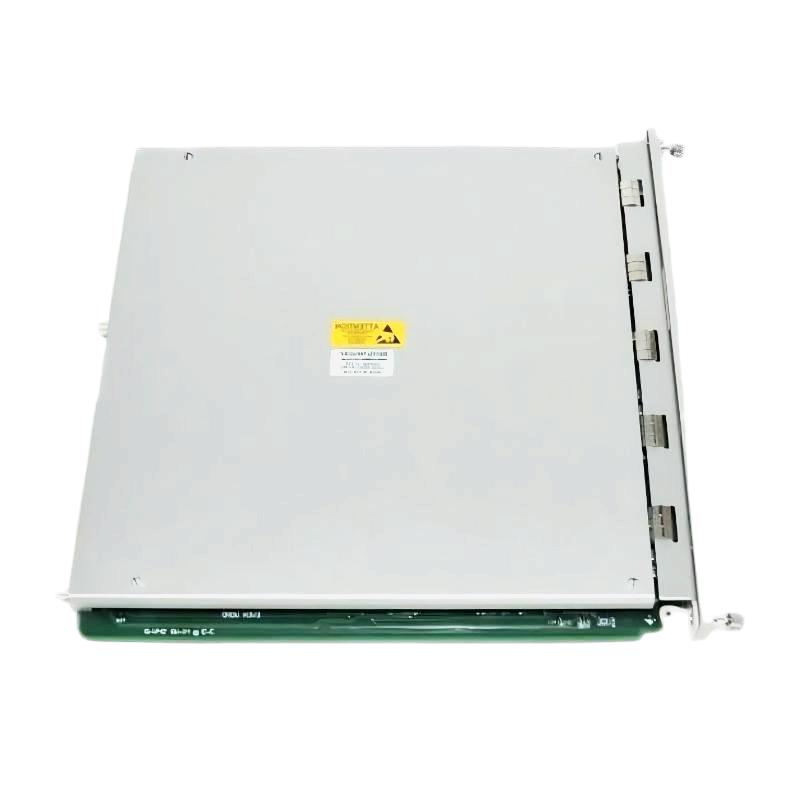

Bently Nevada 3500/40M-01-01 Proximitor Monitor Module

Where It Excels in Industrial Use

• High-Accuracy Shaft Vibration Monitoring:
The Bently Nevada 3500/40M-01-01 Proximitor Monitor Module is designed to process proximity transducer signals and provide precise vibration and position measurements for critical rotating equipment. It continuously evaluates machine conditions against configured alarm limits, supporting reliable machinery protection and maintenance decisions.

• Turbomachinery Protection Applications:
This module is widely applied in steam turbines, gas turbines, compressors, generators, and other large rotating machinery where radial vibration, shaft position, eccentricity, and differential expansion monitoring are essential for preventing unexpected equipment failures.

• Certified Industrial Monitoring Environments:
The -01 approval configuration provides cNRTLus Class 1, Division 2 certification, making it suitable for installations where additional industrial safety approvals are required.

• Integrated Condition Monitoring Platforms:
As part of the Bently Nevada 3500 Machinery Protection System, the module works with rack configuration software and other 3500 modules to deliver continuous machine health information for operations and reliability teams.

Key Strengths at a Glance

• Four-Channel Proximitor Monitoring:
Provides four independent monitoring channels capable of accepting Bently Nevada proximity transducer inputs and converting signals into usable vibration and position measurements.

• Internal Termination I/O Configuration:
Uses the Proximitor I/O Module with internal termination, simplifying field wiring and maintaining a compact installation arrangement within the 3500 rack system.

• cNRTLus Approved Configuration:
The final -01 suffix identifies the hazardous area approval option for cNRTLus Class 1, Division 2 certified applications.

• Flexible Measurement Functions:
Supports configurable monitoring applications including radial vibration, thrust position, differential expansion, eccentricity, and REBAM measurements through 3500 configuration software.

• Reliable Machinery Protection Performance:
The module compares conditioned signals against user-defined alarm settings to provide early warning of abnormal operating conditions and support predictive maintenance strategies.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/40M-01-01 Proximitor Monitor Module?
It processes proximity transducer signals and provides vibration and position monitoring functions within a 3500 Machinery Protection System.

2. How many monitoring channels does this module provide?
The 3500/40M-01-01 provides four independent monitoring channels.

3. What type of sensors are compatible with this module?
It is designed for use with compatible Bently Nevada proximity transducers.

4. Can this module monitor radial shaft vibration?
Yes. It can be configured for radial vibration monitoring applications.

5. Can the module be used for thrust position monitoring?
Yes. It supports thrust position measurement when configured with suitable transducer inputs and application settings.

6. What does the first "-01" represent in the model number?
The first -01 identifies the Proximitor I/O Module with internal termination configuration.

7. What does the final "-01" represent in the model number?
The final -01 identifies the cNRTLus Class 1, Division 2 hazardous area approval option.

8. Is this module responsible for directly shutting down machinery?
No. It provides monitoring data and alarm processing, while shutdown actions depend on the complete 3500 protection system configuration.

9. Can the channel functions be changed after installation?
Yes. Channel functions can be configured using compatible Bently Nevada 3500 Rack Configuration Software.

10. What should be confirmed before replacing this module?
Engineers should verify sensor compatibility, I/O configuration, approval requirements, firmware compatibility, and existing rack settings.
