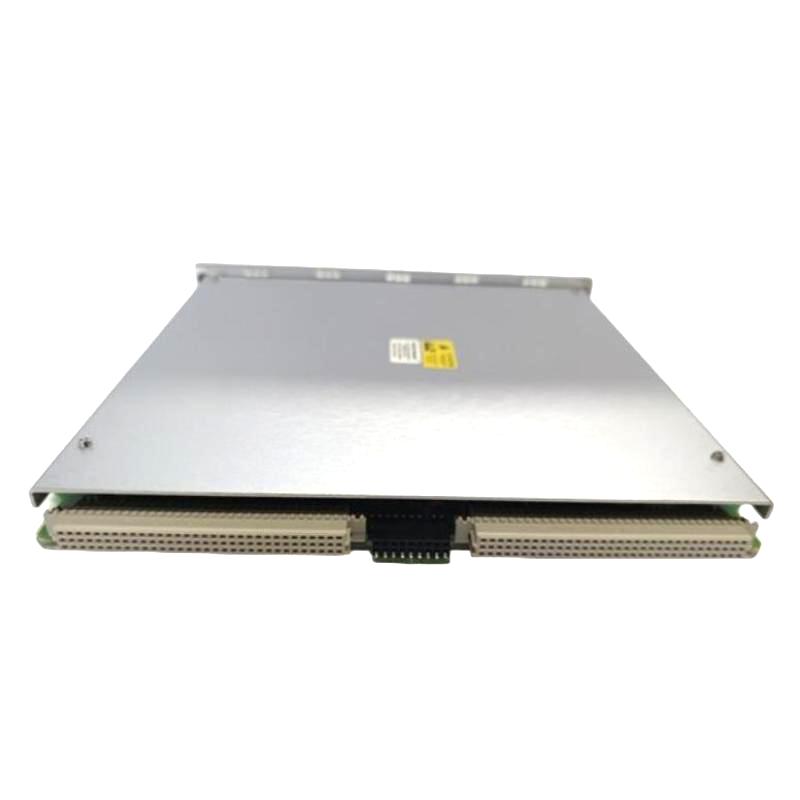

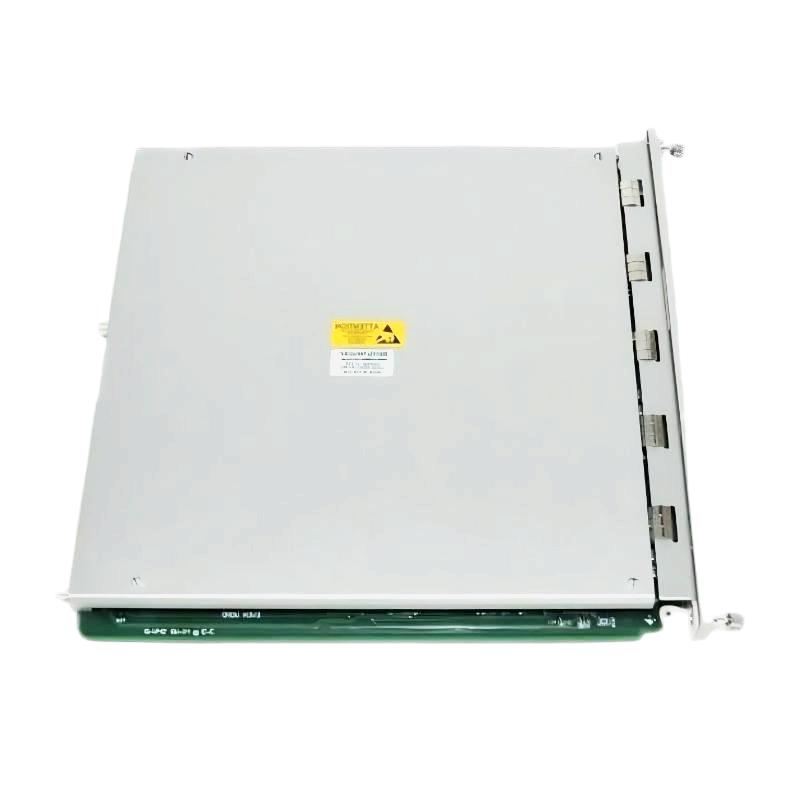

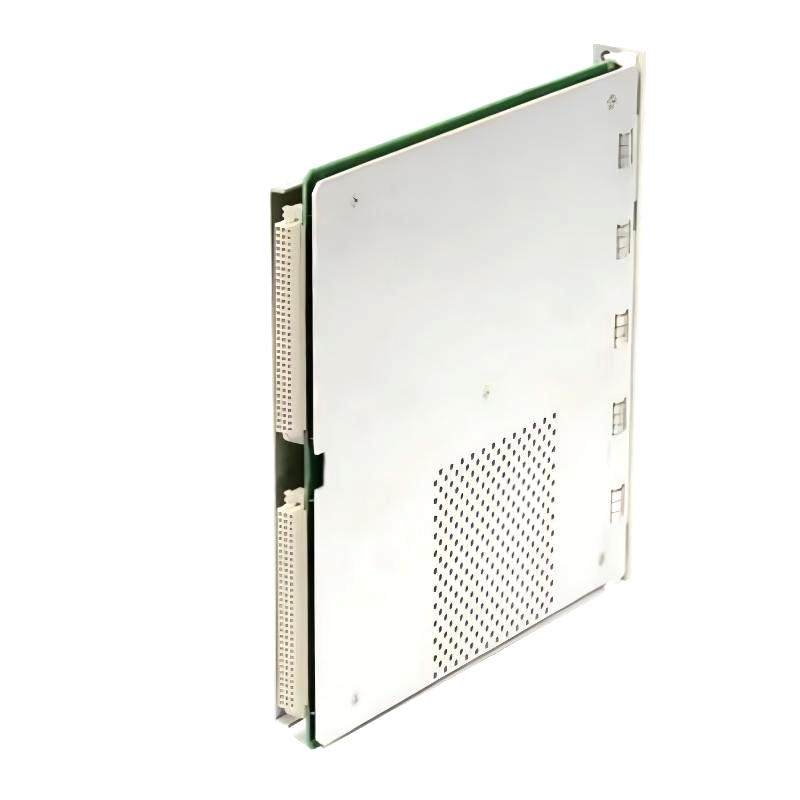

Bently Nevada 3500/40M-01-02 Proximitor Monitor Module

Where It Excels in Industrial Use

• Advanced Shaft Vibration and Position Monitoring:
The Bently Nevada 3500/40M-01-02 Proximitor Monitor Module is designed to process proximity transducer signals and provide accurate vibration and position measurements within the 3500 Machinery Protection System. It supports continuous machinery condition evaluation by comparing measured parameters with configured alarm limits.

• Large Rotating Equipment Protection:
Ideal for steam turbines, gas turbines, compressors, generators, and other critical rotating machinery, the module provides essential monitoring functions for radial vibration, thrust position, differential expansion, eccentricity, and REBAM applications.

• Flexible Industrial Wiring Applications:
The -02 configuration uses a Proximitor I/O Module with external terminations, making it suitable for installations where field wiring access, cabinet organization, and maintenance convenience are important design considerations.

• Condition-Based Maintenance Systems:
Integrated into the Bently Nevada 3500 platform, the module delivers reliable machine health data that helps operators and maintenance teams identify developing mechanical issues and improve equipment reliability.

Key Strengths at a Glance

• Four-Channel Proximitor Monitoring Capability:
Provides four independent channels for receiving Bently Nevada proximity transducer inputs and converting signals into vibration and position measurement parameters.

• External Termination I/O Design:
The -02 option provides external termination connections, allowing simplified field wiring management and easier maintenance access compared with internal termination configurations.

• Multiple Measurement Functions:
Supports configurable monitoring functions including radial vibration, thrust position, differential expansion, eccentricity, and REBAM measurements through compatible 3500 configuration software.

• Programmable Alarm Processing:
The module compares conditioned signals against user-defined Alert and Danger setpoints, helping provide early warning of abnormal machinery conditions.

• Reliable 3500 System Integration:
Designed for installation within existing 3500 racks, the module works together with other monitoring, communication, and relay modules to create a complete machinery protection solution.

Technical FAQs

1. What is the main function of the Bently Nevada 3500/40M-01-02 Proximitor Monitor Module?
It processes proximity transducer signals and provides vibration and position monitoring functions for machinery protection applications.

2. How many monitoring channels does this module provide?
The module provides four independent monitoring channels.

3. What type of sensors are used with this module?
It is designed for use with compatible Bently Nevada proximity transducers.

4. Can the 3500/40M-01-02 monitor radial shaft vibration?
Yes. The module can be configured for radial vibration monitoring applications.

5. What other measurement functions are supported by this module?
It supports thrust position, differential expansion, eccentricity, and REBAM monitoring functions depending on configuration requirements.

6. What does the first "-01" represent in the model number?
The first "-01" identifies the Proximitor I/O Module configuration type.

7. What does the second "-02" represent in the model number?
The second "-02" identifies the Proximitor I/O Module with external terminations.

8. Is this module part of the machinery shutdown logic?
The module provides monitoring measurements and alarm processing, while final shutdown actions depend on the complete 3500 system architecture.

9. Can the monitoring channels be configured individually?
Yes. Channel functions can be programmed using compatible 3500 Rack Configuration Software.

10. What should be checked before replacing this module?
Engineers should verify sensor compatibility, external termination wiring, rack configuration, firmware requirements, and existing protection settings.
