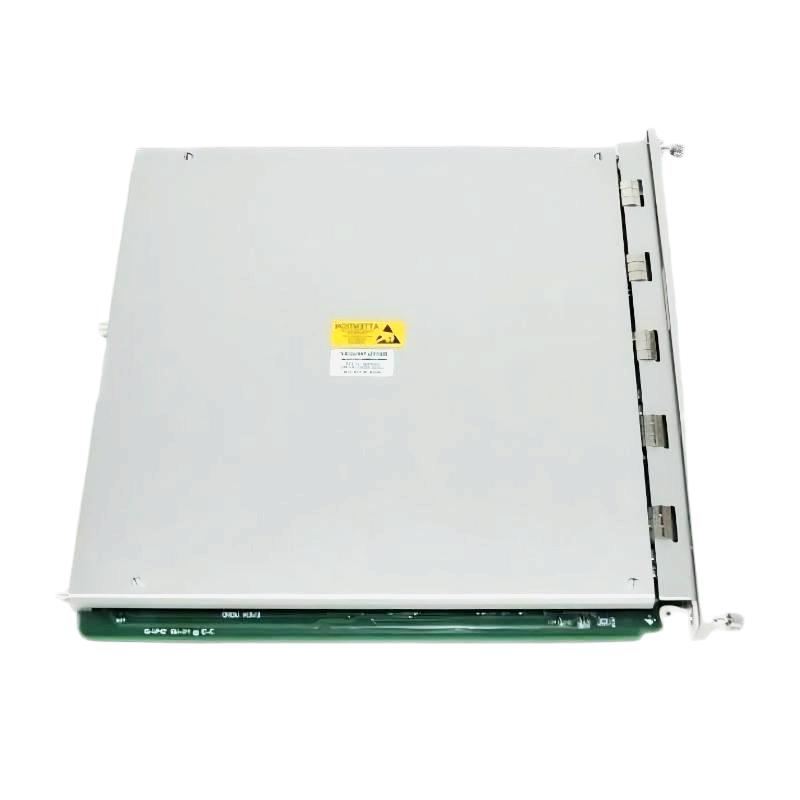

Bently Nevada 3500/40M-03-00 Proximitor Monitor Module

Where It Excels in Industrial Use

• Hazardous Area Shaft Monitoring Applications:
The Bently Nevada 3500/40M-03-00 Proximitor Monitor Module is designed for demanding industrial environments where proximity transducer signals require internal barrier protection. It provides reliable vibration and position monitoring for critical rotating machinery while supporting installations with hazardous area requirements.

• Turbine and Compressor Protection Systems:
This module is widely used in steam turbines, gas turbines, compressors, generators, and other high-value rotating assets where accurate shaft vibration, thrust position, eccentricity, and differential expansion measurements are required for continuous machine protection.

• Integrated Machinery Condition Monitoring:
As part of the Bently Nevada 3500 platform, the module processes proximity transducer inputs, conditions measurement signals, and compares operating values against programmable alarm limits to support predictive maintenance and reliability improvement programs.

• Industrial Safety-Critical Installations:
The internal barrier I/O configuration makes this model suitable for applications requiring additional signal isolation between field transducers and monitoring electronics, improving system flexibility in regulated industrial environments.

Key Strengths at a Glance

• Four-Channel Proximitor Monitoring Capability:
Provides four independent monitoring channels for accepting Bently Nevada proximity transducer signals and generating vibration and position measurement data.

• Internal Barrier I/O Technology:
The -03 configuration uses a Proximitor I/O Module with internal barriers and internal terminations, providing enhanced field signal isolation and simplified rack integration.

• Flexible Measurement Functions:
Supports configurable monitoring functions including radial vibration, thrust position, differential expansion, eccentricity, and REBAM measurements through compatible 3500 configuration software.

• Programmable Alarm Processing:
The module continuously compares monitored parameters against user-defined Alert and Danger setpoints, helping operators detect abnormal machinery conditions before equipment damage occurs.

• Reliable 3500 System Compatibility:
Designed for seamless integration with 3500 racks, the module works alongside Keyphasor, communication, relay, and interface modules to build complete machinery protection solutions.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/40M-03-00 Proximitor Monitor Module?
It processes proximity transducer signals and provides vibration and position monitoring functions within the 3500 Machinery Protection System.

2. How many monitoring channels does the 3500/40M-03-00 provide?
The module provides four independent monitoring channels.

3. What type of sensors are compatible with this module?
It is designed for use with compatible Bently Nevada proximity transducers.

4. What does the "-03" configuration indicate?
The -03 option identifies the Proximitor I/O Module with internal barriers and internal terminations.

5. Can this module measure radial shaft vibration?
Yes. It can be configured for radial vibration monitoring applications.

6. Can the module monitor thrust position?
Yes. It supports thrust position measurement when configured with suitable transducer inputs and application settings.

7. Does the 3500/40M-03-00 directly control machinery shutdown?
No. It provides monitoring measurements and alarm processing, while shutdown decisions depend on the complete 3500 protection system configuration.

8. What advantage does the internal barrier design provide?
The internal barrier design improves electrical isolation between field devices and monitoring electronics, supporting applications requiring additional protection measures.

9. Can channel functions be changed through software configuration?
Yes. Each channel can be programmed using compatible Bently Nevada 3500 Rack Configuration Software.

10. What should be checked before replacing this module?
Engineers should verify sensor compatibility, internal barrier requirements, rack configuration, firmware version, and existing protection settings.
