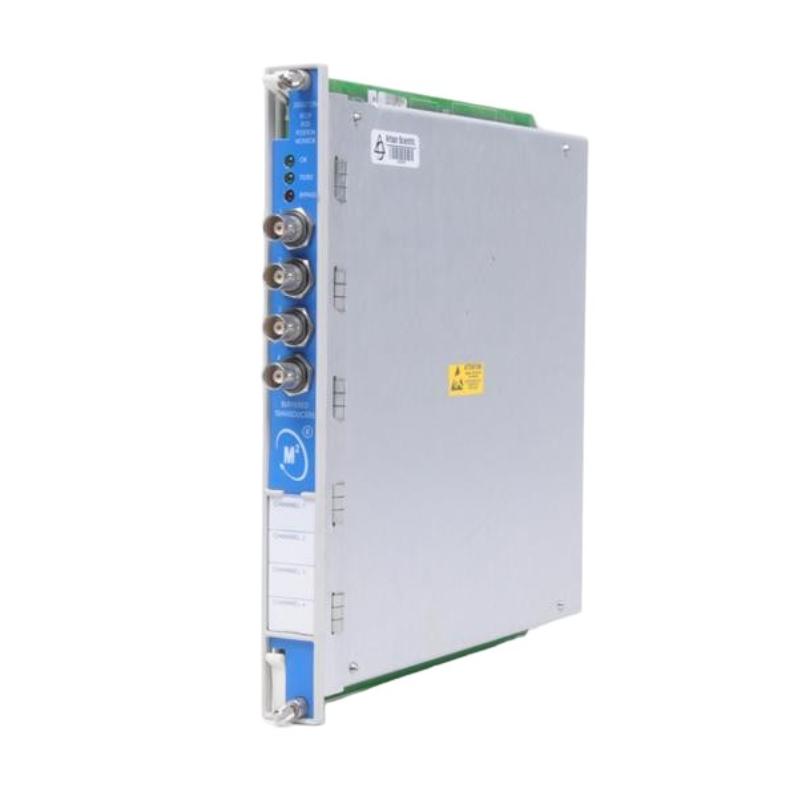

Bently Nevada 3500/42-01-CN Proximitor/Seismic Monitor Module

Where It Excels in Industrial Use

• Critical Rotating Equipment Protection:
The Bently Nevada 3500/42-01-CN Proximitor/Seismic Monitor Module provides continuous vibration and position monitoring for high-value rotating machinery. It processes proximity and seismic transducer signals to deliver accurate machine condition data for protection systems and reliability programs.

• Turbine, Compressor, and Generator Monitoring:
Designed for demanding applications such as steam turbines, gas turbines, compressors, pumps, and generators, this module supports precise monitoring of shaft vibration, casing vibration, thrust position, and other critical machine parameters.

• Hazardous Area Industrial Installations:
The -CN approval option provides a country-specific certification configuration, making this model suitable for projects requiring specific regional hazardous area compliance and industrial approval requirements.

• Predictive Maintenance and Condition Monitoring Systems:
Integrated into the Bently Nevada 3500 Machinery Protection System, the module helps maintenance teams identify abnormal operating conditions early and improve equipment availability through continuous monitoring.

Key Strengths at a Glance

• Four-Channel Proximitor/Seismic Monitoring:
Provides four independent monitoring channels capable of processing proximity and seismic transducer inputs for comprehensive vibration and position analysis.

• Internal Termination I/O Configuration:
The -01 configuration uses the Prox/Seismic I/O Module with internal terminations, providing a compact wiring arrangement for standard 3500 rack installations.

• Broad Measurement Capability:
Supports multiple monitoring functions including radial vibration, thrust position, differential expansion, eccentricity, REBAM, acceleration, velocity, shaft absolute, and circular acceptance region measurements.

• Country-Specific Approval Configuration:
The -CN suffix identifies the approval option designed for specific regional certification requirements, supporting wider deployment across industrial facilities.

• Reliable 3500 Platform Integration:
Works seamlessly with other 3500 modules such as Keyphasor, communication, relay, and interface modules to build a complete machinery protection architecture.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/42-01-CN module?
It monitors vibration and position parameters by processing signals from compatible proximity and seismic transducers within the 3500 Machinery Protection System.

2. How many monitoring channels does the 3500/42-01-CN provide?
The module provides four independent monitoring channels.

3. What type of sensors can be connected to this module?
It supports compatible proximity transducers, Seismoprobe sensors, and acceleration-related transducer inputs depending on configuration requirements.

4. Can this module monitor radial shaft vibration?
Yes. It can be configured for radial vibration monitoring using compatible proximity probe inputs.

5. Can the module measure casing vibration?
Yes. When used with suitable seismic transducers, it can monitor casing vibration and related velocity or acceleration parameters.

6. What does the "-01" option represent in the model number?
The -01 option identifies the Prox/Seismic I/O Module configuration with internal terminations.

7. What does the "-CN" suffix indicate?
The -CN suffix identifies the country-specific approval option configuration.

8. Does this module directly perform machinery shutdown operations?
No. The module provides measurement processing and alarm information, while shutdown actions depend on the complete 3500 protection system configuration.

9. How are monitoring channels configured?
Channels are configured through compatible Bently Nevada 3500 Rack Configuration Software.

10. What should be verified before replacing this module?
Engineers should confirm sensor type, I/O configuration, approval requirements, rack compatibility, firmware version, and existing alarm settings.
