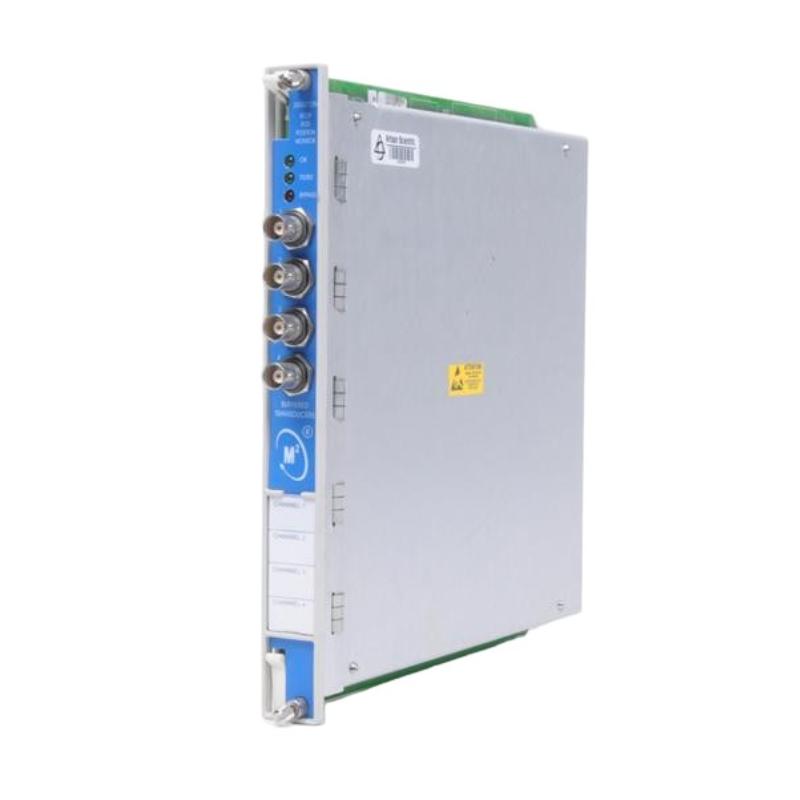

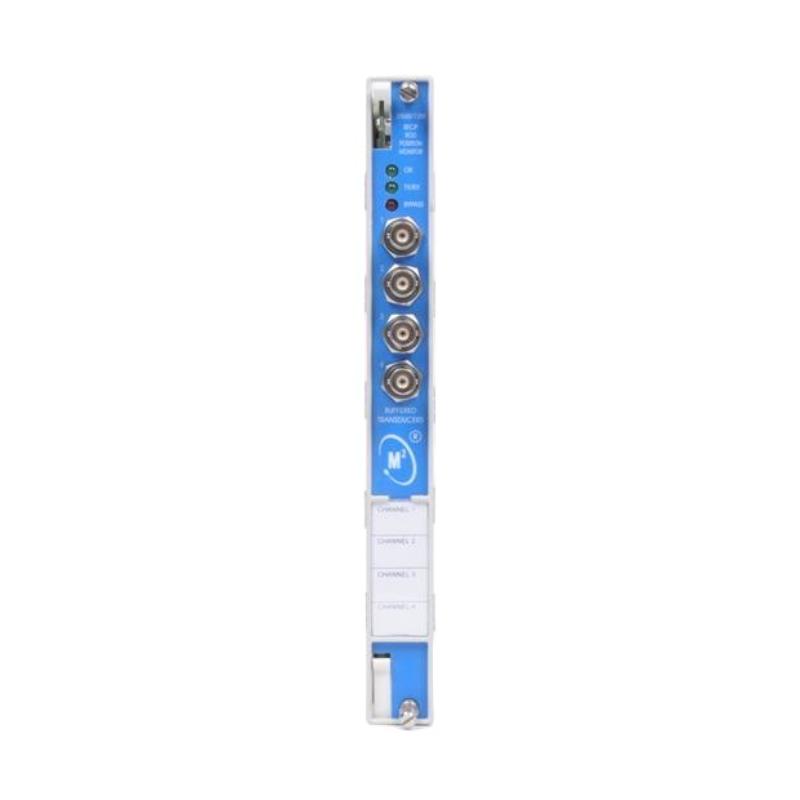

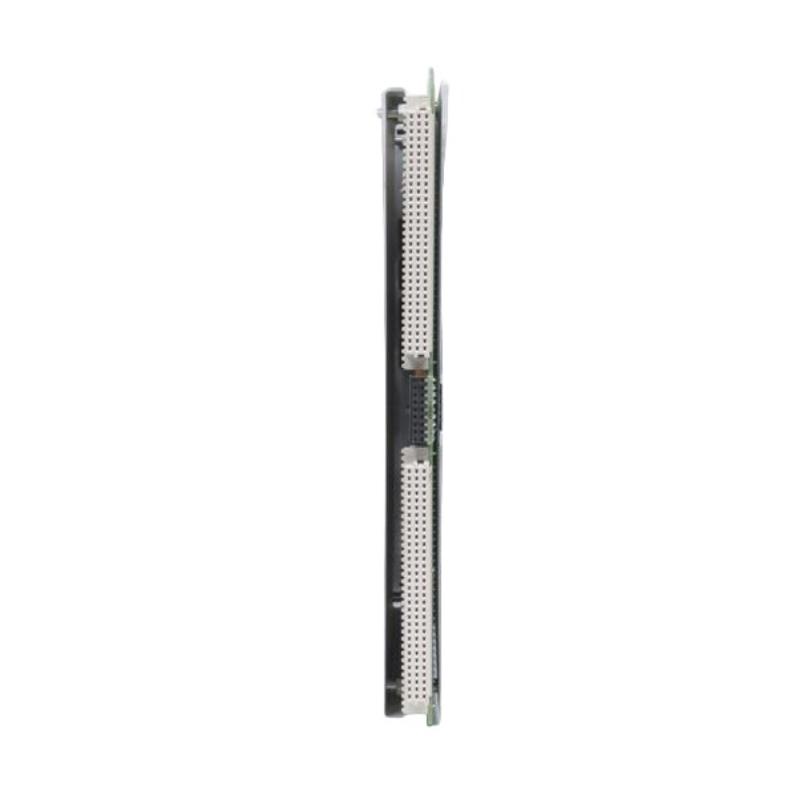

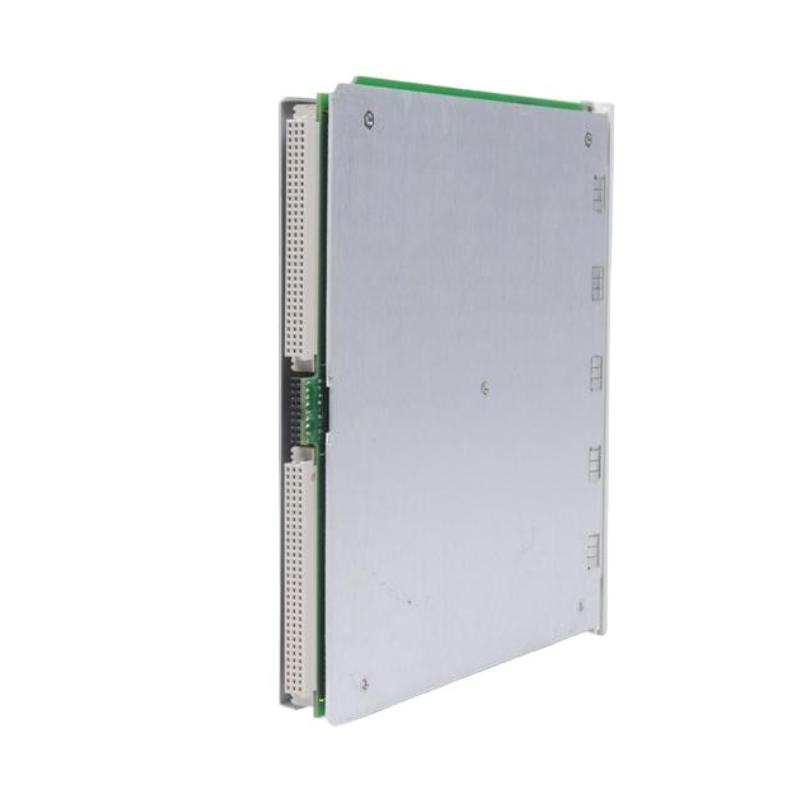

Bently Nevada 3500/42-04-CN Proximitor/Seismic Monitor Module

Where It Excels in Industrial Use

• Hazardous Area Rotating Equipment Protection:
The Bently Nevada 3500/42-04-CN Proximitor/Seismic Monitor Module is engineered for critical machinery monitoring applications where reliable vibration measurement and regional hazardous area approvals are required. It processes proximity and acceleration transducer signals to provide accurate machine condition data for protection and predictive maintenance systems.

• Steam Turbine, Gas Turbine, and Compressor Monitoring:
Designed for high-value rotating assets, this module supports vibration and position monitoring applications in turbines, compressors, generators, pumps, and other industrial machinery where early detection of mechanical issues is essential for operational reliability.

• Internal Barrier Signal Isolation Applications:
The -04 configuration includes an I/O module with internal barriers, internal terminations, and four Prox/Accel channels, providing improved field signal isolation and simplified integration for installations requiring additional protection between sensors and monitoring electronics.

• Industrial Condition Monitoring Platforms:
Integrated into the Bently Nevada 3500 Machinery Protection System, the module continuously processes vibration signals and compares measured values against configurable alarm limits, helping maintenance teams improve equipment availability and reduce unplanned downtime.

Key Strengths at a Glance

• Four-Channel Proximitor/Seismic Monitoring:
Provides four programmable monitoring channels for Prox/Accel signal processing, supporting vibration and position measurement requirements across different rotating machinery applications.

• Internal Barrier I/O Design:
Equipped with an internal barrier I/O module and internal terminations, the 3500/42-04-CN supports four Prox/Accel channels on channels 1 through 4 for enhanced installation flexibility.

• Country-Specific Approval Configuration:
The -CN suffix identifies the country-specific approval option, supporting applications that require regional certification configurations such as ATEX/IECEx and Chinese NEPSI hazardous area markings.

• Wide Measurement Capability:
Supports configurable monitoring functions including radial vibration, thrust position, differential expansion, eccentricity, REBAM, acceleration, velocity, shaft absolute, and circular acceptance region measurements.

• Reliable 3500 System Compatibility:
Designed for integration within the Bently Nevada 3500 platform, the module works with other protection and communication modules to create a complete machinery monitoring solution.

Technical FAQs

1. What is the main function of the Bently Nevada 3500/42-04-CN module?
It processes proximity and acceleration transducer signals to provide vibration and position monitoring functions within a 3500 Machinery Protection System.

2. How many monitoring channels does the 3500/42-04-CN provide?
The module provides four independent programmable monitoring channels.

3. What type of sensors can be connected to this module?
It supports compatible Prox/Accel transducer inputs for vibration and machinery condition monitoring applications.

4. What does the "-04" configuration represent?
The -04 configuration identifies the I/O module with internal barriers, internal terminations, and four Prox/Accel channels.

5. What does the "-CN" suffix indicate?
The -CN suffix identifies the country-specific approval configuration for regional certification requirements.

6. Can the 3500/42-04-CN monitor radial vibration?
Yes. The module can be configured for radial vibration monitoring using compatible proximity transducer inputs.

7. Can this module monitor acceleration signals?
Yes. The Prox/Accel configuration supports acceleration-related monitoring applications.

8. Does this module directly perform machinery shutdown operations?
No. It provides measurement processing and alarm information, while shutdown actions depend on the complete machinery protection system configuration.

9. How are monitoring channels configured?
Channel functions are configured through compatible Bently Nevada 3500 Rack Configuration Software.

10. What should be checked before replacing this module?
Engineers should verify sensor compatibility, I/O configuration, approval requirements, rack compatibility, firmware version, and existing alarm settings.
