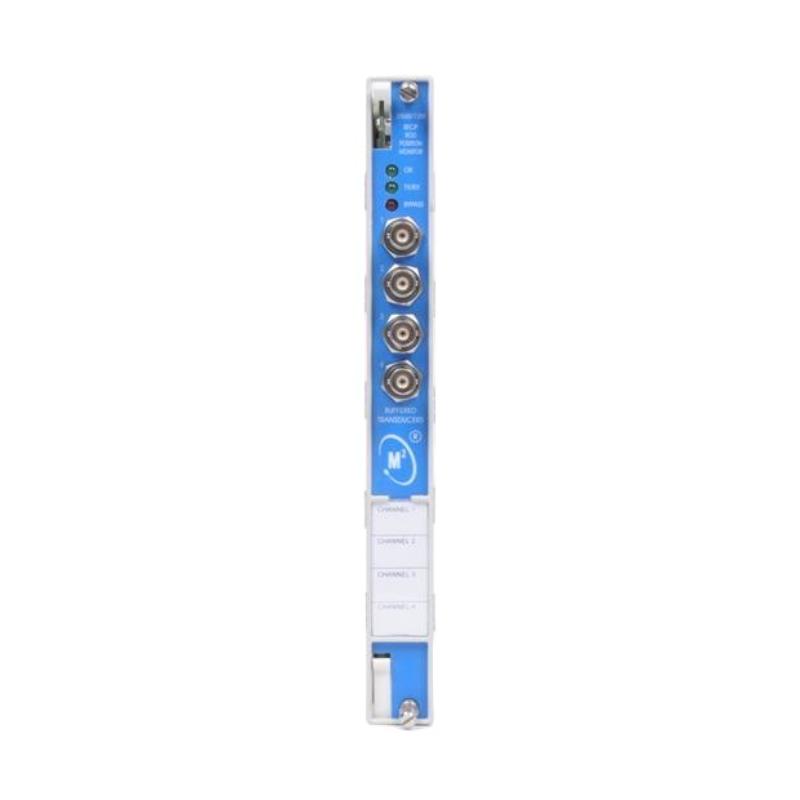

Bently Nevada 3500/42-06-RU Proximitor/Seismic Monitor Module

Where It Excels in Industrial Use

• High-Reliability Velocity Vibration Monitoring:
The Bently Nevada 3500/42-06-RU Proximitor/Seismic Monitor Module is designed for machinery protection applications requiring dedicated Velomitor sensor monitoring. It processes vibration velocity signals and delivers dependable condition data for rotating equipment reliability programs.

• Steam Turbine and Compressor Protection:
This module is suitable for large rotating machinery including steam turbines, gas turbines, compressors, generators, and pumps where casing vibration and structural response monitoring are essential for early fault detection and operational safety.

• Industrial Vibration Analysis Systems:
Integrated within the Bently Nevada 3500 Machinery Protection System, the module continuously evaluates vibration parameters and compares measured values against configured alarm limits, helping operators improve equipment availability and reduce unexpected shutdown risks.

• Regional Approval Industrial Installations:
The -RU configuration provides a Russia-specific approval option, making it suitable for projects where regional certification requirements must be considered during system selection and installation.

Key Strengths at a Glance

• Four-Channel Velomitor Monitoring Capability:
Provides four independent channels configured for Velomitor inputs, allowing accurate velocity vibration measurement across critical machine monitoring points.

• Internal Barrier I/O Architecture:
Uses an internal barrier I/O module with internal terminations and four Velomitor channels, providing improved signal isolation and simplified integration within the 3500 rack system.

• Flexible Vibration Measurement Functions:
Supports monitoring functions including velocity, acceleration, shaft absolute, and other vibration-related parameters according to application configuration and sensor selection.

• Programmable Alarm Processing:
Each channel can be configured through 3500 Rack Configuration Software, allowing engineers to define monitoring functions and alarm thresholds according to specific equipment requirements.

• Reliable 3500 Platform Compatibility:
Designed for integration with the Bently Nevada 3500 Machinery Protection System, the module works together with communication, relay, Keyphasor, and interface modules to provide a complete machinery monitoring solution.

Technical FAQs

1. What is the primary function of the Bently Nevada 3500/42-06-RU module?
It processes Velomitor sensor signals to provide vibration monitoring and machinery protection functions within the 3500 system.

2. How many monitoring channels does the 3500/42-06-RU provide?
The module provides four independent monitoring channels.

3. What type of sensors are supported by this module?
It supports Velomitor velocity vibration sensors on channels 1 through 4.

4. What does the "-06" configuration represent?
The -06 option identifies the internal barrier I/O configuration with internal terminations and four Velomitor channels.

5. What does the "-RU" suffix indicate?
The -RU suffix identifies the Russia-specific approval configuration.

6. Can this module monitor shaft displacement directly?
No. This configuration is primarily designed for velocity vibration monitoring rather than direct shaft displacement measurement.

7. Can the module be used for casing vibration monitoring?
Yes. When connected with compatible Velomitor sensors, it can monitor casing vibration and structural vibration behavior.

8. Does the module directly perform machinery shutdown operations?
No. It provides vibration measurement and alarm information, while shutdown actions depend on the complete machinery protection system configuration.

9. How are the monitoring channels configured?
Channel functions are configured using compatible Bently Nevada 3500 Rack Configuration Software.

10. What should be verified before replacing this module?
Engineers should confirm sensor type, I/O configuration, approval requirements, rack compatibility, firmware version, and existing alarm settings.
