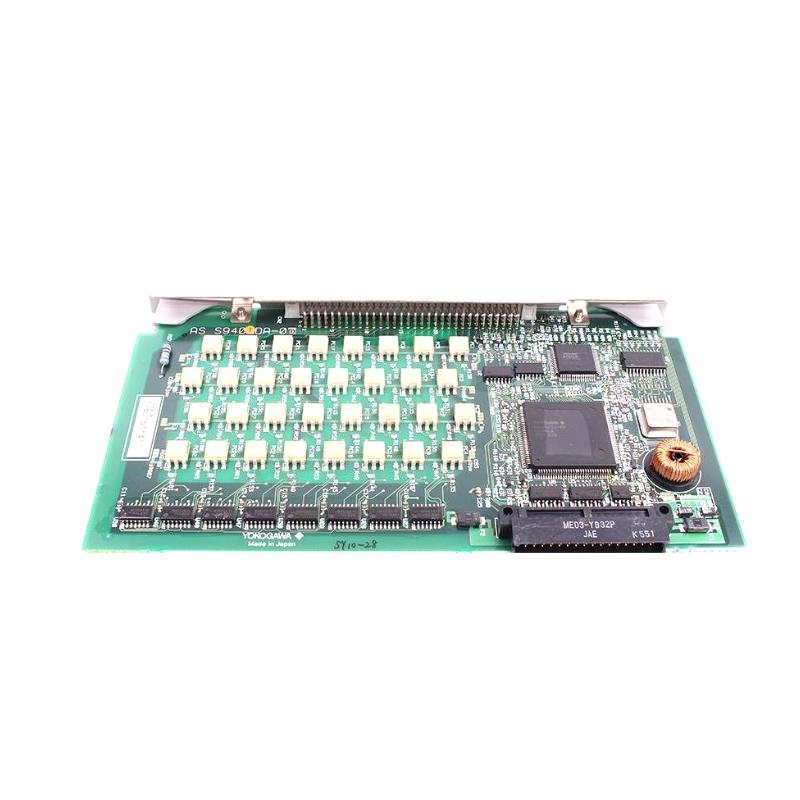

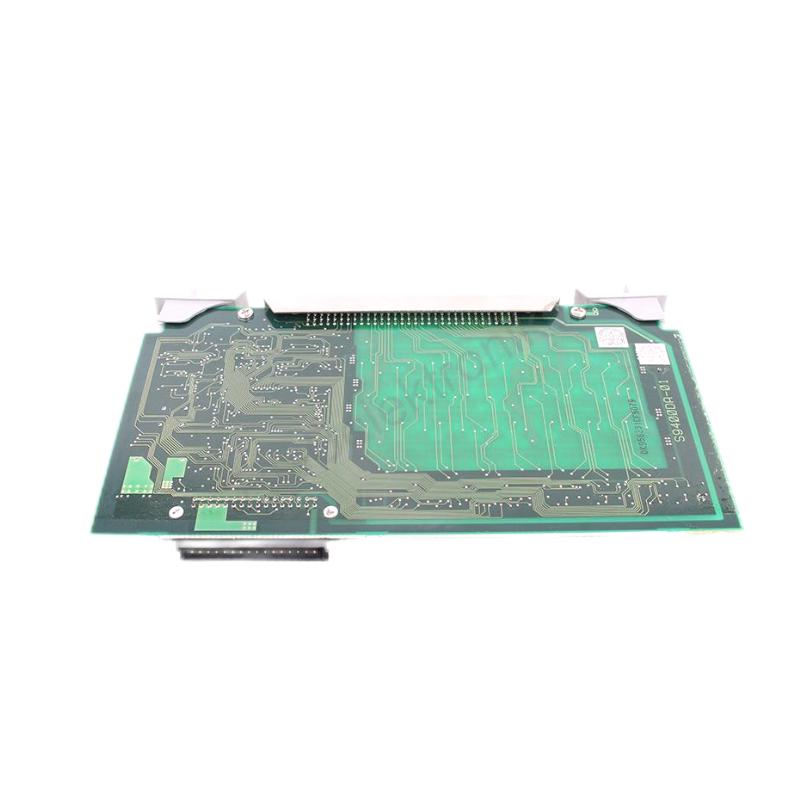

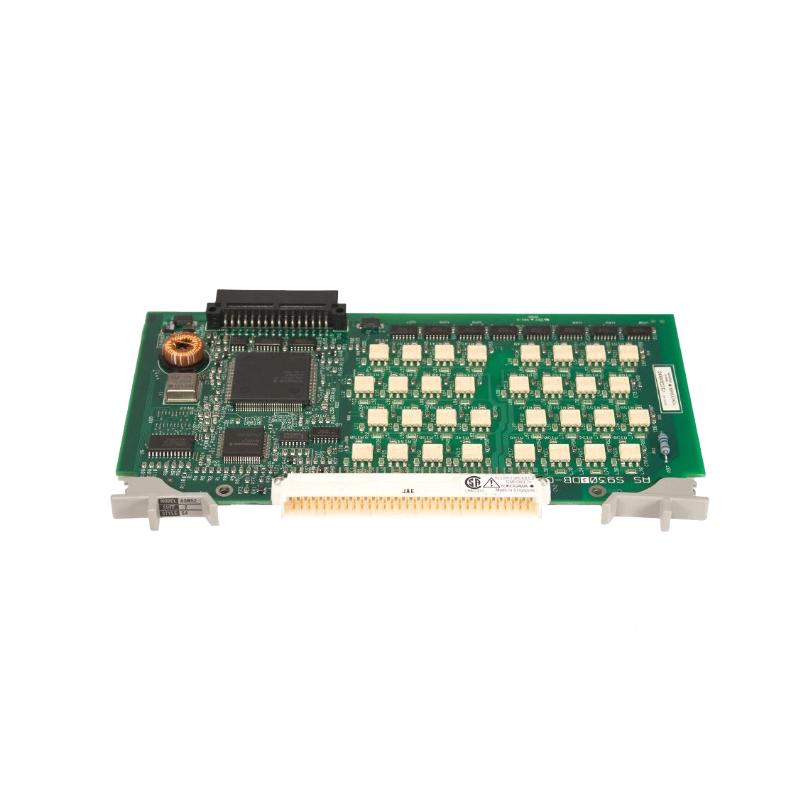

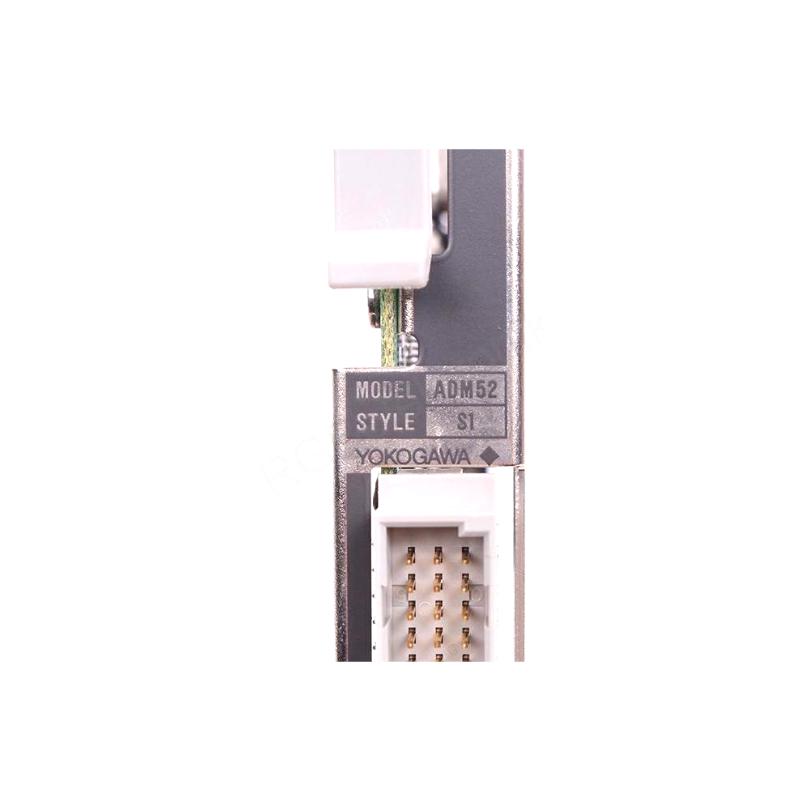

Yokogawa ADM52T Universal I/O Module – High-Performance Flexibility for Industrial Automation

Applications

The Yokogawa ADM52T Universal I/O Module is used in a wide range of industrial applications where high-speed, accurate, and reliable data acquisition is essential. Some of the key applications include:

• Power Generation: The ADM52T monitors critical variables like turbine temperature, pressure, and flow, ensuring the safe operation of power plants while optimizing performance.

• Oil & Gas: Ideal for monitoring wellhead pressure, temperature, and flow, the ADM52T ensures efficient operation and improved safety in both upstream and downstream activities.

• Chemical Processing: In chemical manufacturing, the ADM52T provides precise monitoring of temperature, pressure, and flow, ensuring that processes are running within safe parameters and producing consistent results.

• Manufacturing Automation: The ADM52T is used to track variables on production lines, helping to streamline manufacturing processes, reduce downtime, and maintain product quality.

• Water and Wastewater Treatment: It monitors pumps, valves, and chemical dosing systems, ensuring that water treatment plants operate effectively and efficiently, while also maintaining compliance with environmental standards.

• HVAC and Building Automation: The ADM52T is deployed in large commercial or industrial buildings to monitor and control environmental conditions like temperature and humidity, improving energy efficiency and occupant comfort.

Advantages

• Versatility in Input/Output Types: The ADM52T supports a wide array of input and output types, including analog, digital, RTD, and thermocouple sensors, allowing it to meet the needs of diverse industrial applications.

• Real-Time Data Processing: With a signal conversion speed of just 200 ms per channel, the ADM52T ensures fast and accurate data acquisition, making it suitable for applications that demand real-time control and monitoring.

• High Measurement Accuracy: The ADM52T provides highly accurate measurements, with ±0.1% accuracy for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs, ensuring reliable data for critical decision-making.

• Easy Integration: The ADM52T is fully compatible with Yokogawa's control systems, including DCS, PLCs, and SCADA systems, making it easy to incorporate into existing industrial setups.

• Rugged and Reliable: Built to withstand harsh industrial environments, the ADM52T operates in a temperature range of -20°C to 60°C, ensuring reliable performance even in challenging conditions.

• Compact Design: The module’s compact size makes it easy to install in space-constrained control panels or equipment racks, without sacrificing functionality or performance.

Technical FAQs

1. What input types are compatible with the ADM52T?

   • The ADM52T supports analog inputs (voltage, current), digital inputs, RTD inputs, and thermocouple inputs (Types J, K, T, R, S, N, B, E).

2. How many channels does the ADM52T provide?

   • The ADM52T has 16 configurable input/output channels, which can be adapted to suit various sensor configurations.

3. What is the accuracy of the ADM52T?

   • The ADM52T offers ±0.1% accuracy for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs, providing reliable measurement precision.

4. What is the signal conversion speed of the ADM52T?

   • The module provides a signal conversion speed of 200 ms per channel, allowing for fast data acquisition and real-time monitoring.

5. What is the required power supply for the ADM52T?

   • The ADM52T operates with a 24 VDC power supply.

6. Can the ADM52T be integrated with other Yokogawa systems?

   • Yes, the ADM52T integrates seamlessly with Yokogawa's DCS, PLCs, and SCADA systems, providing a unified solution for industrial automation.

7. What is the operating temperature range of the ADM52T?

   • The ADM52T can operate in temperatures ranging from -20°C to 60°C (-4°F to 140°F), ensuring reliable performance in various environments.

8. What are the dimensions of the ADM52T module?

   • The ADM52T module measures 6.7 inches in length, 4.1 inches in width, and 2.6 inches in height.

9. What mounting options are available for the ADM52T?

   • The ADM52T can be mounted on a DIN rail or directly onto a panel, offering installation flexibility.

10. Is the ADM52T suitable for hazardous environments?

• Yes, the ADM52T is designed to operate reliably in challenging industrial environments, ensuring robust performance even under extreme conditions.
