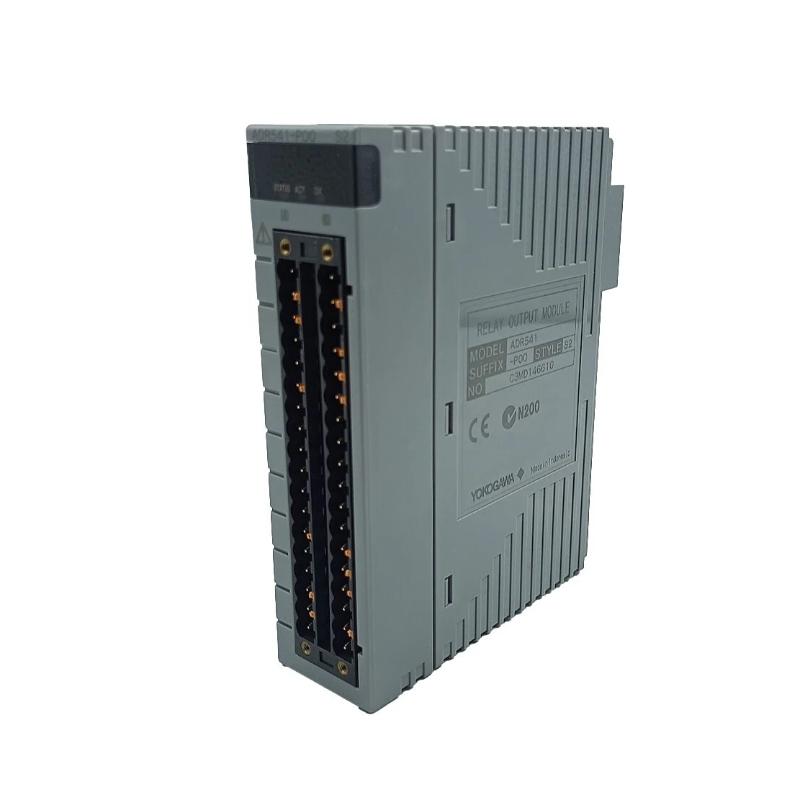

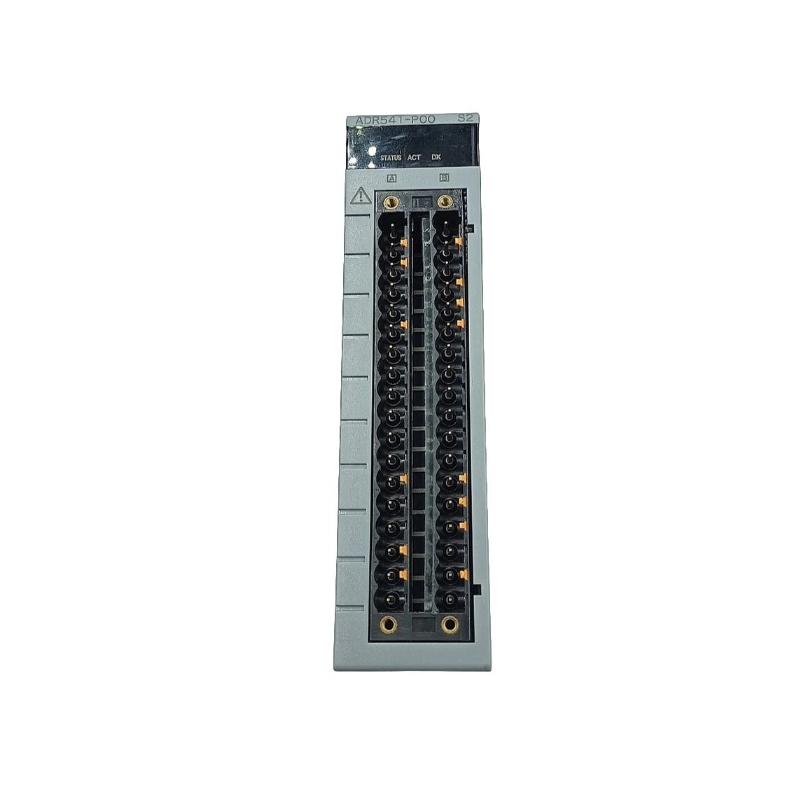

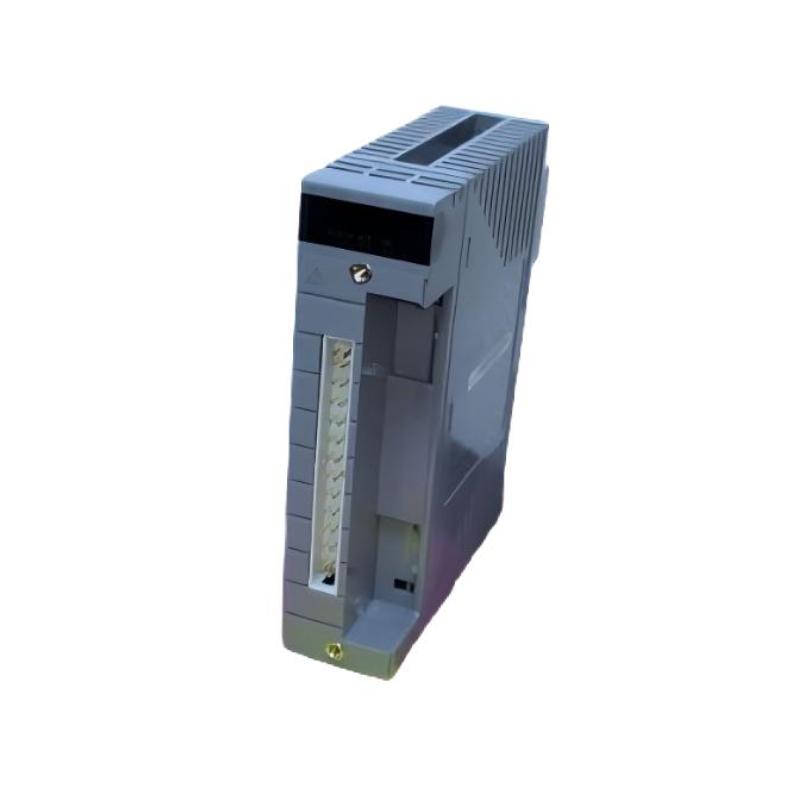

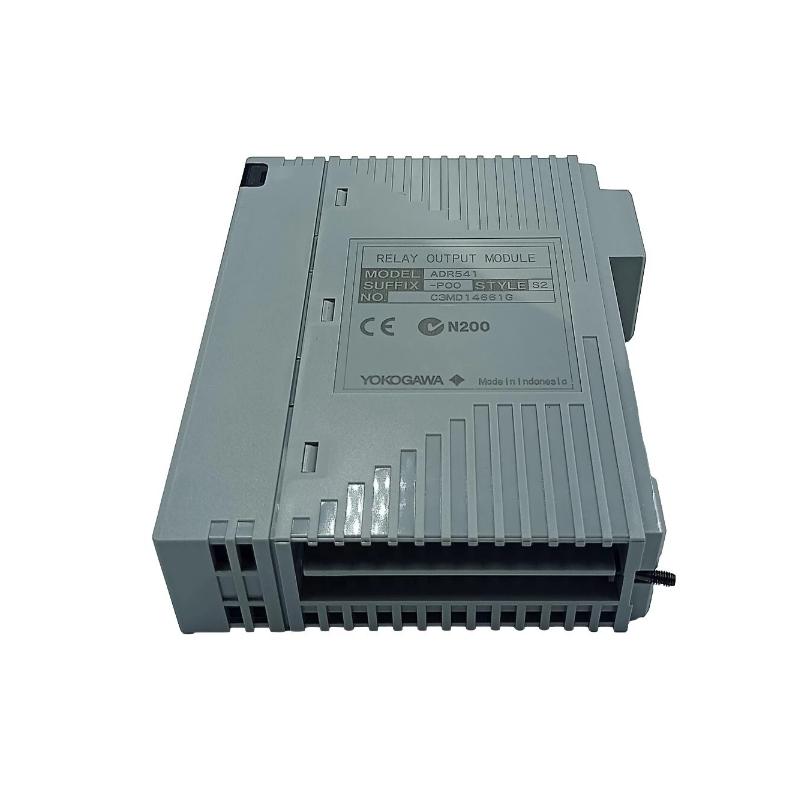

The Yokogawa ADR541-P00 Universal I/O Module is a highly versatile and reliable solution designed for high-performance data acquisition and control in industrial automation. With its ability to support various input and output types, including analog, digital, RTD, and thermocouple sensors, the ADR541-P00 ensures that industrial processes are monitored and controlled with precision and efficiency.

This module is ideal for industries such as power generation, chemical processing, oil & gas, and manufacturing, where real-time data acquisition and fast response times are critical. The ADR541-P00 offers seamless integration with Yokogawa’s Distributed Control Systems (DCS), Programmable Logic Controllers (PLCs), and SCADA systems, making it a critical component in advanced industrial automation systems.

Equipped with a robust design, the ADR541-P00 ensures reliable performance in harsh environments, offering a flexible and compact solution for complex process control and monitoring applications.

Technical Specifications

Model: ADR541-P00
Type: Universal I/O Module
Number of Channels: 16 configurable input/output channels
Input Types:
- Analog (Voltage, Current)
- Digital (Discrete)
- RTD (Resistance Temperature Detector)
- Thermocouple (Types J, K, T, R, S, N, B, E)
Output Types:
- Analog (Voltage, Current)
- Digital (Discrete, Relay)
Accuracy:
- Analog Inputs: ±0.1% of full scale
- RTD Inputs: ±0.2% of full scale
- Thermocouple Inputs: ±0.5% of full scale
Signal Conversion Speed: 200 ms per channel
Power Supply: 24 VDC
Mounting Type: DIN rail or panel mount
Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
Dimensions (L x W x H): 6.7 x 4.1 x 2.6 inches (170 x 105 x 66 mm)
Weight: 1.4 lbs (635 g)
Communication Protocols: Yokogawa proprietary protocol, Modbus RTU, OPC
LED Indicators: Power, I/O status, Communication status

Recommended Related Models

Yokogawa FA-M3 PLC: A versatile and flexible PLC that integrates easily with the ADR541-P00 for handling a wide range of industrial automation tasks.
Yokogawa YS1700: Precision transmitters for measuring temperature, pressure, and flow, ideal for use with the ADR541-P00 to optimize process control.
Yokogawa ADMAG AXF: Magnetic flowmeter for accurate flow measurement, working in tandem with the ADR541-P00 to deliver precise flow control.
Yokogawa DPharp EJA: A series of high-precision pressure transmitters, ideal for use with the ADR541-P00 in critical pressure monitoring applications.

Popular Yokogawa Models

Yokogawa CENTUM VP: A leading Distributed Control System (DCS) that integrates seamlessly with the ADR541-P00 for optimized process control and real-time monitoring.
Yokogawa RX3i PLC: A high-performance, modular PLC system that pairs with the ADR541-P00 for scalable and efficient process control in demanding environments.
Yokogawa YS1000: Smart transmitters for reliable measurement of temperature, pressure, and flow, perfect for integration with the ADR541-P00 to ensure precise and consistent process control.
Yokogawa EJX Series: Accurate transmitters designed for industrial applications, which pair seamlessly with the ADR541-P00 for optimized control of various process variables.

Applications

The Yokogawa ADR541-P00 Universal I/O Module is suitable for a wide variety of industrial applications where precision and flexibility are paramount. Some of the most common applications include:

Power Generation: The ADR541-P00 is used to monitor critical variables such as turbine temperature, pressure, and flow, ensuring safe and efficient power plant operations.
Oil & Gas: The module helps track wellhead pressure, temperature, and flow in upstream and downstream operations, improving operational efficiency and safety.
Chemical Processing: In chemical manufacturing, the ADR541-P00 allows for precise monitoring and control of temperature, pressure, and flow, ensuring consistent product quality and safe operations.
Manufacturing Automation: The ADR541-P00 helps streamline production lines by monitoring key variables and ensuring optimal conditions, reducing downtime and improving product quality.
Water and Wastewater Treatment: Used to monitor pumps, valves, and chemical dosing systems, the ADR541-P00 ensures efficient operation and compliance with environmental standards.
HVAC and Building Automation: The ADR541-P00 module is used to maintain and monitor environmental conditions such as temperature and humidity in large commercial and industrial buildings, optimizing energy efficiency and occupant comfort.

Advantages

Wide Input/Output Flexibility: The ADR541-P00 supports a variety of input and output types (analog, digital, RTD, and thermocouple), making it adaptable to a wide range of industrial applications.
Fast Data Acquisition: With a signal conversion speed of 200 ms per channel, the ADR541-P00 provides quick response times, ensuring that real-time process control is maintained.
High Accuracy: The module offers ±0.1% accuracy for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs, making it suitable for high-precision industrial environments.
Easy Integration with Yokogawa Systems: The ADR541-P00 integrates seamlessly with Yokogawa's DCS, PLCs, and SCADA systems, providing a unified solution for industrial automation and control.
Rugged and Reliable: Designed for operation in harsh industrial environments, the ADR541-P00 is built to withstand temperatures from -20°C to 60°C, ensuring consistent performance under extreme conditions.
Compact Design: Despite its advanced functionality, the ADR541-P00 maintains a compact form factor, making it ideal for installation in space-constrained environments.

Technical FAQs

What types of sensors are compatible with the ADR541-P00?
- The ADR541-P00 supports analog (voltage, current), digital (discrete), RTD, and thermocouple sensors (Types J, K, T, R, S, N, B, E).
What is the accuracy of the ADR541-P00?
- The ADR541-P00 offers ±0.1% accuracy for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs.
How many channels does the ADR541-P00 provide?
- The ADR541-P00 features 16 configurable input/output channels, offering flexibility for various applications.
What is the signal conversion speed of the ADR541-P00?
- The signal conversion speed is 200 ms per channel, allowing for rapid data processing and real-time monitoring.
What power supply does the ADR541-P00 require?
- The ADR541-P00 operates with a 24 VDC power supply.
Can the ADR541-P00 be integrated with other Yokogawa systems?
- Yes, the ADR541-P00 integrates easily with Yokogawa's DCS, PLCs, and SCADA systems, providing a unified solution for industrial process control.
What is the operating temperature range of the ADR541-P00?
- The ADR541-P00 operates within a temperature range of -20°C to 60°C (-4°F to 140°F), making it suitable for a variety of industrial environments.
What are the dimensions of the ADR541-P00?
- The ADR541-P00 module measures 6.7 inches in length, 4.1 inches in width, and 2.6 inches in height.
What mounting options are available for the ADR541-P00?
- The ADR541-P00 can be mounted on a DIN rail or directly onto a panel, offering flexible installation options.
Is the ADR541-P00 suitable for hazardous environments?
