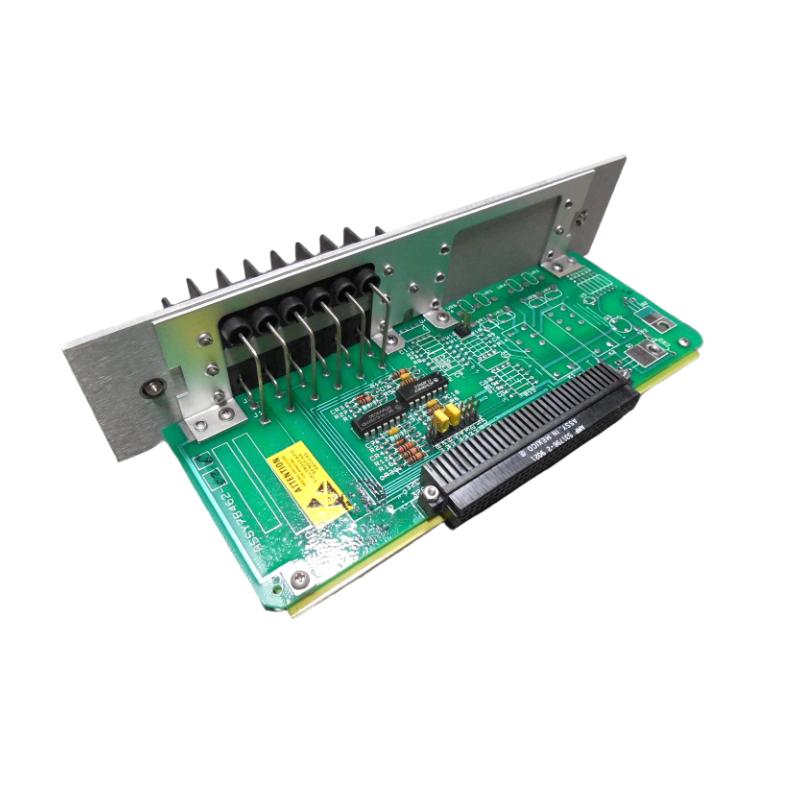

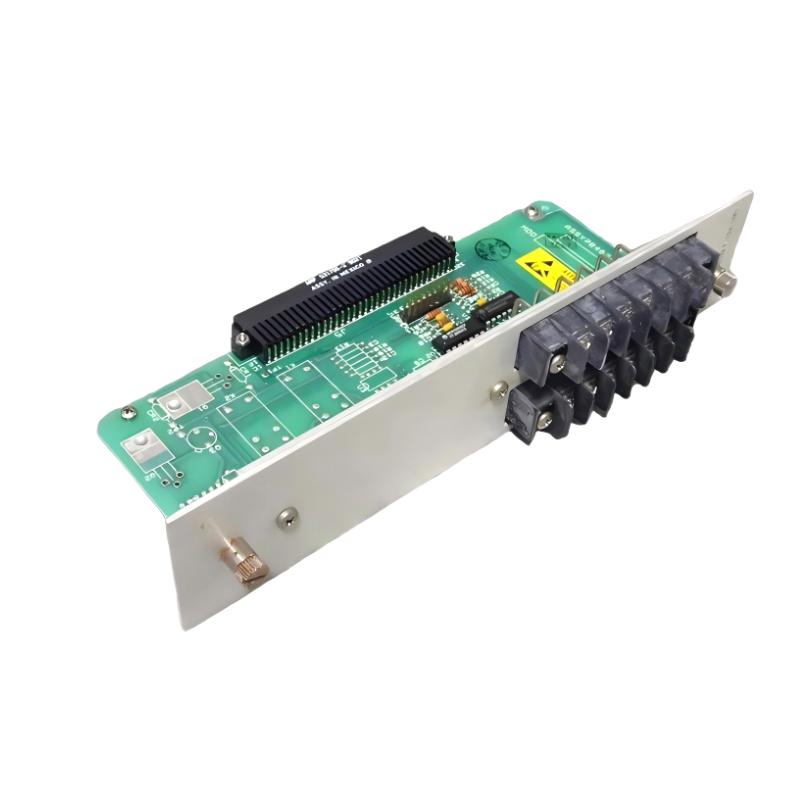

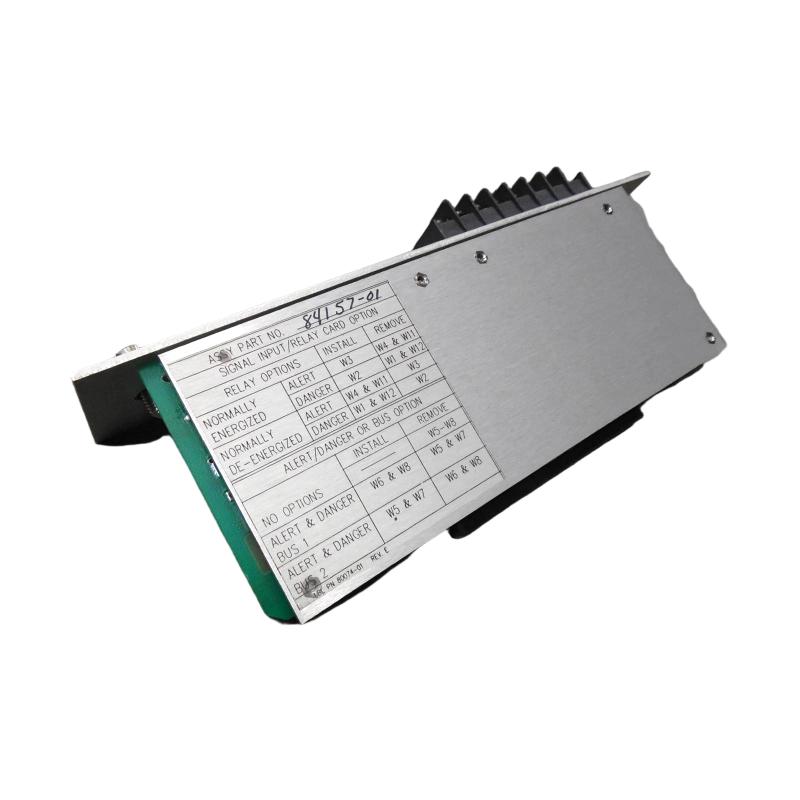

Bently Nevada 84157-01 LVDT (POT) And Recording Terminal Module

Applications

The Bently Nevada 84157-01 LVDT (POT) And Recording Terminal Module is designed to provide reliable interface and signal connection functions for LVDT and potentiometer-based position monitoring applications within industrial machinery protection systems.

This terminal module is commonly used with Bently Nevada 3300 series monitoring systems, supporting applications where accurate position measurement and stable signal transmission are required. It is widely applied in power generation, oil and gas, petrochemical, refining, and industrial processing facilities.

The 84157-01 provides an organized connection solution between position transducers and monitoring equipment. It supports monitoring of critical machinery parameters such as valve position, actuator movement, and mechanical displacement, helping operators improve equipment reliability and operational visibility.

Advantages

The Bently Nevada 84157-01 LVDT (POT) And Recording Terminal Module provides dependable signal management capability for industrial position monitoring applications.

Key advantages include:

• Reliable Position Signal Interface
  Provides stable connection between LVDT, potentiometer devices, and monitoring systems.
• Flexible Transducer Compatibility
  Supports position measurement applications using LVDT and potentiometer input technologies.
• Improved Signal Organization
  Helps simplify field wiring and creates a structured connection point for monitoring systems.
• Enhanced Maintenance Efficiency
  Allows technicians to access terminal connections more conveniently during inspection and troubleshooting.
• Compact Industrial Design
  Provides essential terminal functionality while maintaining efficient installation space.
• Supports Machinery Protection Applications
  Helps monitoring systems accurately evaluate equipment position-related conditions.

The 84157-01 is a practical solution for facilities requiring dependable position signal integration and reliable machinery monitoring performance.

Technical FAQs

1. What is the primary function of the Bently Nevada 84157-01 module?
The module provides LVDT and potentiometer signal connection and recording terminal functions for compatible monitoring systems.

2. Which monitoring system is the 84157-01 designed for?
It is designed for use with Bently Nevada 3300 series machinery monitoring systems.

3. What type of sensors can be connected to this module?
It supports compatible LVDT and potentiometer position measurement devices.

4. Is the 84157-01 a standalone position monitor?
No. It functions as a terminal interface module used with compatible monitoring equipment.

5. What applications commonly use LVDT monitoring?
LVDT monitoring is commonly used for valve position, actuator position, and mechanical displacement measurement.

6. Can this module support machinery protection systems?
Yes. It provides signal interface functions for systems used in machinery protection applications.

7. How does the module improve system reliability?
It provides organized signal routing and stable connections between transducers and monitoring equipment.

8. Can the 84157-01 be integrated into existing Bently Nevada systems?
Yes. It is designed for compatible Bently Nevada 3300 series configurations.

9. What should be checked before replacing this module?
System compatibility, sensor type, wiring configuration, and monitoring requirements should be verified.

10. Does the module process measurement signals independently?
No. Signal processing is performed by the connected monitoring system modules.
