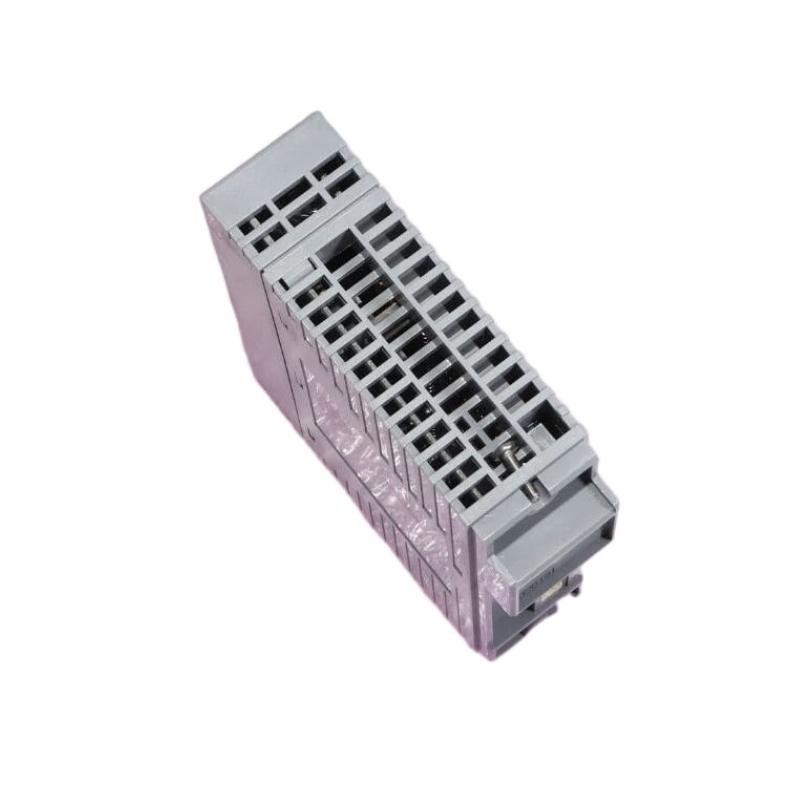

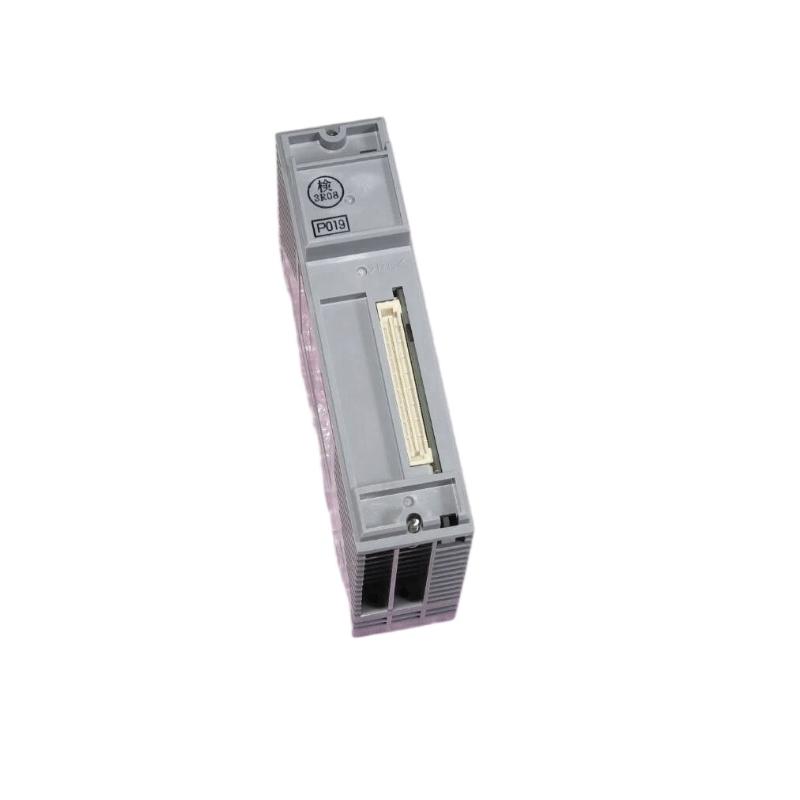

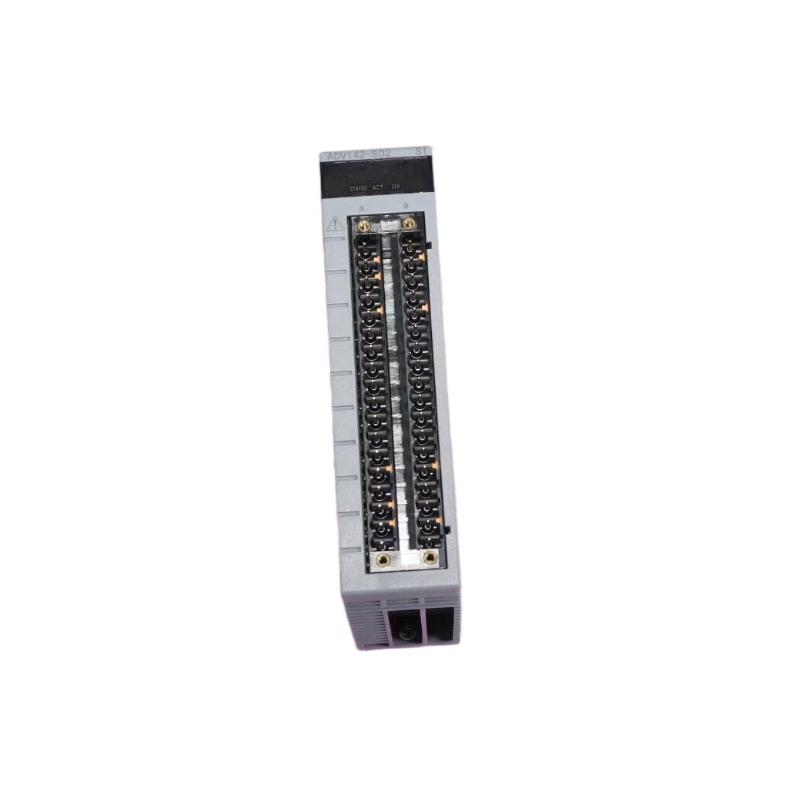

The Yokogawa ADV142-S02 Analog Input Module is an advanced solution for high-accuracy signal acquisition and processing in industrial automation systems. Designed for demanding applications across industries such as power generation, oil & gas, chemical processing, and manufacturing, the ADV142-S02 offers exceptional versatility in monitoring key process variables such as temperature, pressure, flow, and level. It integrates seamlessly with Yokogawa's Distributed Control Systems (DCS), Programmable Logic Controllers (PLCs), and SCADA systems, ensuring reliable and real-time data acquisition for precise control and monitoring.

This module is highly flexible, supporting a wide range of input types including voltage, current, RTD, and thermocouple, making it ideal for applications that require diverse measurement capabilities. The ADV142-S02 ensures that critical process parameters are accurately monitored, providing operators with actionable insights to optimize process performance, enhance safety, and improve operational efficiency.

Technical Specifications

Model: ADV142-S02
Type: Analog Input Module
Input Types:
- Voltage (0-10V, 1-5V, etc.)
- Current (4-20mA)
- RTD (Resistance Temperature Detector)
- Thermocouple (Types J, K, T, R, S, N, B, E)
Number of Channels: 8 or 16 channels (configurable based on model variant)
Accuracy:
- Analog Inputs: ±0.1% of full scale
- RTD Inputs: ±0.2% of full scale
- Thermocouple Inputs: ±0.5% of full scale
Signal Conversion Speed: 200 ms per channel
Power Supply: 24 VDC
Mounting Type: DIN rail or panel mount
Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
Dimensions (L x W x H): 6.7 x 4.1 x 2.6 inches (170 x 105 x 66 mm)
Weight: 1.4 lbs (635 g)
Communication Protocols: Yokogawa proprietary protocol, Modbus RTU, OPC
LED Indicators: Power, I/O status, Communication status

Recommended Related Models

Yokogawa FA-M3 PLC: A high-performance modular PLC that works in tandem with the ADV142-S02 to manage complex industrial automation tasks.
Yokogawa YS1700: A precision transmitter used for accurate measurement of process variables such as temperature, pressure, and flow, complementing the ADV142-S02 in real-time process monitoring.
Yokogawa ADMAG AXF: Magnetic flowmeters that provide accurate and reliable flow measurements, perfect for pairing with the ADV142-S02 for precise flow control.
Yokogawa DPharp EJA: Advanced pressure transmitters that pair seamlessly with the ADV142-S02 for highly accurate pressure measurements in demanding environments.

Popular Yokogawa Models

Yokogawa CENTUM VP: A state-of-the-art Distributed Control System (DCS) that integrates smoothly with the ADV142-S02 for comprehensive process monitoring and advanced control strategies.
Yokogawa RX3i PLC: A flexible, modular PLC system that pairs well with the ADV142-S02 to provide reliable and scalable process control in various industries.
Yokogawa YS1000: A versatile transmitter designed for accurate measurement of temperature, pressure, and flow, ideal for pairing with the ADV142-S02 for precise and consistent process monitoring.
Yokogawa EJX Series: A series of high-performance transmitters that work alongside the ADV142-S02 for accurate monitoring and control of critical process parameters.

Applications

The Yokogawa ADV142-S02 Analog Input Module is engineered for use in a variety of industries where precise signal processing and real-time monitoring are essential. Key applications include:

Power Generation: In power plants, the ADV142-S02 helps monitor critical parameters such as turbine temperature, pressure, and flow, ensuring safe and efficient plant operations.
Oil & Gas: The ADV142-S02 is ideal for monitoring wellhead pressure, temperature, and flow in upstream and downstream oil and gas operations, improving efficiency and safety.
Chemical Processing: In chemical plants, the ADV142-S02 is used to measure temperature, pressure, and flow in reactors and other systems, ensuring consistent product quality and process safety.
Manufacturing Automation: The ADV142-S02 helps monitor and control production processes by accurately measuring parameters like temperature, pressure, and flow, improving overall production efficiency and minimizing downtime.
Water and Wastewater Treatment: In water treatment facilities, the ADV142-S02 monitors critical systems such as pumps, valves, and chemical dosing equipment, ensuring efficient and compliant operations.
HVAC and Building Automation: The ADV142-S02 is used for real-time monitoring of temperature, humidity, and other environmental parameters in HVAC systems, contributing to energy efficiency and comfort in commercial and industrial buildings.

Advantages

High-Precision Signal Processing: With an accuracy of ±0.1% for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs, the ADV142-S02 delivers highly precise measurements for critical industrial processes.
Versatile Input Compatibility: Supporting voltage, current, RTD, and thermocouple inputs, the ADV142-S02 can handle a wide variety of signals, making it adaptable to numerous industrial applications.
Seamless Integration: The module integrates effortlessly with Yokogawa’s DCS, PLCs, and SCADA systems, enabling smooth and reliable data exchange for optimized process control.
Fast Data Acquisition: With a signal conversion speed of 200 ms per channel, the ADV142-S02 enables real-time data processing, ensuring timely decision-making in dynamic environments.
Reliable in Harsh Conditions: Designed to operate in temperatures ranging from -20°C to 60°C, the ADV142-S02 is built to withstand tough industrial conditions, offering reliable performance in diverse environments.
Compact and Efficient Design: Despite its extensive capabilities, the ADV142-S02 features a compact design, enabling easy integration into space-constrained control panels and automation systems.

Technical FAQs

What types of signals can the ADV142-S02 process?
- The ADV142-S02 processes voltage (0-10V, 1-5V), current (4-20mA), RTD, and thermocouple inputs (Types J, K, T, R, S, N, B, E).
What is the accuracy of the ADV142-S02 for temperature measurements?
- The module offers ±0.2% accuracy for RTD inputs and ±0.5% for thermocouple inputs.
How many channels are available on the ADV142-S02?
- The ADV142-S02 is available with 8 or 16 configurable channels.
What is the signal conversion speed of the ADV142-S02?
- The ADV142-S02 has a signal conversion speed of 200 ms per channel, ensuring fast data acquisition.
What power supply does the ADV142-S02 require?
- The module operates with a 24 VDC power supply.
Can the ADV142-S02 integrate with other Yokogawa systems?
- Yes, it integrates seamlessly with Yokogawa’s DCS, PLCs, and SCADA systems for efficient process control.
What is the operating temperature range for the ADV142-S02?
- The ADV142-S02 operates in temperatures from -20°C to 60°C (-4°F to 140°F).
What are the dimensions of the ADV142-S02?
- The module measures 6.7 x 4.1 x 2.6 inches (170 x 105 x 66 mm).
How is the ADV142-S02 mounted?
- The module can be mounted on a DIN rail or directly onto a panel, providing flexible installation options.
Is the ADV142-S02 suitable for use in hazardous environments?
