Brand:GE Fanuc PLC Item No.: IC200UEX011 Product Origin:USA Product Dimensions:109 × 64 × 58 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

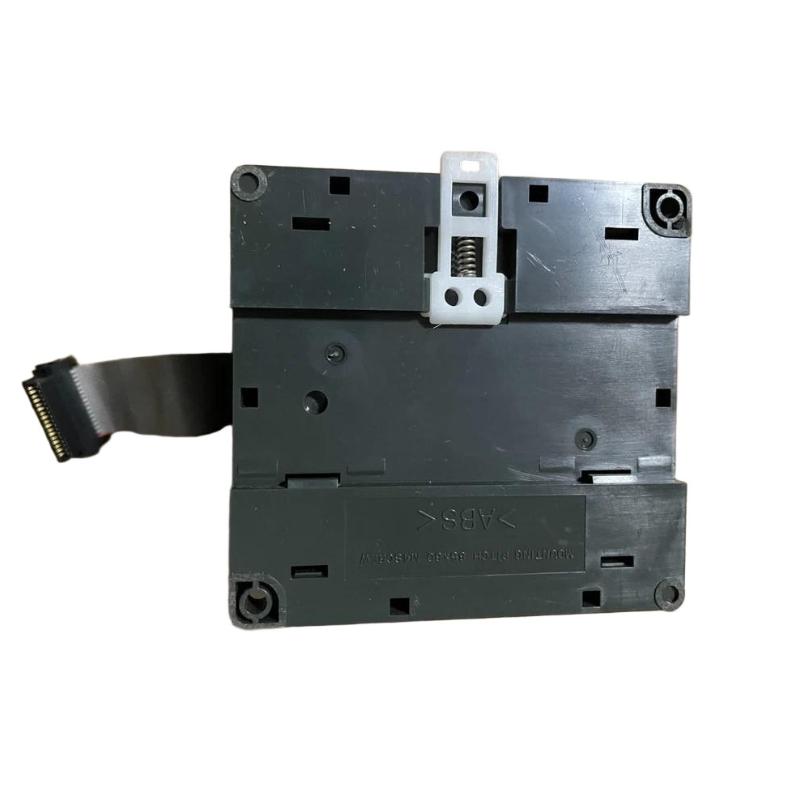

The GE IC200UEX011 VersaMax Micro PLC Expansion Unit is a compact and versatile I/O expansion solution designed to increase the control capability of GE VersaMax Micro automation systems. Combining eight 24 VDC digital inputs with six relay outputs, it provides a practical interface for connecting industrial sensors, actuators, and control devices.
With integrated AC power support and flexible relay switching capability, the IC200UEX011 simplifies control cabinet design while improving system scalability. Its compact architecture makes it especially suitable for machine builders, OEM automation systems, and industrial applications where reliable discrete control is required within a limited installation space.
The module delivers a cost-effective approach for expanding existing PLC systems while maintaining the proven performance and reliability expected from GE automation hardware.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200UEX011
Product Type
VersaMax Micro PLC Expansion Unit
I/O Configuration
14 Points
Digital Inputs
8 × 24 VDC Positive/Negative Logic Inputs
Relay Outputs
6 × Normally Open Form A Relay Outputs
Relay Output Rating
2 A Maximum
Output Voltage Range
5–250 VAC / 5–30 VDC
Power Supply Input
100–240 VAC Nominal
Field Device Power Supply
Isolated +24 VDC, 200 mA Maximum
Input Logic Type
Positive Logic / Negative Logic
Terminal Connection
Removable Screw Terminal Blocks
Mounting Type
VersaMax Micro Expansion Connection
Operating Frequency
50/60 Hz
Dimensions
Approx. 90 × 95 × 76 mm
Weight
Approx. 370 g
Recommended Companion Models
Model
Product Name
IC200CPU001
VersaMax Micro PLC CPU Module
IC200UEX012
VersaMax Micro 14-Point Expansion Unit with 24 VDC Power Supply
IC200PWR101
VersaMax Power Supply Module
IC200MDD844
VersaMax 16-Point Relay Output Module
Frequently Selected Alternatives
Model
Product Name
IC200UEX010
VersaMax Micro 14-Point Expansion Unit with AC Inputs and Outputs
IC200UEX014
VersaMax Micro 14-Point Expansion Unit with 24 VDC Outputs
IC200MDL650
VersaMax 24 VDC 16-Point Discrete Input Module
IC200MDL740
VersaMax 16-Point Relay Output Module
Where It Excels in Industrial Use
Expansion of GE VersaMax Micro PLC control systems
Compact machine automation applications
Small-scale production line control
Packaging and assembly equipment
Conveyor and material handling systems
Motor starter and actuator control
Sensor signal collection and field device monitoring
Industrial equipment retrofit projects
Distributed I/O expansion in compact control panels
Automation systems requiring mixed input and relay output capability
Built-in isolated 24 VDC field device power supply
Compact design for space-saving control cabinets
Flexible connection of sensors, solenoids, indicators, and actuators
Reliable solution for distributed industrial automation applications
Technical FAQs
1. What is the primary function of the GE IC200UEX011?
The IC200UEX011 is a VersaMax Micro PLC expansion unit that adds additional discrete I/O capacity by providing eight 24 VDC inputs and six relay outputs.
2. How many I/O points does the IC200UEX011 provide?
The module provides a total of 14 points, consisting of eight DC input points and six relay output points.
3. What type of input signals are supported?
The eight input channels support 24 VDC positive logic or negative logic operation, allowing connection to switches, sensors, and proximity devices.
4. What type of output devices can be controlled?
The six normally open Form A relay outputs can control devices such as motor starters, solenoids, indicators, and other AC or DC loads.
5. What is the maximum relay output rating?
Each relay output supports loads up to 2 A and can control devices operating from 5–30 VDC or 5–250 VAC.
6. Does the module include a field device power supply?
Yes. The IC200UEX011 provides an isolated +24 VDC output supply for field devices with a maximum current capacity of 200 mA.
7. Which PLC family is compatible with this expansion unit?
The IC200UEX011 is designed for GE VersaMax Micro PLC systems and can be combined with compatible VersaMax Micro controllers.
8. Can multiple expansion units be installed on one PLC system?
Yes. VersaMax Micro PLC systems support connection of multiple expansion units, allowing additional I/O flexibility for larger applications.
9. What types of field devices can be connected to the input channels?
Typical devices include pushbuttons, limit switches, proximity sensors, and other 24 VDC discrete sensing devices.
10. Is the IC200UEX011 suitable for replacement applications?
Yes. It is commonly used for maintaining and expanding existing GE VersaMax Micro PLC installations where additional discrete I/O capability is required.
