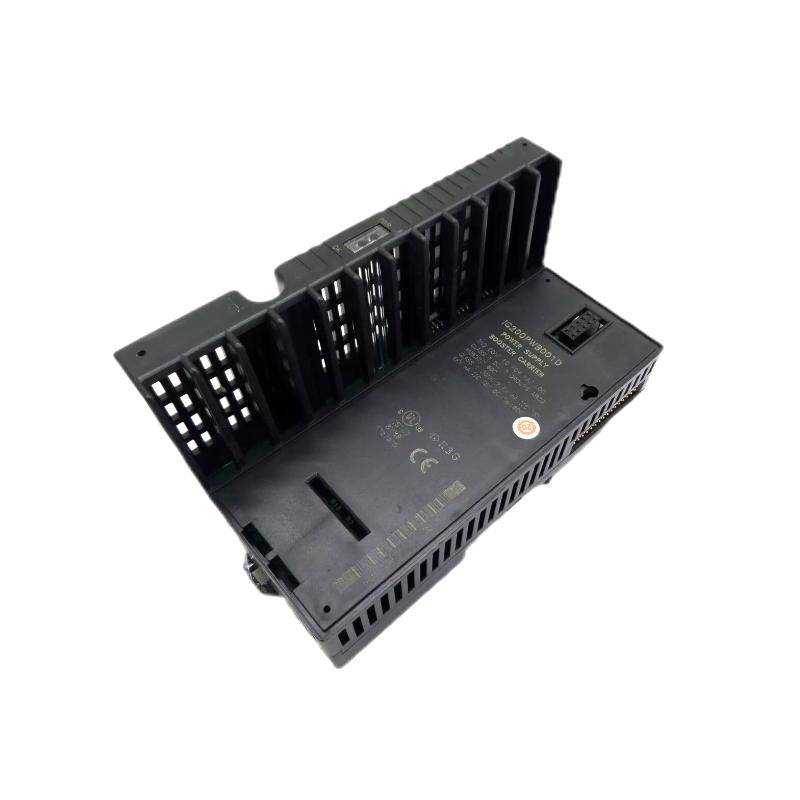

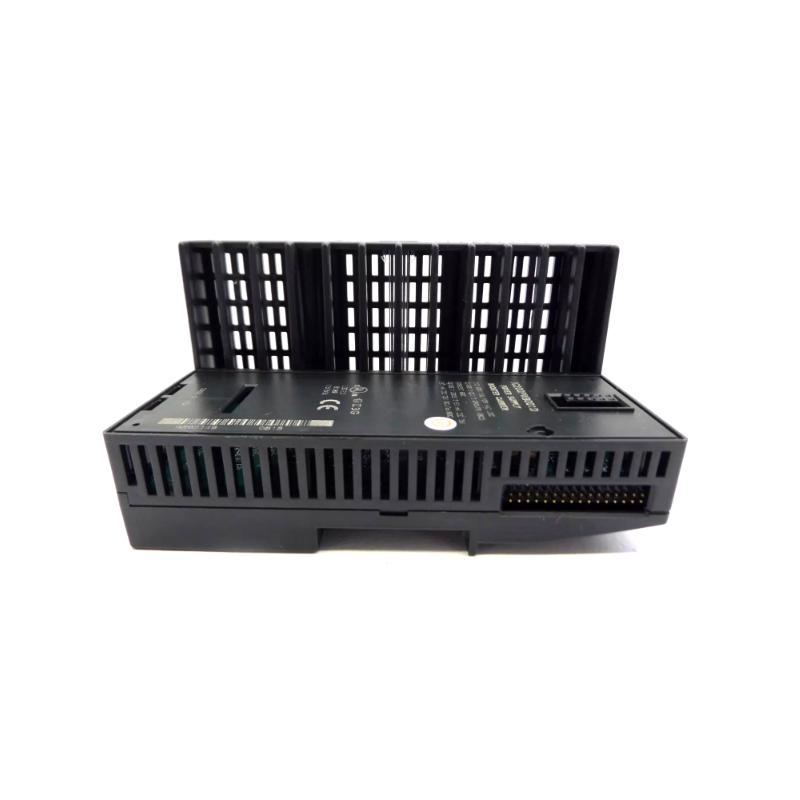

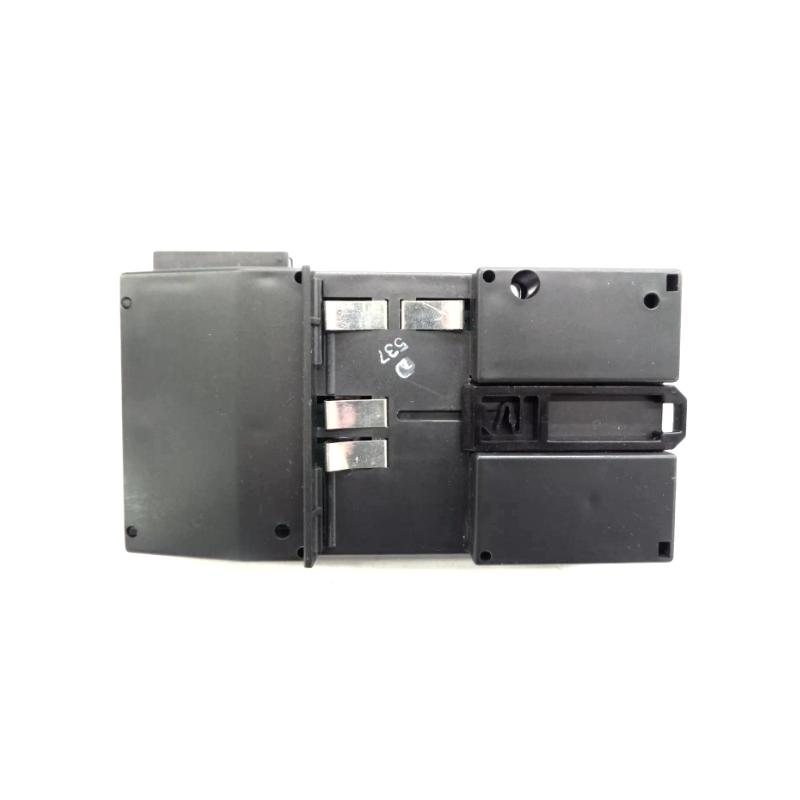

GE IC200PWB001B VersaMax Power Supply Booster Carrier
GE IC200PWB001B VersaMax Power Supply Booster Carrier
0.0
Points
Brand:Bently Nevada PLC Item No.: IC200PWB001B Product Origin:USA Product Dimensions:108 × 7.2 × 7.2 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC200PWB001B VersaMax Power Supply Booster Carrier is an essential expansion component designed for GE VersaMax automation systems. Unlike a standard I/O carrier, this module focuses on increasing system power availability by allowing an additional power supply module to support extended I/O configurations.
Designed for demanding industrial environments, the IC200PWB001B helps automation engineers build larger and more flexible VersaMax systems without replacing the existing controller architecture. By providing additional power distribution capability, it supports stable operation of expanded I/O stations used in manufacturing, process control, and machine automation.
Its compact DIN rail design and compatibility with VersaMax power supplies make it a practical choice for system upgrades, modernization projects, and long-term maintenance applications.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200PWB001B
Product Type
VersaMax Power Supply Booster Carrier
Product Family
VersaMax Modular I/O System
Function
Power Expansion Carrier
Required Power Module
Compatible VersaMax Power Supply Module
Input Voltage
Depends on Installed Power Supply
Output Voltage
5 VDC / 3.3 VDC Distribution Through Power Module
Mounting Type
35 mm DIN Rail Mounting
Terminal Type
Spring Clamp Terminal
Terminal Quantity
10 Terminals
Isolation Rating
1500 VAC
Protection Rating
IP20
Operating Temperature
-20°C to +70°C
Storage Temperature
-40°C to +85°C
Dimensions
Approx. 66.8 × 133.4 × 70 mm
Weight
Approx. 0.14 kg
Recommended Companion Models
Model
Product Name
IC200PWR102
VersaMax 120/240 VAC Power Supply Module
IC200PWR202
VersaMax 12 VDC Power Supply Module with Expanded 3.3 VDC
IC200PWR001
VersaMax 24 VDC Power Supply Module
IC200PWR002
VersaMax 24 VDC Power Supply Module with Expanded 3.3 VDC
Frequently Selected Alternatives
Model
Product Name
IC200PWB001
VersaMax Power Supply Booster Carrier
IC200PWR101
VersaMax 24 VDC Power Supply Module
IC200PWR102K
VersaMax AC Input Power Supply Module
IC200PWR011
VersaMax Isolated 24 VDC Power Supply Module
Where It Excels in Industrial Use
Expansion of GE VersaMax distributed I/O systems
Large-scale industrial automation cabinets requiring additional power capacity
Remote I/O stations with extended module configurations
Factory production lines with multiple I/O modules
Process automation systems requiring stable backplane power distribution
Machine control applications with high-density VersaMax installations
Retrofit projects extending existing GE VersaMax PLC architectures
Industrial systems requiring additional power support without changing the main controller
Distributed control panels with multiple field I/O modules
Continuous operation environments where reliable module power is essential
Key Strengths at a Glance
Dedicated VersaMax power supply booster carrier design
Extends available power for additional I/O modules
Supplies power to modules installed on the right side of the carrier
Compatible with VersaMax power supply modules
Supports DIN rail mounting for flexible cabinet installation
Provides stable backplane power distribution
Helps expand larger VersaMax I/O configurations
Reduces the need for separate control architectures
Compact industrial design for space-efficient installation
Improves system scalability and long-term reliability
Technical FAQs
1. What is the primary function of the GE IC200PWB001B?
The IC200PWB001B is a VersaMax power supply booster carrier used to add an additional power supply point within a VersaMax I/O system, allowing more modules to be installed in an expanded configuration.
2. Is the IC200PWB001B itself a power supply module?
No. The IC200PWB001B is a booster carrier and requires a compatible VersaMax power supply module to provide power to downstream I/O modules.
3. Which power supply modules can be installed on the booster carrier?
The carrier is designed to accept compatible VersaMax power supply modules such as IC200PWR001, IC200PWR002, IC200PWR102, IC200PWR201, and IC200PWR202 series units.
4. What is the purpose of adding a booster carrier?
A booster carrier increases the available power capacity of a VersaMax station, allowing additional I/O modules to operate reliably when the original power supply cannot support the complete configuration.
5. What mounting method does the IC200PWB001B use?
The module is designed for DIN rail installation, making it suitable for standard industrial control cabinet layouts.
6. Does the IC200PWB001B communicate with the PLC CPU?
No. The booster carrier does not perform communication or processing functions; it only provides power expansion capability for connected VersaMax modules.
7. What type of systems commonly use the IC200PWB001B?
It is commonly used in GE VersaMax PLC and distributed I/O systems where additional modules require extended power availability.
8. Does the booster carrier include diagnostic indicators?
Yes. When used with a compatible power supply, status indicators such as power and system OK indications assist with installation and troubleshooting.
9. Can the IC200PWB001B replace a standard VersaMax carrier?
No. It is specifically designed as a power expansion carrier and should be installed where additional power distribution is required.
10. Why is power expansion important in VersaMax systems?
As additional I/O modules are added, power requirements increase. A booster carrier helps maintain stable operation by supplying sufficient power to expanded module groups.
