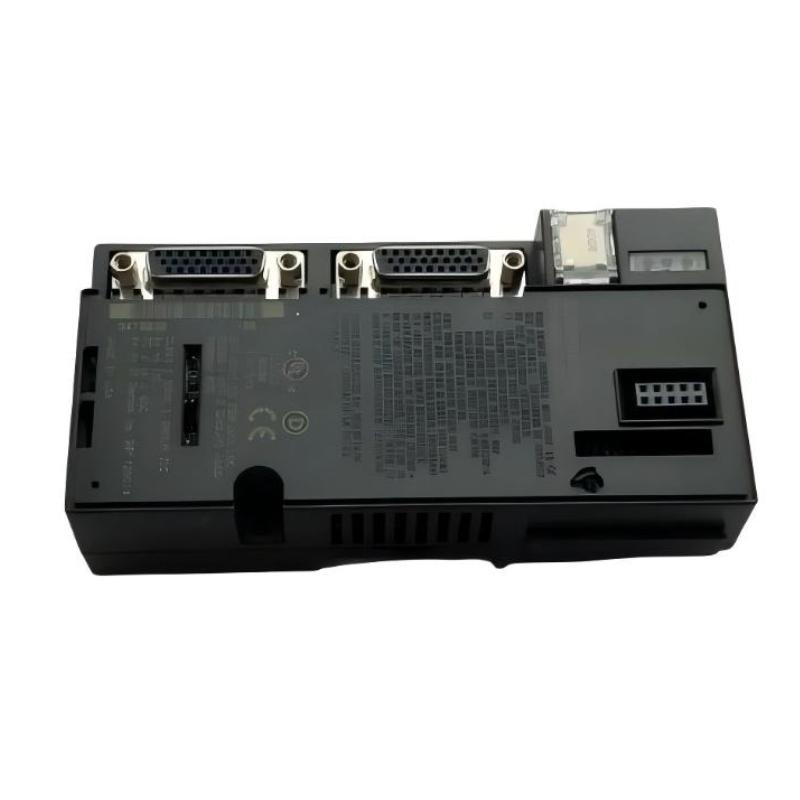

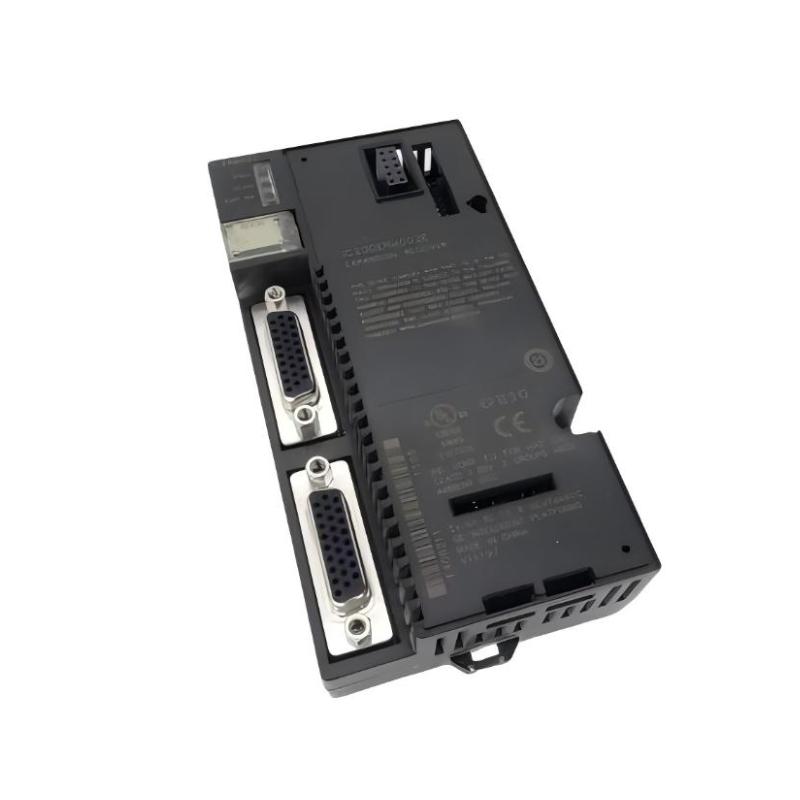

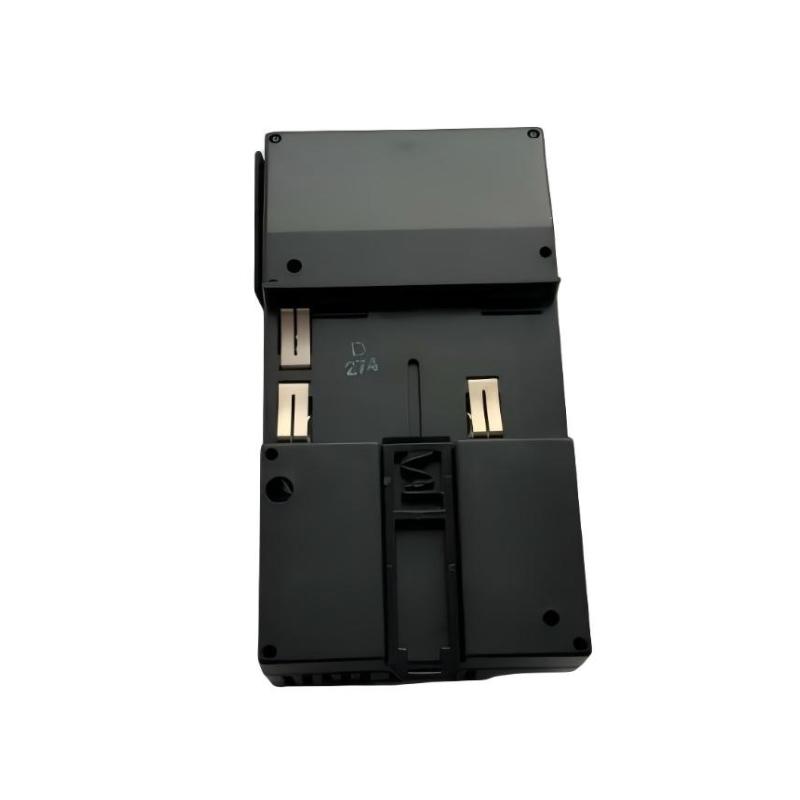

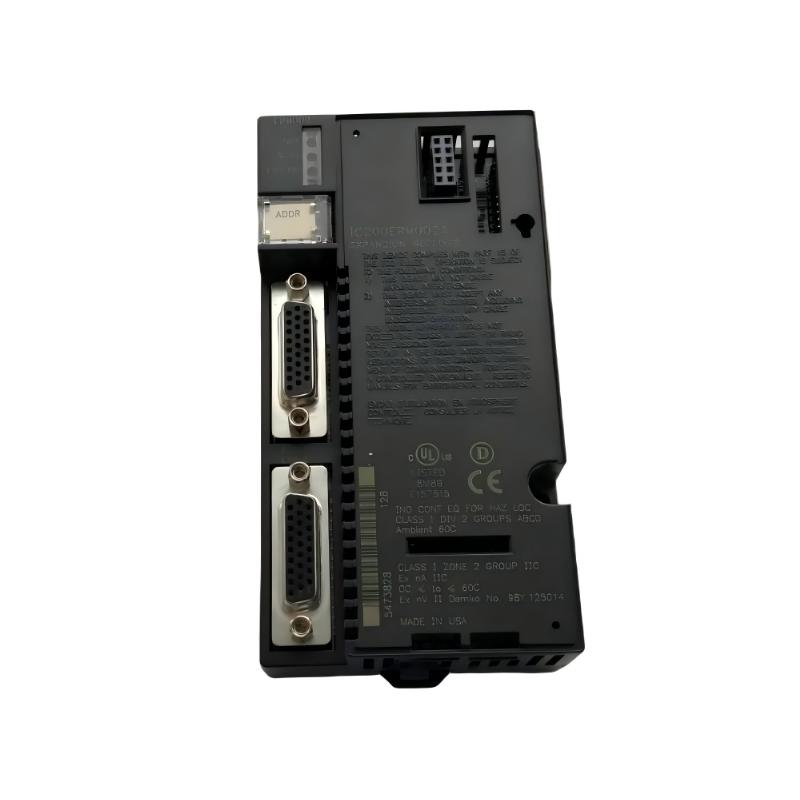

GE IC200ERM002F VersaMax Expansion Receiver Module
GE IC200ERM002F VersaMax Expansion Receiver Module
0.0
Points
Brand:GE Fanuc PLC Item No.:IC200ERM002F Product Origin:USA Product Dimensions:109 × 64 × 58 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC200ERM002F VersaMax Expansion Receiver Module is a key component for extending GE VersaMax automation systems beyond the limits of a single I/O rack. Designed for distributed control architectures, it provides a reliable interface between the primary PLC or NIU station and additional VersaMax expansion racks.
With support for high-speed expansion communication, multiple rack configurations, and flexible installation options, the IC200ERM002F helps automation engineers build scalable control systems for complex industrial applications.
Its compact design and proven VersaMax compatibility make it a practical choice for machine builders, system integrators, and maintenance teams looking to expand existing PLC installations while preserving the original control platform.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200ERM002F
Product Type
Expansion Receiver Module
Product Family
VersaMax
Communication Type
Non-Isolated Expansion Bus
Application
PLC / NIU Expansion Rack Interface
Supported Expansion Modules
Up to 8 I/O or Special-Purpose Modules
Expansion Configuration
Multi-Rack / Single-Ended
Communication Method
Differential or Single-Ended
Data Transfer Rate
5 Mbps (Differential), 2.765 Mbps (Single-Ended)
Maximum Cable Length
15 m Differential / 1 m Single-Ended
Expansion Ports
Two 26-Pin Female D-Sub Connectors
Backplane Current Consumption
70 mA at 5 VDC / 20 mA at 3.3 VDC
Indicators
PWR, EXP RX, SCAN LEDs
Mounting Type
DIN Rail Mounting
Operating Temperature
-20°C to +55°C
Storage Temperature
-40°C to +85°C
Dimensions
Approx. 66.8 × 128 × 50 mm
Weight
Approx. 0.41 kg
Recommended Companion Models
Model
Product Name
IC200ETM001
VersaMax Expansion Transmitter Module
IC200PWR102
VersaMax AC Input Power Supply Module
IC200PWB001B
VersaMax Power Supply Booster Carrier
IC200CPU001
VersaMax Micro PLC CPU Module
Frequently Selected Alternatives
Model
Product Name
IC200ERM001
VersaMax Expansion Receiver Module
IC200ETM001
VersaMax Expansion Transmitter Module
IC200PWR001
VersaMax 24 VDC Power Supply Module
IC693BEM331
Series 90-30 Genius Bus Controller Module
Where It Excels in Industrial Use
Expansion of GE VersaMax PLC and distributed I/O systems
Remote I/O rack extension for large automation installations
Multi-rack control architectures in manufacturing plants
Industrial production lines requiring additional I/O capacity
Process automation systems with distributed field devices
Supports expansion racks with up to eight I/O or special-purpose modules
Enables multi-rack and single-ended expansion configurations
High-speed expansion bus communication
Supports differential and single-ended communication modes
Dual 26-pin D-shell expansion connectors for flexible rack connection
Three LED indicators for quick system diagnostics
Compatible with VersaMax PLC and NIU-based systems
Compact DIN rail mounting design
Improves system scalability without replacing the controller architecture
Technical FAQs
1. What is the primary function of the GE IC200ERM002F?
The IC200ERM002F is a VersaMax non-isolated expansion receiver module used to connect an expansion rack to a VersaMax PLC or NIU I/O station system.
2. How many modules can an expansion rack support?
A single expansion rack connected through the IC200ERM002F can support up to eight VersaMax I/O or special-purpose modules.
3. Is the IC200ERM002F a communication processor?
No. The module does not execute control logic. It provides the expansion bus interface between the main controller/I/O station and remote VersaMax module groups.
4. What communication methods are supported?
The module supports both differential and single-ended expansion communication modes depending on the system configuration.
5. What is the maximum expansion cable distance?
For differential communication, the maximum cable length is approximately 15 meters. Single-ended configurations support shorter cable distances of approximately 1 meter.
6. Does the IC200ERM002F require a power supply?
Yes. A compatible VersaMax power supply module is installed on the expansion receiver carrier to provide operating power for the connected expansion rack modules.
7. What do the LED indicators show?
The module includes status LEDs for power condition, expansion receiver communication status, and I/O scanning status.
8. Can the module be used in a single expansion rack system?
Yes. The IC200ERM002F can operate in single-ended expansion applications when only one expansion rack is required.
9. What type of PLC systems use this module?
The IC200ERM002F is designed for GE VersaMax PLC controllers and VersaMax Network Interface Unit (NIU) I/O systems.
10. Why is an expansion receiver module important in automation systems?
It allows engineers to distribute I/O modules across multiple physical locations, reducing wiring complexity and improving system flexibility for larger automation projects.
