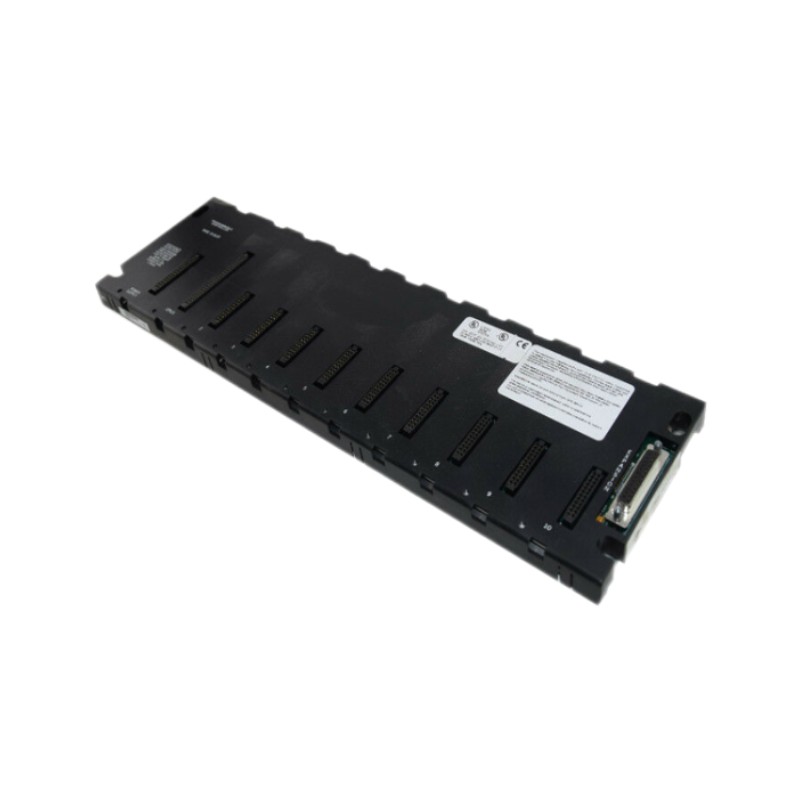

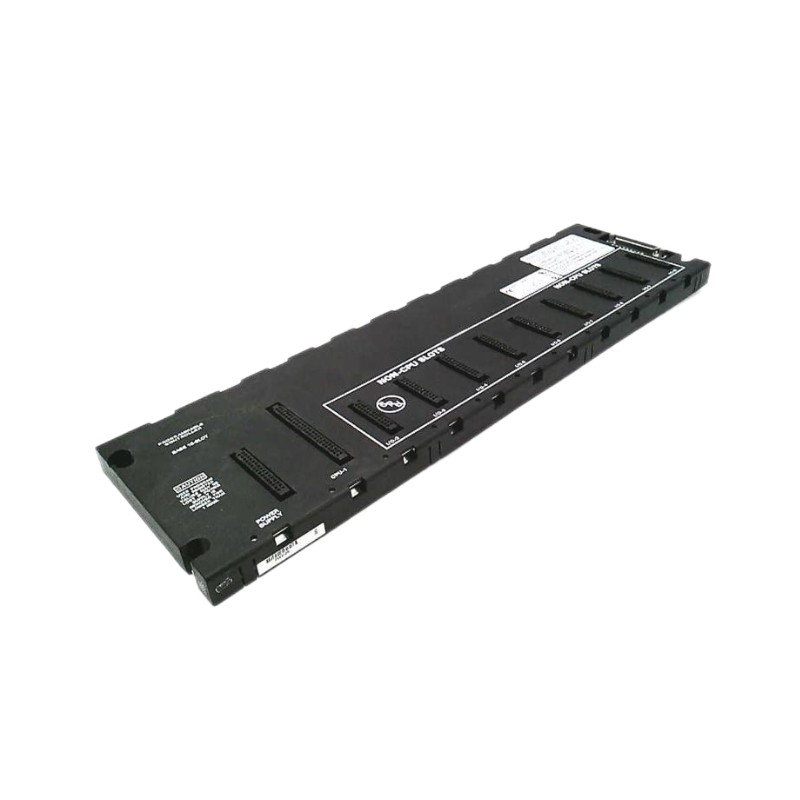

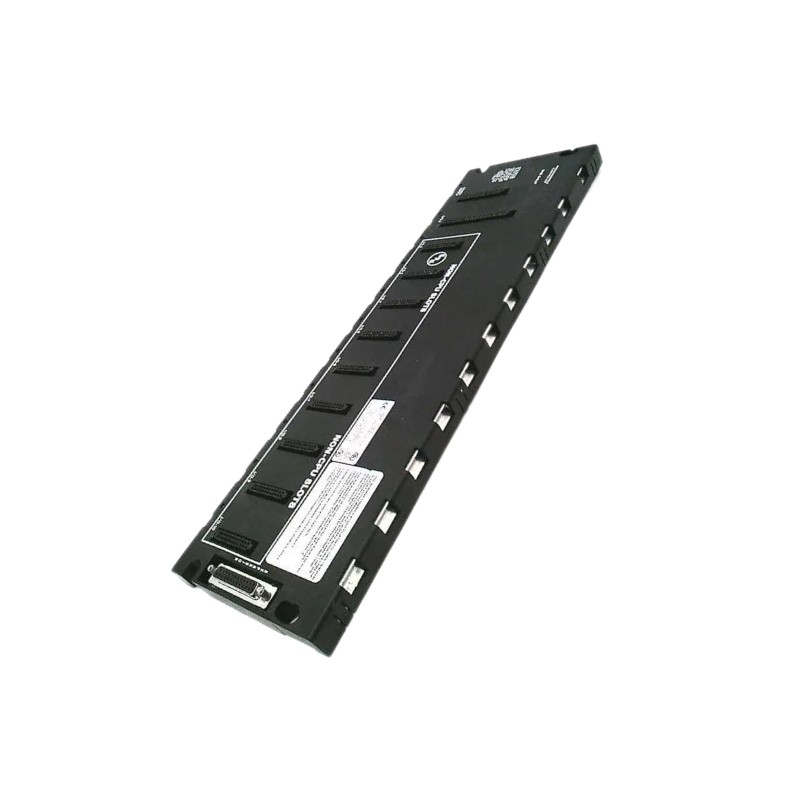

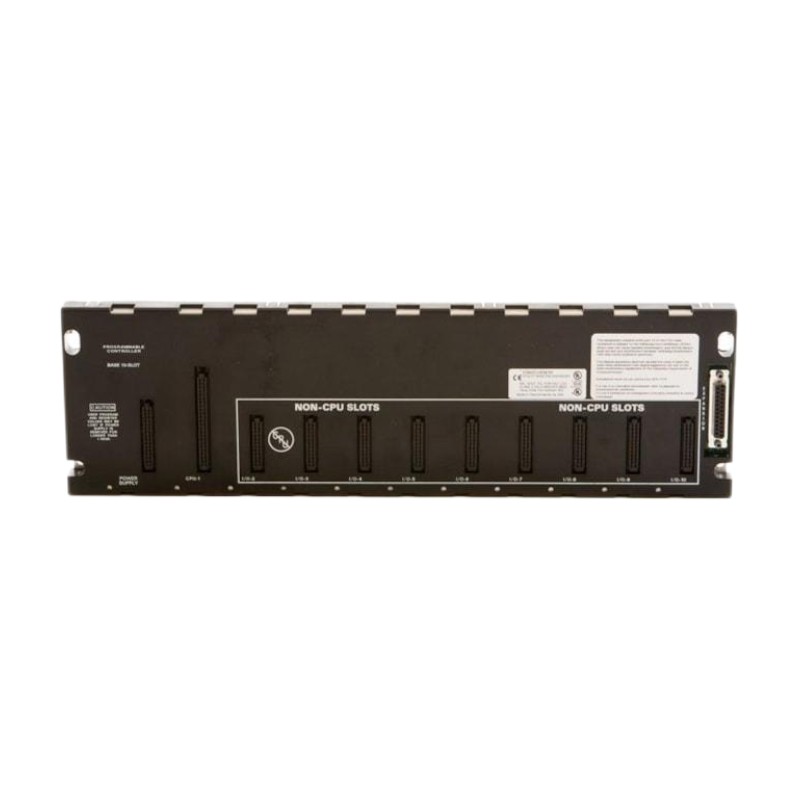

GE IC693CHS391N Series 90-30 Modular CPU Baseplate
GE IC693CHS391N Series 90-30 Modular CPU Baseplate
0.0
Points
Brand:GE Fanuc PLC Item No.:IC693CHS391N Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC693CHS391N Series 90-30 Modular CPU Baseplate is a foundational hardware component designed to build flexible and scalable GE Fanuc PLC control systems. Featuring a 10-slot architecture, it provides the connection platform required for CPU modules, I/O modules, communication modules, and specialty automation components.
Engineered for industrial environments, the IC693CHS391N delivers reliable backplane communication and power distribution while allowing engineers to create customized PLC configurations based on application requirements. Its modular structure makes it suitable for manufacturing equipment, process automation, and legacy control system upgrades.
With proven Series 90-30 compatibility and strong expansion capability, this baseplate remains a valuable component for maintaining established automation platforms.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC693CHS391N
Product Type
Modular CPU Baseplate
PLC Platform
Series 90-30
Baseplate Type
Main CPU Rack
Number of Slots
10 Slots
CPU Slots
1 Dedicated CPU Slot
I/O Slots
9 I/O / Option Module Slots
Power Supply Position
Separate Left-Side Slot
Expansion Connector
25-Pin Female D-Sub Connector
Backplane Voltage
5 VDC
Backplane Current Consumption
Approx. 420 mA
Expansion Capability
Supports Series 90-30 Expansion / Remote Racks
Mounting Method
Panel Mount
Communication Bus
Series 90-30 Backplane Bus
Operating Temperature
0°C to +60°C
Dimensions
Approx. 443 × 130 × 142 mm
Weight
Approx. 0.94 kg
Recommended Companion Models
Model
Product Name
IC693CPU374
Series 90-30 Ethernet CPU Module
IC693PWR321
Series 90-30 Power Supply Module
IC693MDL645F
Series 90-30 24 VDC Discrete Input Module
IC693MDL753F
Series 90-30 32-Point DC Output Module
Frequently Selected Alternatives
Model
Product Name
IC693CHS397
Series 90-30 5-Slot Modular CPU Baseplate
IC693CHS392
Series 90-30 10-Slot Expansion Baseplate
IC693CHS393
Series 90-30 10-Slot Remote Baseplate
IC693CHS399
Series 90-30 5-Slot Remote Baseplate
Where It Excels in Industrial Use
GE Fanuc Series 90-30 PLC control system installations
1. What is the main function of the GE IC693CHS391N?
The IC693CHS391N is a 10-slot modular CPU baseplate designed for GE Fanuc Series 90-30 PLC systems. It provides the physical rack structure, backplane communication, and power distribution required for CPU and I/O modules.
2. How many modules can be installed on the IC693CHS391N?
The baseplate provides ten module slots, including one dedicated CPU slot and nine slots for I/O or specialty modules. The power supply position is separate and is not counted within the ten slots.
3. Which PLC family is compatible with this baseplate?
The IC693CHS391N is designed specifically for GE Fanuc Series 90-30 modular PLC systems and supports compatible CPUs, I/O modules, and communication modules.
4. Can the IC693CHS391N be used as an expansion baseplate?
No. The IC693CHS391N is a CPU baseplate intended as the main rack. Additional racks require dedicated expansion or remote baseplates connected through the expansion bus.
5. How is the baseplate connected to expansion racks?
The baseplate uses a 25-pin female expansion connector located on the right side for connection to compatible expansion or remote racks.
6. How much backplane power does the IC693CHS391N consume?
The baseplate consumes approximately 420 mA from the 5 VDC backplane supply.
7. Can multiple CPU baseplates be installed in one Series 90-30 system?
No. A Series 90-30 system supports only one CPU baseplate. Additional racks must be configured as expansion or remote I/O baseplates.
8. What modules can be installed in the I/O slots?
The I/O slots can accept Series 90-30 discrete I/O modules, analog modules, communication modules, and other compatible option modules.
9. Does the IC693CHS391N include a power supply?
No. A compatible Series 90-30 power supply module must be installed separately in the designated power supply position on the baseplate.
10. Why is the IC693CHS391N still used in automation systems?
Its modular architecture, large slot capacity, and compatibility with many Series 90-30 modules make it a practical choice for maintaining existing industrial PLC installations.
