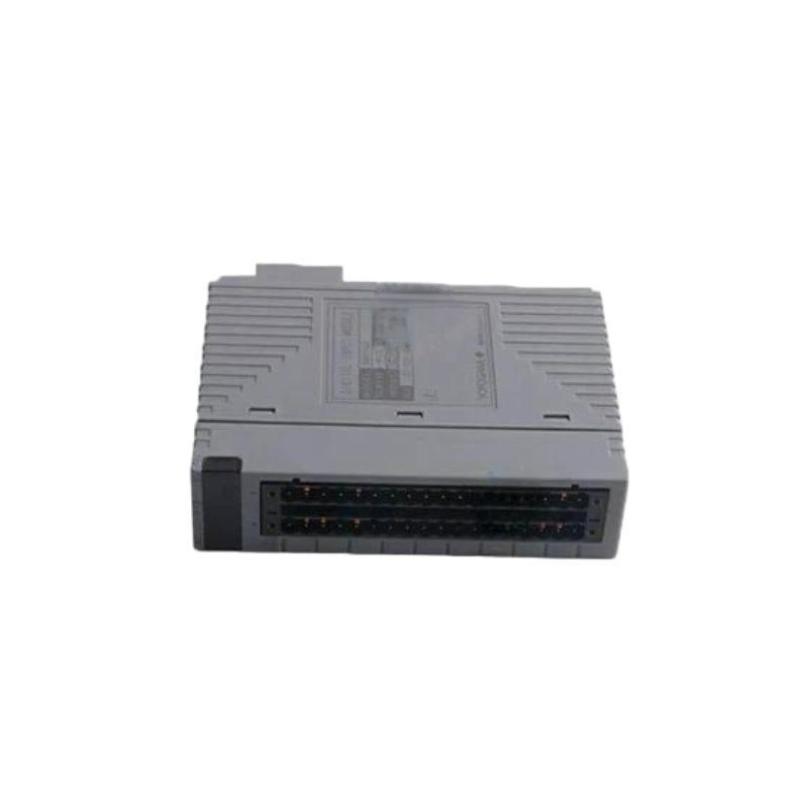

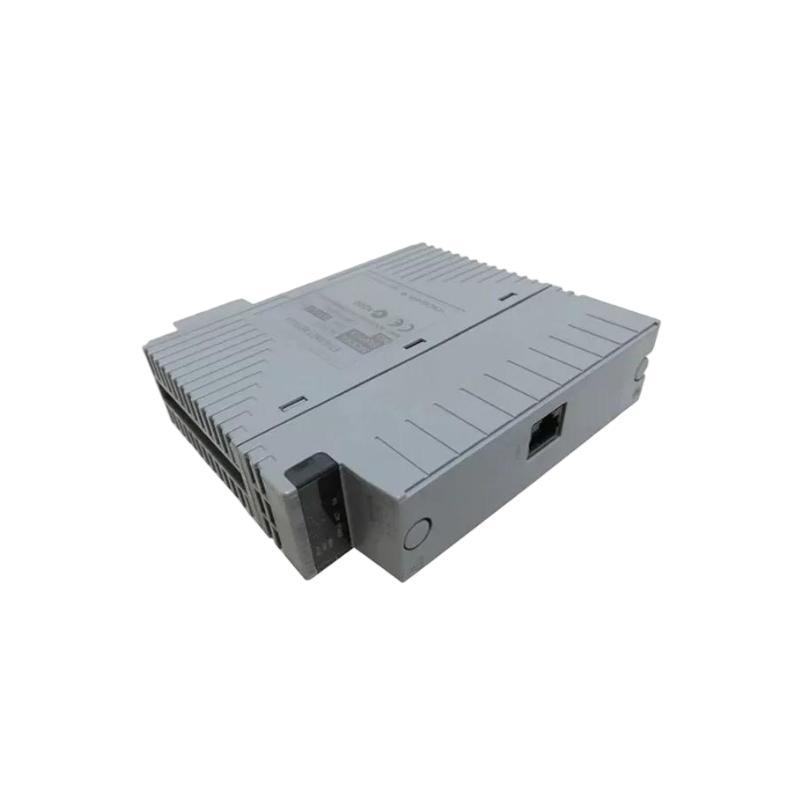

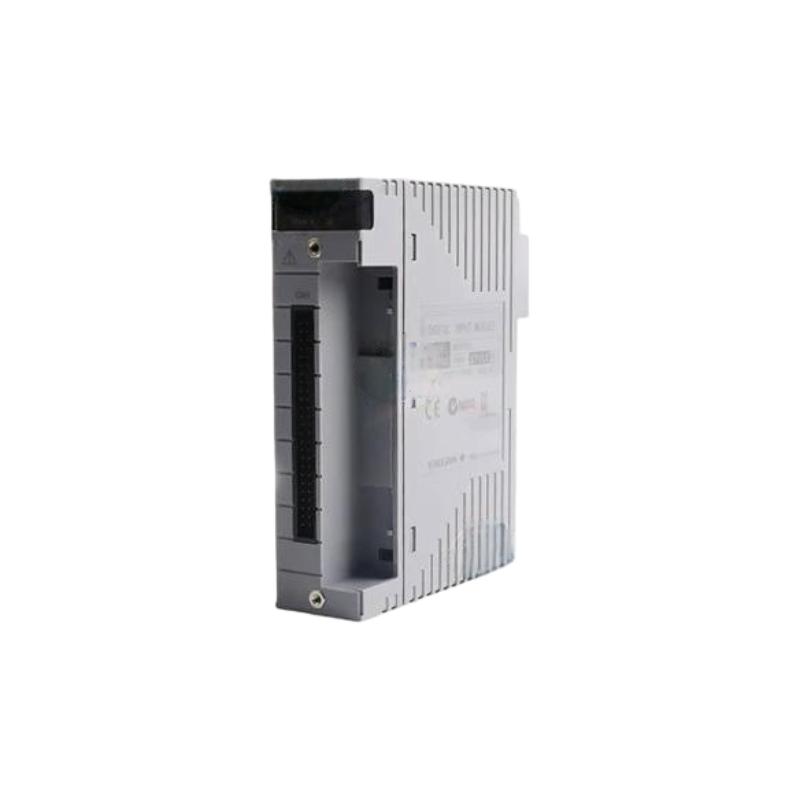

The Yokogawa ADV144-S13 Analog Input Module is a cutting-edge solution designed to meet the high-precision requirements of industrial automation systems. Offering exceptional accuracy and reliability, this module is ideal for monitoring key process variables such as temperature, pressure, flow, and level in applications across various industries, including power generation, chemical processing, oil & gas, and manufacturing. By integrating seamlessly with Yokogawa’s Distributed Control Systems (DCS), Programmable Logic Controllers (PLCs), and SCADA systems, the ADV144-S13 ensures that critical process data is acquired and processed in real time, enhancing operational efficiency and safety.

With its broad input compatibility (including voltage, current, RTD, and thermocouple), the ADV144-S13 provides versatile signal processing capabilities, allowing for precise control and monitoring in complex and demanding environments. Whether you're looking to optimize performance in a plant or manage sophisticated process control tasks, the ADV144-S13 delivers the accuracy and reliability you need.

Technical Specifications

Model: ADV144-S13
Type: Analog Input Module
Input Types:
- Voltage (0-10V, 1-5V, etc.)
- Current (4-20mA)
- RTD (Resistance Temperature Detector)
- Thermocouple (Types J, K, T, R, S, N, B, E)
Number of Channels: 8 or 16 channels (configurable based on the variant)
Accuracy:
- Analog Inputs: ±0.1% of full scale
- RTD Inputs: ±0.2% of full scale
- Thermocouple Inputs: ±0.5% of full scale
Signal Conversion Speed: 200 ms per channel
Power Supply: 24 VDC
Mounting Type: DIN rail or panel mount
Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
Dimensions (L x W x H): 6.7 x 4.1 x 2.6 inches (170 x 105 x 66 mm)
Weight: 1.4 lbs (635 g)
Communication Protocols: Yokogawa proprietary protocol, Modbus RTU, OPC
LED Indicators: Power, I/O status, Communication status

Recommended Related Models

Yokogawa FA-M3 PLC: A modular, high-performance PLC that integrates well with the ADV144-S13, handling complex automation tasks across various industrial sectors.
Yokogawa YS1700: A precise transmitter used for accurate measurements of temperature, pressure, and flow, complementing the ADV144-S13 for real-time process monitoring.
Yokogawa ADMAG AXF: Magnetic flowmeters that offer high-accuracy flow measurements, working seamlessly with the ADV144-S13 for optimized flow control in various industrial systems.
Yokogawa DPharp EJA: A series of advanced pressure transmitters that pair effectively with the ADV144-S13 for precise and reliable pressure measurement in challenging environments.

Popular Yokogawa Models

Yokogawa CENTUM VP: A comprehensive Distributed Control System (DCS) that integrates seamlessly with the ADV144-S13, enabling advanced process monitoring, control, and real-time data acquisition.
Yokogawa RX3i PLC: A flexible and scalable PLC that integrates easily with the ADV144-S13, providing high-performance control for sophisticated process automation tasks.
Yokogawa YS1000: A versatile transmitter designed for accurate measurement of temperature, pressure, and flow, ideal for pairing with the ADV144-S13 for comprehensive process control.
Yokogawa EJX Series: Advanced pressure transmitters designed for high-accuracy pressure monitoring, which integrate effectively with the ADV144-S13 for detailed process control in various industries.

Applications

The Yokogawa ADV144-S13 Analog Input Module is a versatile and reliable solution, suitable for a wide range of industrial applications where precision and efficiency are paramount. Key applications include:

Power Generation: In power plants, the ADV144-S13 is used to monitor critical parameters such as turbine temperature, pressure, and flow, ensuring safe and efficient operations.
Oil & Gas: The ADV144-S13 is integral in monitoring wellhead pressure, temperature, and flow, optimizing the performance and safety of oil and gas facilities.
Chemical Processing: In chemical production, the ADV144-S13 ensures that temperature, pressure, and flow are accurately measured in reactors and other systems, contributing to product quality and process reliability.
Manufacturing Automation: The module provides real-time monitoring of production parameters, helping to enhance product quality, reduce downtime, and optimize overall manufacturing efficiency.
Water and Wastewater Treatment: Used in water treatment plants, the ADV144-S13 monitors key parameters such as pump performance, chemical dosing, and flow rates, ensuring regulatory compliance and efficient operations.
HVAC and Building Automation: The ADV144-S13 monitors environmental conditions like temperature and humidity, helping optimize energy efficiency and ensure comfort in buildings and industrial facilities.

Advantages

High-Precision Measurement: Offering accuracy of ±0.1% for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs, the ADV144-S13 provides precise and reliable measurements for critical process variables.
Versatile Input Options: The ADV144-S13 supports multiple input types, including voltage, current, RTD, and thermocouple, making it a flexible solution for a wide range of applications.
Seamless Integration with Yokogawa Systems: Fully compatible with Yokogawa’s DCS, PLCs, and SCADA systems, the ADV144-S13 ensures efficient data exchange and streamlined process control.
Fast Data Conversion: With a signal conversion speed of 200 ms per channel, the ADV144-S13 provides rapid data acquisition, enabling real-time decision-making in dynamic environments.
Reliable Performance in Harsh Environments: Designed for industrial use, the ADV144-S13 operates in extreme temperature ranges from -20°C to 60°C, ensuring reliable performance in challenging conditions.
Compact and Space-Efficient: Despite its high-performance capabilities, the ADV144-S13 has a compact design, allowing for easy integration into space-constrained control panels.

Technical FAQs

What types of signals can the ADV144-S13 process?
- The ADV144-S13 supports voltage (0-10V, 1-5V), current (4-20mA), RTD, and thermocouple inputs (Types J, K, T, R, S, N, B, E).
What is the accuracy of the ADV144-S13 for temperature measurements?
- The ADV144-S13 provides ±0.2% accuracy for RTD inputs and ±0.5% for thermocouple inputs.
How many channels are available on the ADV144-S13?
- The ADV144-S13 can be configured with 8 or 16 channels, depending on the model variant.
What is the signal conversion speed of the ADV144-S13?
- The ADV144-S13 has a signal conversion speed of 200 ms per channel, enabling real-time data processing.
What power supply does the ADV144-S13 require?
- The ADV144-S13 operates on a 24 VDC power supply.
Can the ADV144-S13 be integrated with other Yokogawa systems?
- Yes, the ADV144-S13 is fully compatible with Yokogawa’s DCS, PLCs, and SCADA systems, providing seamless integration for efficient process control.
What is the operating temperature range of the ADV144-S13?
- The ADV144-S13 operates in a temperature range of -20°C to 60°C (-4°F to 140°F).
What are the dimensions of the ADV144-S13?
- The ADV144-S13 measures 6.7 x 4.1 x 2.6 inches (170 x 105 x 66 mm).
How is the ADV144-S13 mounted?
- The module can be mounted on a DIN rail or directly onto a panel for flexible installation.
Is the ADV144-S13 suitable for hazardous environments?
