Brand:Schneider PLC Item No.:ATV32HD15N4 Product Origin:France Product Dimensions:180 x 404 x 232 mm Product Weight:8.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

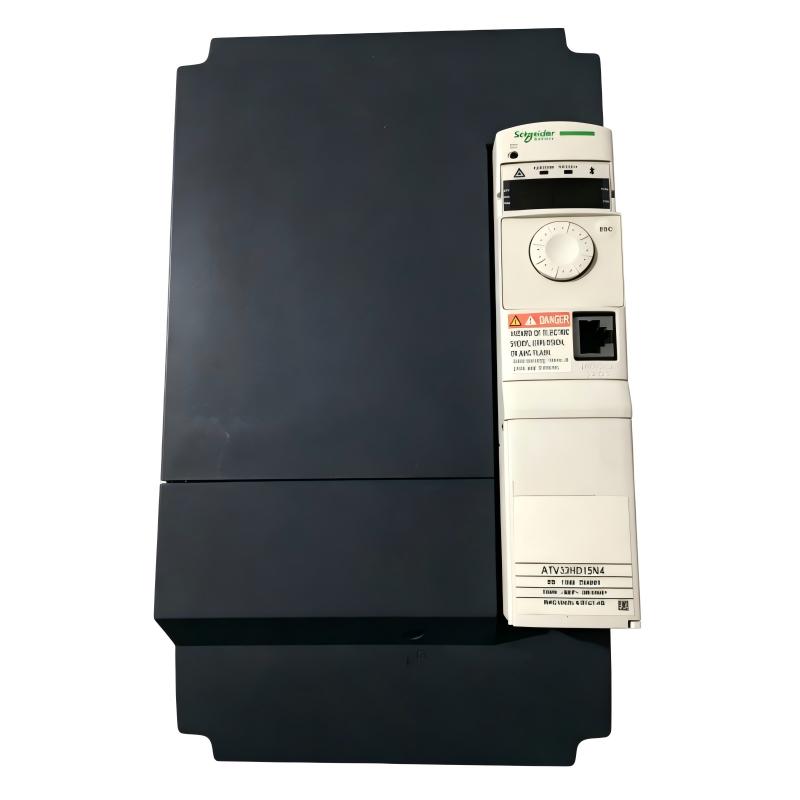

The Schneider ATV32HD15N4 Variable Speed Drive is a high-performance AC drive designed to deliver efficient and precise control for industrial motors. With a 15 kW power rating and advanced control capabilities, it provides a dependable solution for modern machine automation and production systems.
Built for flexibility and reliability, the ATV32HD15N4 helps improve equipment productivity by providing smooth motor operation, accurate speed adjustment, and optimized energy usage. Its compact structure makes it suitable for applications where installation space and performance requirements must be balanced.
For engineers and automation professionals, this variable speed drive offers a practical solution for upgrading motor control systems and improving overall machine efficiency.
Technical Specifications
Specification
Details
Product Type
Variable Speed Drive
Manufacturer
Schneider Electric
Model
ATV32HD15N4
Product Series
Altivar 32
Rated Power
15 kW
Motor Power Capacity
20 HP
Input Voltage
380–500 V AC
Input Phase
Three-phase
Output Current
33 A
Frequency Range
0.5–500 Hz
Control Method
Sensorless Vector Control
Motor Compatibility
Asynchronous Motors and Synchronous Motors
Communication Interface
Modbus, CANopen
Mounting Type
Wall-mounted
Protection Class
IP20
Cooling Method
Forced Air Cooling
Dimensions (H × W × D)
180 × 404 × 232 mm
Weight
8.80 kg (19.40 lb)
Recommended Related Models
Model
Product Type
Description
Schneider ATV32HD11N4
Variable Speed Drive
Designed for medium-power industrial motor applications.
Schneider ATV32HD18N4
Variable Speed Drive
Higher power model for larger machine control requirements.
Schneider ATV320D15N4B
Variable Speed Drive
Modern Altivar series drive with similar power capability.
Schneider ATV320U15N4B
Variable Speed Drive
Flexible solution for general industrial automation systems.
Popular Related Models
Model
Product Type
Application Focus
Schneider ATV32HD15N4
Variable Speed Drive
Industrial machine control applications
Schneider ATV320D15N4B
Variable Speed Drive
Advanced automation systems
Schneider ATV320U15N4B
Variable Speed Drive
General motor speed control
Schneider ATV630D15N4
Variable Speed Drive
Pump and process applications
Industrial Application Areas
The Schneider ATV32HD15N4 Variable Speed Drive is a compact and intelligent motor control solution designed for industrial automation systems requiring precise speed regulation, efficient operation, and reliable performance. As part of the Altivar 32 series, this drive is engineered for machine builders and system integrators who need flexible motor management in demanding production environments.
With advanced control functions and a space-saving design, the ATV32HD15N4 provides smooth motor operation, improved process efficiency, and dependable performance for a wide range of industrial applications.
Application Area
Description
Machine Automation
Provides accurate speed and torque control for automated production equipment.
Conveyor Systems
Enables smooth acceleration, deceleration, and speed adjustment for material handling applications.
Packaging Machinery
Supports precise motor control for high-speed and high-efficiency packaging processes.
Pump and Fan Systems
Optimizes motor operation while improving energy efficiency.
Processing Equipment
Delivers stable performance for industrial machines requiring reliable drive control.
Advanced Drive Advantages
The Schneider ATV32HD15N4 combines powerful motor control technology with a compact industrial design. It is developed to improve machine performance, simplify system integration, and provide reliable operation throughout the equipment lifecycle.
Advantage
Description
Precise Motor Regulation
Provides accurate speed and torque management for improved machine control.
Energy Optimization
Helps reduce energy consumption by adapting motor operation to actual load requirements.
Compact Design
Allows efficient installation in space-limited control cabinets.
Flexible Integration
Supports industrial communication networks for automation system connectivity.
Reliable Protection
Includes monitoring and protection functions to improve operational safety.
Technical FAQs
1. What is the main function of the Schneider ATV32HD15N4?
The ATV32HD15N4 is a variable speed drive used to control motor speed, torque, and operating performance in industrial applications.
2. What type of motors can be controlled by this drive?
The drive supports asynchronous motors and synchronous motors for various industrial machine applications.
3. Is the ATV32HD15N4 suitable for automation systems?
Yes. It is designed for machine automation applications requiring accurate motor control and flexible configuration.
4. Does this drive support communication functions?
Yes. The ATV32 series supports industrial communication options for integration with automation systems.
5. Can the drive perform vector control?
Yes. It supports advanced motor control methods including sensorless vector control for improved performance.
6. Does the ATV32HD15N4 include motor protection features?
Yes. It provides protection functions including overload monitoring, short-circuit protection, and thermal protection.
7. What applications commonly use this variable speed drive?
It is commonly used in conveyors, packaging machines, pumps, fans, and industrial processing equipment.
8. Can drive parameters be adjusted for different motors?
Yes. Parameters can be configured according to motor characteristics and application requirements.
9. Is the ATV32HD15N4 suitable for continuous industrial operation?
Yes. It is designed for reliable performance in professional industrial environments.
10. What should be considered before replacing an existing drive?
Motor specifications, power requirements, control method, and system compatibility should be checked before installation.
