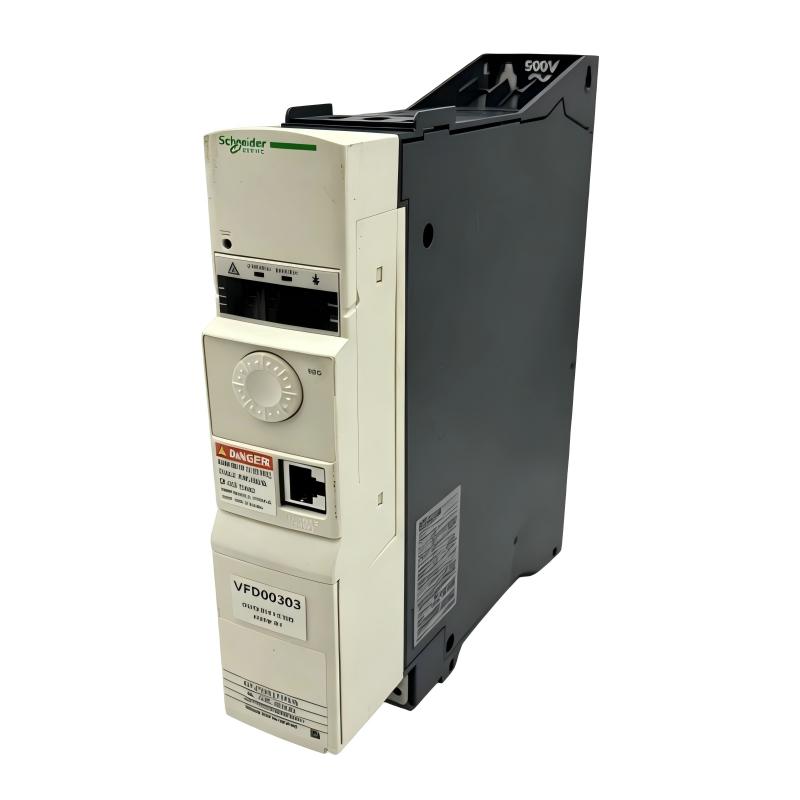

Schneider ATV32HU11N4 Variable Speed Drive_Schneider PLC

Compact Industrial Motion Control Introduction

The Schneider ATV32HU11N4 Variable Speed Drive is a high-performance AC drive designed to provide efficient motor control for industrial automation and machine applications. With a 1.1 kW power capacity and compact construction, it delivers reliable speed management for equipment requiring precise operation and flexible installation.

Built with Schneider’s Altivar 32 technology, this drive combines intelligent control functions, strong protection capability, and efficient motor regulation. Its slim structure makes it especially suitable for applications where panel space optimization is important.

The ATV32HU11N4 provides engineers with a dependable solution for improving machine productivity, reducing energy usage, and maintaining stable motor performance in industrial environments.

Technical Specifications

Specification	Details
Product Type	Variable Speed Drive
Manufacturer	Schneider Electric
Model	ATV32HU11N4
Product Series	Altivar 32
Rated Power	1.1 kW
Motor Power Capacity	1.5 HP
Input Voltage	380–500 V AC
Input Phase	Three-phase
Output Current	3 A
Maximum Transient Current	4.5 A
Output Frequency Range	0.5–599 Hz
Control Method	Sensorless Vector Control
Motor Compatibility	Asynchronous Motors and Synchronous Motors
Communication Interface	Modbus, CANopen
EMC Filter	Integrated Class C2 EMC Filter
Mounting Type	Wall-mounted
Protection Class	IP20
Cooling Method	Heat Sink Cooling
Dimensions (H × W × D)	45 × 325 × 245 mm
Weight	2.50 kg (5.51 lb)

Recommended Related Models

Model	Product Type	Description
Schneider ATV32HU07N4	Variable Speed Drive	Compact drive solution for lower-power motor applications.
Schneider ATV32HU15N4	Variable Speed Drive	Higher power model for applications requiring increased motor capacity.
Schneider ATV320U11N4B	Variable Speed Drive	Modern Altivar Machine replacement model with similar performance.
Schneider ATV32HU22N4	Variable Speed Drive	Suitable for larger compact automation systems.

Popular Related Models

Model	Product Type	Application Focus
Schneider ATV32HU11N4	Variable Speed Drive	Compact industrial machine control
Schneider ATV320U11N4B	Variable Speed Drive	Advanced automation applications
Schneider ATV32HU15N4	Variable Speed Drive	Medium-power motor control
Schneider ATV630U11N4	Variable Speed Drive	Industrial process applications

Industrial Application Areas

The Schneider ATV32HU11N4 Variable Speed Drive is a compact and efficient motor control solution designed for industrial machines requiring accurate speed regulation, reliable operation, and flexible automation integration. As part of the Altivar 32 series, this drive provides precise control for asynchronous and synchronous motors while helping improve machine performance and energy efficiency.

With its compact book-style design and advanced control functions, the ATV32HU11N4 is ideal for applications where installation space is limited but dependable motor management is essential.

Application Area	Description
Machine Automation	Provides smooth motor control for automated equipment and compact production systems.
Conveyor Systems	Enables controlled acceleration, braking, and speed adjustment for material handling applications.
Packaging Equipment	Supports accurate motor operation for packaging and assembly machinery.
Pump and Fan Applications	Improves operational efficiency through variable-speed motor control.
Small Industrial Machinery	Delivers reliable drive performance for compact automation equipment.

Smart Drive Performance Advantages

The Schneider ATV32HU11N4 combines advanced motor control technology with a space-saving structure, making it a practical choice for machine builders and automation engineers. It provides stable operation, flexible configuration, and reliable protection features for modern industrial applications.

Advantage	Description
Compact Installation	Slim design allows efficient mounting inside control cabinets with limited space.
Precise Motor Control	Provides accurate speed and torque adjustment for improved machine performance.
Energy Efficient Operation	Helps reduce energy consumption by optimizing motor speed according to load conditions.
Flexible System Integration	Supports communication functions for connection with industrial automation systems.
Reliable Protection	Includes monitoring and protection functions to improve equipment safety and stability.

Technical FAQs

1. What is the main function of the Schneider ATV32HU11N4?
The ATV32HU11N4 is a variable speed drive designed to control motor speed, torque, and operating performance in industrial applications.

2. What motor power rating does this drive support?
This model supports motors up to 1.1 kW for suitable three-phase industrial applications.

3. What types of motors are compatible with the ATV32HU11N4?
The drive supports asynchronous motors and synchronous motors for flexible machine control applications.

4. Does the ATV32HU11N4 support vector control?
Yes. It provides advanced motor control functions including sensorless flux vector control.

5. Can this drive be integrated with automation systems?
Yes. The ATV32 series supports industrial communication options for integration with control systems.

6. Does the drive include EMC protection features?
Yes. The drive includes an integrated EMC filter to help reduce electromagnetic interference.

7. What applications are commonly controlled by this model?
It is commonly used for conveyors, packaging machines, pumps, fans, and compact industrial equipment.

8. Can drive parameters be customized for different motors?
Yes. Parameters can be adjusted according to motor characteristics and application requirements.

9. Is the ATV32HU11N4 suitable for continuous industrial operation?
Yes. It is designed for reliable operation in industrial environments requiring consistent performance.

10. What should be checked before replacing this drive?
Motor power, voltage requirements, control configuration, and system compatibility should be confirmed before replacement.
