Compact Industrial Motion Control Introduction

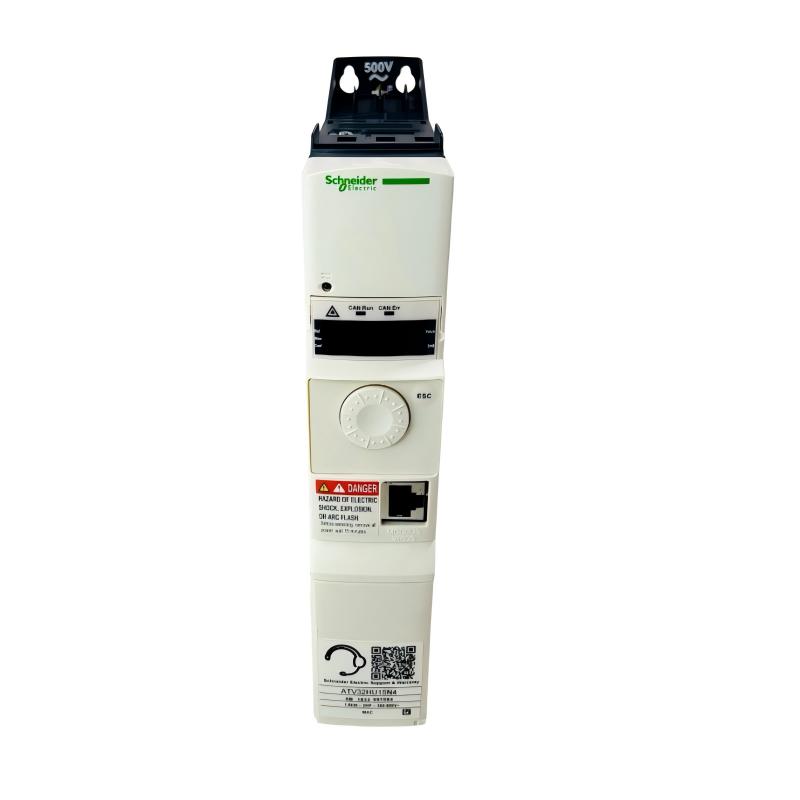

The Schneider ATV32HU15N4 Variable Speed Drive is a reliable AC drive solution developed for precise motor control in industrial automation applications. With a 1.5 kW power rating and advanced control functions, it provides efficient operation for machinery requiring accurate speed adjustment and dependable performance.

Featuring a compact design, intelligent motor management, and flexible configuration options, the ATV32HU15N4 helps engineers create efficient and reliable automation systems. Its narrow structure makes it particularly suitable for applications where cabinet space is limited while maintaining high control performance.

The drive offers a balanced combination of efficiency, reliability, and flexibility, making it a valuable solution for upgrading industrial motor control systems and improving overall equipment productivity.

Technical Specifications

Specification	Details
Product Type	Variable Speed Drive
Manufacturer	Schneider Electric
Model	ATV32HU15N4
Product Series	Altivar 32
Rated Power	1.5 kW
Motor Power Capacity	2 HP
Input Voltage	380–500 V AC
Input Phase	Three-phase
Rated Output Current	4.1 A
Control Method	Sensorless Vector Control
Motor Compatibility	Asynchronous Motors and Synchronous Motors
Communication Interface	Modbus, CANopen
EMC Filter	Integrated EMC Filter
Mounting Type	Wall-mounted
Protection Class	IP20
Cooling Method	Heat Sink Cooling
Dimensions (H × W × D)	45 × 325 × 245 mm
Weight	2.50 kg (5.51 lb)

Recommended Related Models

Model	Product Type	Description
Schneider ATV32HU11N4	Variable Speed Drive	Compact drive solution for lower-power industrial motor applications.
Schneider ATV32HU22N4	Variable Speed Drive	Higher-capacity model for larger machine control requirements.
Schneider ATV320U15N4B	Variable Speed Drive	Advanced Altivar series drive for modern automation systems.
Schneider ATV32HU30N4	Variable Speed Drive	Suitable for applications requiring increased motor capacity.

Popular Related Models

Model	Product Type	Application Focus
Schneider ATV32HU15N4	Variable Speed Drive	Compact industrial machine control
Schneider ATV320U15N4B	Variable Speed Drive	Automation and motor regulation systems
Schneider ATV32HU11N4	Variable Speed Drive	Small and medium industrial equipment
Schneider ATV630U15N4	Variable Speed Drive	Process control and industrial applications

Industrial Application Areas

The Schneider ATV32HU15N4 Variable Speed Drive is a compact and efficient motor control solution designed for modern industrial automation systems. As part of the Altivar 32 series, this drive provides precise speed regulation, smooth motor operation, and reliable control performance for machine applications requiring high flexibility and stable operation.

With its slim book-style design and advanced motor management functions, the ATV32HU15N4 is an ideal choice for machine builders and industrial users looking to improve productivity, optimize energy usage, and achieve reliable motion control in limited installation spaces.

Application Area	Description
Machine Automation	Provides accurate motor control for automated production equipment and industrial machinery.
Conveyor Systems	Enables smooth acceleration, deceleration, and speed adjustment for material handling applications.
Packaging Machinery	Supports precise motor operation for packaging, assembly, and processing equipment.
Pump and Fan Systems	Helps optimize motor performance and improve energy efficiency.
Industrial Processing Equipment	Delivers stable operation for machines requiring reliable speed control.

Efficient Drive Performance Advantages

The Schneider ATV32HU15N4 combines advanced drive technology with a compact structure to deliver dependable motor control performance. Designed for industrial environments, it helps reduce mechanical stress, improve operational efficiency, and simplify integration into automation systems.

Advantage	Description
Precise Speed Control	Provides accurate motor speed and torque adjustment for improved machine performance.
Space-Saving Design	Compact dimensions allow easy installation inside control cabinets.
Energy Efficient Operation	Adjusts motor performance according to application requirements to reduce energy waste.
Flexible Automation Integration	Supports industrial communication functions for connection with control systems.
Reliable System Protection	Provides monitoring and protection functions to support stable operation.

Technical FAQs

1. What is the main function of the Schneider ATV32HU15N4?
The ATV32HU15N4 is a variable speed drive used to control motor speed, torque, and operating performance in industrial applications.

2. What motor types can be controlled by this drive?
The drive supports asynchronous motors and synchronous motors for flexible industrial automation applications.

3. Is the ATV32HU15N4 suitable for machine automation systems?
Yes. It is designed for machine builders and automation systems requiring accurate motor control.

4. Does this drive support advanced motor control technology?
Yes. It supports sensorless vector control for improved motor response and stability.

5. Can the ATV32HU15N4 communicate with industrial control systems?
Yes. It supports communication functions for integration with automation networks.

6. Does this model provide motor protection functions?
Yes. It includes protection features designed to monitor operating conditions and improve system reliability.

7. What applications commonly use the ATV32HU15N4?
It is commonly used in conveyors, packaging equipment, pumps, fans, and compact industrial machines.

8. Can users configure parameters according to different applications?
Yes. The drive parameters can be adjusted to match different motor characteristics and operating requirements.

9. Is the ATV32HU15N4 suitable for continuous operation?
Yes. It is designed for reliable industrial operation in demanding automation environments.

10. What factors should be considered before replacing this drive?
Motor specifications, voltage requirements, control configuration, and system compatibility should be confirmed before installation.
