Brand:GE Fanuc PLC Item No.:IC200PWR102C Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

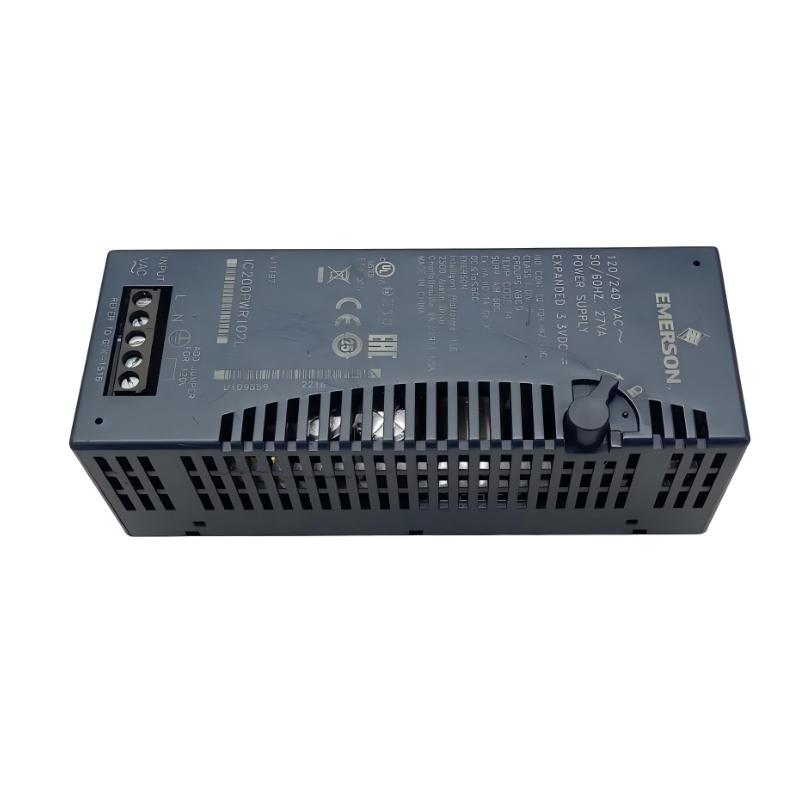

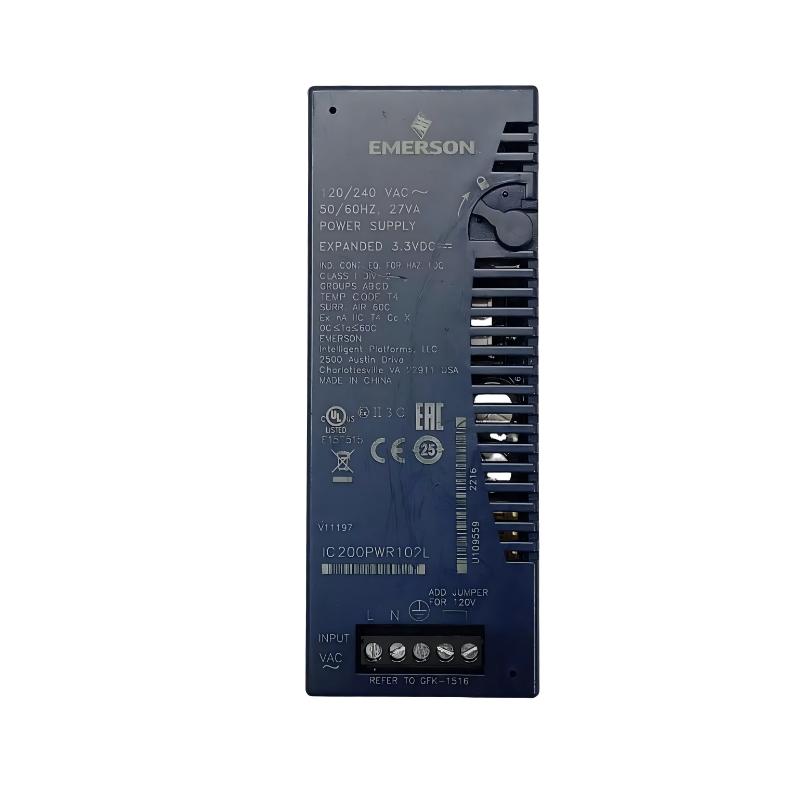

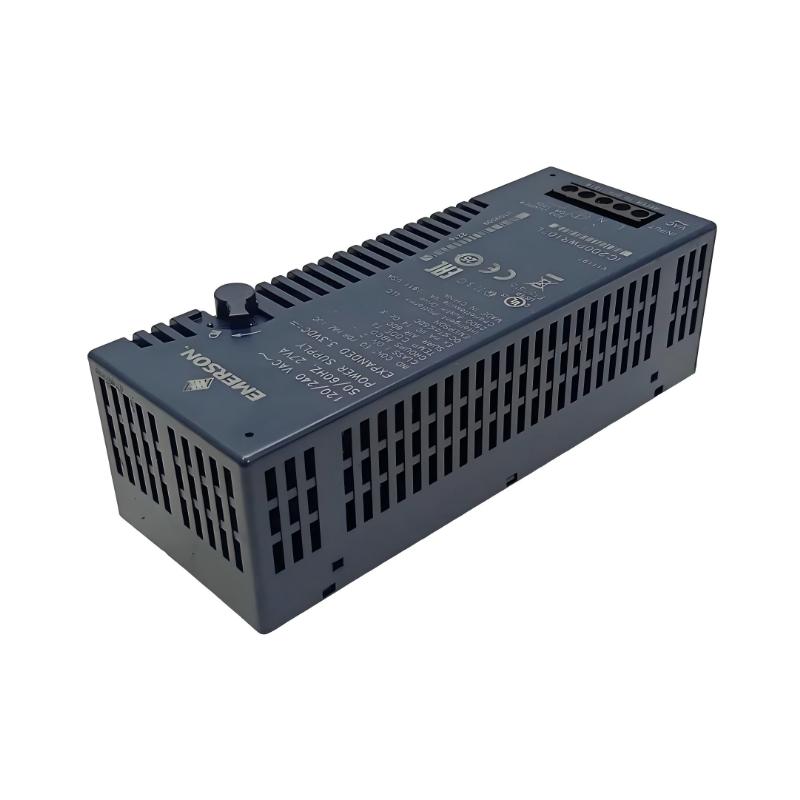

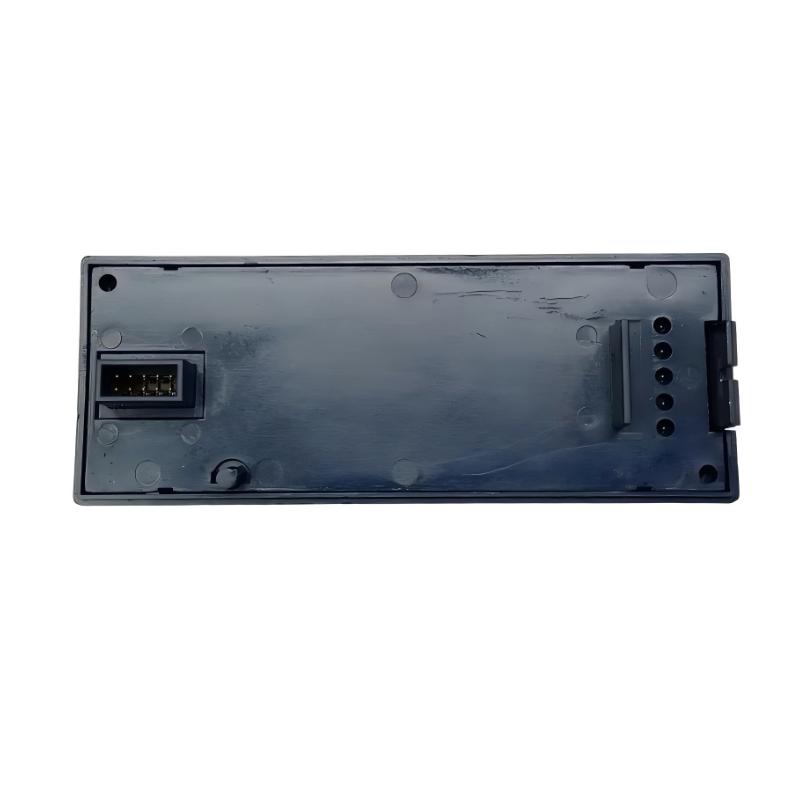

The GE IC200PWR102C VersaMax Power Supply Module is a universal AC-input power supply designed to deliver stable backplane power for GE VersaMax PLC and distributed I/O systems. Accepting either 120 VAC or 240 VAC input, it generates regulated 5 VDC and 3.3 VDC outputs to support CPUs, communication modules, and I/O modules throughout the VersaMax platform.
Designed for industrial reliability, the IC200PWR102C features expanded 3.3 VDC output capability, allowing higher-power VersaMax configurations while maintaining compact installation. Integrated overload and short-circuit protection help ensure dependable operation in demanding manufacturing and process automation environments.
Whether used as the primary station power source or as a supplemental supply on a booster carrier, the IC200PWR102C offers an efficient and scalable solution for expanding VersaMax automation systems.
VersaMax 12 VDC Power Supply Module with Expanded 3.3 VDC
IC200PWR201
VersaMax 12 VDC Power Supply Module
Where It Excels in Industrial Use
GE VersaMax PLC and distributed I/O systems
Industrial control cabinets requiring reliable backplane power
Manufacturing automation and production lines
Process control and monitoring applications
OEM machine control systems
Remote I/O stations with VersaMax architecture
Expansion of existing VersaMax installations
Industrial equipment retrofit projects
High-density I/O systems requiring expanded 3.3 VDC capacity
Continuous-operation automation environments
Key Strengths at a Glance
Universal 120/240 VAC input power supply
Expanded 3.3 VDC output for higher-capacity VersaMax systems
Delivers regulated 5 VDC and 3.3 VDC backplane power
Maximum combined output current of 1.5 A
Built-in overload and short-circuit protection
Can operate as a primary or supplemental power supply
Compatible with VersaMax CPU, NIU, and I/O stations
Compact DIN rail mounting design
Reliable operation for industrial automation applications
Revision C hardware offering proven VersaMax compatibility
Technical FAQs
1. What is the primary function of the GE IC200PWR102C?
The IC200PWR102C is a VersaMax power supply module that converts 120/240 VAC input into regulated 5 VDC and 3.3 VDC backplane power for CPUs, Network Interface Units (NIUs), and I/O modules.
2. What input voltage does the IC200PWR102C support?
The module accepts either 85–132 VAC (120 VAC nominal with jumper installed) or 176–264 VAC (240 VAC nominal without the jumper), operating at 47–63 Hz.
3. What output voltages are available?
The module provides regulated 5 VDC and 3.3 VDC outputs for VersaMax backplane power distribution.
4. What is the maximum output current?
The combined maximum output current is 1.5 A, with up to 1.0 A available on the 3.3 VDC output. Remaining capacity is available on the 5 VDC output.
5. Can the IC200PWR102C be used as a booster power supply?
Yes. Besides serving as the primary station power supply, it can also be installed on a VersaMax Power Supply Booster Carrier to provide supplemental power for larger I/O configurations.
6. What protection features are included?
The module includes built-in short-circuit and overload protection to help protect both the power supply and connected VersaMax modules.
7. What is the purpose of the expanded 3.3 VDC output?
The expanded 3.3 VDC capability provides additional current for newer VersaMax CPUs, communication modules, and high-density I/O modules that require greater 3.3 VDC backplane power.
8. Does the module require jumper configuration?
Yes. A jumper is installed only for 120 VAC operation. No jumper should be used when operating from 240 VAC, as incorrect jumper installation may damage the module.
9. Which VersaMax systems are compatible with the IC200PWR102C?
The module is compatible with VersaMax CPU carriers, Network Interface Units (NIUs), and Power Supply Booster Carriers throughout the VersaMax modular I/O platform.
10. Why is the IC200PWR102C widely used in industrial automation?
Its universal AC input, expanded 3.3 VDC capacity, reliable protection features, and flexible installation options make it a dependable power solution for both new installations and maintenance of existing VersaMax systems.
