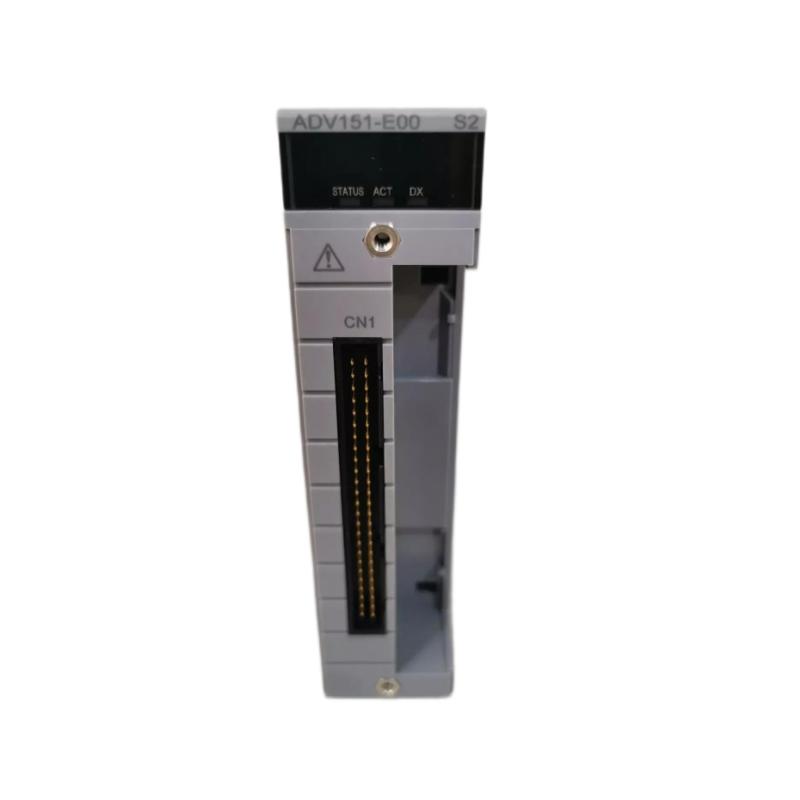

The Yokogawa ADV151 Analog Input Module is an advanced signal processing solution designed for industrial automation systems requiring high-precision measurements and reliability. Ideal for use in industries such as power generation, oil & gas, chemical processing, and manufacturing, the ADV151 provides exceptional performance in monitoring critical process parameters like temperature, pressure, flow, and level. This module integrates seamlessly with Yokogawa’s Distributed Control Systems (DCS), Programmable Logic Controllers (PLCs), and SCADA systems, enabling real-time data acquisition and precise control for improved operational efficiency.

Supporting a wide range of input types including voltage, current, RTD, and thermocouple, the ADV151 is a versatile choice for industrial environments where accurate, high-speed signal conversion and monitoring are crucial. It ensures that your process systems operate at peak performance while maintaining high standards of safety and reliability.

Technical Specifications

Model: ADV151
Type: Analog Input Module
Input Types:
- Voltage (0-10V, 1-5V, etc.)
- Current (4-20mA)
- RTD (Resistance Temperature Detector)
- Thermocouple (Types J, K, T, R, S, N, B, E)
Number of Channels: 8 or 16 channels (configurable depending on model variant)
Accuracy:
- Analog Inputs: ±0.1% of full scale
- RTD Inputs: ±0.2% of full scale
- Thermocouple Inputs: ±0.5% of full scale
Signal Conversion Speed: 200 ms per channel
Power Supply: 24 VDC
Mounting Type: DIN rail or panel mount
Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
Dimensions (L x W x H): 6.7 x 4.1 x 2.6 inches (170 x 105 x 66 mm)
Weight: 1.4 lbs (635 g)
Communication Protocols: Yokogawa proprietary protocol, Modbus RTU, OPC
LED Indicators: Power, I/O status, Communication status

Recommended Related Models

Yokogawa FA-M3 PLC: A high-performance, modular PLC system that integrates well with the ADV151 to manage complex process automation tasks with ease.
Yokogawa YS1700: A versatile transmitter used for accurate measurements of temperature, pressure, and flow, complementing the ADV151 for real-time process monitoring.
Yokogawa ADMAG AXF: Magnetic flowmeters that offer precise flow measurements, working seamlessly with the ADV151 to provide optimal flow control in various industrial systems.
Yokogawa DPharp EJA: Advanced pressure transmitters designed to work with the ADV151, providing highly accurate pressure readings in harsh industrial environments.

Popular Yokogawa Models

Yokogawa CENTUM VP: A sophisticated Distributed Control System (DCS) that integrates with the ADV151 to provide advanced process control, monitoring, and optimization for industrial operations.
Yokogawa RX3i PLC: A modular and flexible PLC system that pairs effectively with the ADV151 for reliable and scalable process control solutions in a variety of applications.
Yokogawa YS1000: A high-precision transmitter used to measure temperature, pressure, and flow, ideal for use with the ADV151 for comprehensive process control and monitoring.
Yokogawa EJX Series: High-performance pressure transmitters designed to offer accurate pressure measurement, working seamlessly with the ADV151 to ensure reliable control in critical systems.

Applications

The Yokogawa ADV151 Analog Input Module is suitable for a variety of industrial applications where precise and reliable signal processing is essential. Key applications include:

Power Generation: The ADV151 is used in power plants to monitor key parameters such as turbine temperature, pressure, and flow, ensuring safe and efficient operations.
Oil & Gas: In the oil and gas industry, the module helps monitor critical measurements like wellhead pressure, temperature, and flow, improving safety and system performance.
Chemical Processing: In chemical manufacturing, the ADV151 ensures accurate measurements of temperature, pressure, and flow, providing real-time insights into reactor and production system performance.
Manufacturing Automation: The ADV151 is used to monitor production processes such as temperature, pressure, and flow, improving overall production efficiency and reducing downtime.
Water and Wastewater Treatment: The ADV151 monitors pumps, valves, and chemical dosing systems in water treatment plants, ensuring compliance with safety standards and enhancing operational efficiency.
HVAC and Building Automation: The module is used in HVAC systems to monitor temperature and humidity levels, contributing to energy efficiency and comfort in industrial and commercial buildings.

Advantages

High-Precision Signal Processing: With accuracy up to ±0.1% for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs, the ADV151 provides highly accurate measurements for critical process monitoring.
Versatile Input Compatibility: The ADV151 supports multiple input types (voltage, current, RTD, thermocouple), making it adaptable to a wide range of industrial applications.
Seamless Integration with Yokogawa Systems: The module integrates effortlessly with Yokogawa’s DCS, PLCs, and SCADA systems, enabling seamless data exchange and optimized process control.
Fast Signal Conversion: The ADV151 offers a signal conversion speed of 200 ms per channel, providing real-time data for swift decision-making in dynamic industrial environments.
Durable and Reliable: Designed to withstand harsh industrial conditions, the ADV151 operates within a temperature range of -20°C to 60°C, ensuring reliable performance even in extreme environments.
Compact Design: Despite its powerful capabilities, the ADV151 is compact and space-efficient, enabling easy integration into space-constrained control panels.

Technical FAQs

What types of input signals can the ADV151 process?
- The ADV151 processes voltage (0-10V, 1-5V), current (4-20mA), RTD, and thermocouple inputs (Types J, K, T, R, S, N, B, E).
What is the accuracy of the ADV151 for temperature measurements?
- The ADV151 provides ±0.2% accuracy for RTD inputs and ±0.5% for thermocouple inputs.
How many channels are available on the ADV151?
- The ADV151 can be configured with 8 or 16 channels, depending on the model variant.
What is the signal conversion speed of the ADV151?
- The ADV151 has a signal conversion speed of 200 ms per channel, enabling rapid data acquisition for real-time control.
What power supply is required for the ADV151?
- The ADV151 operates on a 24 VDC power supply.
Can the ADV151 be integrated with other Yokogawa products?
- Yes, the ADV151 integrates seamlessly with Yokogawa’s DCS, PLCs, and SCADA systems for efficient process control.
What is the operating temperature range of the ADV151?
- The ADV151 operates within a temperature range of -20°C to 60°C (-4°F to 140°F).
What are the dimensions of the ADV151?
- The ADV151 measures 6.7 x 4.1 x 2.6 inches (170 x 105 x 66 mm).
How is the ADV151 mounted?
- The ADV151 can be mounted on a DIN rail or directly onto a panel for flexible installation options.
Is the ADV151 suitable for use in hazardous environments?
