Brand:GE Fanuc PLC Item No.:IC200MDL650E Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

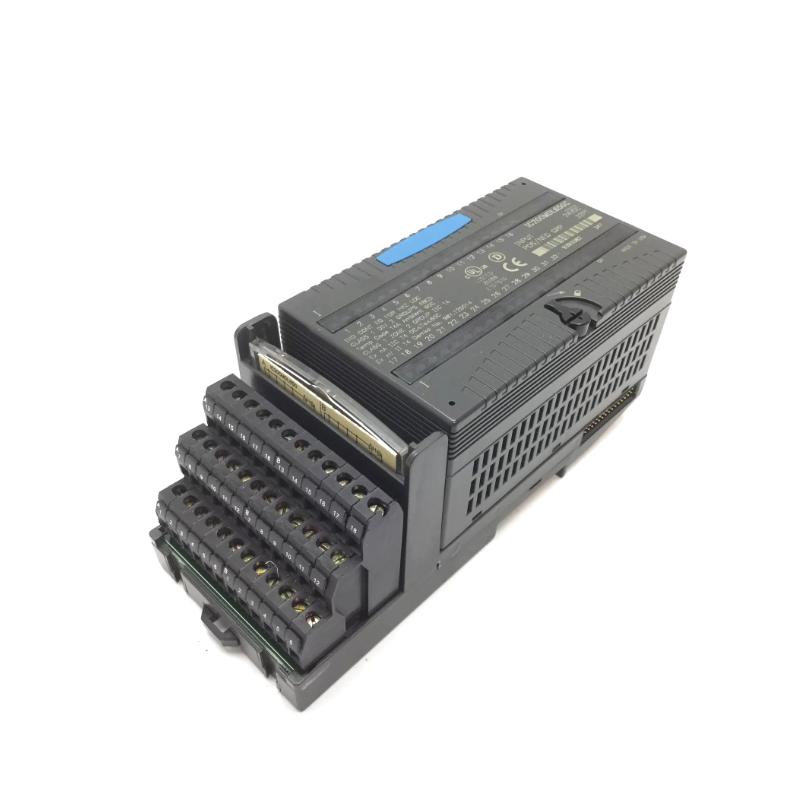

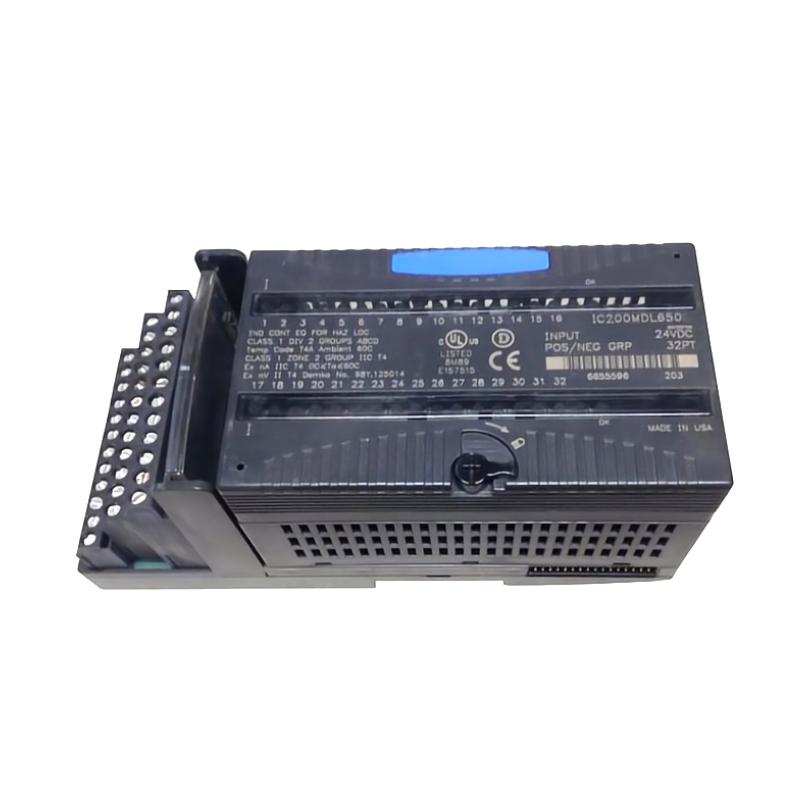

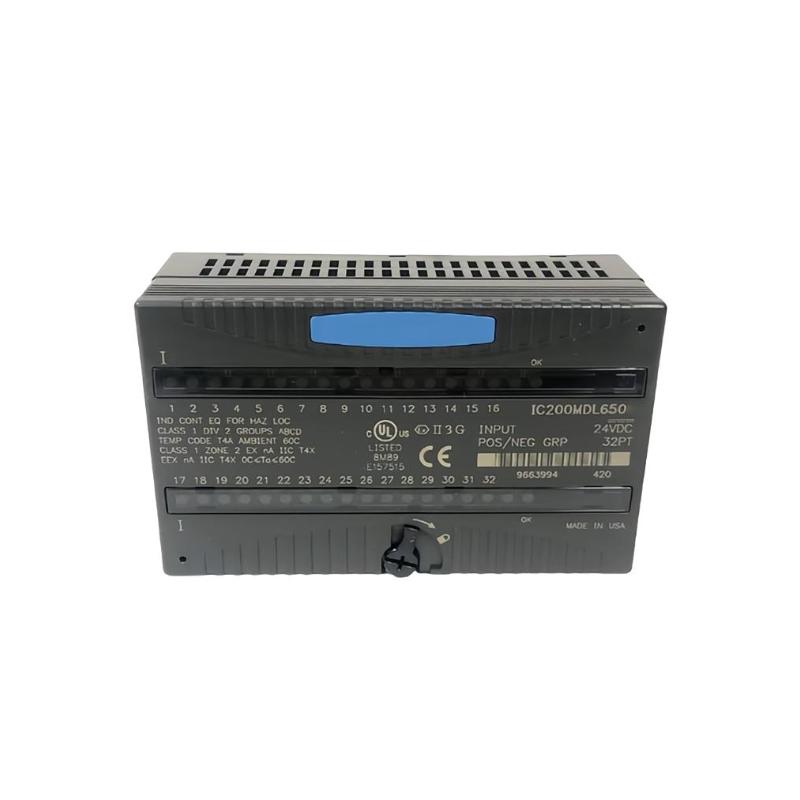

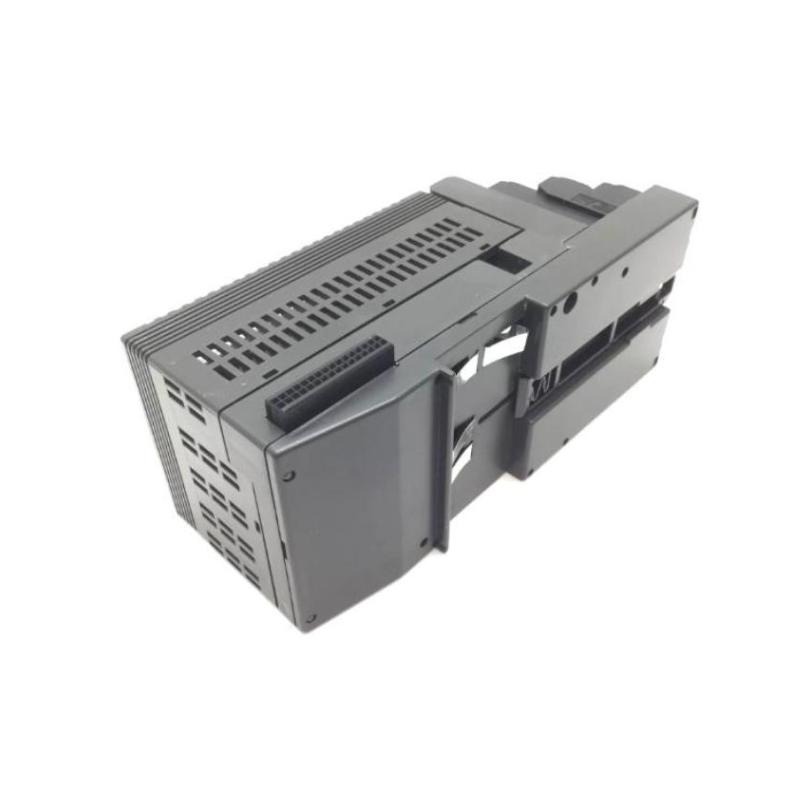

The GE IC200MDL650E VersaMax Discrete Input Module is a high-density digital input solution developed for GE VersaMax PLC and distributed I/O systems. Offering 32 discrete 24 VDC input channels, it enables reliable acquisition of field signals from industrial sensors, switches, and control devices while supporting both positive and negative logic configurations.
Engineered for demanding industrial environments, the IC200MDL650E combines fast response performance, optical isolation, and channel-level diagnostics within a compact VersaMax module. Its efficient design simplifies wiring while providing dependable signal processing for machine automation, process control, and manufacturing applications.
Whether expanding an existing VersaMax installation or replacing an installed module, the IC200MDL650E delivers dependable performance, straightforward integration, and long-term operational reliability.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200MDL650E
Product Type
VersaMax Discrete Input Module
Product Family
VersaMax Modular I/O
Input Type
24 VDC Positive/Negative Logic
Number of Inputs
32 Points
Input Groups
4 Groups × 8 Inputs
Rated Voltage
24 VDC
Input Voltage Range
0–30 VDC
ON-State Voltage
15–30 VDC
OFF-State Voltage
0–5 VDC
ON-State Current
2.0–5.5 mA
OFF-State Current
0–0.5 mA
Response Time
0.5 ms ON / 0.5 ms OFF
Isolation
Optical Isolation
Isolation Rating
250 VAC Continuous, 1500 VAC for 1 Minute
Backplane Current Consumption
50 mA @ 5 VDC
Status Indicators
32 Input LEDs, OK LED
Mounting
VersaMax Carrier / DIN Rail
Dimensions
Approx. 110 × 66.8 × 50 mm
Weight
Approx. 0.25 kg
Recommended Companion Models
Model
Product Name
IC200CPU005
VersaMax CPU Module
IC200PWR102C
VersaMax Power Supply Module
IC200CHS022
VersaMax 16-Point I/O Carrier
IC200ERM002F
VersaMax Expansion Receiver Module
Frequently Selected Alternatives
Model
Product Name
IC200MDL640
VersaMax 16-Point Discrete Input Module
IC200MDL241
VersaMax 16-Point AC Input Module
IC200MDL740G
VersaMax 16-Point DC Discrete Output Module
IC200MDL750
VersaMax 32-Point Discrete Output Module
Where It Excels in Industrial Use
GE VersaMax PLC and distributed I/O systems
Factory automation and production line monitoring
Digital signal acquisition from field devices
Packaging and assembly equipment
Conveyor and material handling systems
Process automation and machine control
OEM equipment integration
Industrial control cabinet expansion
Remote I/O applications
Modernization of existing VersaMax installations
Key Strengths at a Glance
32-point 24 VDC discrete input module
Supports both positive and negative logic inputs
Four isolated input groups with eight channels each
Fast 0.5 ms input response time
Optical isolation for improved electrical protection
Individual LED indicators for every input channel
Compact VersaMax modular design
Low backplane power consumption
Reliable signal acquisition in harsh industrial environments
Fully compatible with VersaMax PLC and I/O platforms
Technical FAQs
1. What is the primary function of the GE IC200MDL650E?
The IC200MDL650E is a VersaMax discrete input module that acquires 24 VDC digital signals from field devices and transfers them to the PLC for processing. It provides 32 input channels for industrial automation applications.
2. How many input points does the module provide?
The module features 32 discrete input channels, organized into four groups of eight inputs, allowing efficient connection of multiple field devices.
3. Does the IC200MDL650E support both sourcing and sinking devices?
Yes. The module accepts both positive logic (sourcing) and negative logic (sinking) input wiring, making it compatible with a wide range of industrial sensors and switches.
4. What input voltage range is supported?
The module accepts 0 to 30 VDC input signals and is designed for a nominal operating voltage of 24 VDC.
5. Which field devices are commonly connected?
Typical connected devices include proximity sensors, photoelectric sensors, pushbuttons, selector switches, limit switches, relay contacts, and auxiliary contacts.
6. What is the input response time?
The IC200MDL650E provides a maximum ON response time of 0.5 ms and a maximum OFF response time of 0.5 ms, making it suitable for high-speed digital input applications.
7. Does the module provide electrical isolation?
Yes. Optical isolation separates field wiring from the internal logic circuits, helping protect the controller against electrical noise and transient voltages.
8. How are input conditions monitored?
Each input channel features an individual LED indicator, while an additional OK LED confirms that backplane power is available and the module is operating correctly.
9. Which automation platform is compatible with this module?
The IC200MDL650E is designed specifically for the GE VersaMax Modular I/O platform and is compatible with VersaMax PLC CPUs and Network Interface Units (NIUs).
10. Why is the IC200MDL650E a popular choice for industrial control systems?
Its combination of high input density, flexible logic compatibility, rapid response, and dependable VersaMax integration makes it an excellent solution for both new automation projects and maintenance of existing systems.
