GE IC200ALG264H VersaMax Analog Current Input Module
GE IC200ALG264H VersaMax Analog Current Input Module
0.0
Points
Brand:GE Fanuc PLC Item No.:IC200ALG264H Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

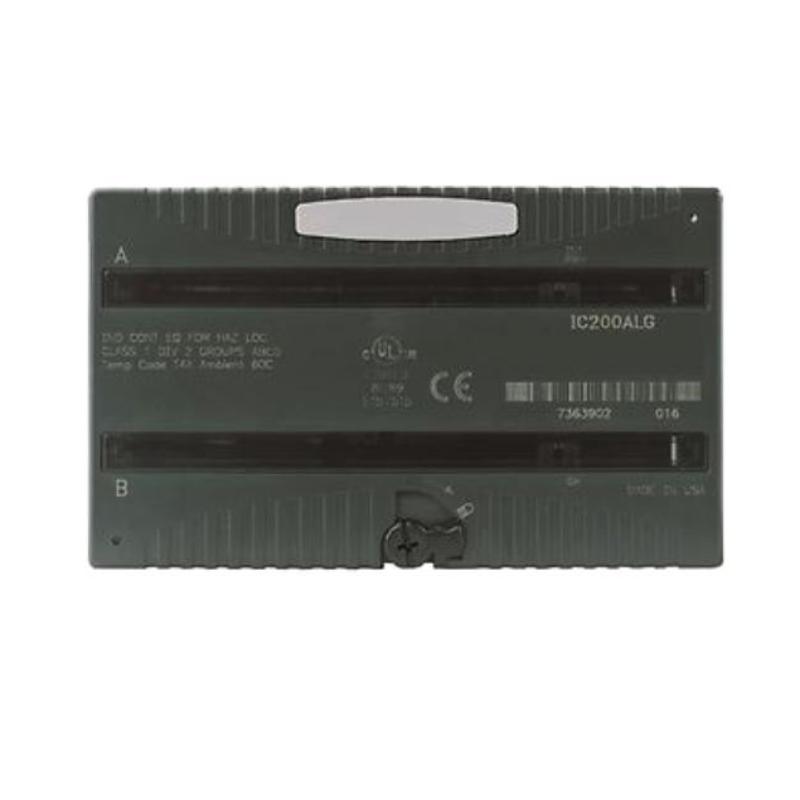

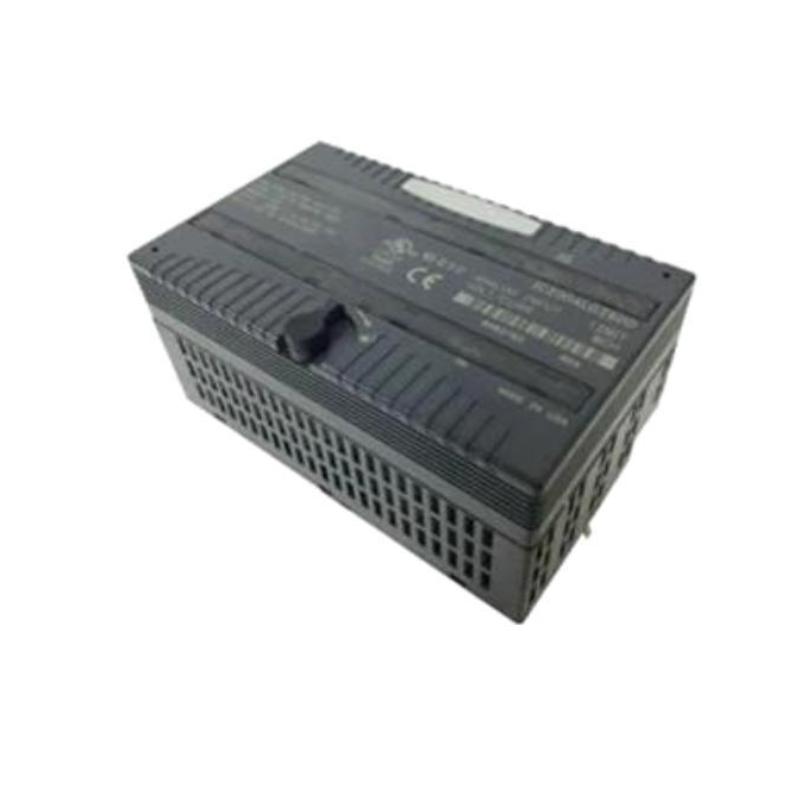

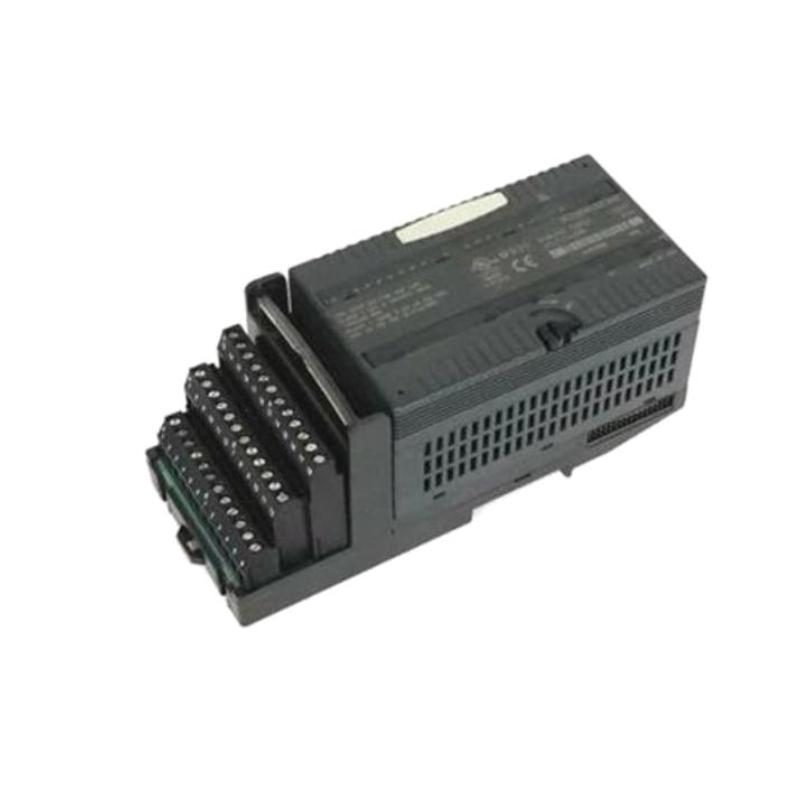

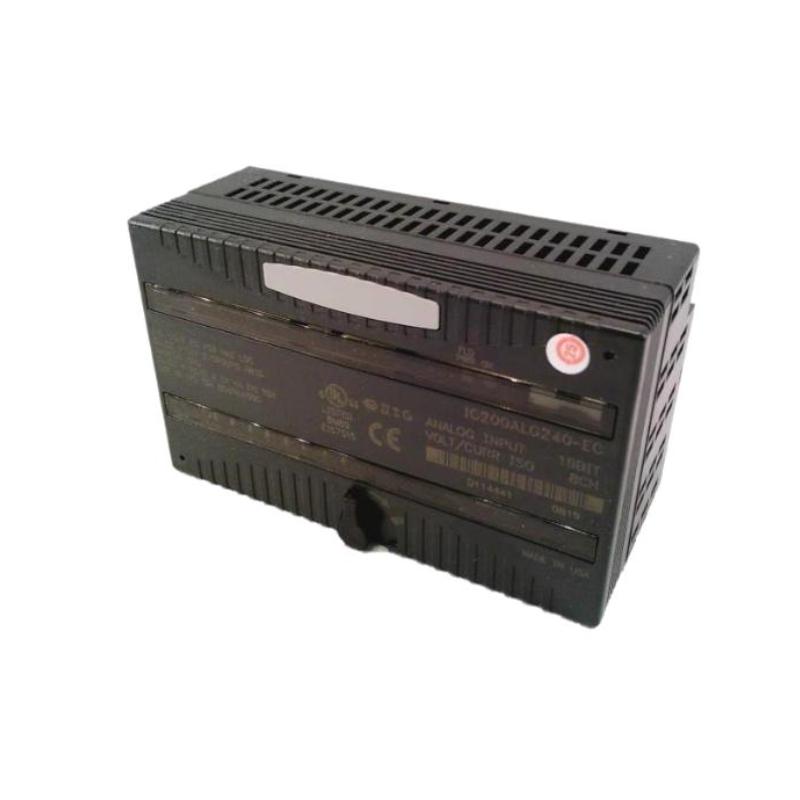

The GE IC200ALG264H VersaMax Analog Current Input Module is a high-density analog acquisition solution designed for GE VersaMax automation platforms. Featuring 15 current input channels and 15-bit resolution, it provides accurate conversion of industrial 4–20 mA and 0–20 mA signals into PLC-readable data.
Built for process-oriented automation environments, the IC200ALG264H enables reliable integration of field transmitters and analog instrumentation into distributed control architectures. Its compact design, fast update performance, and flexible current input ranges make it suitable for applications where precise measurement and dependable operation are essential.
With strong compatibility across the VersaMax product family, this module remains a practical choice for system expansion, replacement projects, and long-term industrial maintenance.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200ALG264H
Product Type
Analog Current Input Module
Product Family
VersaMax
Number of Inputs
15 Channels
Input Type
Single-Ended Analog Current Input
Signal Range
0–20 mA / 4–20 mA
Resolution
15 Bit
Update Rate
7.5 ms Maximum
Accuracy at 25°C
±0.3% Typical Full Scale
Maximum Accuracy
±0.5% Full Scale
Input Impedance
Approx. 100 Ω
Input Grouping
1 Group
Isolation
Field Input to Logic Isolation
Channel Isolation
No Channel-to-Channel Isolation
Diagnostics
Open Wire Detection, Internal Power Monitoring
Backplane Power Consumption
100 mA Maximum at 5 VDC
External Power Supply
Not Required
Indicators
OK LED / Field Power LED
Mounting Type
VersaMax Carrier / DIN Rail
Operating Temperature
0°C to +55°C
Dimensions
Approx. 50 × 110 × 66.8 mm
Weight
Approx. 0.23 kg
Recommended Companion Models
Model
Product Name
IC200CPU005
VersaMax CPU Module
IC200PWR102C
VersaMax AC Power Supply Module
IC200ERM002F
VersaMax Expansion Receiver Module
IC200PWB001B
VersaMax Power Supply Booster Carrier
Frequently Selected Alternatives
Model
Product Name
IC200ALG260
VersaMax Analog Voltage Input Module
IC200ALG230
VersaMax Analog Current Output Module
IC200ALG320
VersaMax Analog Input/Output Module
IC693ALG223
Series 90-30 Analog Current Input Module
Where It Excels in Industrial Use
GE VersaMax distributed I/O systems requiring precise analog signal acquisition
Process control applications with current-loop instrumentation
Pressure, flow, level, and temperature transmitter monitoring
Chemical and manufacturing process automation
Remote analog measurement stations
SCADA and industrial monitoring systems
OEM equipment requiring compact analog input capability
Energy management and utility automation systems
Machine systems using 4–20 mA field devices
Existing VersaMax system upgrades and expansions
Key Strengths at a Glance
15-channel analog current input capability
Supports both 4–20 mA and 0–20 mA signals
15-bit analog-to-digital conversion resolution
Fast 7.5 ms maximum update rate
Single-ended input architecture with common return
Software-configurable analog operation
Open-wire detection support in 4–20 mA mode
No external power supply required for module operation
Optical isolation between field inputs and PLC logic
Compact VersaMax design for space-efficient installations
Technical FAQs
1. What is the primary function of the GE IC200ALG264H?
The IC200ALG264H is a VersaMax analog current input module designed to convert industrial 0–20 mA and 4–20 mA field signals into digital values for PLC processing. It provides 15 single-ended analog input channels.
2. How many analog input channels are available?
The module provides 15 single-ended current input channels arranged as one input group.
3. Which current signal ranges are supported?
The IC200ALG264H supports both 0–20 mA and 4–20 mA input ranges through configuration selection.
4. What is the analog resolution of this module?
The module uses a 15-bit analog-to-digital converter, providing detailed signal measurement for industrial instrumentation applications.
5. Does the module require an external power supply?
No. The module receives operating power from the VersaMax backplane. External power may still be required for connected field transmitters depending on the instrument design.
6. What types of devices can be connected?
Typical devices include pressure transmitters, flow meters, level sensors, process analyzers, and other industrial instruments using current-loop signals.
7. Does the IC200ALG264H provide channel isolation?
The module provides isolation between field inputs and PLC logic, but individual channels share a common return and are not isolated from each other.
8. What diagnostic features are available?
The module provides diagnostics including internal power monitoring and open-wire detection for 4–20 mA input applications.
9. What is the maximum update speed?
The IC200ALG264H provides an update rate of approximately 7.5 ms, supporting responsive monitoring of analog process signals.
10. Which automation platform uses this module?
The IC200ALG264H belongs to the GE VersaMax I/O family and is designed for use with VersaMax CPUs, Network Interface Units, and distributed I/O stations.
