Industrial Visualization Interface Introduction

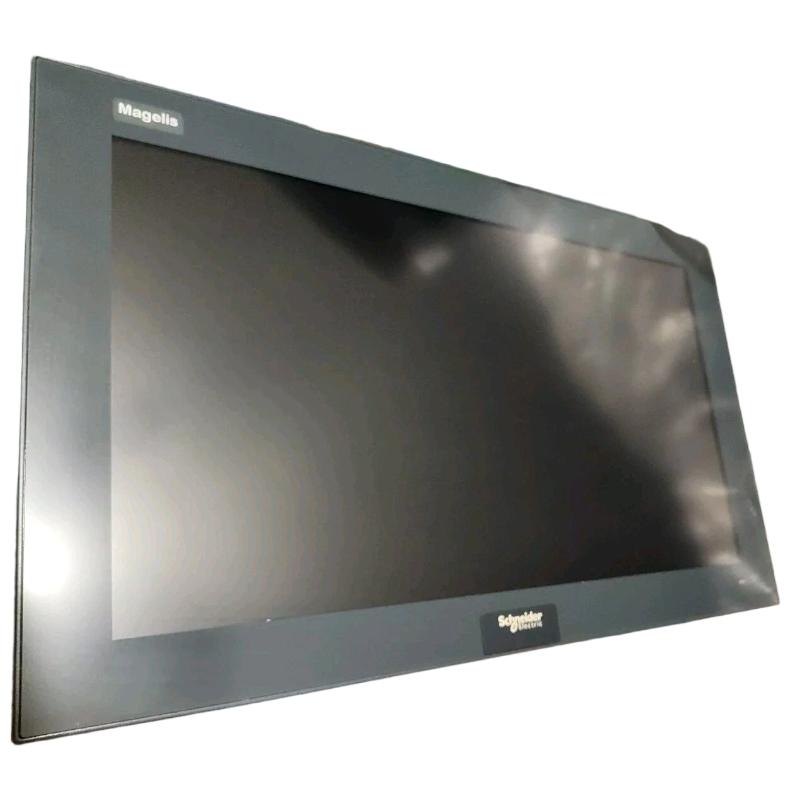

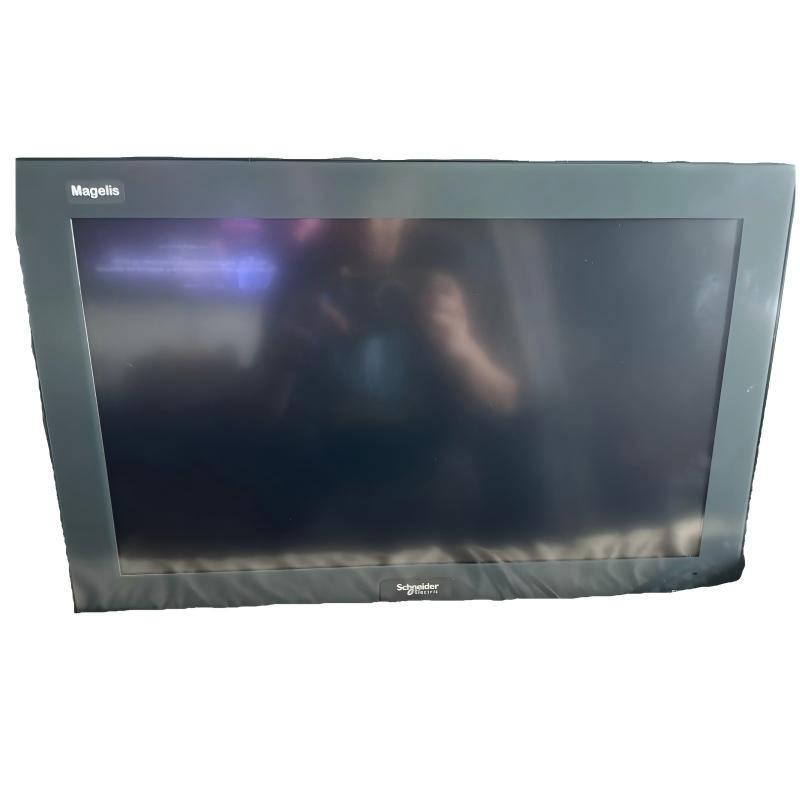

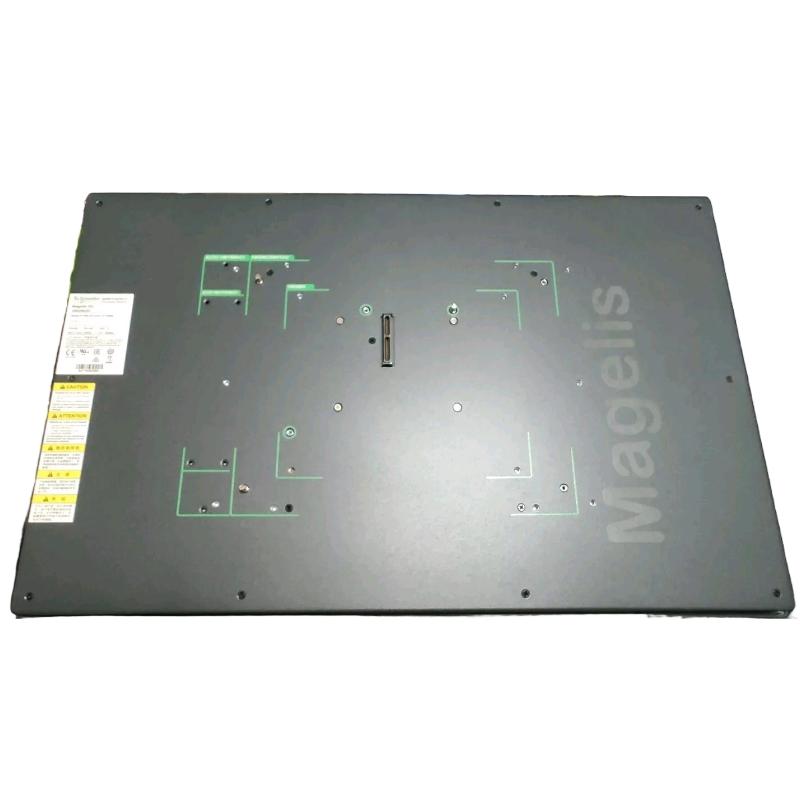

The Schneider HMIDMA521 Flat Panel Display is designed to deliver a powerful visualization experience for industrial automation systems. With its large-format screen, touch operation capability, and professional industrial design, it provides operators with an efficient way to monitor and interact with complex processes.

Built for integration with modular industrial computing solutions, the HMIDMA521 helps create intuitive HMI environments that improve machine usability and operational efficiency. Its reliable construction and advanced display technology make it suitable for demanding automation applications.

Whether used for machine operation, production monitoring, or industrial information management, this display provides a dependable interface solution that supports smarter and more efficient industrial workflows.

Technical Specifications

Specification	Details
Product Type	Flat Panel Display
Manufacturer	Schneider Electric
Model	HMIDMA521
Product Series	Harmony iPC
Display Type	LED Color TFT LCD
Display Size	21.5 inch
Display Resolution	1920 × 1080 pixels Full HD
Touch Technology	Projected Capacitive Multi-Touch
Touchscreen Resolution	4096 × 4096
Display Colors	16.7 million colors
Brightness	300 cd/m²
Viewing Angle	150° × 150°
Input Voltage	24 V DC / 100–240 V AC
Mounting Type	Flush Mounting
Application Environment	Indoor Industrial Installation
Dimensions (W × H)	558.4 × 349.8 mm
Weight	6.60 kg (14.55 lb)

Recommended Related Models

Model	Product Type	Description
Schneider HMIDMA531	Flat Panel Display	Advanced industrial display solution for modular HMI systems.
Schneider HMIDMA620	Flat Panel Display	Larger touchscreen display for industrial visualization applications.
Schneider HMIBMP	Box PC Module	Industrial computing module for Harmony iPC systems.
Schneider HMIBMU	Box PC Module	Modular industrial PC solution for HMI applications.

Popular Related Models

Model	Product Type	Application Focus
Schneider HMIDMA521	Flat Panel Display	Industrial HMI visualization systems
Schneider HMIGTO1300	Touch Panel Display	Compact machine interface applications
Schneider HMIGTU855	Advanced Touchscreen Display	Industrial operator control systems
Schneider HMISTU855	Touch Panel Display	Machine monitoring and automation interfaces

Industrial Visualization Applications

The Schneider HMIDMA521 Flat Panel Display is a professional industrial touchscreen display designed for advanced human-machine interface applications. As part of the Harmony iPC platform, it provides a clear and responsive visual interface solution for machine monitoring, operator control, and industrial data visualization.

Featuring a wide-format display design, multi-touch capability, and reliable industrial performance, the HMIDMA521 is suitable for automation environments where intuitive operation and efficient process management are essential. It helps engineers and operators achieve better interaction with industrial systems while improving productivity and operational visibility.

Application Area	Description
Machine Interface Systems	Provides a visual control interface for automated machinery and production equipment.
Industrial Monitoring	Enables real-time display of operating data, alarms, and process information.
Factory Automation	Supports operator interaction with modern automation systems.
Control Room Applications	Delivers clear visualization for industrial monitoring environments.
Equipment Modernization	Provides an advanced display solution for upgrading existing HMI systems.

Advanced HMI Display Advantages

The Schneider HMIDMA521 combines high-quality visualization, touch operation, and flexible integration to provide an efficient interface solution for industrial applications. Its compact design and reliable performance make it a valuable component for modern automation systems.

Advantage	Description
High-Resolution Display	Provides clear and detailed visualization for industrial applications.
Multi-Touch Operation	Enables intuitive interaction with HMI applications and control interfaces.
Wide Viewing Area	Improves operator visibility during machine monitoring and control.
Industrial Reliability	Designed for continuous operation in professional automation environments.
Flexible System Integration	Works with compatible industrial computing platforms for efficient deployment.

Technical FAQs

1. What is the main function of the Schneider HMIDMA521?
The HMIDMA521 is a flat panel touchscreen display used for industrial visualization and human-machine interface applications.

2. What type of touchscreen technology does this display use?
It uses projected capacitive multi-touch technology for responsive operator interaction.

3. What systems can the HMIDMA521 connect with?
It is designed to work with compatible modular industrial PC systems for automation applications.

4. Is the HMIDMA521 suitable for machine control applications?
Yes. It provides a visual interface for monitoring and operating industrial equipment.

5. What advantages does a touchscreen display provide in automation systems?
Touch operation allows faster interaction, easier navigation, and improved operator efficiency.

6. Can the HMIDMA521 be used in industrial environments?
Yes. It is designed for professional indoor industrial automation installations.

7. Does the display support multi-touch functions?
Yes. The touchscreen supports multi-touch operation for enhanced user interaction.

8. What type of applications commonly use industrial flat panel displays?
They are commonly used in machine control, production monitoring, process visualization, and automation systems.

9. Can the HMIDMA521 display graphical interface applications?
Yes. It supports detailed visualization interfaces including process data, control screens, and operational information.

10. What should be considered when replacing an industrial display?
Compatibility, mounting requirements, communication interface, display performance, and system configuration should be evaluated.
