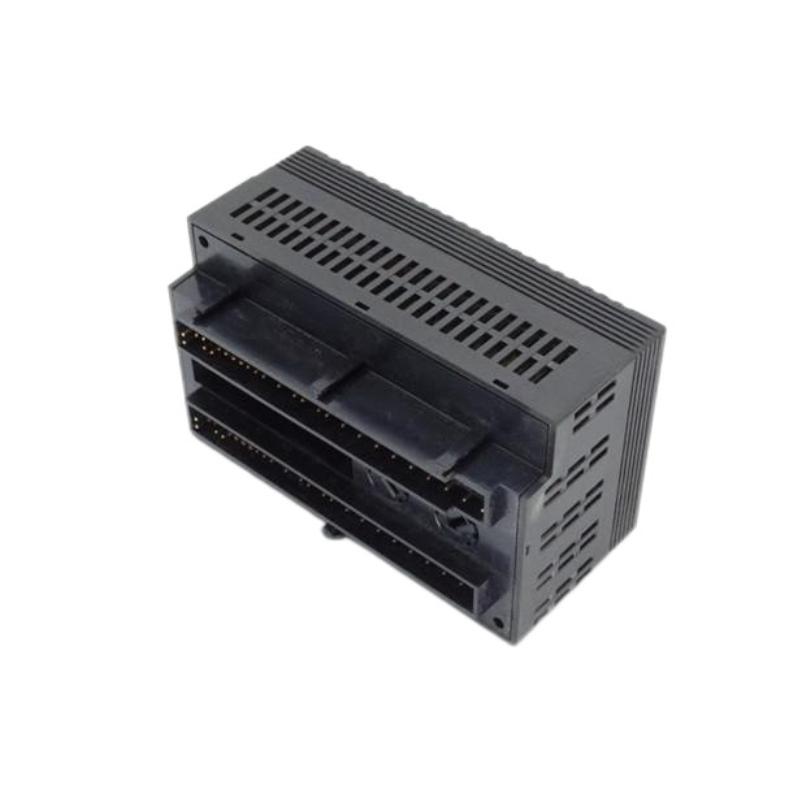

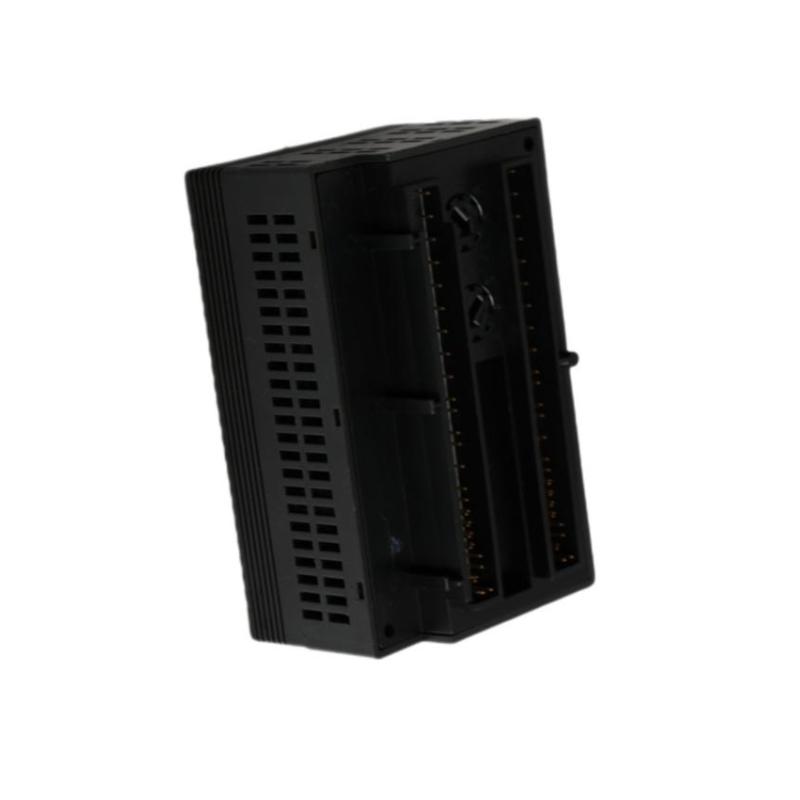

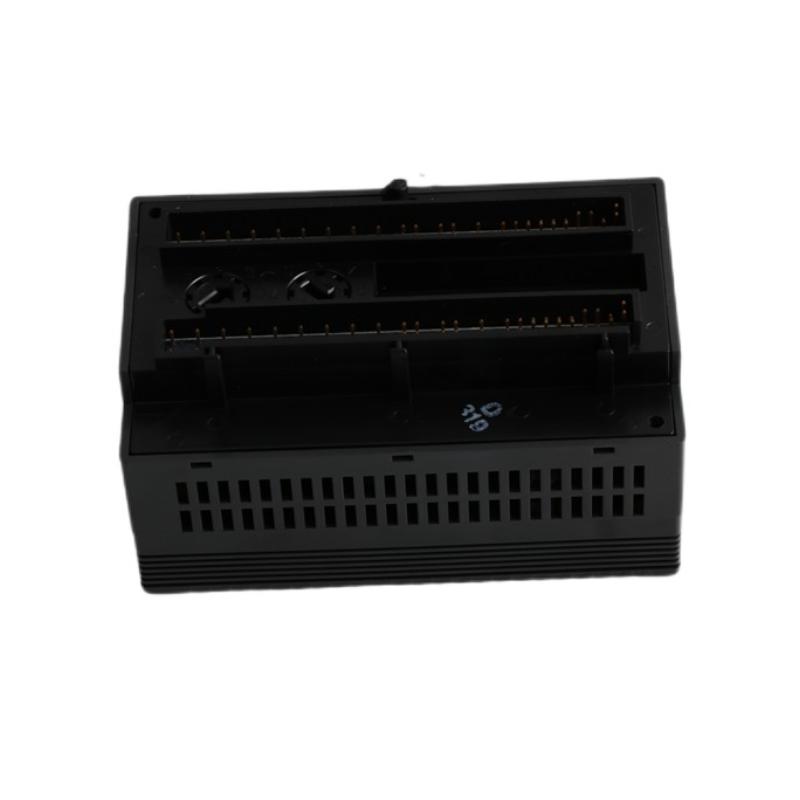

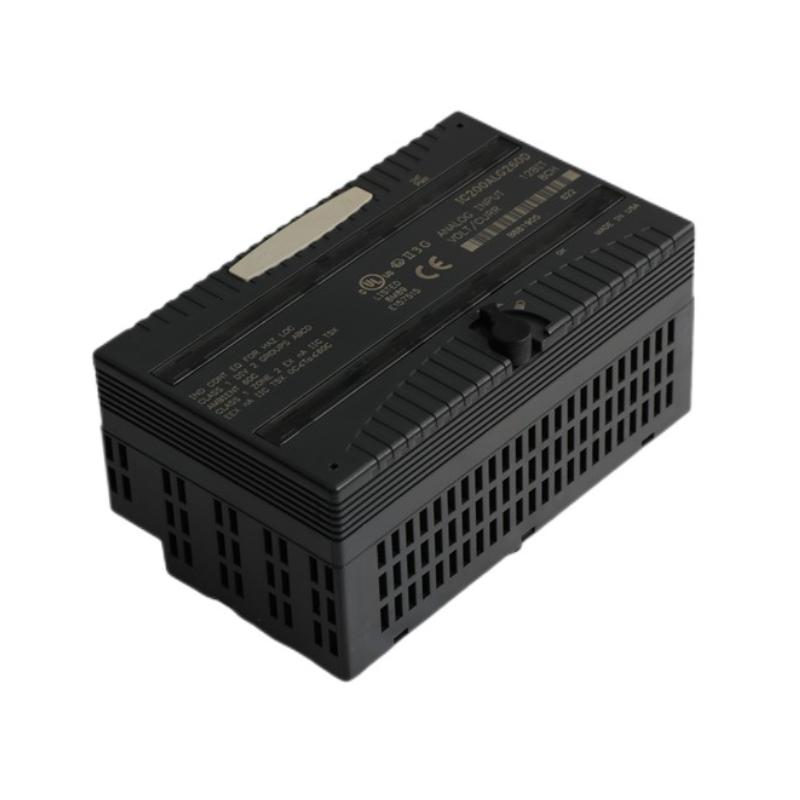

GE IC200ALG260B VersaMax Analog Voltage/Current Input Module
GE IC200ALG260B VersaMax Analog Voltage/Current Input Module
0.0
Points
Brand:GE Fanuc PLC Item No.:IC200ALG260B Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC200ALG260B VersaMax Analog Voltage/Current Input Module is a versatile analog acquisition module designed for GE VersaMax automation systems. Featuring eight configurable analog input channels, it enables industrial controllers to collect accurate voltage and current signals from a wide range of field instruments.
With support for standard industrial signal ranges including 4–20 mA, 0–10 VDC, and ±10 VDC, the IC200ALG260B provides engineers with a flexible solution for process monitoring and machine automation applications. Its compact design, fast update performance, and integrated diagnostics make it suitable for both new installations and long-term maintenance of existing VersaMax systems.
Designed for dependable operation in industrial environments, this module helps bridge field instrumentation and PLC control logic while maintaining efficient system integration.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200ALG260B
Product Type
VersaMax Analog Voltage/Current Input Module
Product Family
VersaMax Modular I/O
Number of Inputs
8 Channels
Input Configuration
Single-Ended
Input Groups
1 Group
Signal Types
Voltage / Current
Voltage Range
±10 VDC, 0–10 VDC
Current Range
4–20 mA
Resolution
12 Bit ADC
Update Rate
0.4 ms
Input Filter Response
5 ms
Voltage Input Impedance
126 kΩ Maximum
Current Input Impedance
200 Ω Maximum
Accuracy at 25°C
±0.3% Typical Full Scale
Maximum Accuracy
±0.5% Full Scale
Isolation
User Input to Logic / Frame Ground Isolation
Isolation Rating
250 VAC Continuous, 1500 VAC for 1 Minute
Diagnostics
Range Monitoring, Internal Power Fault Detection
Configuration
Carrier Jumper Selection
Backplane Current Consumption
130 mA Maximum at 5 VDC
External Power Supply
Not Required
Indicators
INT PWR LED, OK LED
Mounting Type
VersaMax Carrier / DIN Rail
Dimensions
Approx. 110 × 66.8 × 50 mm
Weight
Approx. 0.25 kg
Recommended Companion Models
Model
Product Name
IC200CPU005
VersaMax CPU Module
IC200PWR102C
VersaMax AC Power Supply Module
IC200ERM002F
VersaMax Expansion Receiver Module
IC200ALG264H
VersaMax 15-Channel Analog Current Input Module
Frequently Selected Alternatives
Model
Product Name
IC200ALG264H
VersaMax Analog Current Input Module
IC200ALG320B
VersaMax Analog Current Output Module
IC200ALG326H
VersaMax 8-Channel Analog Current Output Module
IC693ALG223
Series 90-30 / RX3i 16-Channel Analog Current Input Module
Where It Excels in Industrial Use
GE VersaMax PLC systems requiring flexible analog signal acquisition
Process monitoring applications using voltage and current transmitters
Pressure, flow, temperature, and level measurement systems
Industrial instrumentation and data collection
Machine automation requiring analog feedback signals
Remote I/O stations with mixed analog devices
SCADA and supervisory monitoring applications
OEM equipment requiring compact analog input capability
Energy management and utility control systems
Existing VersaMax installations requiring reliable analog expansion
Key Strengths at a Glance
8-channel analog voltage/current input capability
Supports ±10 VDC, 0–10 VDC, and 4–20 mA signals
12-bit analog conversion resolution
Configurable input operating modes
Fast 0.4 ms channel update rate
Built-in diagnostic reporting functions
Optical isolation between field inputs and PLC logic
No external power supply required for module operation
Compact VersaMax modular architecture
Suitable for diverse industrial measurement applications
Technical FAQs
1. What is the primary function of the GE IC200ALG260B?
The IC200ALG260B is a VersaMax analog input module designed to convert industrial voltage and current signals into digital values for PLC processing. It provides eight configurable analog input channels.
2. How many analog input channels does the module provide?
The module provides 8 single-ended analog input channels sharing a common return connection.
3. Which input signal types are supported?
The IC200ALG260B supports:
±10 VDC bipolar voltage input
0–10 VDC unipolar voltage input
4–20 mA current input
Configuration is selected according to application requirements.
4. What resolution does the IC200ALG260B provide?
The module uses a 12-bit analog-to-digital converter, providing detailed measurement capability for industrial analog signals.
5. Does the module require an external power supply?
No. The module receives operating power directly from the VersaMax backplane. External power may be required for connected field transmitters depending on the device configuration.
6. What types of field devices can be connected?
Typical devices include pressure transmitters, flow sensors, temperature transmitters, potentiometers, process meters, and other analog instrumentation equipment.
7. What diagnostic features are available?
The module provides diagnostics including input range monitoring, loss of internal power detection, and configurable alarm information to assist troubleshooting.
8. Does the module provide channel-to-channel isolation?
No. The eight inputs are single-ended and share a common return. Isolation is provided between user inputs and the PLC logic side rather than between individual channels.
9. What is the update speed of the IC200ALG260B?
The module provides a channel update rate of approximately 0.4 ms, allowing fast acquisition of changing analog signals.
10. Which automation platform is compatible with this module?
The IC200ALG260B belongs to the GE VersaMax product family and is designed for use with VersaMax CPUs, Network Interface Units, and distributed I/O carriers.
