Brand:GE Fanuc PLC Item No.: IC200MDL750C Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

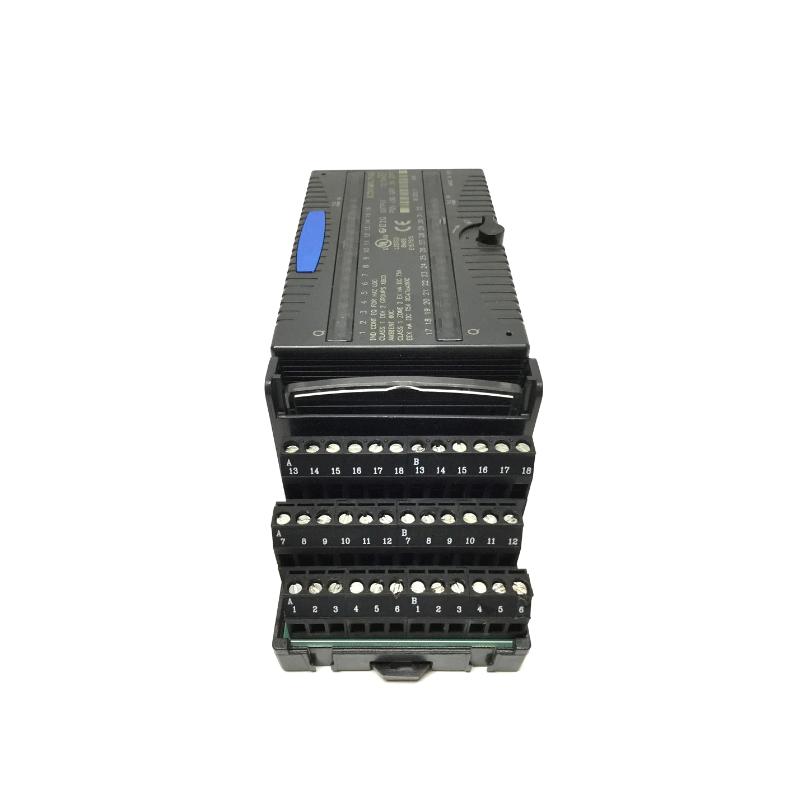

The GE IC200MDL750C VersaMax Discrete Output Module is a high-density digital output solution designed for GE VersaMax automation platforms. Providing 32 positive logic DC outputs, it enables PLC systems to directly control a wide range of industrial field devices including solenoid valves, relay coils, actuators, and indicator equipment.
Built for demanding automation environments, the IC200MDL750C combines compact installation, channel-level status indication, and reliable DC load switching performance. Its two-group output structure simplifies field wiring while maintaining efficient use of control cabinet space.
With proven VersaMax compatibility and flexible 12/24 VDC operation, this module remains a practical choice for machine builders, system integrators, and maintenance teams managing existing industrial control installations.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200MDL750C
Product Type
VersaMax Discrete Output Module
Product Family
VersaMax Modular I/O
Output Type
Positive Logic DC Output
Number of Outputs
32 Points
Output Groups
2 Groups × 16 Outputs
Nominal Voltage
12 VDC / 24 VDC
Operating Voltage Range
10.2–30 VDC
Maximum Output Current
0.5 A per Point
Output Switching Type
Sourcing
Isolation
Optical Field-to-Logic Isolation
Field Power Supply
External DC Required
Output Protection
Electronic Protection
Status Indicators
32 Output LEDs, OK LED, Field Power LED
Backplane Current Consumption
90 mA Maximum at 5 VDC
Mounting Type
VersaMax Carrier / DIN Rail
Installation Orientation
Horizontal or Vertical
Operating Temperature
0°C to +60°C
Dimensions
Approx. 110 × 66.8 × 50 mm
Weight
Approx. 0.20 kg
Recommended Companion Models
Model
Product Name
IC200CPU005
VersaMax CPU Module
IC200PWR102C
VersaMax AC Power Supply Module
IC200ERM002F
VersaMax Expansion Receiver Module
IC200MDL650E
VersaMax 32-Point Discrete Input Module
Frequently Selected Alternatives
Model
Product Name
IC200MDL740G
VersaMax 16-Point Discrete Output Module
IC200MDL754
VersaMax 32-Point Relay Output Module
IC200MDL730
VersaMax 16-Point DC Output Module
IC693MDL754
Series 90-30 Relay Output Module
Where It Excels in Industrial Use
GE VersaMax PLC distributed output control systems
Machine automation requiring reliable DC load switching
Solenoid valve and actuator control applications
Motor starter and relay interface systems
Conveyor and packaging equipment automation
Industrial lighting and indicator control
OEM machinery control panels
Remote I/O stations with high-density digital outputs
Manufacturing process sequencing systems
Existing VersaMax system expansion and replacement projects
Key Strengths at a Glance
32-point discrete DC output capability
Positive logic (sourcing) output configuration
Supports 12 VDC and 24 VDC industrial loads
Two isolated groups of 16 output points
0.5 A output current capability per point
Individual LED indicators for each output channel
Built-in field power monitoring
Optical isolation between field circuits and logic
Compact VersaMax modular installation
Designed for dependable industrial switching applications
Technical FAQs
1. What is the primary function of the GE IC200MDL750C?
The IC200MDL750C is a VersaMax discrete output module designed to switch DC loads controlled by a PLC system. It provides 32 positive logic output points for devices such as solenoids, relays, lamps, and actuators.
2. How many output channels does the IC200MDL750C provide?
The module provides 32 discrete output points, arranged as two groups of 16 outputs for flexible field wiring.
3. What type of outputs are supported?
The IC200MDL750C uses positive logic (sourcing) outputs, meaning the module supplies current from the DC power source to the connected load.
4. What voltage range does this module support?
The module supports a nominal 12 VDC or 24 VDC operating range, with an allowable output voltage range of approximately 10.2 to 30 VDC.
5. What is the maximum output current per channel?
Each output point supports up to 0.5 A current, allowing direct control of many industrial DC devices.
6. Does the IC200MDL750C require an external power supply?
Yes. The module requires an external DC field power supply to provide switching power for connected loads.
7. Are individual outputs electrically isolated?
The module provides optical isolation between the field side and PLC logic, helping protect the control system from electrical noise and transient conditions.
8. What diagnostic indicators are available?
Each output point has an individual LED indicator showing output status. The module also includes an OK LED for backplane power and a field power LED for monitoring external supply availability.
9. Which automation platform is compatible with the IC200MDL750C?
The module belongs to the GE VersaMax I/O family and is designed for use with VersaMax CPUs, Network Interface Units, and distributed I/O carriers.
10. What applications commonly use this module?
The IC200MDL750C is widely applied in industrial systems controlling valves, relays, contactors, indicator lights, and other binary DC loads where dependable ON/OFF operation is required.
