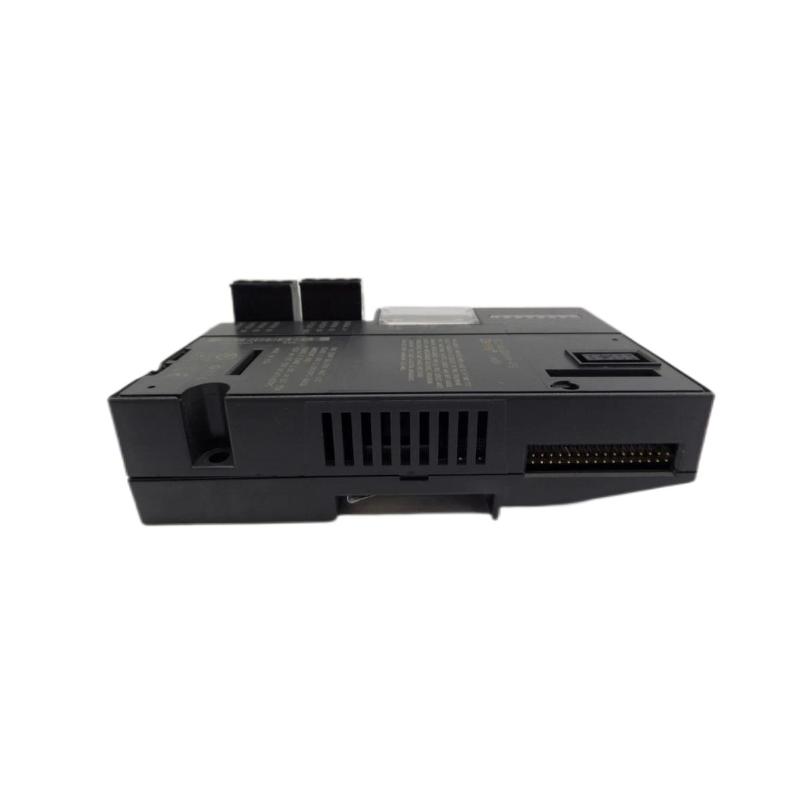

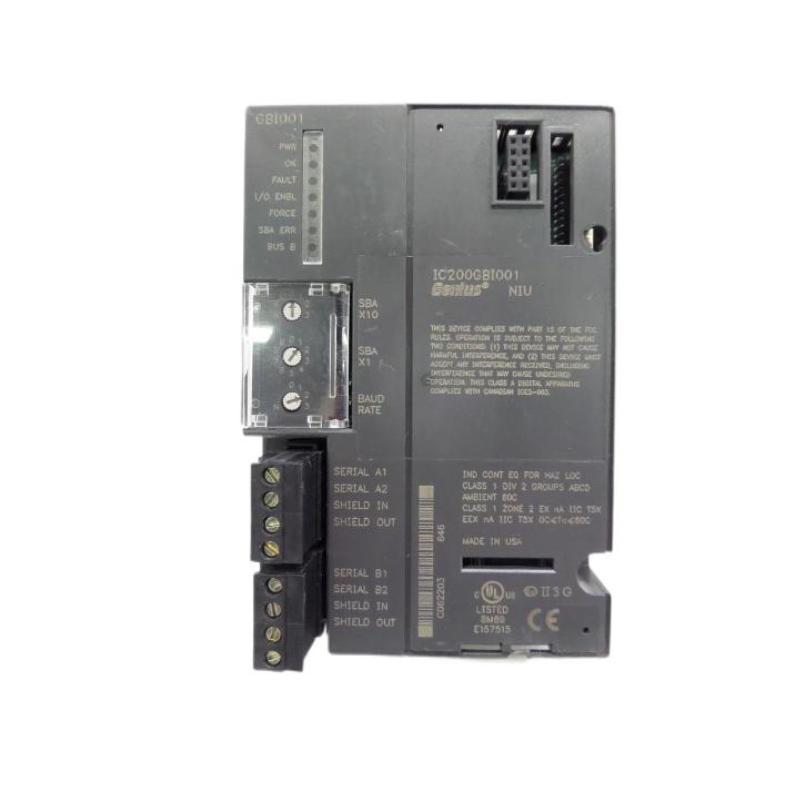

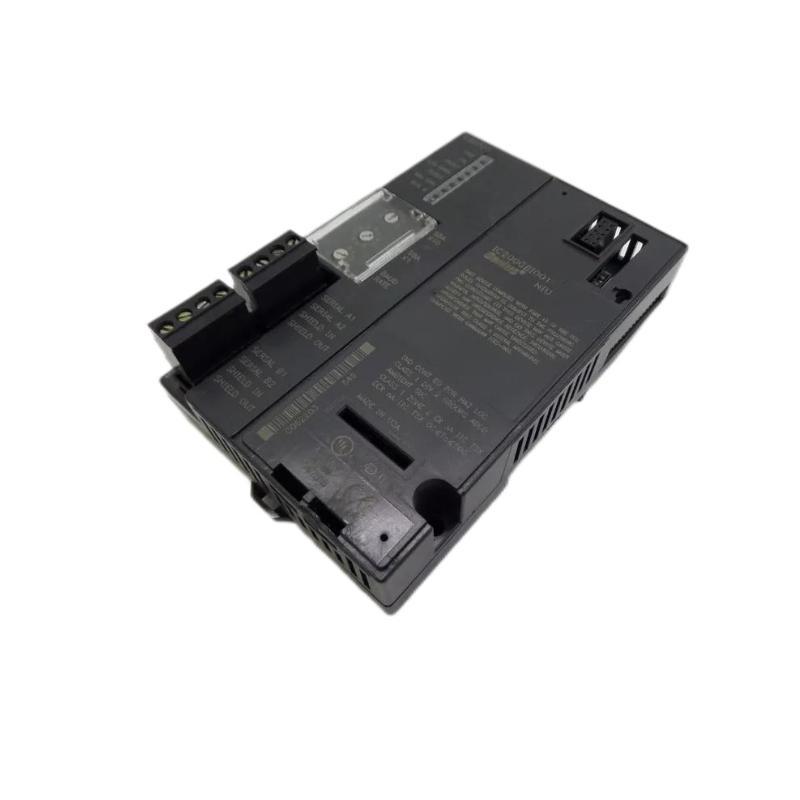

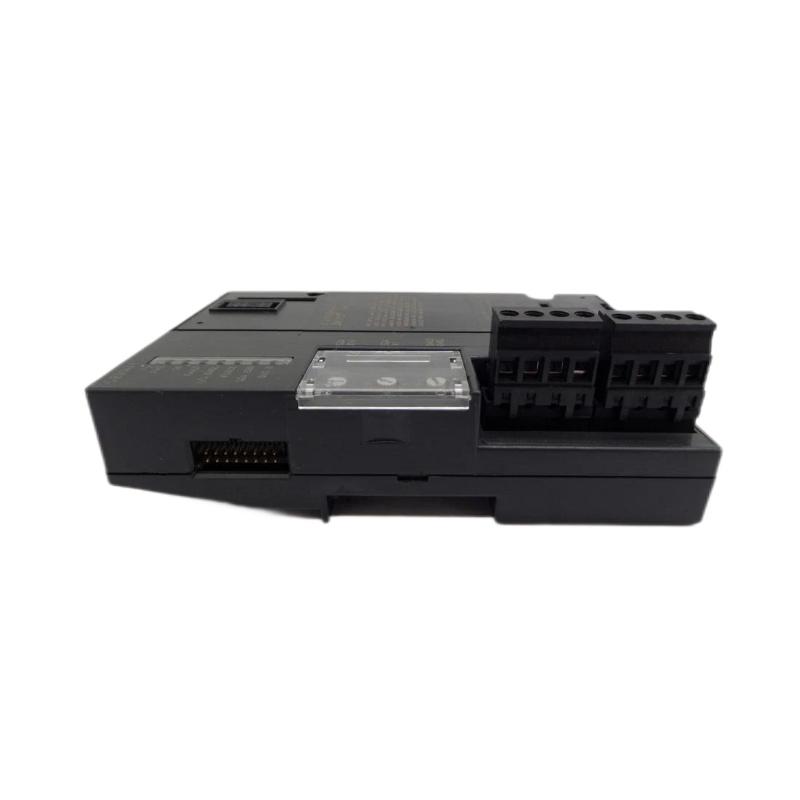

GE IC200GBI001-BF VersaMax Genius Network Interface Unit Module
GE IC200GBI001-BF VersaMax Genius Network Interface Unit Module
0.0
Points
Brand:GE Fanuc PLC Item No.: IC200GBI001-BF Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC200GBI001-BF VersaMax Genius Network Interface Unit Module is a communication interface designed to connect GE VersaMax distributed I/O stations with Genius industrial networks. It allows VersaMax I/O modules to exchange control data, diagnostic information, and status signals with a central PLC or host computer through the proven Genius communication architecture.
Engineered for distributed automation environments, the IC200GBI001-BF provides a practical bridge between VersaMax modular I/O technology and existing Genius bus installations. Its flexible configuration, diagnostic capabilities, and compact DIN rail design make it suitable for factories and process facilities where reliable remote I/O communication is essential.
For system integrators maintaining legacy GE automation platforms, this module offers an efficient way to expand I/O capacity while preserving existing Genius network investments.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200GBI001-BF
Product Type
Genius Network Interface Unit Module
Product Family
VersaMax
Communication Network
Genius I/O Bus
Function
Remote I/O Network Interface
Compatible Platform
VersaMax Distributed I/O
Host Communication
Genius Bus Controller / PLC / Computer
I/O Data Capacity
Up to 256 Bytes Total I/O Data
Analog Data Capacity
Up to 128 Bytes Input and 128 Bytes Output
Discrete Data Capacity
Up to 128 Bytes Input and 128 Bytes Output
Communication Addressing
Genius SBA Rotary Switch Configuration
Baud Rate
Configurable Genius Network Speed
Bus Configuration
Single or Redundant Genius Bus
Mounting
35 mm DIN Rail
Indicators
Power, OK, Fault, I/O Enable, Force, Bus Status LEDs
Power Consumption
Approx. 0.60 A at 5 VDC
Operating Temperature
0°C to +60°C
Dimensions
Approx. 120 × 100 × 35 mm
Weight
Approx. 0.25 kg
Recommended Companion Models
Model
Product Name
IC200PWR102C
VersaMax Power Supply Module
IC200MDL650E
VersaMax 32-Point Discrete Input Module
IC200MDL750C
VersaMax 32-Point Discrete Output Module
IC200ALG264H
VersaMax Analog Current Input Module
Frequently Selected Alternatives
Model
Product Name
IC200GBI001
VersaMax Genius Network Interface Unit
IC693BEM331
Series 90-30 Genius Bus Controller Module
IC694BEM331
PACSystems / Series 90-30 Genius Bus Expansion Module
IC200EBI001
VersaMax Profibus Network Interface Unit
Where It Excels in Industrial Use
GE VersaMax distributed I/O systems connected to Genius networks
Remote I/O expansion for industrial automation architectures
Legacy GE Fanuc Genius bus modernization projects
PLC-to-remote I/O communication networks
Manufacturing production line control systems
Process automation and monitoring applications
Distributed machine control installations
Redundant Genius bus applications
Factory-wide I/O data exchange systems
Integration of VersaMax I/O stations into existing Genius infrastructures
Key Strengths at a Glance
Provides Genius bus connectivity for VersaMax I/O stations
Supports distributed remote I/O architectures
Compatible with Genius Bus Controllers and host PLC systems
Handles digital and analog I/O data exchange
Supports redundant Genius bus configurations
Built-in diagnostic LED indicators
Configurable Genius Serial Bus Address (SBA)
Adjustable communication baud rates
DIN rail mounting for compact cabinet installation
Enables cost-effective expansion of legacy automation networks
Technical FAQs
1. What is the primary function of the GE IC200GBI001-BF?
The IC200GBI001-BF is a VersaMax Genius Network Interface Unit (NIU) that connects VersaMax I/O modules to a Genius serial bus network, allowing a host PLC or computer system to exchange I/O and diagnostic data with the remote station.
2. Which communication network does the IC200GBI001-BF support?
The module is designed for the GE Genius I/O bus, a serial industrial communication network used for distributed control and remote I/O applications.
3. Can the IC200GBI001-BF operate with a PLC host system?
Yes. The Genius NIU communicates with a host PLC or computer capable of controlling the Genius bus, allowing VersaMax I/O stations to function as remote I/O nodes.
4. What type of VersaMax modules can be connected to this NIU?
The IC200GBI001-BF supports VersaMax discrete and analog I/O modules installed within the same VersaMax I/O station configuration.
5. Does the module support redundant bus operation?
Yes. The Genius NIU supports redundant Genius bus configurations when used with compatible system hardware and network designs.
6. How is the Genius network address configured?
The Genius Serial Bus Address (SBA) is configured through rotary switches located on the module, allowing the NIU to be assigned a unique network position.
7. What diagnostic information is available?
The module provides LED indicators for power status, module operation, fault conditions, I/O enable status, force status, and Genius bus communication conditions.
8. Does the IC200GBI001-BF require a separate power supply module?
Yes. A VersaMax power supply module is installed adjacent to the NIU to provide system power for the I/O station.
9. What applications commonly use the IC200GBI001-BF?
Typical applications include remote sensor monitoring, distributed machine control, process automation, and expansion of Genius-based PLC networks.
10. Why is the IC200GBI001-BF still used in industrial systems?
Its ability to connect modern VersaMax I/O modules with established Genius networks makes it valuable for maintaining and upgrading long-life industrial automation installations.
