Introduction

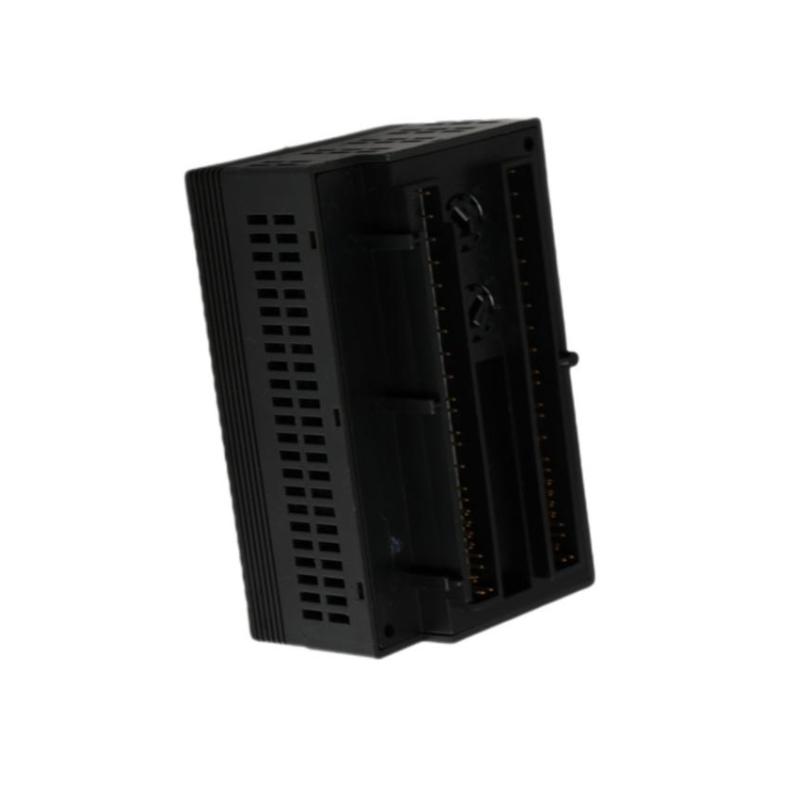

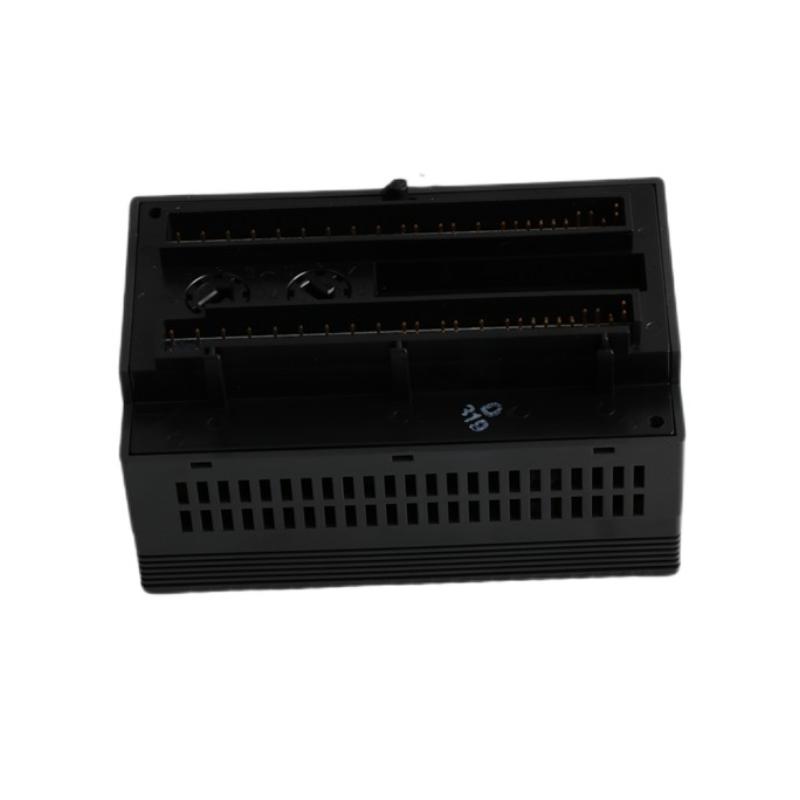

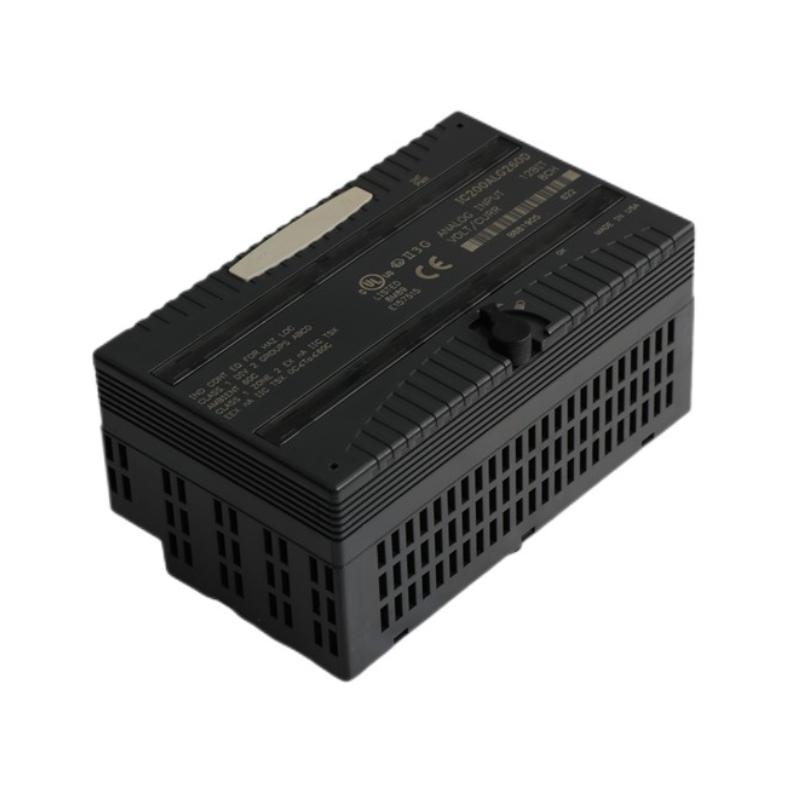

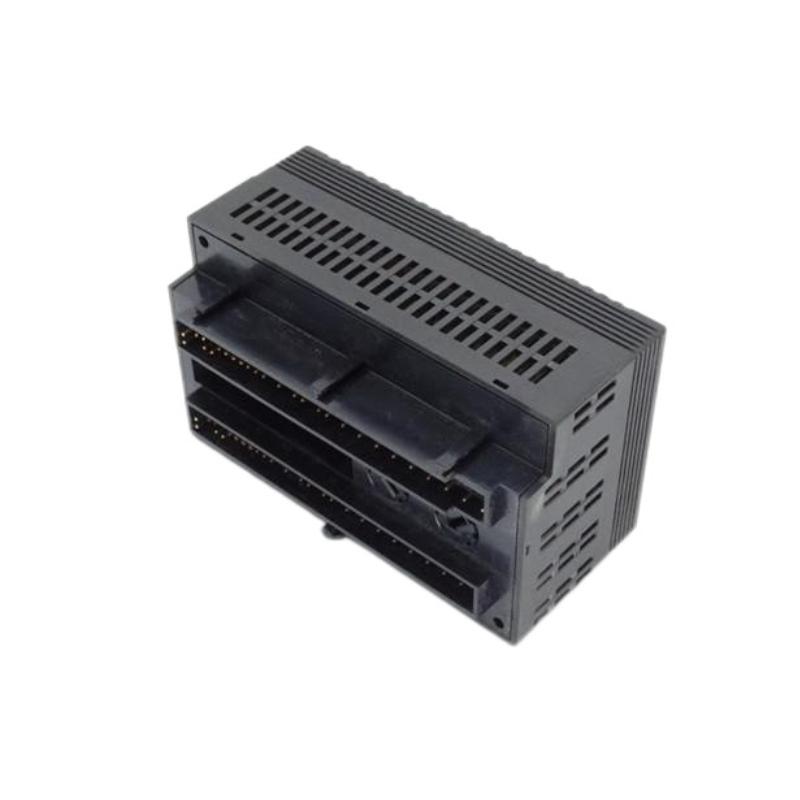

The GE IC200ALG260C VersaMax Analog Voltage/Current Input Module is a versatile analog acquisition solution designed for GE VersaMax automation platforms. With eight configurable analog input channels, the module enables industrial controllers to collect accurate voltage and current signals from a wide range of field devices.

Supporting standard industrial signal formats including 4–20 mA, 0–10 VDC, and ±10 VDC, the IC200ALG260C provides engineers with a flexible interface for process monitoring, machine feedback, and distributed automation applications. Its compact construction, reliable signal conversion, and straightforward integration make it suitable for both new control systems and long-term maintenance projects.

Designed for dependable operation in industrial environments, this module helps bridge field instrumentation and PLC control logic while improving system flexibility and measurement accuracy.

Technical Specifications

Specification	Description
Manufacturer	GE Fanuc / Emerson
Model	IC200ALG260C
Product Type	VersaMax Analog Voltage/Current Input Module
Product Family	VersaMax Modular I/O
Number of Inputs	8 Channels
Input Configuration	Single-Ended
Input Grouping	1 Group
Signal Type	Voltage / Current
Voltage Input Range	±10 VDC, 0–10 VDC
Current Input Range	4–20 mA
Resolution	12 Bit ADC
Current Resolution	4 µA = 8 Counts
Voltage Resolution	2.5 mV = 8 Counts
Update Rate	0.4 ms
Input Filter Response	5 ms
Voltage Input Impedance	126 kΩ Maximum
Current Input Impedance	200 Ω Maximum
Accuracy at 25°C	±0.3% Typical Full Scale
Maximum Accuracy	±0.5% Full Scale
Isolation	User Input to Logic / Frame Ground
Isolation Rating	250 VAC Continuous / 1500 VAC for 1 Minute
Channel Isolation	None
Diagnostics	Internal Power Loss Detection
Configuration	Carrier Jumper Selection
Backplane Current Consumption	130 mA Maximum at 5 VDC
External Power Supply	Not Required
LED Indicators	INT PWR LED, OK LED
Mounting Type	VersaMax Carrier / DIN Rail
Operating Temperature	0°C to +60°C
Dimensions	Approx. 110 × 66.8 × 50 mm
Weight	Approx. 0.25 kg

Recommended Companion Models

Model	Product Name
IC200CPU005	VersaMax CPU Module
IC200PWR102C	VersaMax Power Supply Module
IC200ERM002F	VersaMax Expansion Receiver Module
IC200ALG264H	VersaMax Analog Current Input Module

Frequently Selected Alternatives

Model	Product Name
IC200ALG264H	VersaMax 15-Channel Analog Current Input Module
IC200ALG320B	VersaMax Analog Current Output Module
IC200ALG326H	VersaMax 8-Channel Analog Current Output Module
IC693ALG223	Series 90-30 16-Channel Analog Current Input Module

Where It Excels in Industrial Use

GE VersaMax PLC systems requiring flexible analog signal acquisition
Process instrumentation monitoring with voltage and current transmitters
Pressure, flow, level, and speed feedback applications
Industrial machine feedback and measurement systems
Remote analog I/O stations in distributed control networks
SCADA data collection and monitoring systems
OEM equipment requiring compact analog input capability
Manufacturing process control applications
Energy and utility monitoring systems
Existing VersaMax installations requiring reliable replacement modules

Key Strengths at a Glance

8-channel analog voltage/current input capability
Supports ±10 VDC, 0–10 VDC, and 4–20 mA input signals
12-bit analog-to-digital conversion resolution
Single-ended input design with common return
Fast 0.4 ms channel update performance
Jumper-selectable voltage and current operating modes
Optical isolation between field inputs and PLC logic
No external power supply required for module operation
Built-in internal power and module status indicators
Compact VersaMax modular design for space-saving installations

Technical FAQs

1. What is the primary function of the GE IC200ALG260C?

The IC200ALG260C is a VersaMax analog input module designed to convert industrial voltage and current signals into digital values that can be processed by a GE PLC system. It provides eight configurable analog input channels.

2. How many analog input channels are available?

The module provides 8 single-ended analog input channels arranged in one group. All channels share a common return and are designed for voltage or current measurement applications.

3. Which signal ranges are supported by this module?

The IC200ALG260C supports:

±10 VDC bipolar voltage input
0–10 VDC unipolar voltage input
4–20 mA current input

The operating mode is selected through carrier jumper configuration.

4. What resolution does the IC200ALG260C provide?

The module uses a 12-bit analog-to-digital converter, providing detailed signal conversion for industrial measurement applications.

5. Does the IC200ALG260C require an external power supply?

No. The module receives operating power from the VersaMax backplane supply. External power may still be needed for connected field transmitters or sensors depending on the device design.

6. What types of devices can be connected to the module?

Typical connected devices include pressure transmitters, flow meters, level sensors, potentiometers, industrial controllers, and other analog instrumentation equipment.

7. Does the module provide channel-to-channel isolation?

No. The eight inputs share a common reference and do not provide individual channel isolation. Optical isolation is provided between the user input side and PLC logic side.
