Brand:Schneider PLC Item No.:HMIDT642 Product Origin:France Product Dimensions:315 x 241 x 67 mm Product Weight:3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

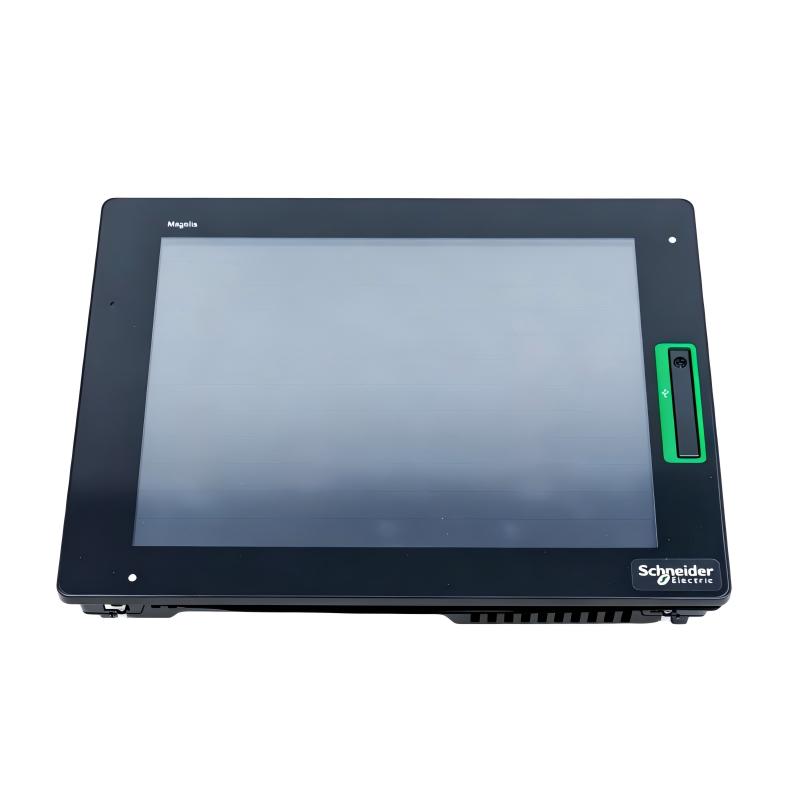

The Schneider HMIDT642 Flat Panel Display is designed to provide a reliable and efficient visualization solution for modern industrial automation systems. With its 12.1-inch screen size, high-resolution display performance, and intuitive touchscreen operation, it helps operators achieve better control and monitoring of industrial processes.
Its modular Harmony GTU design allows flexible installation and integration into a wide range of automation architectures. The HMIDT642 provides a professional interface experience that improves equipment usability while supporting efficient production management.
Built for industrial applications requiring dependable visualization and easy operation, this touchscreen display is an excellent choice for machine builders, system integrators, and automation professionals.
Technical Specifications
Specification
Details
Product Type
Flat Panel Display
Manufacturer
Schneider Electric
Model
HMIDT642
Product Series
Harmony GTU
Display Type
TFT Color LCD
Display Size
12.1 inch
Display Resolution
1024 × 768 pixels XGA
Display Colors
16 million colors
Touch Technology
Analog Resistive Multi-Touch
Touchscreen Resolution
1024 × 1024
Aspect Ratio
4:3
Rated Supply Voltage
12–24 V DC
Power Consumption
21 W
Communication Interface
USB 2.0 Type A / USB 2.0 Mini B
Backlight Service Life
50,000 hours
Cooling Method
Natural Convection
Installation Type
Indoor Installation
Front Panel Protection
IP66 / IP67
Dimensions (W × H × D)
315 × 241 × 67 mm
Weight
3.00 kg (6.61 lb)
Recommended Related Models
Model
Product Type
Description
Schneider HMIDT542
Flat Panel Display
Compact Harmony GTU display solution for industrial visualization.
Schneider HMIDT643
Flat Panel Display
Advanced 12.1-inch display model for demanding HMI applications.
Schneider HMIDT752
Flat Panel Display
Larger touchscreen display for complex industrial systems.
Schneider HMIDT351
Advanced Touchscreen Panel
Compact touchscreen solution for machine interface applications.
Popular Related Models
Model
Product Type
Application Focus
Schneider HMIDT642
Flat Panel Display
Industrial HMI visualization systems
Schneider HMIDT542
Flat Panel Display
Machine monitoring and control applications
Schneider HMIDT551
Advanced Touchscreen Panel
Industrial operator interface systems
Schneider HMIGTU855
Advanced Touchscreen Panel
Automation visualization solutions
Industrial Visualization Applications
The Schneider HMIDT642 Flat Panel Display is a high-performance industrial touchscreen solution designed for advanced human-machine interface applications. As part of the Harmony GTU series, it provides a professional visualization platform for machine operation, process monitoring, and industrial automation management.
Featuring a 12.1-inch TFT color display, high-resolution visualization capability, and reliable touchscreen operation, the HMIDT642 enables operators to interact efficiently with complex automation systems. Its modular design supports flexible integration into industrial equipment, control panels, and modern manufacturing environments.
Application Area
Description
Industrial HMI Systems
Provides a clear and intuitive interface for machine monitoring and control.
Factory Automation
Supports visualization of production data, alarms, and operational parameters.
Machine Control Panels
Delivers efficient operator interaction for automated equipment.
Process Monitoring
Enables real-time observation of industrial processes and system conditions.
Equipment Modernization
Helps upgrade traditional control systems with advanced touchscreen technology.
High-Performance Touchscreen Advantages
The Schneider HMIDT642 combines advanced display technology with reliable industrial performance to deliver a powerful interface solution. Its large viewing area, responsive operation, and flexible integration capability make it suitable for demanding automation applications.
Advantage
Description
Clear Industrial Visualization
Provides detailed graphical information for efficient monitoring and control.
Responsive Touch Operation
Allows convenient interaction with HMI applications and machine functions.
Wide Display Area
Improves visibility of process data, control screens, and operational information.
Flexible System Integration
Supports connection with compatible industrial automation platforms.
Reliable Industrial Design
Built for stable operation in professional automation environments.
Technical FAQs
1. What is the main function of the Schneider HMIDT642?
The HMIDT642 is a flat panel touchscreen display designed for industrial HMI visualization and operator control applications.
2. Which product family does the HMIDT642 belong to?
The HMIDT642 belongs to the Harmony GTU series of industrial touchscreen displays.
3. What type of display technology does the HMIDT642 use?
The panel uses a TFT color LCD display designed for industrial visualization applications.
4. What type of touch technology is supported by the HMIDT642?
The HMIDT642 uses analog resistive multi-touch technology for reliable operator interaction.
5. Can the HMIDT642 be integrated with industrial automation systems?
Yes. It is designed to work with compatible industrial computing modules and automation platforms.
6. What type of information can be displayed on this panel?
It can display machine status, process data, alarms, graphics, and operator control interfaces.
7. Is the HMIDT642 suitable for continuous industrial operation?
Yes. It is designed for reliable performance in indoor industrial automation environments.
8. What communication interfaces are available for this display?
The HMIDT642 supports USB connections for integration with compatible HMI system components.
9. What applications commonly use industrial flat panel displays?
They are commonly used in manufacturing equipment, automation systems, process monitoring, and machine control applications.
10. What factors should be considered when replacing an industrial display?
Display size, resolution, communication compatibility, mounting requirements, and system configuration should be evaluated.
