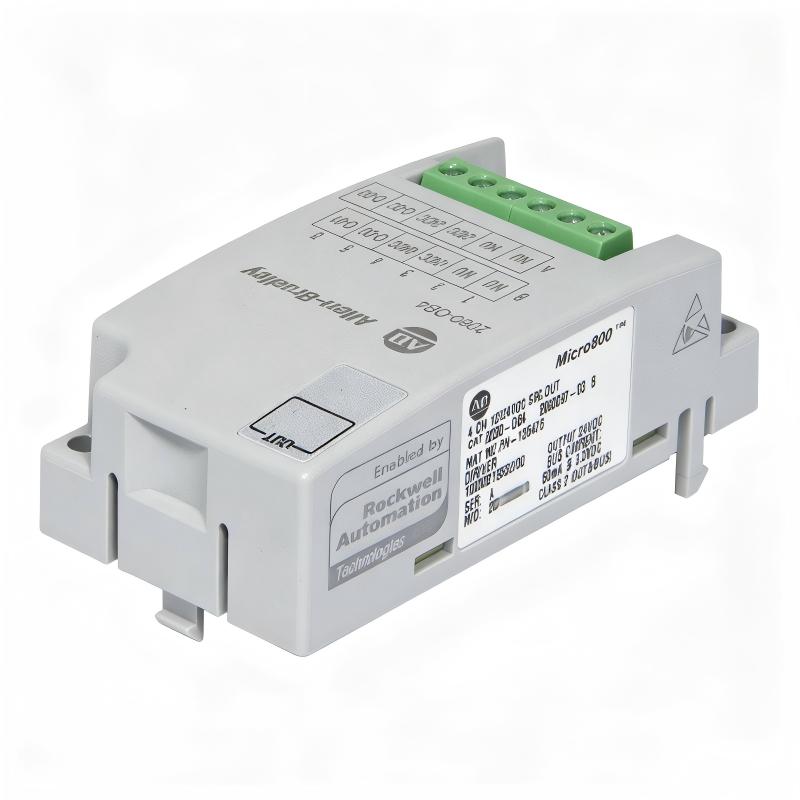

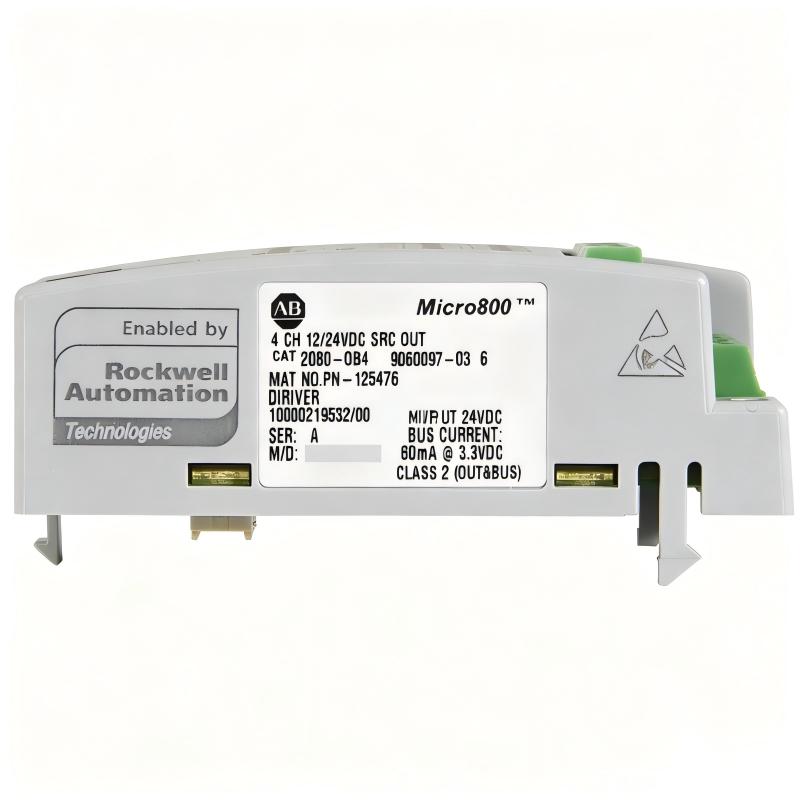

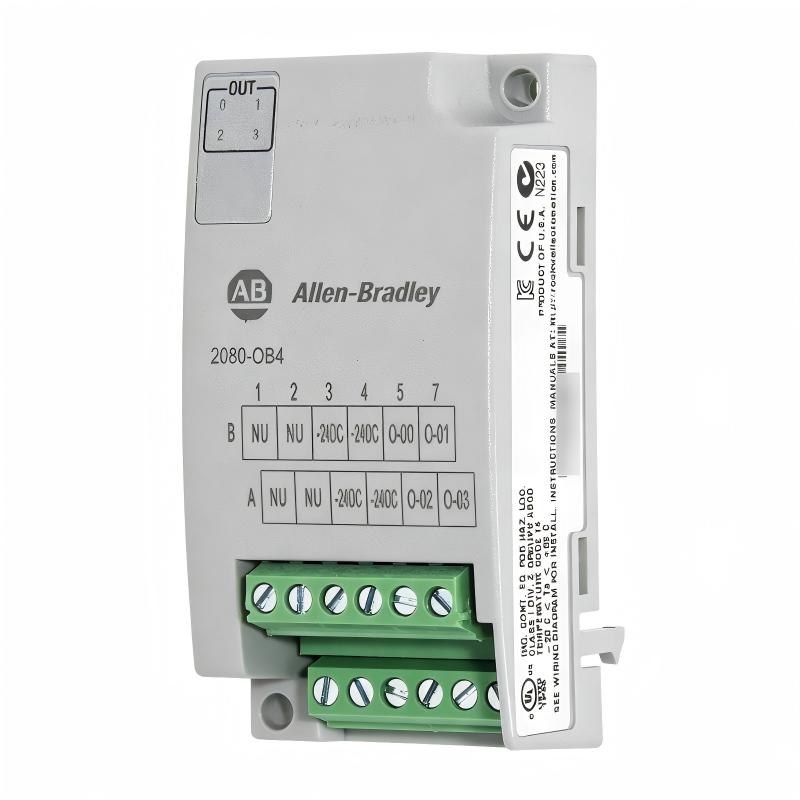

Allen Bradley 2080-OB4 Micro800 4-Point Digital DC Power Output Module
Allen Bradley 2080-OB4 Micro800 4-Point Digital DC Power Output Module
0.0
Points
Brand:Allen Bradley PLC Item No.:2080-OB4 Product Origin:USA Product Dimensions:62 x 20 x 31.5 mm Product Weight:0.023 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2080-OB4 Micro800 4-Point Digital DC Power Output Module provides an effective way to enhance the control capability of Micro800 automation systems. Designed for compact industrial applications, it helps engineers add additional digital outputs while maintaining a streamlined control architecture.
Its small footprint makes it suitable for applications where panel space is limited, while its dependable output performance supports stable machine operation. The module helps simplify system expansion and provides a practical solution for equipment builders, OEM manufacturers, and automation professionals.
Combining flexibility, reliability, and efficient installation, the 2080-OB4 is a valuable component for modern compact PLC-based control systems.
Technical Specifications
Specification
Details
Product Type
Digital DC Power Output Module
Manufacturer
Allen Bradley
Model
2080-OB4
Product Series
Micro800
Module Type
Plug-In Digital Output Module
Number of Outputs
4 Digital Outputs
Output Type
Source Transistor Output
Output Voltage Type
DC
Nominal Voltage
24 V DC
Output Status Indicator
LED
Electrical Connection
Screw Connection
Isolation Voltage
50 V Continuous
Operating Temperature
-20 to 65 °C
Mounting Type
Plug-In Installation
Application
Micro800 PLC Expansion
Dimensions (H × W × D)
62 × 20 × 31.5 mm
Weight
0.02 kg (0.05 lb)
Recommended Related Models
Model
Product Type
Description
Allen Bradley 2080-IB4
Digital Input Module
Four-point digital input expansion module for Micro800 systems.
Allen Bradley 2080-OB8
Digital Output Module
Eight-point digital DC output expansion solution.
Allen Bradley 2080-IQ4
Digital Input/Output Module
Flexible I/O expansion module for compact PLC applications.
Allen Bradley 2080-IF4
Analog Input Module
Multi-channel analog input expansion module for Micro800 controllers.
Popular Related Models
Model
Product Type
Application Focus
Allen Bradley 2080-OB4
Digital DC Output Module
Compact PLC output expansion
Allen Bradley 2080-IB4
Digital Input Module
Industrial signal monitoring
Allen Bradley 2080-IQ4
Digital I/O Module
Flexible automation control
Allen Bradley 2080-OB8
Digital Output Module
Multi-point device control applications
Industrial Automation Applications
The Allen Bradley 2080-OB4 Micro800 4-Point Digital DC Power Output Module is a compact plug-in I/O expansion solution designed for flexible industrial automation applications. It provides four digital DC source outputs for Micro800 control systems, helping machines and automated equipment achieve reliable signal control and efficient operation.
With its compact structure and dependable transistor output technology, the 2080-OB4 is ideal for applications requiring space-saving I/O expansion, fast switching performance, and seamless integration into small-scale automation projects.
Application Area
Description
Machine Automation
Provides reliable digital output control for automated equipment and machinery.
Compact PLC Systems
Expands Micro800 controller capabilities with additional output points.
Material Handling Equipment
Supports control of actuators, indicators, and automation devices.
Packaging Machinery
Enables efficient control of valves, relays, and industrial components.
Smart Manufacturing Systems
Provides flexible output expansion for modern automation solutions.
Efficient Output Control Advantages
The Allen Bradley 2080-OB4 combines compact design, reliable switching performance, and easy integration to deliver an efficient digital output solution for industrial control systems. Its optimized structure helps engineers build cost-effective automation solutions while maintaining stable machine performance.
Advantage
Description
Four-Point Digital Output
Provides additional output channels for Micro800 automation systems.
Reliable Transistor Switching
Supports fast and stable DC output control.
Compact Plug-In Design
Saves installation space inside control panels.
LED Status Indication
Allows convenient monitoring of output operation.
Flexible Automation Integration
Easily expands control functions for various industrial applications.
Technical FAQs
1. What is the main function of the Allen Bradley 2080-OB4?
The 2080-OB4 is a digital DC output module designed to provide additional output points for Micro800 PLC systems.
2. How many output channels does the 2080-OB4 provide?
The module provides four digital source output channels.
3. What type of output technology does the 2080-OB4 use?
It uses transistor-based DC output technology for reliable switching control.
4. Which controller family is compatible with the 2080-OB4?
The module is designed for Allen Bradley Micro800 controller platforms.
5. What types of devices can be controlled by this output module?
It can control compatible DC devices such as relays, indicators, valves, and other automation components.
6. Why use an expansion output module in a PLC system?
An expansion output module increases available control points without replacing the main controller.
7. Does the 2080-OB4 support high-speed switching applications?
Yes. Its transistor output design supports efficient switching for suitable automation tasks.
8. What should be considered when selecting a digital output module?
Output type, voltage requirements, current capacity, controller compatibility, and application conditions should be evaluated.
9. Can the 2080-OB4 be used in industrial environments?
Yes. It is designed for professional automation applications requiring reliable operation.
10. How does LED indication help with troubleshooting?
LED indicators provide quick visual confirmation of output status during system operation and maintenance.
