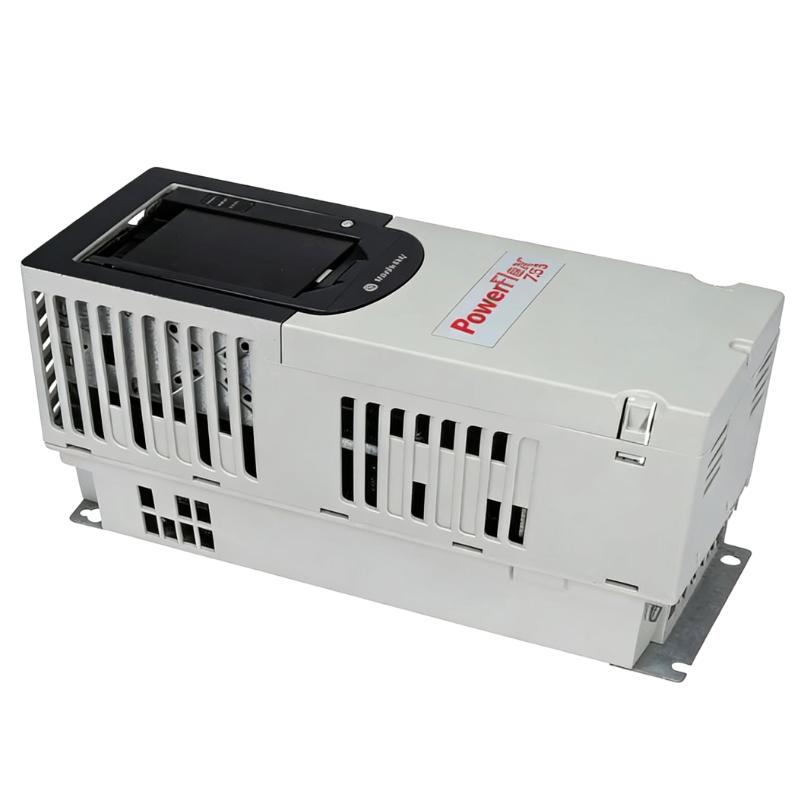

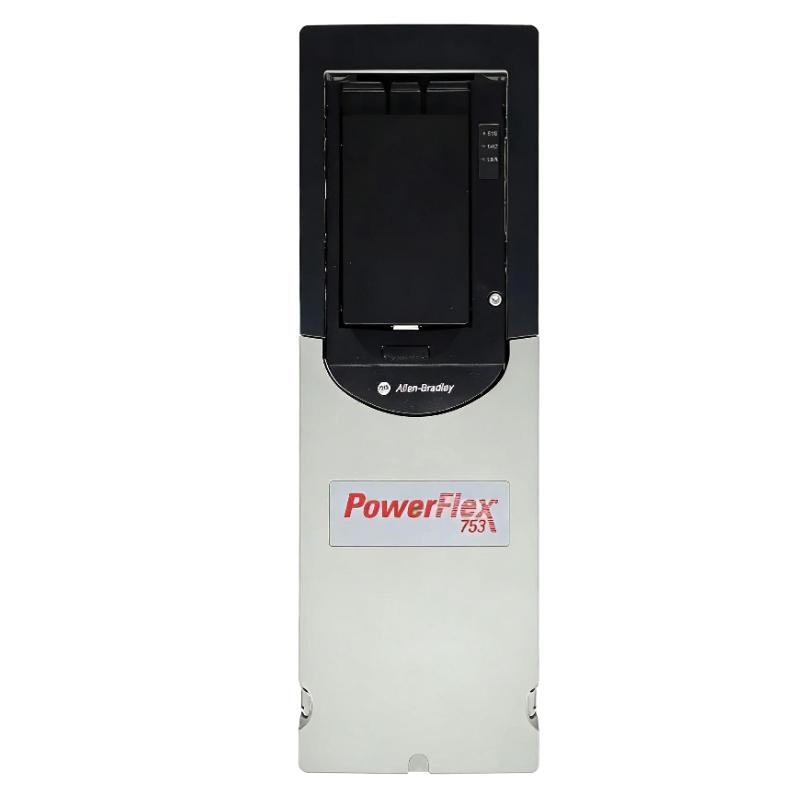

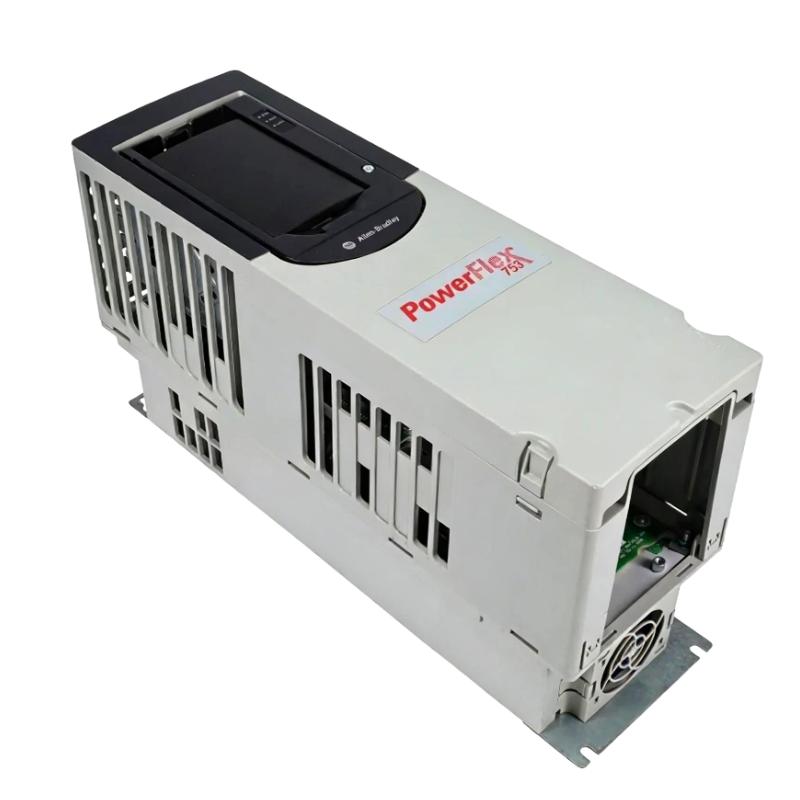

Allen Bradley 20F11NC022JA0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20F11NC022JA0NNNNN PowerFlex 753 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20F11NC022JA0NNNNN Product Origin:USA Product Dimensions:424.2 x 134.5 x 212 mm Product Weight:7.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20F11NC022JA0NNNNN PowerFlex 753 AC Drive provides a dependable solution for industrial motor control applications requiring flexibility, efficiency, and precise performance. Designed for modern automation systems, it delivers advanced drive functionality while maintaining simple installation and system integration.
With embedded I/O, robust control capabilities, and support for demanding industrial operations, the PowerFlex 753 helps engineers develop efficient motor control solutions for various machines and processes.
Its compact structure and reliable operating characteristics make it an excellent choice for manufacturers, system integrators, and industrial facilities looking to improve automation performance and reduce operational complexity.

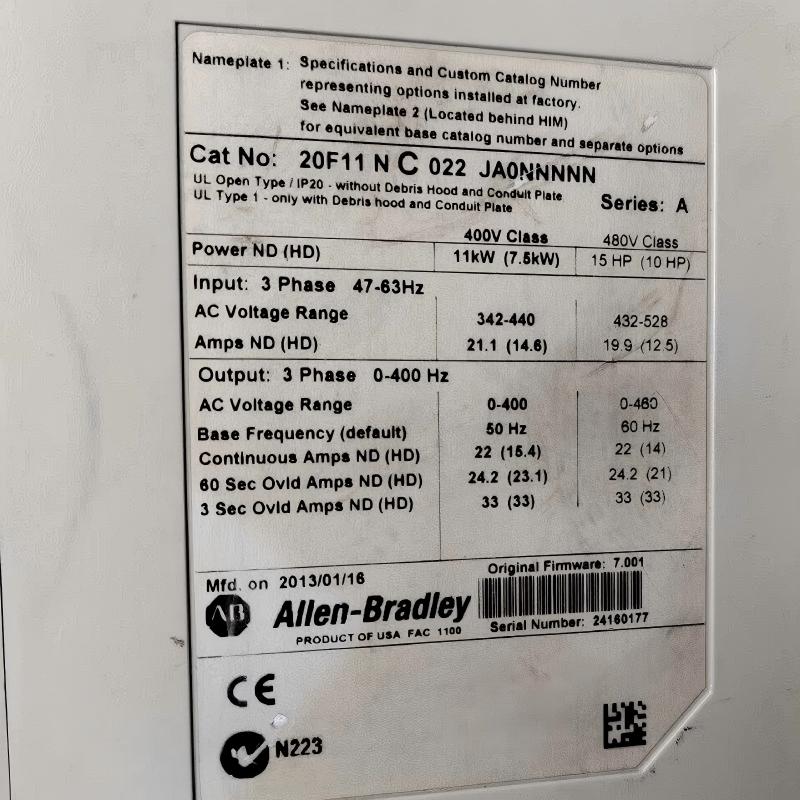

Technical Specifications
Specification
Details
Product Type
AC Drive / Variable Frequency Drive
Manufacturer
Allen Bradley
Model
20F11NC022JA0NNNNN
Product Series
PowerFlex 753
Drive Type
Air Cooled AC Drive
Input Voltage
400 VAC
Input Phase
Three Phase
Output Current
22 A
Normal Duty Power Rating
11 kW
Heavy Duty Power Rating
7.5 kW
Frame Size
Frame 2
Input Type
AC Input with DC Terminals
Cooling Method
Forced Air Cooling
Dynamic Braking
Internal Braking Transistor
Enclosure Type
IP20 / Open Type
Built-In Features
Embedded I/O
Installation Type
Panel Mount
Dimensions (H × W × D)
424.2 × 134.5 × 212 mm
Weight
7.80 kg (17.20 lb)
Recommended Related Models
Model
Product Type
Description
Allen Bradley 20F11ND022JA0NNNNN
PowerFlex 753 AC Drive
Similar 400 V drive model for industrial motor control applications.
Allen Bradley 20F11NB022JA0NNNNN
PowerFlex 753 AC Drive
Compact drive solution for lower voltage motor applications.
Allen Bradley 20G11ND022AA0NNNNN
PowerFlex 755 AC Drive
Advanced drive platform for complex automation systems.
Allen Bradley 25B-D022N114
PowerFlex 525 AC Drive
Compact variable frequency drive for machine applications.
Popular Related Models
Model
Product Type
Application Focus
Allen Bradley 20F11NC022JA0NNNNN
PowerFlex 753 AC Drive
Industrial motor speed control
Allen Bradley 20F11NB022JA0NNNNN
PowerFlex 753 AC Drive
General automation drive applications
Allen Bradley 25B-D022N114
PowerFlex 525 AC Drive
Compact machine control systems
Allen Bradley 20G11ND022AA0NNNNN
PowerFlex 755 AC Drive
Advanced industrial motion and drive control
Industrial Motor Control Applications
The Allen Bradley 20F11NC022JA0NNNNN PowerFlex 753 AC Drive is a versatile variable frequency drive designed for reliable motor control and industrial automation applications. Built for flexible machine operation, it provides efficient speed regulation, precise motor management, and enhanced system performance for a wide range of industrial environments.
Featuring embedded I/O, forced-air cooling, and advanced drive control capabilities, the PowerFlex 753 AC Drive helps simplify system integration while delivering dependable operation for pumps, fans, conveyors, processing equipment, and automated machinery.
Application Area
Description
Industrial Motor Control
Provides efficient speed and torque control for AC motors.
Conveyor Systems
Supports smooth operation and precise movement control in material handling equipment.
Pump and Fan Applications
Improves energy efficiency through adjustable motor speed control.
Manufacturing Equipment
Enables reliable automation control for production machinery.
Process Automation Systems
Provides flexible motor management for industrial processes.
Advanced Drive Performance Advantages
The Allen Bradley 20F11NC022JA0NNNNN PowerFlex 753 AC Drive combines powerful motor control technology with a compact design to deliver reliable performance in demanding automation environments. It helps reduce system complexity while improving operational efficiency and machine productivity.
Advantage
Description
Flexible Motor Control
Provides accurate speed and torque management for industrial motors.
Built-In I/O Capability
Simplifies connection with automation systems and field devices.
Energy Efficient Operation
Helps optimize motor performance and reduce unnecessary power consumption.
Dynamic Braking Support
Improves control performance during applications requiring rapid deceleration.
Compact Industrial Design
Allows efficient installation in control cabinets and automation panels.
Technical FAQs
1. What is the main function of the Allen Bradley 20F11NC022JA0NNNNN?
The 20F11NC022JA0NNNNN is a PowerFlex 753 AC drive used to control motor speed, torque, and operating performance in industrial applications.
2. What type of motors can this AC drive control?
It is designed for controlling three-phase AC motors used in industrial automation systems.
3. Does the PowerFlex 753 support dynamic braking?
Yes. This model includes a dynamic braking transistor for applications requiring controlled deceleration.
4. What communication options are available for the PowerFlex 753 series?
The drive supports optional communication modules for integration with industrial networks and control systems.
5. What is the benefit of embedded I/O in this drive?
Embedded I/O reduces the need for additional components and simplifies connection with external control devices.
6. Can this drive be used in automated production equipment?
Yes. It is suitable for machine automation, conveyors, pumps, fans, and various industrial systems.
7. What factors should be considered when selecting an AC drive?
Motor power rating, voltage requirements, load characteristics, control method, and application environment should be considered.
8. How does a variable frequency drive improve motor operation?
It regulates motor speed and torque by controlling output frequency and voltage, improving process control and efficiency.
9. Is the PowerFlex 753 suitable for continuous industrial operation?
Yes. It is designed for reliable performance in professional industrial automation environments.
10. Can the drive be integrated with PLC control systems?
Yes. It is designed to operate with compatible industrial control platforms for coordinated automation control.
