Advanced Industrial Motion Solution Introduction

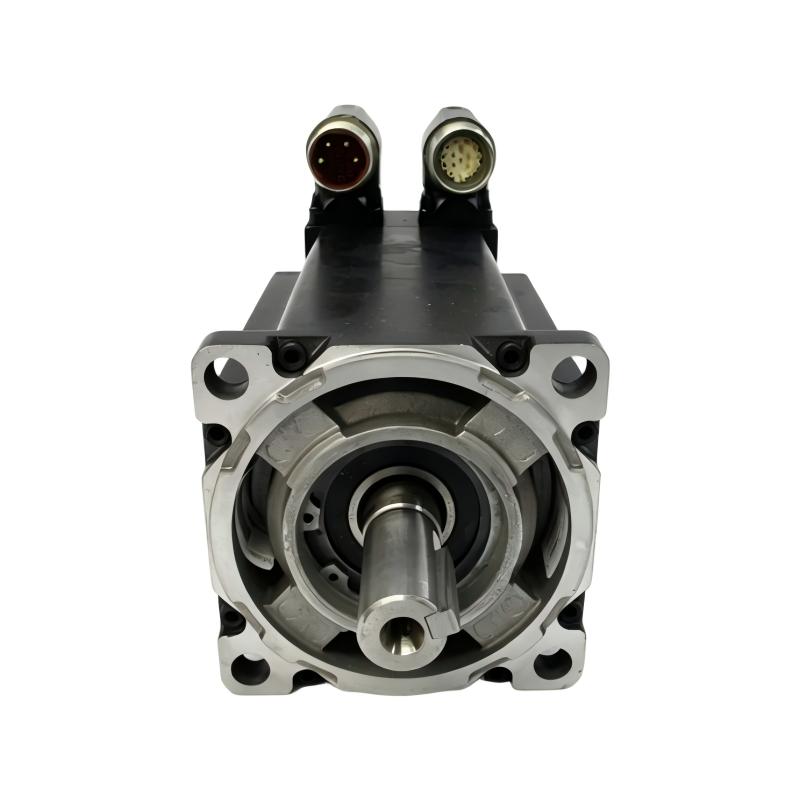

The Allen Bradley MPL-B430P-MJ72AA Servo Motor provides a dependable solution for modern industrial motion control requirements. Designed with low-inertia technology and advanced feedback capability, it delivers fast response, accurate positioning, and consistent performance across a wide range of automation applications.

Its compact frame design makes it suitable for machine builders and system integrators developing efficient motion systems. The motor helps improve productivity by enabling faster machine cycles, smoother operation, and precise control of automated processes.

Combining reliable construction with advanced servo technology, the MPL-B430P-MJ72AA is an excellent choice for high-performance industrial automation and motion control applications.

Technical Specifications

Specification	Details
Product Type	AC Rotary Servo Motor
Manufacturer	Allen Bradley
Model	MPL-B430P-MJ72AA
Product Series	MP-Series Low-Inertia Servo Motors
Motor Type	Brushless AC Servo Motor
Frame Size	115 mm
Voltage Class	460 V AC
Rated Speed	5000 RPM
Continuous Stall Torque	6.55 Nm
Peak Stall Torque	19.8 Nm
Rated Power	2.2 kW
Feedback Type	Multi-Turn High-Resolution Encoder
Brake Option	No Brake
Shaft Type	Keyed Shaft Extension

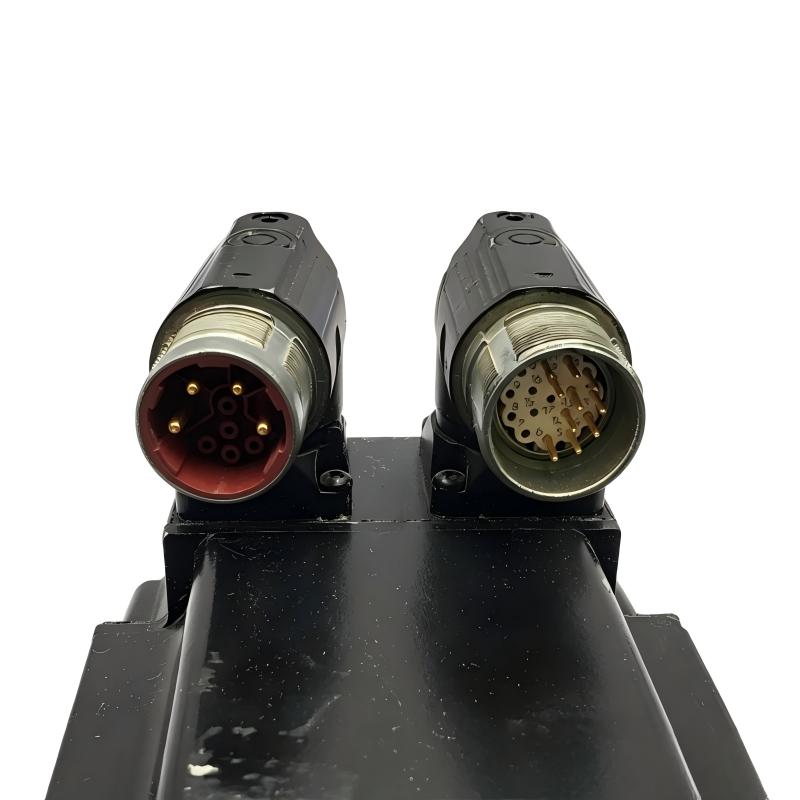

Connector Type	SpeedTEC DIN Connector
Mounting Type	IEC Metric Flange
Protection Rating	IP65 Housing
Dimensions	Frame Size: 115 mm
Weight	5.50 kg (12.13 lb)

Recommended Related Models

Model	Product Type	Description
Allen Bradley MPL-B430P-MK72AA	Servo Motor	Similar MP-Series servo motor with alternative connector configuration.
Allen Bradley MPL-B540K-MJ72AA	Servo Motor	Larger frame servo motor for higher performance requirements.
Allen Bradley MPL-B520K-MJ72AA	Servo Motor	Medium-power servo motor for industrial motion systems.
Allen Bradley MPL-B680D-MJ72AA	Servo Motor	Higher-capacity servo motor for demanding automation applications.

Popular Related Models

Model	Product Type	Application Focus
Allen Bradley MPL-B430P-MJ72AA	Servo Motor	Precision industrial motion control
Allen Bradley MPL-B540K-MJ72AA	Servo Motor	Advanced automation machinery
Allen Bradley MPL-B520K-MJ72AA	Servo Motor	Manufacturing motion systems
Allen Bradley MPL-B680D-MJ72AA	Servo Motor	High-performance industrial automation

Precision Motion Control Applications

The Allen Bradley MPL-B430P-MJ72AA Servo Motor is a low-inertia AC rotary servo motor designed for high-performance motion control applications requiring fast response, accurate positioning, and reliable operation. As part of the MP-Series servo motor family, it provides excellent dynamic performance for automated machinery, robotics, and advanced manufacturing systems.

With a 115 mm frame size, high-resolution multi-turn feedback, and 5000 RPM rated speed capability, the MPL-B430P-MJ72AA delivers precise motion control for applications where speed accuracy, repeatability, and efficient machine operation are essential.

Application Area	Description
Packaging Machinery	Provides precise motion control for high-speed packaging equipment.
Material Handling Systems	Supports accurate positioning and smooth movement control.
Electronic Assembly Equipment	Enables reliable servo performance for precision manufacturing processes.
Automated Production Lines	Improves machine efficiency through accurate motion management.
Robotics Applications	Provides responsive servo control for industrial robotic systems.

High-Performance Servo Advantages

The Allen Bradley MPL-B430P-MJ72AA Servo Motor combines low-inertia design, advanced feedback technology, and reliable construction to deliver outstanding motion performance. It helps engineers achieve faster machine cycles, improved positioning accuracy, and enhanced automation efficiency.

Advantage	Description
Low-Inertia Design	Provides rapid acceleration and deceleration for high-speed motion applications.
High-Resolution Feedback	Supports precise position monitoring and accurate motion control.
High-Speed Operation	Delivers reliable performance with rated speeds up to 5000 RPM.
Compact Servo Structure	Allows efficient installation in space-sensitive machine designs.
Industrial Reliability	Designed for continuous operation in demanding automation environments.

Technical FAQs

1. What is the main function of the Allen Bradley MPL-B430P-MJ72AA?
The MPL-B430P-MJ72AA is an AC servo motor designed for precise motion control in industrial automation systems.

2. What type of applications use low-inertia servo motors?
Low-inertia servo motors are commonly used in high-speed machines requiring quick acceleration, accurate positioning, and frequent motion changes.

3. What is the benefit of using a high-resolution encoder?
A high-resolution encoder improves position feedback accuracy and enables precise motor control.

4. Can the MPL-B430P-MJ72AA be integrated with Allen Bradley motion systems?
Yes. It is designed for use with compatible Allen Bradley servo drive and motion control platforms.

5. What makes servo motors different from standard motors?
Servo motors provide closed-loop feedback control, allowing accurate position, speed, and torque management.

6. Is this servo motor suitable for continuous operation?
Yes. It is designed for reliable industrial motion applications requiring stable performance.

7. What factors should be considered when selecting a servo motor?
Load requirements, speed, torque, feedback type, mechanical design, and application environment should be evaluated.

8. Why is low inertia important in motion control systems?
Low inertia allows faster response, quicker acceleration, and improved dynamic performance.

9. Can this servo motor support precision positioning applications?
Yes. Its feedback system and motion characteristics make it suitable for applications requiring accurate positioning.

10. What maintenance is required for servo motors?
Regular inspection of connections, operating conditions, cooling, and mechanical components helps maintain reliable performance.
