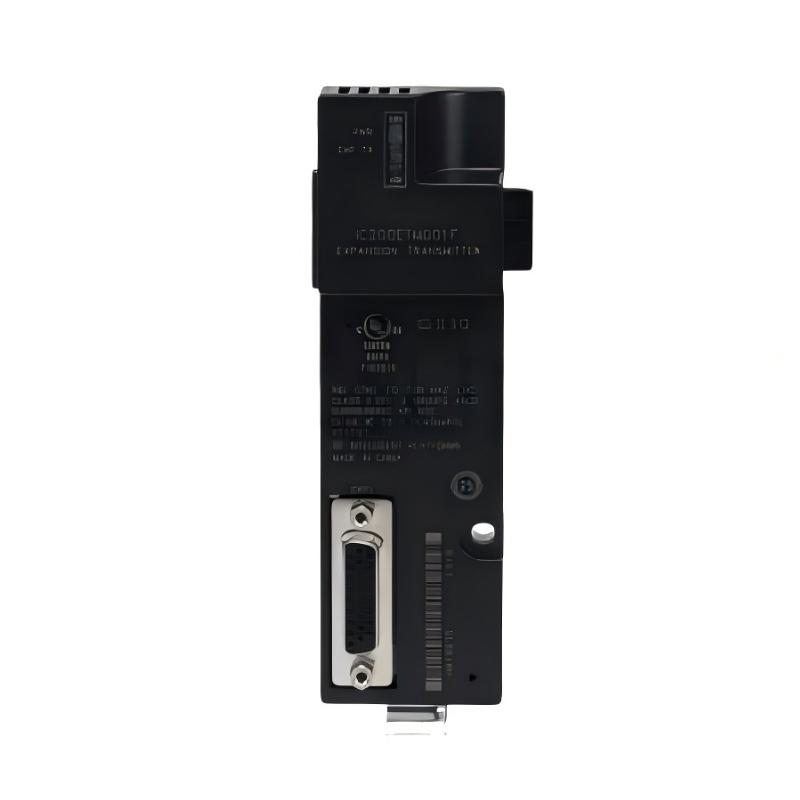

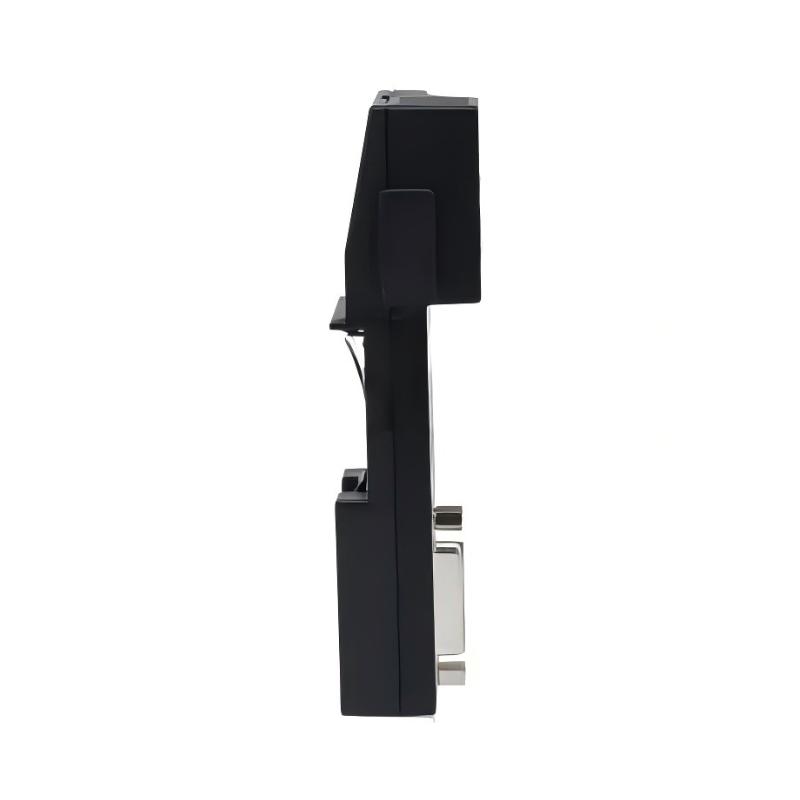

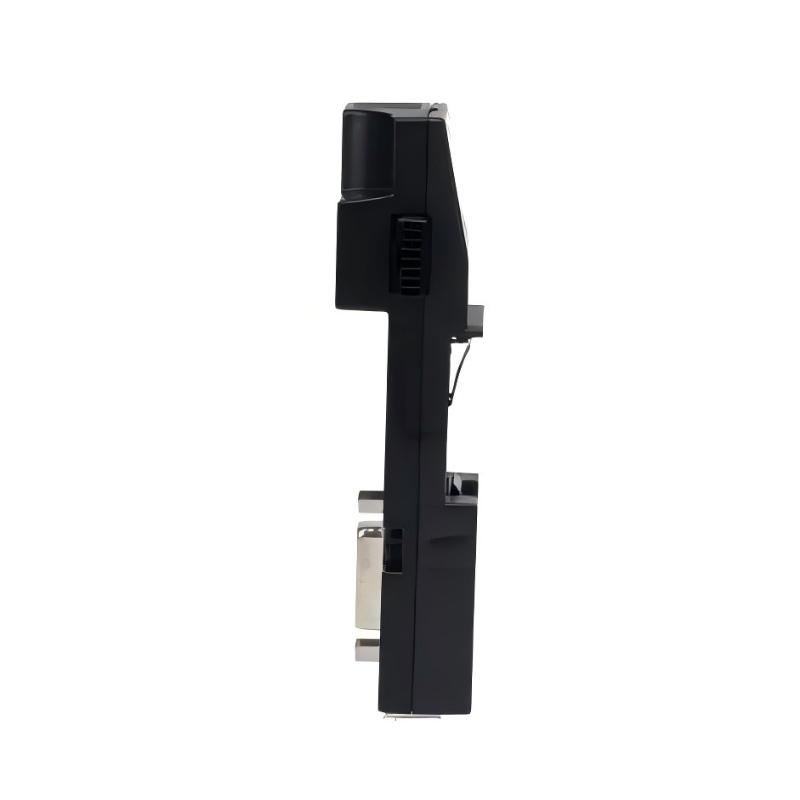

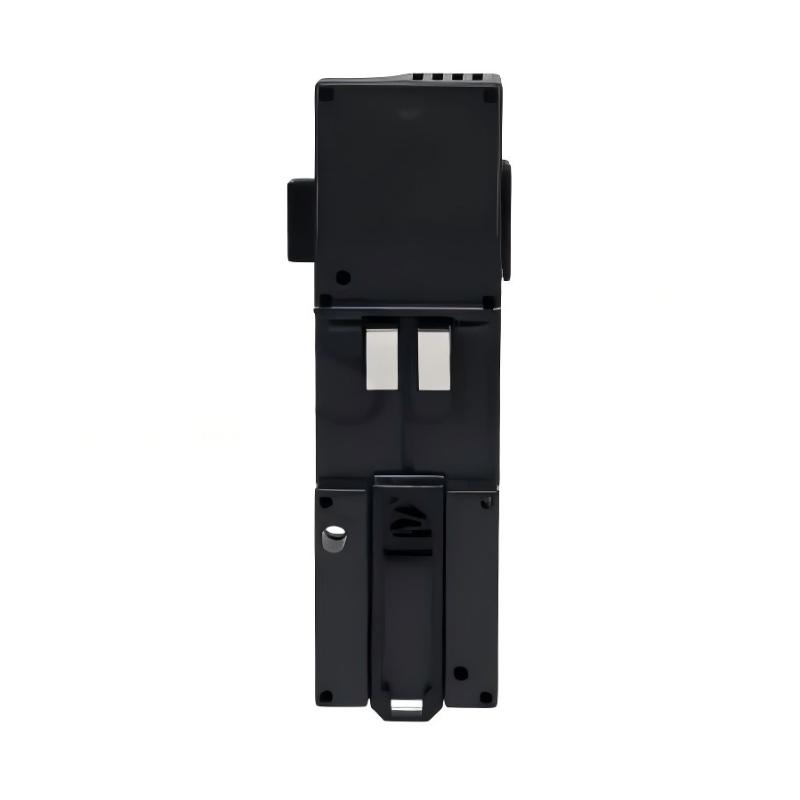

GE IC200ETM001D VersaMax Expansion Transmitter Module
GE IC200ETM001D VersaMax Expansion Transmitter Module
0.0
Points
Brand:GE Fanuc PLC Item No.: IC200ETM001D Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC200ETM001D VersaMax Expansion Transmitter Module is a dedicated expansion interface designed to increase the scalability of GE VersaMax PLC and distributed I/O systems. It provides the communication link between the main CPU or NIU station and additional remote expansion racks, allowing engineers to build larger automation systems while maintaining the compact VersaMax architecture.
Designed for industrial applications requiring flexible I/O distribution, the IC200ETM001D supports multiple expansion racks through VersaMax receiver modules. Its combination of reliable expansion communication, diagnostic monitoring, and straightforward DIN rail installation makes it an effective solution for production equipment, process control systems, and OEM automation platforms.
For facilities maintaining long-life GE automation installations, this module provides a practical way to increase system capacity while preserving existing VersaMax hardware investments.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200ETM001D
Product Type
VersaMax Expansion Transmitter Module
Product Family
VersaMax
Function
Expansion Bus Communication
Compatible System
VersaMax PLC / NIU I/O Station
Expansion Capacity
Up to 7 Expansion Racks
Compatible Receivers
IC200ERM001 / IC200ERM002
Expansion Connector
26-Pin Female D-Shell
Programming Interface
Pass-Through Serial Port
Communication Type
Differential Expansion Bus
Data Rate
Up to 1 Mbps (Configuration Dependent)
Maximum Distance
Up to 750 m with Isolated Receiver Configuration
Power Supply
5 VDC from CPU or NIU
Backplane Current Consumption
44 mA Maximum
Status Indicators
PWR LED, EXP TX LED
Mounting
35 mm DIN Rail
Operating Temperature
0°C to +60°C
Dimensions
Approx. 128 × 37 × 67 mm
Weight
Approx. 0.06 kg
Recommended Companion Models
Model
Product Name
IC200ERM001
VersaMax Isolated Expansion Receiver Module
IC200ERM002
VersaMax Non-Isolated Expansion Receiver Module
IC200PWR102C
VersaMax Power Supply Module
IC200CPU005
VersaMax CPU Module
Frequently Selected Alternatives
Model
Product Name
IC200GBI001-BF
VersaMax Genius Network Interface Unit
IC200ETM001
VersaMax Expansion Transmitter Module
IC693CHS391N
Series 90-30 10-Slot Baseplate
IC695CHS012
PACSystems RX3i 12-Slot Universal Backplane
Where It Excels in Industrial Use
GE VersaMax PLC expansion rack architectures
Distributed I/O system expansion projects
Large-scale machine automation installations
Remote I/O cabinet deployment
Manufacturing production line control systems
Process automation requiring extended I/O capacity
Industrial networks with multiple VersaMax expansion stations
OEM equipment requiring scalable control platforms
Legacy VersaMax system upgrades and capacity expansion
Space-efficient DIN rail automation cabinets
Key Strengths at a Glance
Expands VersaMax PLC or NIU systems with additional I/O racks
Supports up to seven additional expansion racks
Compatible with IC200ERM001 and IC200ERM002 receiver modules
High-speed differential expansion bus communication
Supports long-distance expansion with isolated receiver modules
Built-in pass-through serial programming interface
Compact DIN rail mounting design
Low power consumption from CPU/NIU supply
Integrated PWR and EXP TX diagnostic indicators
Reliable communication extension for large VersaMax systems
Technical FAQs
1. What is the primary function of the GE IC200ETM001D?
The IC200ETM001D is a VersaMax Expansion Transmitter Module used to extend a VersaMax PLC or Network Interface Unit (NIU) system by connecting additional remote expansion racks. It enables communication between the main station and expansion I/O racks.
2. How many expansion racks can the IC200ETM001D support?
The module can support up to seven additional expansion racks, allowing larger VersaMax systems to include more I/O and specialty modules.
3. Which receiver modules are compatible with this expansion transmitter?
The IC200ETM001D works with VersaMax Expansion Receiver Modules including the isolated IC200ERM001 and non-isolated IC200ERM002 models.
4. Does the module provide PLC control functions?
No. The IC200ETM001D does not execute control logic. Its function is to provide expansion bus communication between the main VersaMax controller station and remote expansion racks.
5. What type of communication interface does the module use?
The module uses a dedicated VersaMax expansion bus interface through a 26-pin female D-shell connector for connection to expansion receiver modules.
6. What is the maximum expansion distance?
When used with isolated IC200ERM001 receiver modules, the expansion distance can reach up to approximately 750 meters depending on configuration. Systems using IC200ERM002 non-isolated receivers are limited to shorter cable distances.
7. Does the IC200ETM001D require an external power supply?
No. The module receives its operating power from the connected VersaMax CPU or NIU system supply.
8. What diagnostic indicators are available?
The module includes LED indicators for power status and expansion bus communication status, helping technicians quickly identify communication conditions during maintenance.
9. Can firmware updates be performed through this module?
Yes. The IC200ETM001D provides a pass-through serial programming interface that allows firmware updates for adjacent NIU modules without removing the expansion configuration.
10. Why is the IC200ETM001D widely used in industrial systems?
Its ability to extend VersaMax architectures while maintaining reliable communication makes it valuable for large automation systems that require additional I/O capacity without replacing the existing controller platform.
