Brand:GE Fanuc PLC Item No.: IC200ALG431F Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

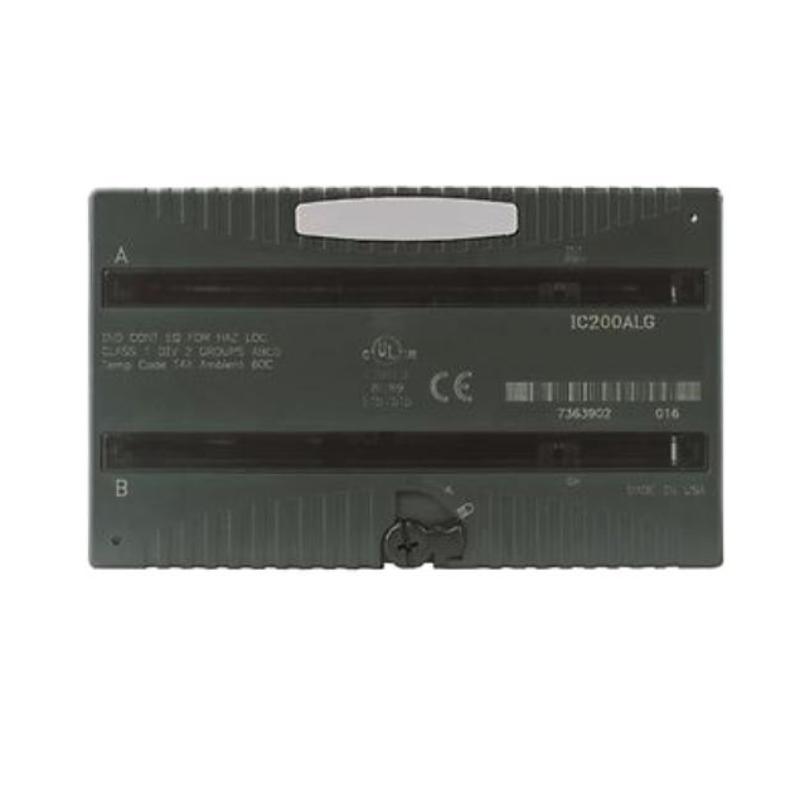

The GE IC200ALG431F VersaMax Mixed Analog I/O Module is a compact analog interface solution designed for GE VersaMax automation systems. Combining four analog input channels and two analog output channels, it provides a practical solution for applications that require both field signal measurement and analog control within a single module.
Designed for industrial environments, the IC200ALG431F supports standard 0–10 VDC signals and delivers dependable analog conversion performance with 12-bit resolution. Its mixed I/O architecture helps engineers simplify control cabinet layouts while maintaining accurate communication between field instruments and PLC logic.
For machine builders, system integrators, and maintenance teams working with VersaMax platforms, this module offers an efficient approach to expanding analog capabilities without increasing system complexity.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200ALG431F
Product Type
Mixed Analog I/O Module
Product Family
VersaMax
Analog Inputs
4 Single-Ended Channels
Analog Outputs
2 Single-Ended Channels
Input Signal Range
0–10 VDC
Output Signal Range
0–10 VDC
Resolution
12 Bit
Input Resolution
Approx. 2.5 mV
Input Filter Response
5 ms
Input Impedance
Approx. 120 kΩ
Output Load Resistance
5000 Ω Maximum
Output Capacitive Load
1 µF Maximum
Isolation
Field Side to Logic Isolation
Backplane Current Consumption
60 mA Maximum
Power Supply
VersaMax Backplane Power
Status Indicators
Module Status LED
Mounting Type
VersaMax Carrier / DIN Rail
Operating Temperature
0°C to +60°C
Dimensions
Approx. 110 × 66.8 × 50 mm
Weight
Approx. 0.34 kg
Recommended Companion Models
Model
Product Name
IC200CPU005
VersaMax CPU Module
IC200PWR102C
VersaMax Power Supply Module
IC200ERM002F
VersaMax Expansion Receiver Module
IC200ALG260C
VersaMax Analog Voltage/Current Input Module
Frequently Selected Alternatives
Model
Product Name
IC200ALG430C
VersaMax Mixed Analog I/O Module
IC200ALG432B
VersaMax Analog Mixed I/O Module
IC200ALG326H
VersaMax Analog Current Output Module
IC200ALG264H
VersaMax Analog Current Input Module
Where It Excels in Industrial Use
GE VersaMax PLC systems requiring combined analog input and output functions
Process control applications with both signal monitoring and regulation needs
Machine automation requiring analog feedback and actuator control
Pressure, flow, temperature, and speed control systems
Compact control panels requiring reduced module count
OEM equipment with limited installation space
Industrial test and measurement applications
SCADA and distributed automation systems
Existing VersaMax installations requiring flexible analog expansion
Continuous process applications requiring reliable analog signal handling
Key Strengths at a Glance
Combined analog input and output functionality in one module
Four single-ended analog voltage input channels
Two single-ended analog voltage output channels
12-bit analog resolution for accurate signal conversion
Supports 0–10 VDC analog signal ranges
Fast 5 ms input filter response
Compact VersaMax modular architecture
Reduces cabinet space by combining I/O functions
Suitable for closed-loop industrial control applications
Designed for reliable integration with VersaMax automation platforms
Technical FAQs
1. What is the primary function of the GE IC200ALG431F?
The IC200ALG431F is a VersaMax mixed analog I/O module that combines four analog voltage inputs and two analog voltage outputs in a single module, allowing PLC systems to both monitor and control analog field devices.
2. How many analog input channels does the IC200ALG431F provide?
The module provides 4 single-ended analog input channels designed for 0–10 VDC voltage measurement applications.
3. How many analog output channels are available?
The IC200ALG431F provides 2 single-ended analog voltage output channels for controlling external analog devices.
4. What signal range does the module support?
The module supports 0–10 VDC analog input and output signals, making it suitable for standard industrial voltage-based instrumentation and control devices.
5. What resolution does the IC200ALG431F provide?
The module provides 12-bit analog resolution, allowing precise conversion between digital PLC values and analog voltage signals.
6. What types of devices can be connected to the input channels?
Typical input devices include voltage transmitters, analog sensors, monitoring instruments, and industrial measurement equipment that provide 0–10 VDC signals.
7. What types of devices can be controlled through the outputs?
The analog outputs can be used for proportional controllers, drive references, valve positioners, signal converters, and other industrial devices requiring voltage commands.
8. Does the module require external field power?
The module receives operating power through the VersaMax backplane. Connected field devices may require their own external power depending on the equipment design.
9. What communication platform is compatible with the IC200ALG431F?
The module is designed for the GE VersaMax product family and can be installed in VersaMax PLC and distributed I/O configurations.
10. Why is the IC200ALG431F useful compared with separate analog modules?
By combining input and output functions in one compact unit, the IC200ALG431F helps reduce cabinet space requirements and simplifies system design for applications needing both analog monitoring and control.
