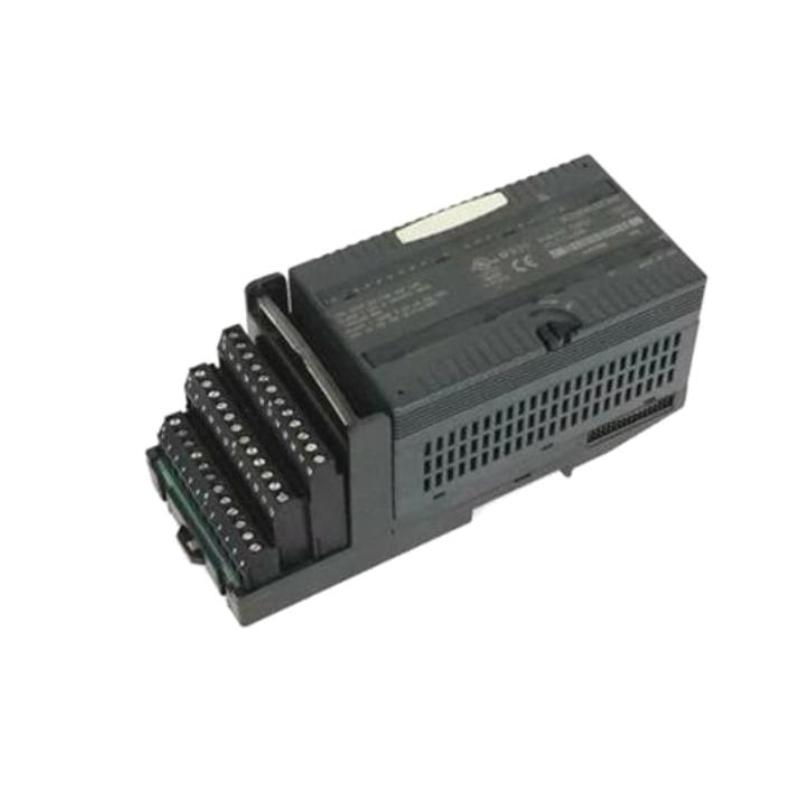

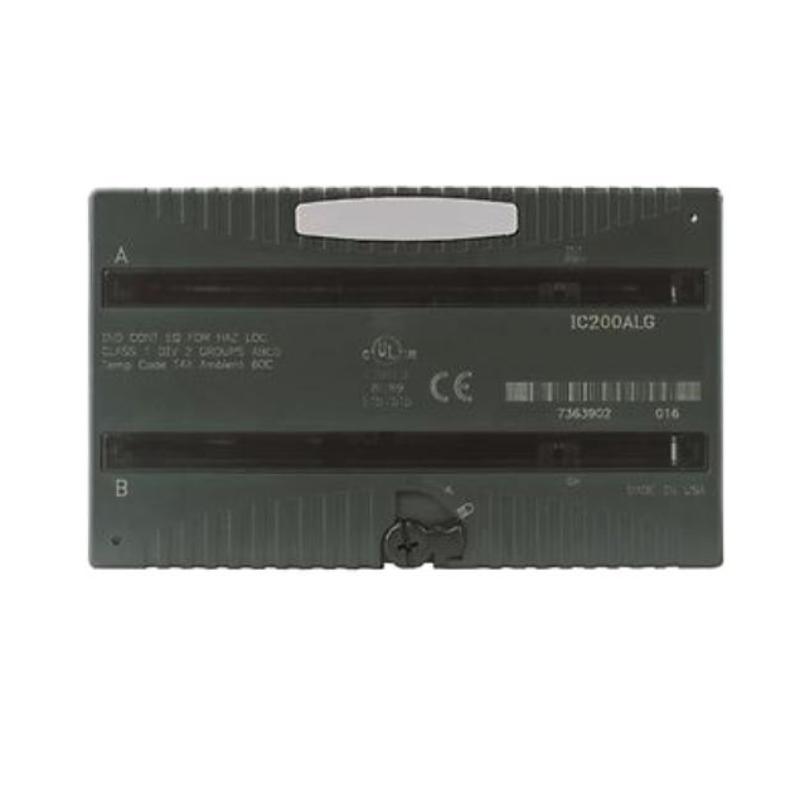

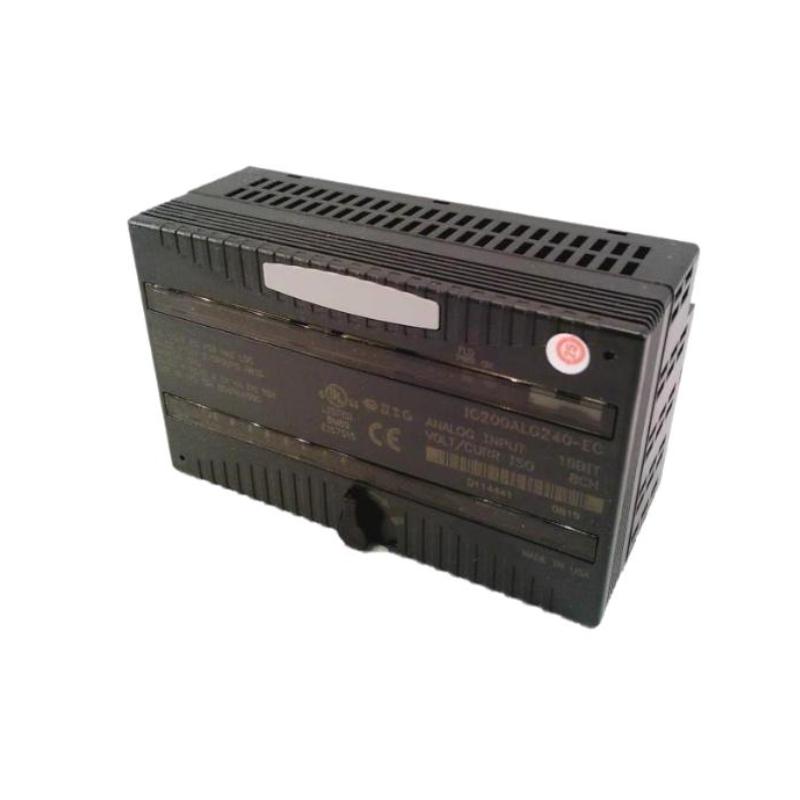

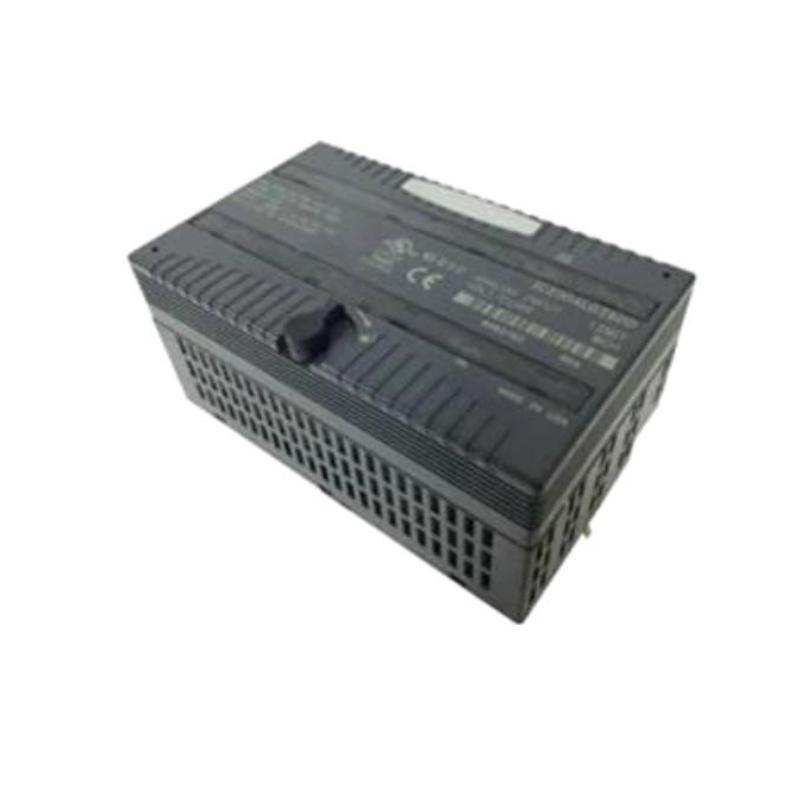

GE IC200ALG321B VersaMax Analog Voltage Output Module
GE IC200ALG321B VersaMax Analog Voltage Output Module
0.0
Points
Brand:GE Fanuc PLC Item No.:IC200ALG321B Product Origin:USA Product Dimensions:108 × 7.2 × 7.2 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC200ALG321B VersaMax Analog Voltage Output Module is a compact analog control solution designed for GE VersaMax automation platforms. Featuring four single-ended voltage output channels, it enables PLC systems to generate accurate 0–10 VDC control signals for industrial devices requiring continuous analog adjustment.
Designed for applications where precision and reliability are essential, the IC200ALG321B combines 12-bit resolution, fast update performance, and flexible output configuration. It provides an efficient interface between PLC logic and analog field equipment such as drives, valves, and instrumentation devices.
With its compact VersaMax architecture and dependable signal conversion performance, this module remains a practical choice for machine builders, system integrators, and industrial maintenance applications.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200ALG321B
Product Type
Analog Voltage Output Module
Product Family
VersaMax
Number of Outputs
4 Channels
Output Configuration
Single-Ended
Output Signal Type
Voltage
Output Range
0–10 VDC
Maximum Output Range
0–10.24 VDC
Resolution
12 Bit
Digital Resolution
2.5 mV
Update Rate
0.3 ms Maximum
Accuracy
±1% Full Scale Maximum
Typical Accuracy
0.3% Full Scale
Output Grouping
Single Group
Load Capability
Suitable for Industrial Analog Loads
Isolation
Optical User Side to Logic Isolation
Isolation Rating
250 VAC Continuous / 1500 VAC for 1 Minute
External Power Supply
18–30 VDC
Nominal Supply Voltage
12/24 VDC
Backplane Current Consumption
50 mA Maximum
Maximum Current Consumption
210 mA Maximum
Diagnostics
Loss of User Power Detection
Indicators
FLD PWR LED, OK LED
Mounting Type
VersaMax Carrier / DIN Rail
Operating Temperature
0°C to +60°C
Dimensions
Approx. 110 × 66.8 × 50 mm
Weight
Approx. 0.25 kg
Recommended Companion Models
Model
Product Name
IC200CPU005
VersaMax CPU Module
IC200PWR102C
VersaMax Power Supply Module
IC200ERM002F
VersaMax Expansion Receiver Module
IC200ALG260C
VersaMax Analog Voltage/Current Input Module
Frequently Selected Alternatives
Model
Product Name
IC200ALG320B
VersaMax 4-Channel Analog Current Output Module
IC200ALG322B
VersaMax 4-Channel Analog ±10V Voltage Output Module
IC200ALG431F
VersaMax Mixed Analog Input/Output Module
IC693ALG392
Series 90-30 Analog Current/Voltage Output Module
Where It Excels in Industrial Use
GE VersaMax PLC analog control applications
Industrial actuator and proportional control systems
Variable frequency drive (VFD) speed reference applications
Valve, damper, and positioner control systems
Process automation requiring precise voltage signals
Machine automation with analog command outputs
Data logging and signal retransmission systems
OEM equipment requiring compact analog output solutions
Distributed I/O systems using VersaMax architecture
Existing control installations requiring reliable analog expansion
Key Strengths at a Glance
4-channel analog voltage output capability
Provides 0–10 VDC output signals
12-bit digital-to-analog conversion resolution
Single-ended output configuration
Fast 0.3 ms maximum update rate
Supports external field power supply operation
Built-in loss-of-field-power diagnostics
Configurable output fallback behavior
Compact VersaMax modular design
Suitable for accurate analog device regulation and control
Technical FAQs
1. What is the primary function of the GE IC200ALG321B?
The IC200ALG321B is a VersaMax analog output module designed to convert PLC digital values into precise 0–10 VDC analog signals for controlling industrial devices such as drives, valves, and position controllers.
2. How many analog output channels are available?
The module provides 4 single-ended analog voltage output channels arranged as one output group.
3. What output signal range does the IC200ALG321B support?
The module provides a nominal 0–10 VDC output range, with an available output range up to approximately 0–10.24 VDC.
4. What resolution does the module provide?
The IC200ALG321B uses a 12-bit digital-to-analog converter, providing approximately 2.5 mV output resolution.
5. What types of field devices can be controlled?
Typical applications include proportional valves, variable speed drives, analog meters, signal converters, dampers, and other devices requiring voltage-based control signals.
6. Does the IC200ALG321B require external power?
Yes. The module requires an external user-side power supply for analog output operation, typically within the 18–30 VDC range.
7. What happens if communication or power is interrupted?
The module can be configured so outputs either hold their last value or return to a default 0 VDC state when control communication or system power conditions change.
8. Does the module provide output isolation?
The module provides optical isolation between the user field side and logic side, improving protection against electrical interference and transient conditions.
9. What diagnostic information is available?
The IC200ALG321B provides field power monitoring diagnostics and LED indicators for module operating status and user-side power availability.
10. Which automation platform is compatible with the IC200ALG321B?
The module belongs to the GE VersaMax I/O family and is designed for use with VersaMax PLC CPUs, network interface units, and distributed I/O systems.
